Madone SL 6 Disc gives you the advanced aerodynamic performance and all-around ride quality of Trek's ultimate race bike at a great value.
Madone SL 6 Disc gives you the advanced aerodynamic performance and all-around ride quality of Trek's ultimate race bike at a great value.
Trek

Trek Madone SL 6 Disc 105 Di2 Road Bike 2023 in Black

£4,346.00 £5,500.00 21% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Madone SL 6 Disc 105 Di2 Road Bike 2023 in Black

Season:2024

Brand:Trek

Code:36959BLK

Madone SL 6 Disc gives you the advanced aerodynamic performance and all-around ride quality of our ultimate race bike at a great value. It has Shimano's all-new wireless 105 Di2 electronic drivetrain, aero wheels, a road-smoothing IsoSpeed decoupler, powerful hydraulic disc brakes and a sleek look that screams for speed.

It has Shimano's all-new wireless 105 Di2 electronic drivetrain, aero wheels, a road-smoothing IsoSpeed decoupler, powerful hydraulic disc brakes and a sleek look that screams for speed. A lightweight 500 Series OCLV Carbon frame and fork with Kammtail Virtual Foil tubes that cut through the wind, a road-smoothing IsoSpeed decoupler, a Shimano 105 Di2 2x12 wireless electronic group set, tubeless-ready Bontrager Aeolus Elite 50 OCLV Carbon wheels, hydraulic disc brakes and an aero handlebar that's compatible with clip-on aero bars.

Adjustable Top Tube IsoSpeed lets you adjust compliance to your preference, and it's damped with an elastomer so it rebounds in a smooth, controlled, stable motion

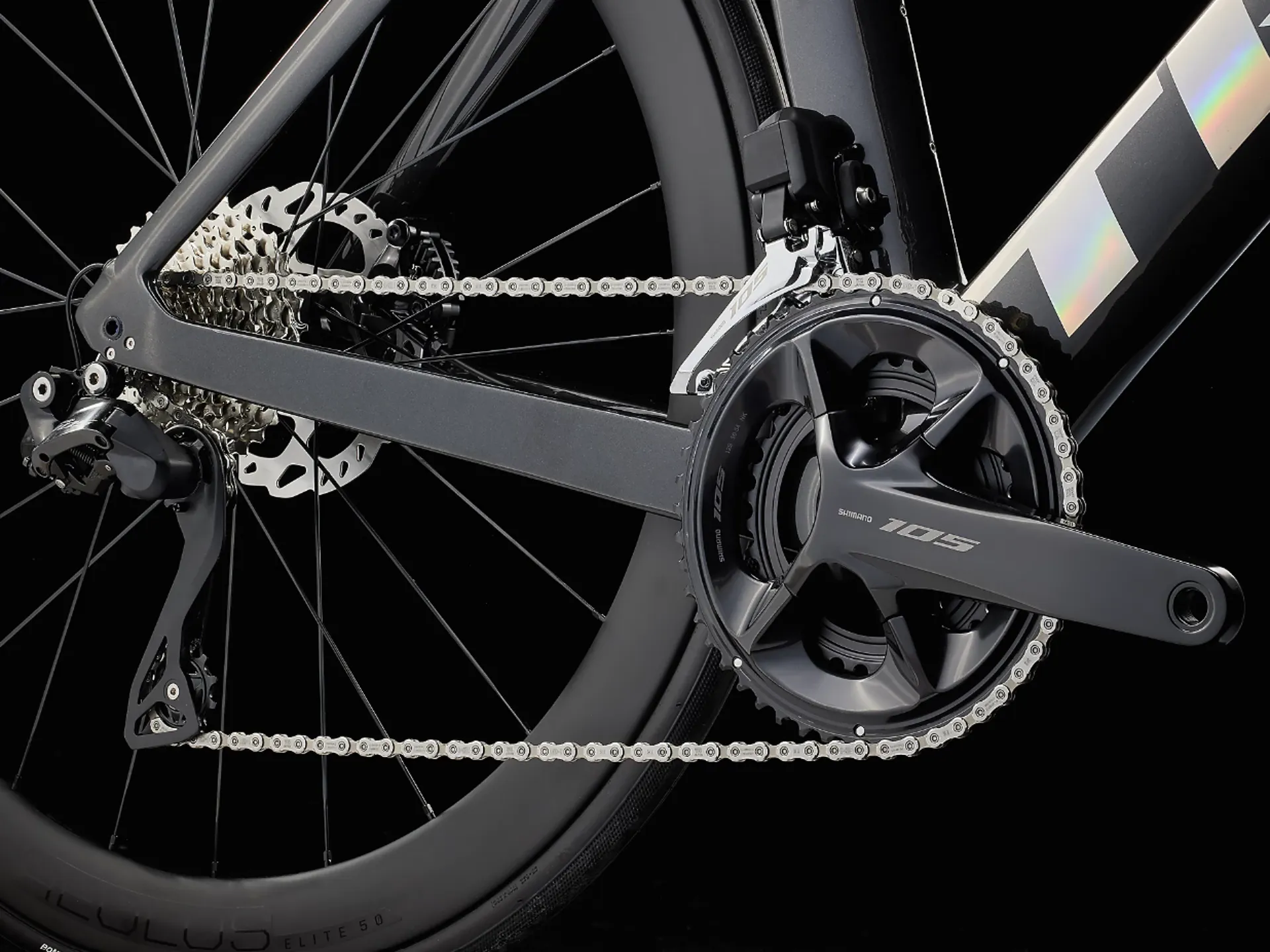

The all-new wireless 105 Di2 delivers faster, smoother and more responsive shifts than ever
All the aero advantages of Madone, plus the added capability to clip on aero bars for triathlons and time trials

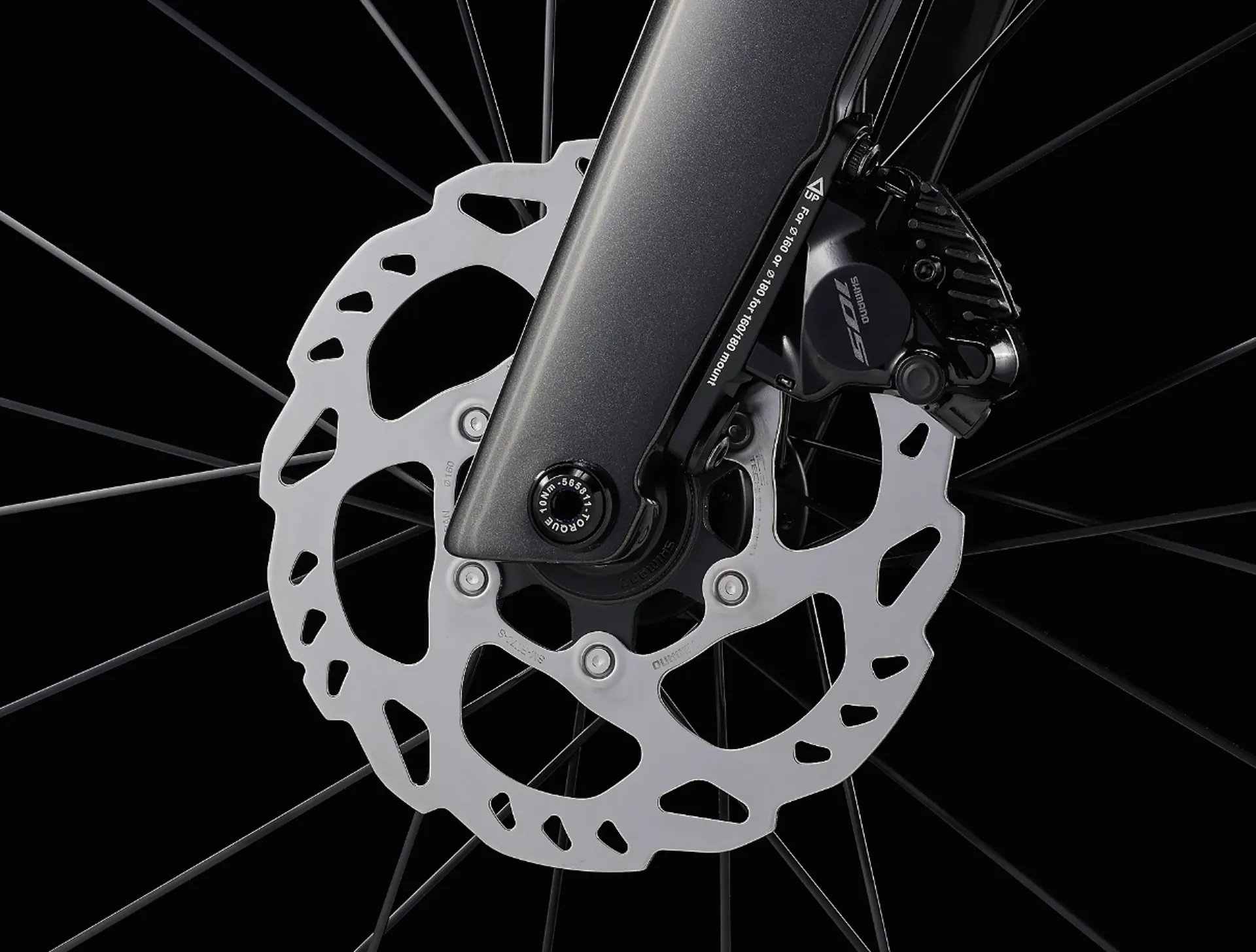

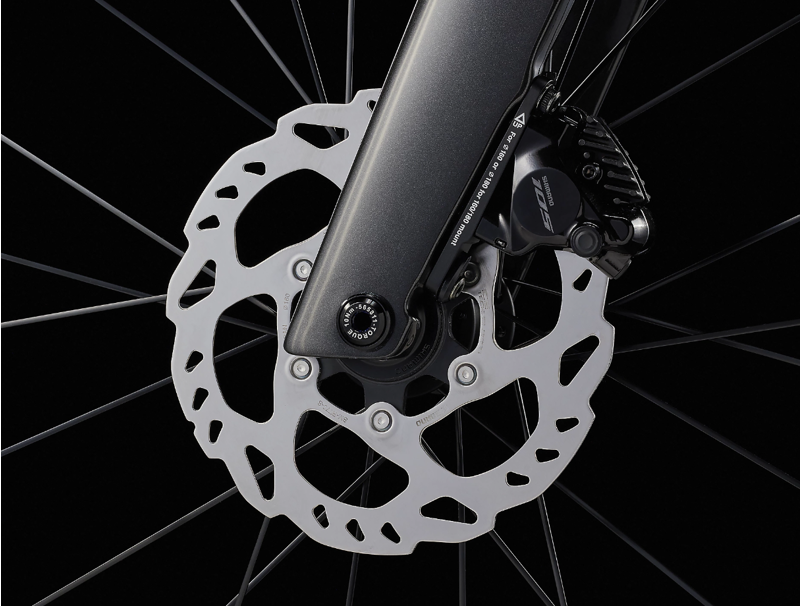

Disc brakes offer better braking performance and extra clearance for wider, more stable tyres
The Madone seat post has an integrated mount for the Bontrager Flare RT tail light

Key Features & Benefits

  • 500 Series OCLV Carbon fibre frame:which achieves a superb balance of lightweight, strength and stiffness
  • H 1.5 Geometry:developed in conjunction with the Trek Segafredo and Drops pro cycling teams, puts the rider in the optimal aero race position and is featured on the Madone SLR family. It is the sweet spot for what racers want
  • Shimano 105 Di2 Groupset: Latest wireless version proven reliable and fantastic value for money

Full Specification

  • Frame:500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, flat-mount disc, Duo Trap S-compatible, 142x12 mm thru-axle
  • Fork:Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat mount disc
  • Number of Gears:24
  • Gear Shifters:Shimano 105 R7170, 12-speed
  • Chainset:Shimano 105 R7100, 50/34, 165-175 mm length
  • Chainrings:50/34T
  • Rear Cassette:Shimano 105 7100, 11-34, 12-speed
  • Chain:Shimano SLX M7100, 12-speed
  • Front Derailleur:Shimano 105 R7170
  • Rear Derailleur:Shimano 105 R7170
  • Bottom Bracket:Praxis, T47 threaded, internal bearing
  • Pedals:Not Included
  • Rims:Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
  • Front Hub:Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
  • Rear Hub:Bontrager Aeolus Elite 50, Tubeless Ready
  • Front Tyre:Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c
  • Rear Tyre:Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c
  • Brakes:Shimano SM-RT70, CenterLock, 160 mm
  • Handlebars:Bontrager Elite Aero VR-CF, alloy, 31.8 mm, invisible cable routing, 93 mm reach, 123 mm drop, 40-44cm width
  • Handlebar Tape:Bontrager Supertack Perf tape
  • Headset:Madone integrated, stainless cartridge bearings, sealed, 1-3
  • Stem:Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70-110mm Length
  • Saddle:Bontrager Aeolus Comp, steel rails
  • Seatpost:Madone aero carbon seatmast cap, integrated light mount, 5mm offset, short/tall size dependant
  • Accessories:N/A
  • Weight:56 - 8.70 kg / 19.19 lbs
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Trek Madone SL/SLR Bikes

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.
Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
47152 - 158 cm5'0" - 5'2"71 - 75 cm28" - 30"
50158 - 163 cm5'2" - 5'4"74 - 77 cm29" - 30"
52163 - 168 cm5'4" - 5'6"76 - 79 cm30" - 31"
54168 - 174 cm5'6" - 5'9"78 - 82 cm31" - 32"
56174 - 180 cm5'9" - 5'11"81 - 85 cm32" - 33"
58180 - 185 cm5'11" - 6'1"84 - 87 cm33" - 34"
60185 - 190 cm6'1" - 6'3"86 - 90 cm34" - 35"
62190 - 195 cm6'3" - 6'5"89 - 92 cm35" - 36"

Geometry Information for Trek Madone SL/SLR Bikes

Frame size number47 cm50 cm52 cm54 cm56 cm58 cm60 cm62 cm
Wheel size700c700c700c700c700c700c700c700c
A — Seat tube42.445.348.349.652.555.357.359.3
B — Seat tube angle74.6°74.6°74.2°73.7°73.3°73.0°72.8°72.5°
C — Head tube length1011.112.113.115.117.119.121.1
D — Head angle72.1°72.1°72.8°73.0°73.5°73.8°73.9°73.9°
E — Effective top tube51.252.153.454.355.957.458.659.8
G — Bottom bracket drop7.27.27.2776.86.86.8
H — Chainstay length414141414141.141.141.2
I — Offset4.54.54.54.54444
J — Trail6.86.25.85.65.85.75.65.6
K — Wheelbase97.297.497.798.198.399.2100.1101
L — Standover69.271.173.274.476.879.381.182.9
M — Frame reach37.337.838.338.639.139.639.940.3
N — Frame stack50.752.153.354.156.358.160.162
Saddle rail height min (w/short mast)55.558.561.56467697173
Saddle rail height max (w/short mast)61.564.567.57073757779
Saddle rail height min (w/tall mast)59626567.570.572.574.576.5
Saddle rail height max (w/tall mast)65687173.576.578.580.582.5

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Technical Information

Geometry for Trek Madone SL6 Carbon Road Bike

All measurements in cm unless stated otherwise

Frame Size Number4750525456586062
Wheel Size700c700c700c700c700c700c700c700c
A - Seat Tube42.445.348.349.652.555.357.359.3
B - Seat Tube Angle74.6°74.6°74.2°73.7°73.3°73.0°72.8°72.5°
C - Head Tube Length10.011.112.113.115.117.119.121.1
D - Head Angle72.1°72.1°72.8°73.0°73.5°73.8°73.9°73.9°
E -Effective TT Length51.252.153.454.355.957.458.659.8
G - BB Drop7.27.27.27.07.06.86.86.8
H -Chainstay length41.041.041.041.041.041.141.141.2
I -Offset4.54.54.54.54.04.04.04.0
J -Trail6.86.25.85.65.85.75.65.6
K - Wheelbase97.297.497.798.198.399.2100.1101.0
L - Standover69.271.173.274.476.879.381.182.9
M - Frame Reach37.337.838.338.639.139.639.940.3
N - Frame Stack50.752.153.354.156.358.160.162.0
Min saddle rail height (short mast)55.558.561.564.067.069.071.073.0
Max saddle rail height (short mast)61.564.567.570.073.075.077.079.0
Min saddle rail height (tall mast)59.062.065.067.570.572.574.576.5
Min saddle rail height (tall mast)65.068.071.073.576.578.580.582.5
