The Madone SL 6 offers legendary speed, cutting-edge tech and unbelievable ride quality in a 500 Series OCLV Carbon package that keeps things light and quick for fast road rides and races.
The Madone SL 6 offers legendary speed, cutting-edge tech and unbelievable ride quality in a 500 Series OCLV Carbon package that keeps things light and quick for fast road rides and races.
Trek

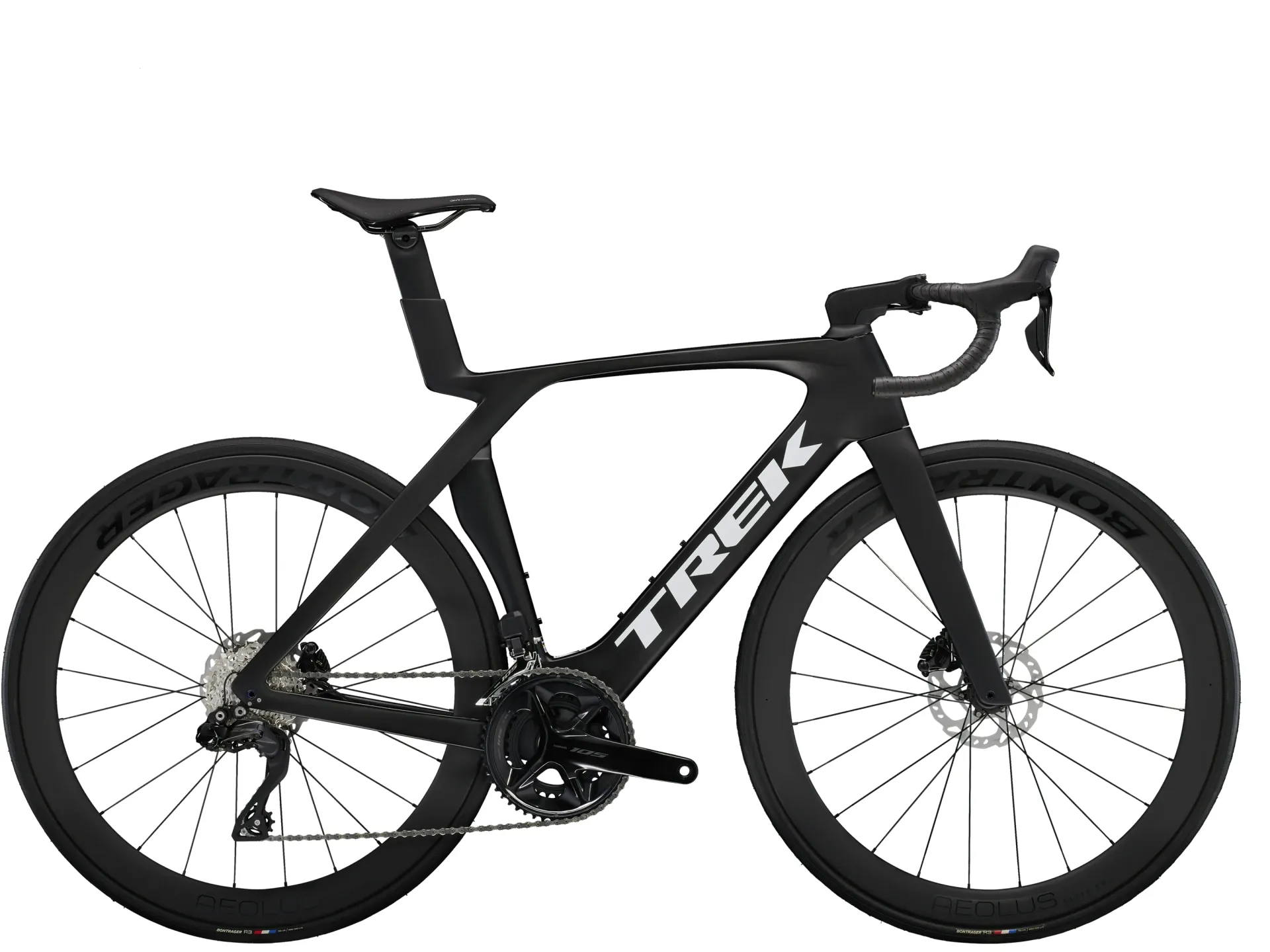

Trek Madone SL 6 Gen 7 Carbon Road Bike 2024 in Carbon Smoke

£4,780.00 £5,625.00 15% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

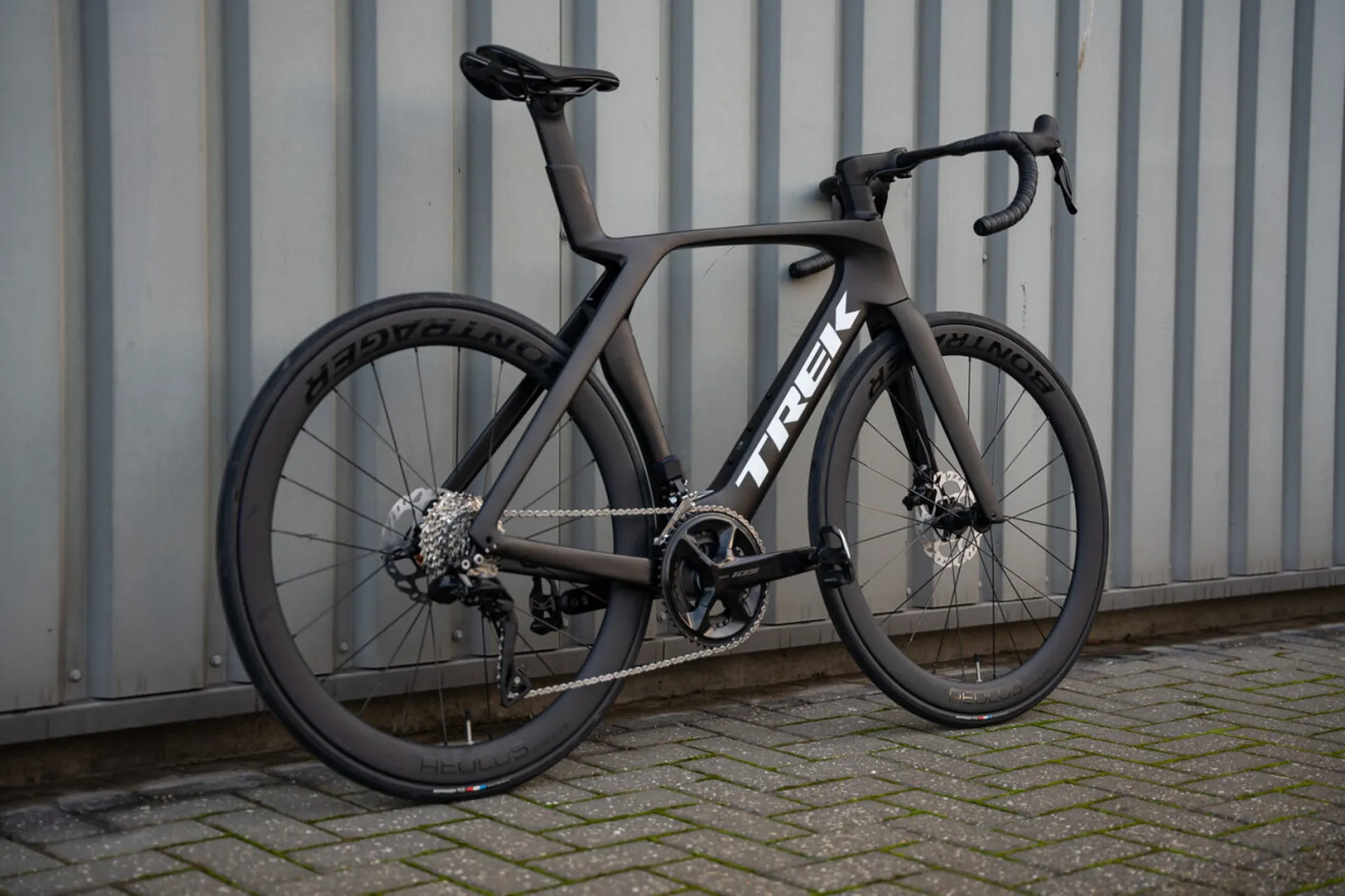

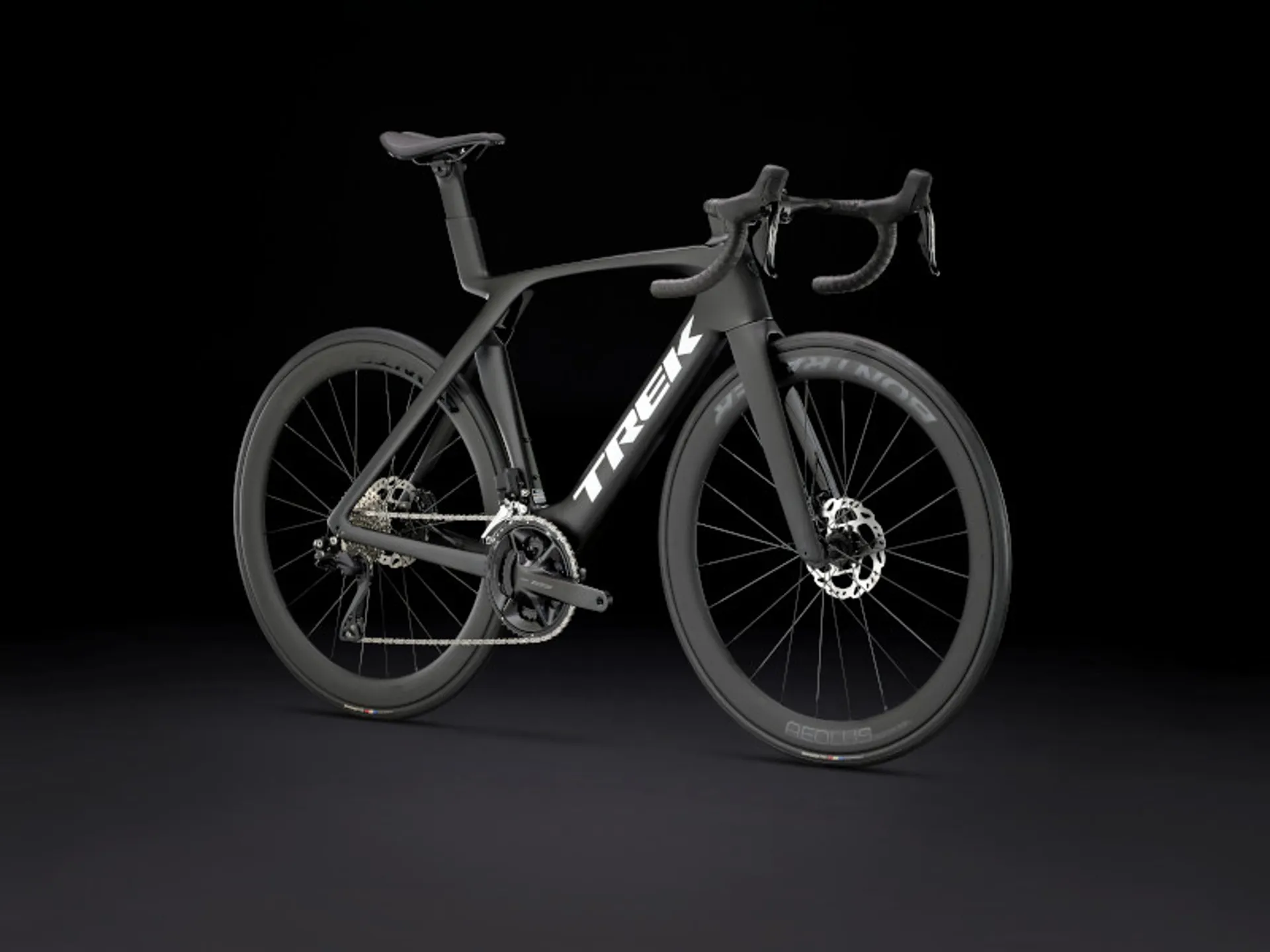

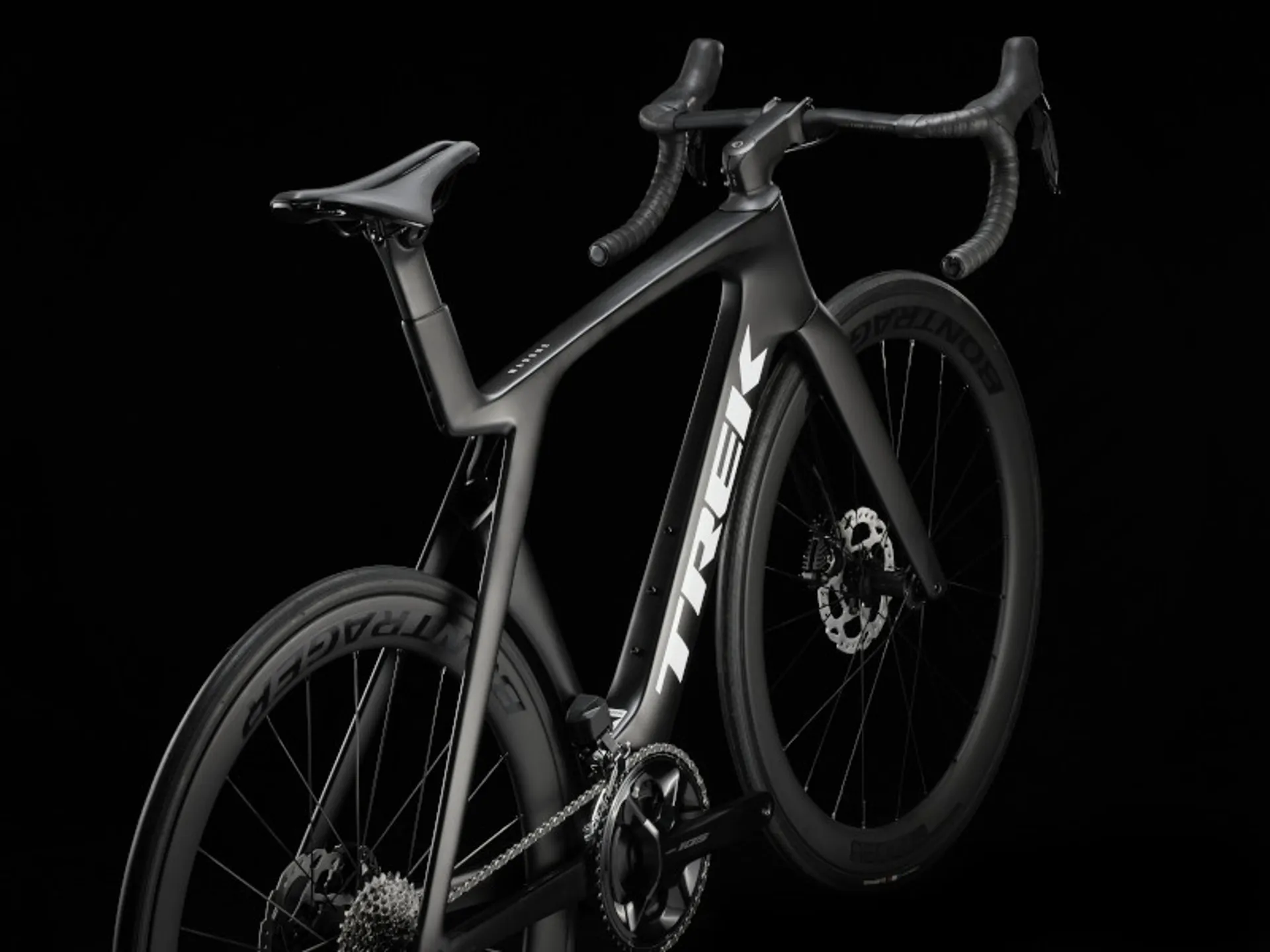

Trek Madone SL 6 Gen 7 Carbon Road Bike 2024 in Carbon Smoke

Season:2024

Brand:Trek

Code:41466MATCBNSMK

The Madone SL 6 offers legendary speed, cutting-edge tech and unbelievable ride quality in a 500 Series OCLV Carbon package that keeps things light and quick for fast road rides and races. IsoFlow technology smooths out bumps in the road while lowering weight and offering an aerodynamic advantage over your competition, and a wealth of super-speedy features like Trek's newest Kammtail aero shapes, an economical Shimano 105 Di2 electronic drivetrain, carbon wheels and invisible hose routing make for a race machine that feels just as fast as it looks.

You want speed, quality and performance in a more economical package, alongside a carbon frame that turns heads, a high-quality electronic drivetrain, grippy and long-lasting tyres, revolutionary IsoFlow aerodynamics and an all-out aero rig that makes every ride feel like your fastest ride ever.

A 500 Series OCLV Carbon frame with aero Kammtail tube shaping and revolutionary IsoFlow seat tube, invisible routing, a super fast Shimano 105 Di2 12-speed electronic drivetrain, Bontrager RSL Aero OCLV Carbon handlebars, and Bontrager Aeolus Elite 50 tubeless-ready carbon wheels.

The Madone SL 6 is a premium race-ready speed demon that's itching to take you on your fastest road rides and races. It belongs at the front of the group setting the pace and conquering KOMs.

Key Features:

  • 500 Series OCLV Carbon Frame:Trek's super light carbon laminate combines aero performance with low weight.

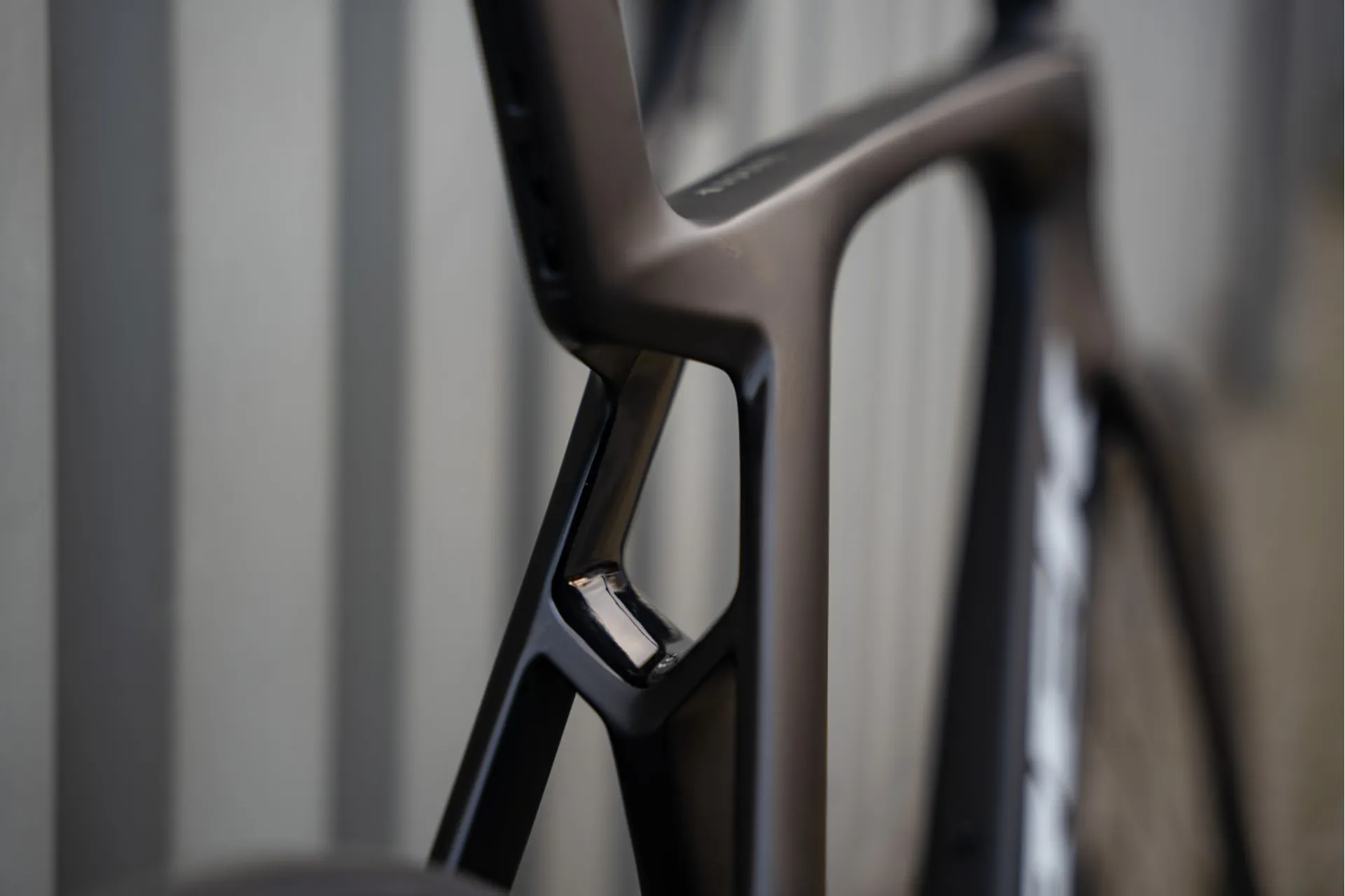

  • IsoFlow technology:Helps the seat mast and saddle flex for a more comfortable ride while also improving frame aerodynamics and shaving weight.
  • Shimano 105 Di2 Gears:Provides affordable electronic shifting performance.

Full Specifications:

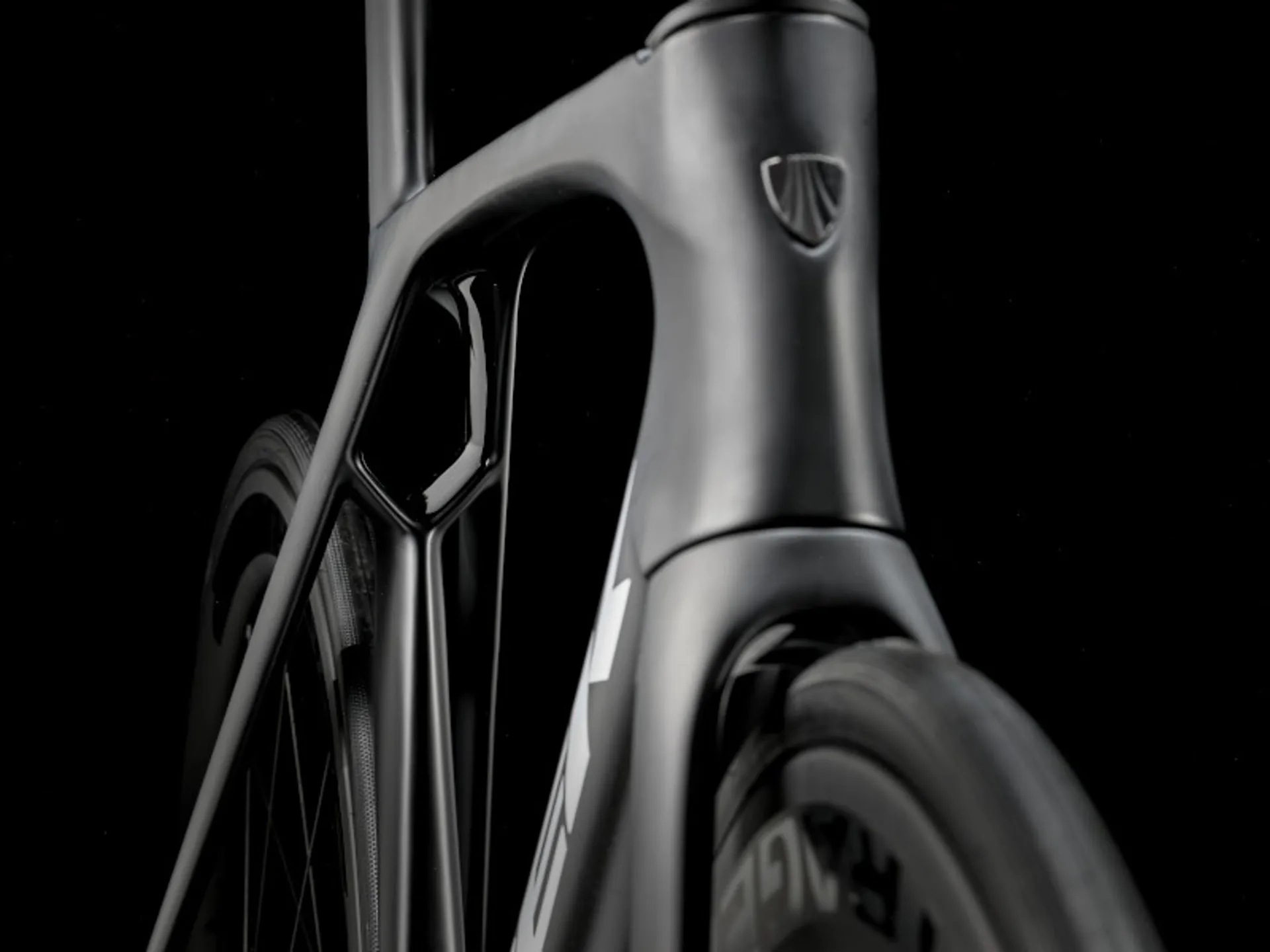

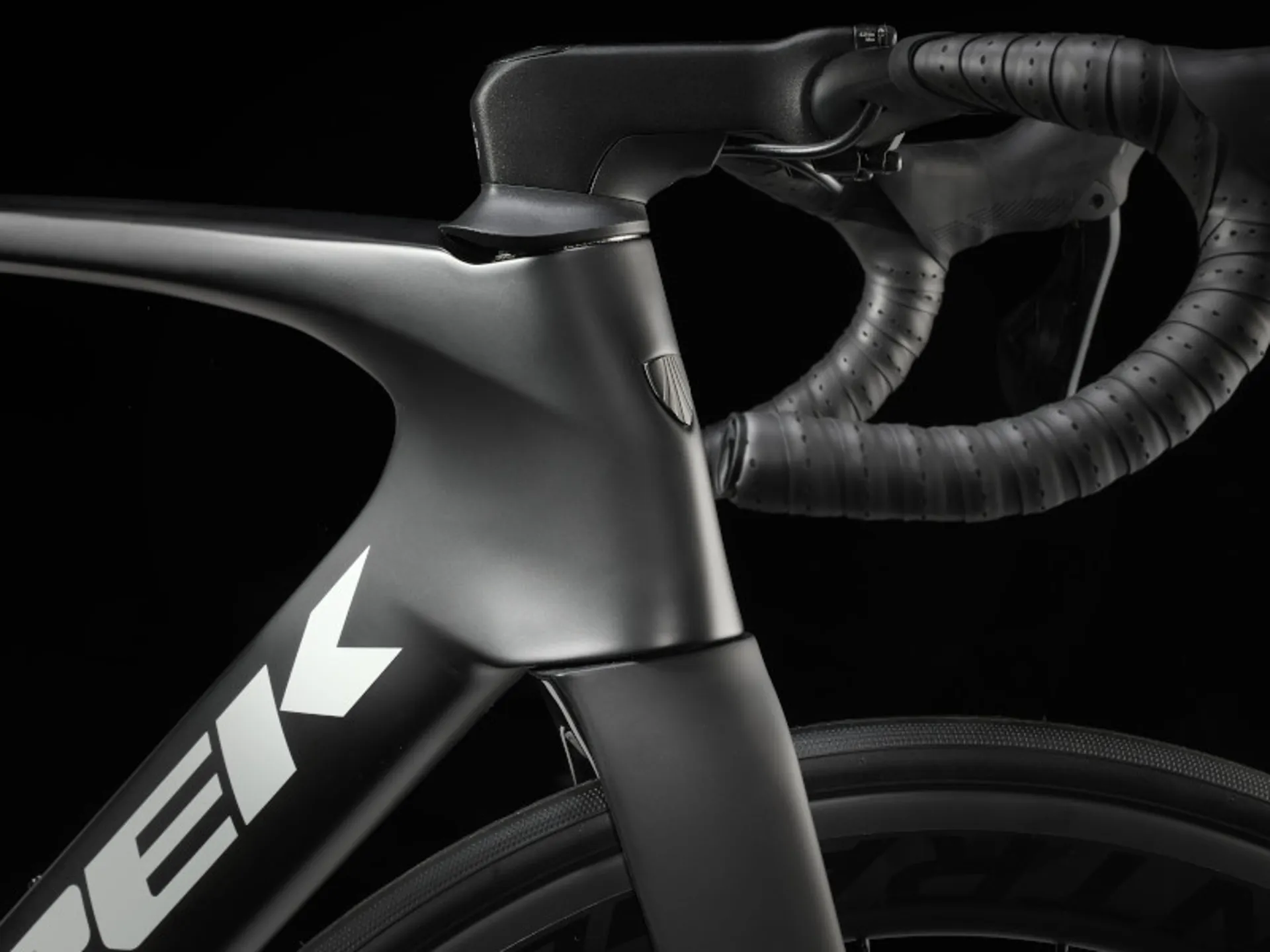

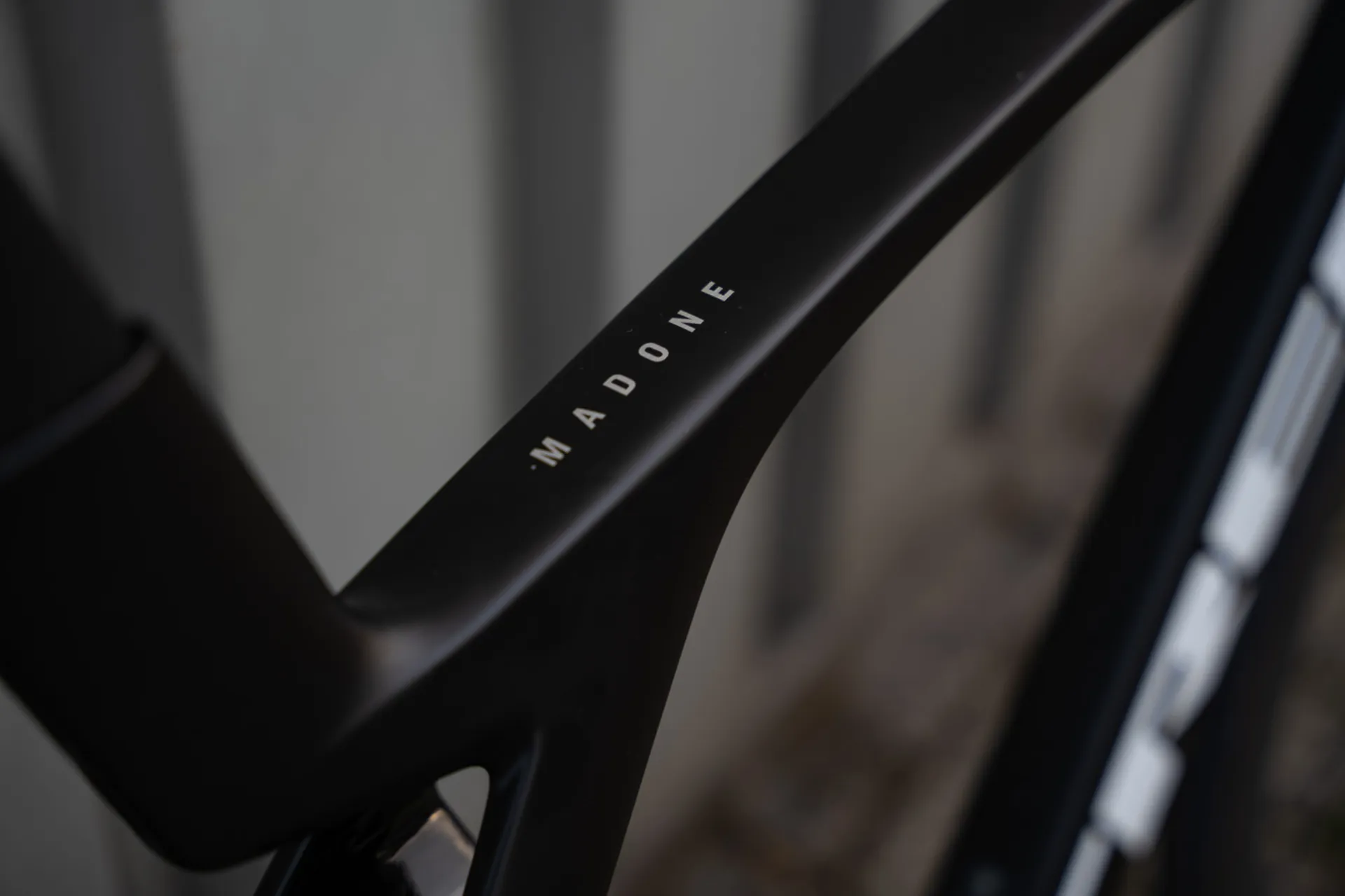

  • Frame:500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat-mount disc, 142x12mm thru axle
  • Fork:Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle
  • Number of Gears:24
  • Gear Shifters:Shimano 105 R7170, 12-speed

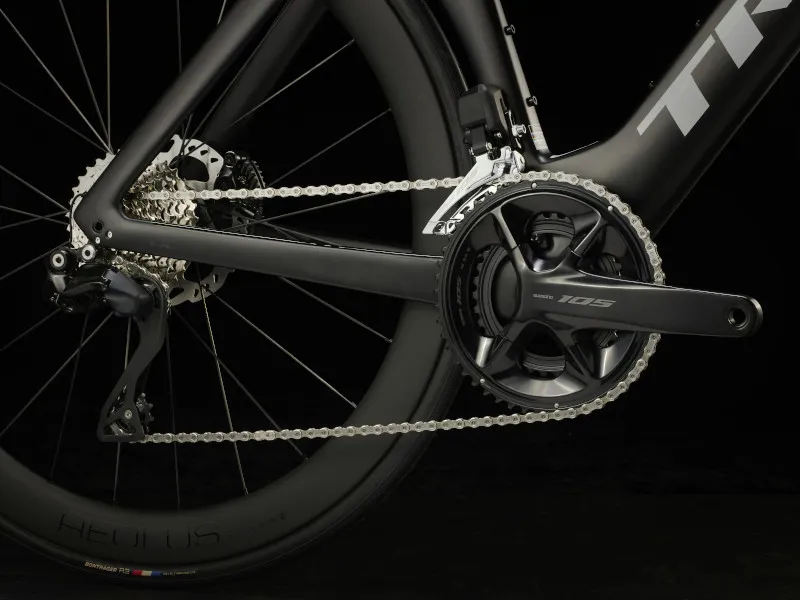

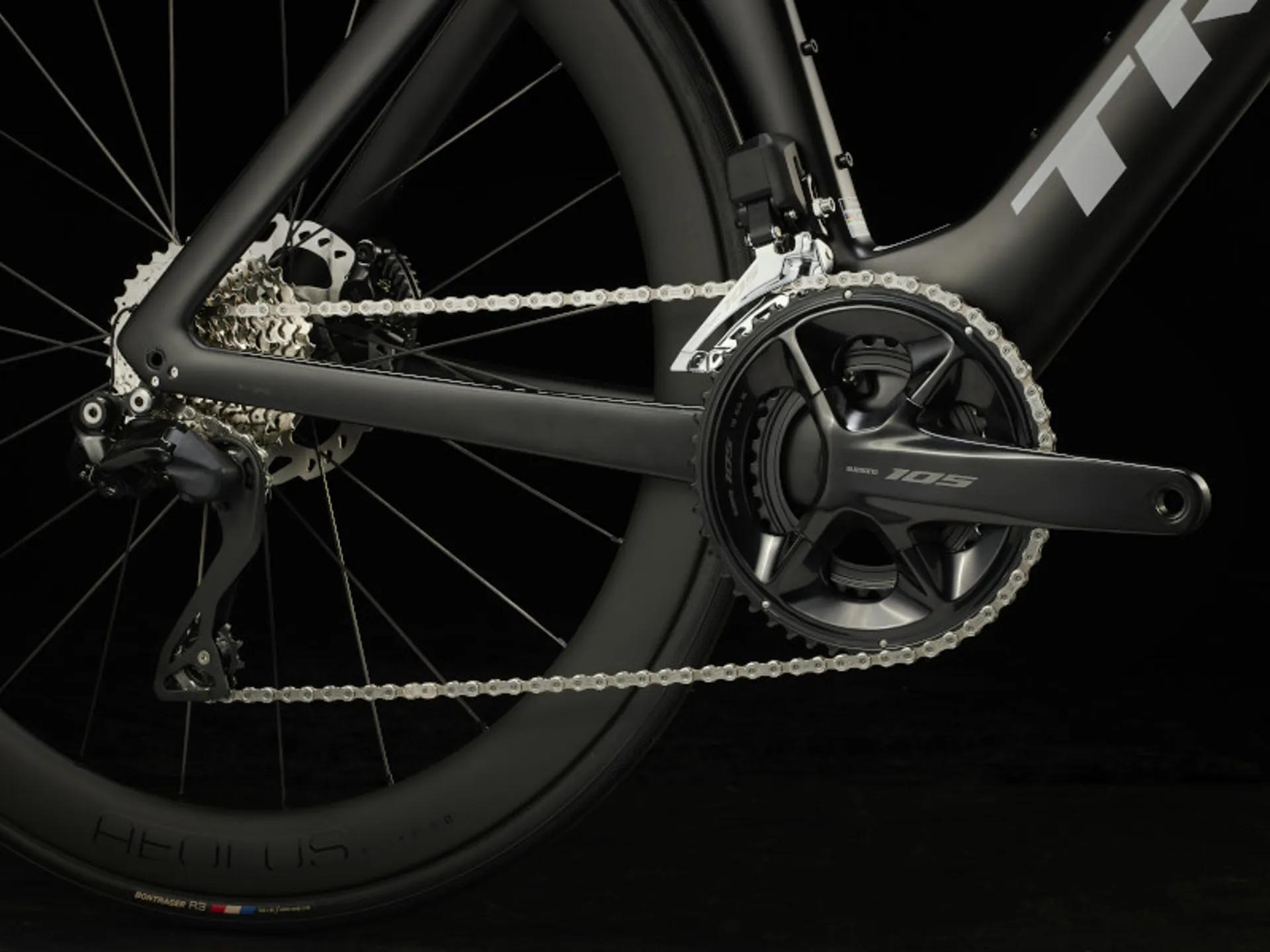

  • Chainset:Shimano 105 R7100, 50/34, 165 - 175 mm length
  • Chainrings:50/34T
  • Rear Cassette:Shimano 105 7101, 11-34, 12-speed
  • Chain:Shimano SLX M7100, 12-speed
  • Front Derailleur:Shimano 105 R7150 Di2, braze-on, down swing
  • Rear Derailleur:Shimano 105 R7150 Di2, 34T max cog
  • Bottom Bracket:Praxis, T47 threaded, internal bearing
  • Pedals:Not supplied:Shop pedals here
  • Front Wheel:Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
  • RearWheel:Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50 mm rim depth, Shimano 11-speed freehub, 142x12 mm thru axle
  • Front Tyre:Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 mm
  • Rear Tyre:Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 mm

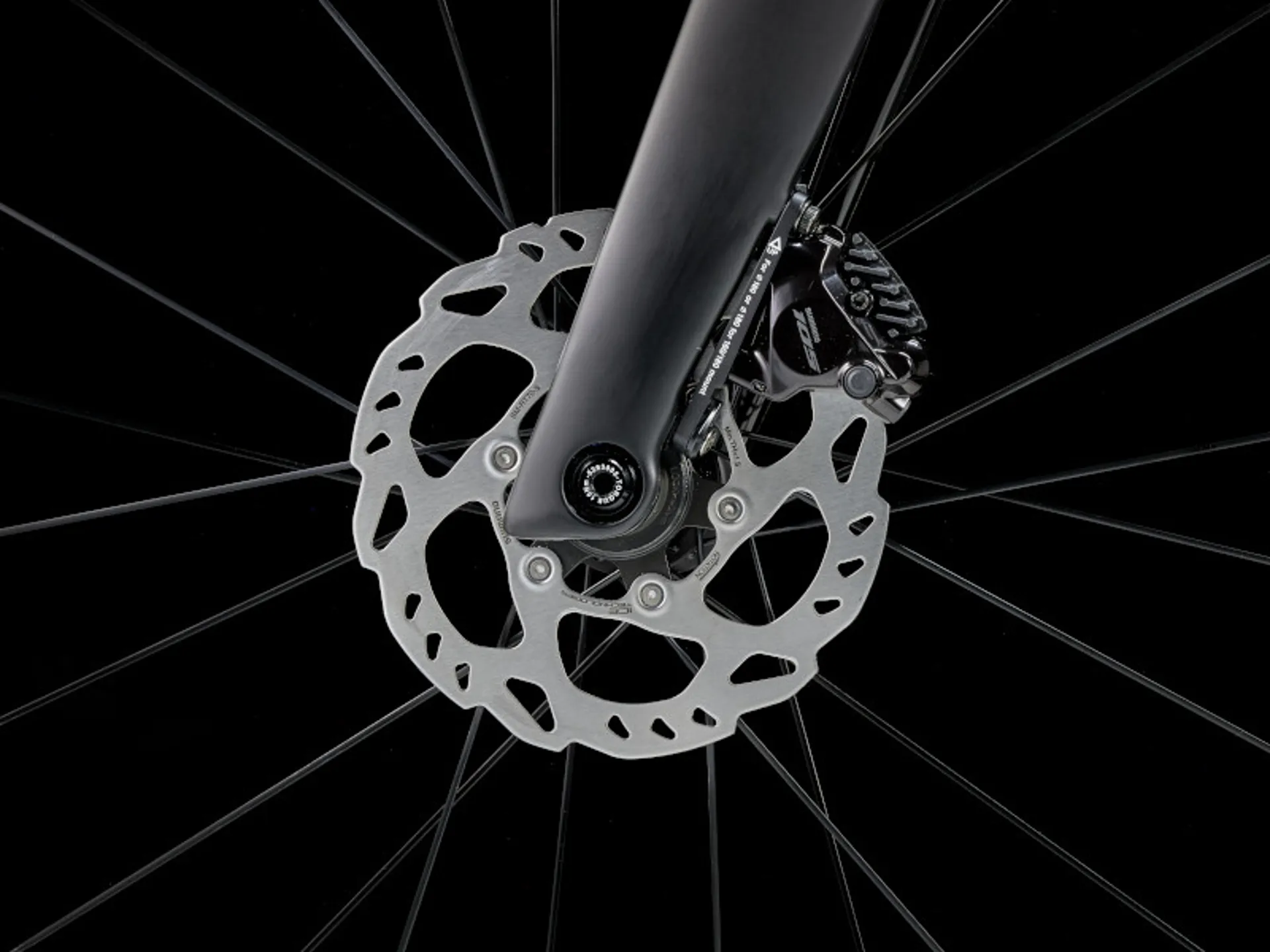

  • Brakes:Shimano RT70, CentreLock, 160 mm

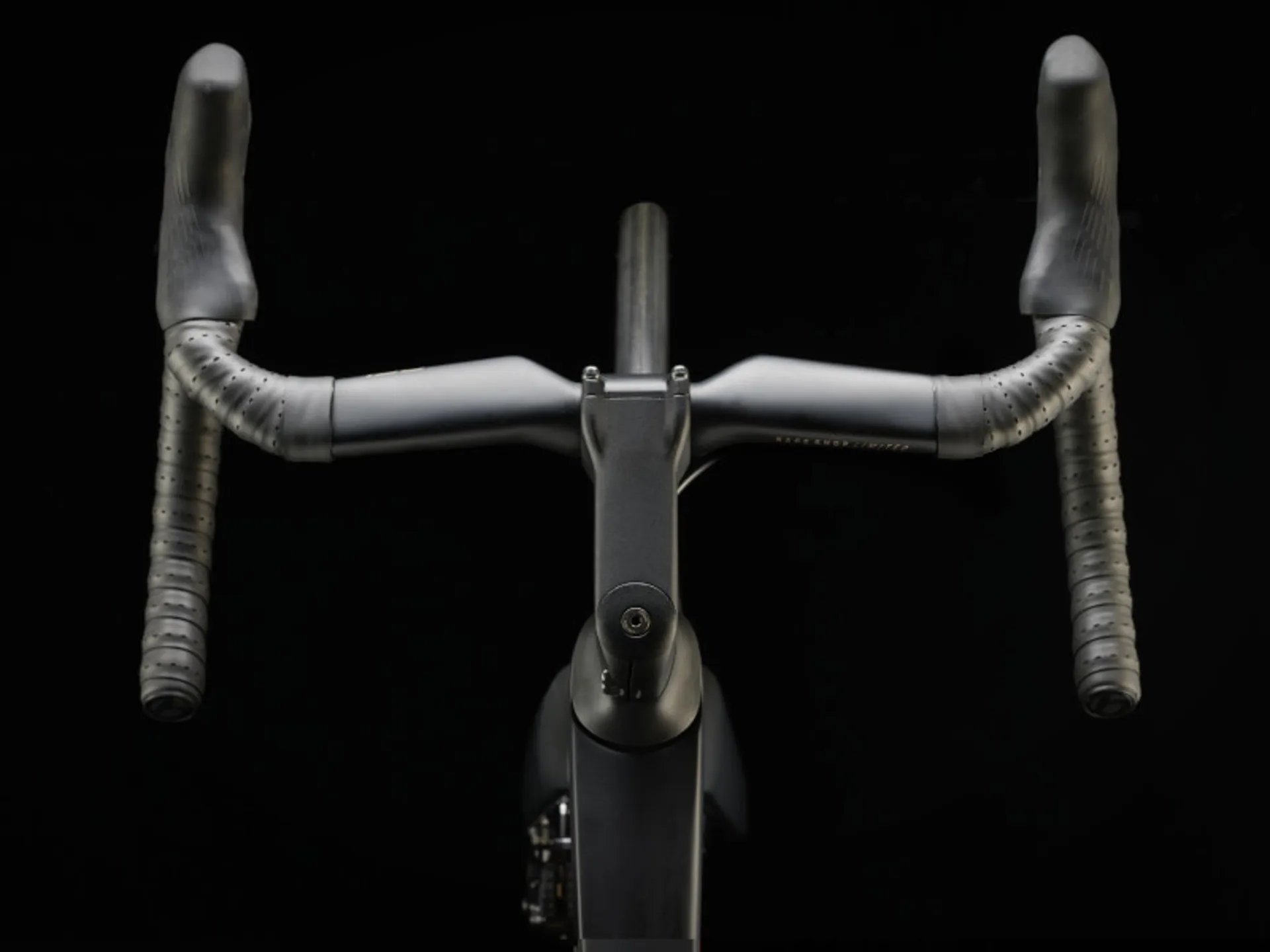

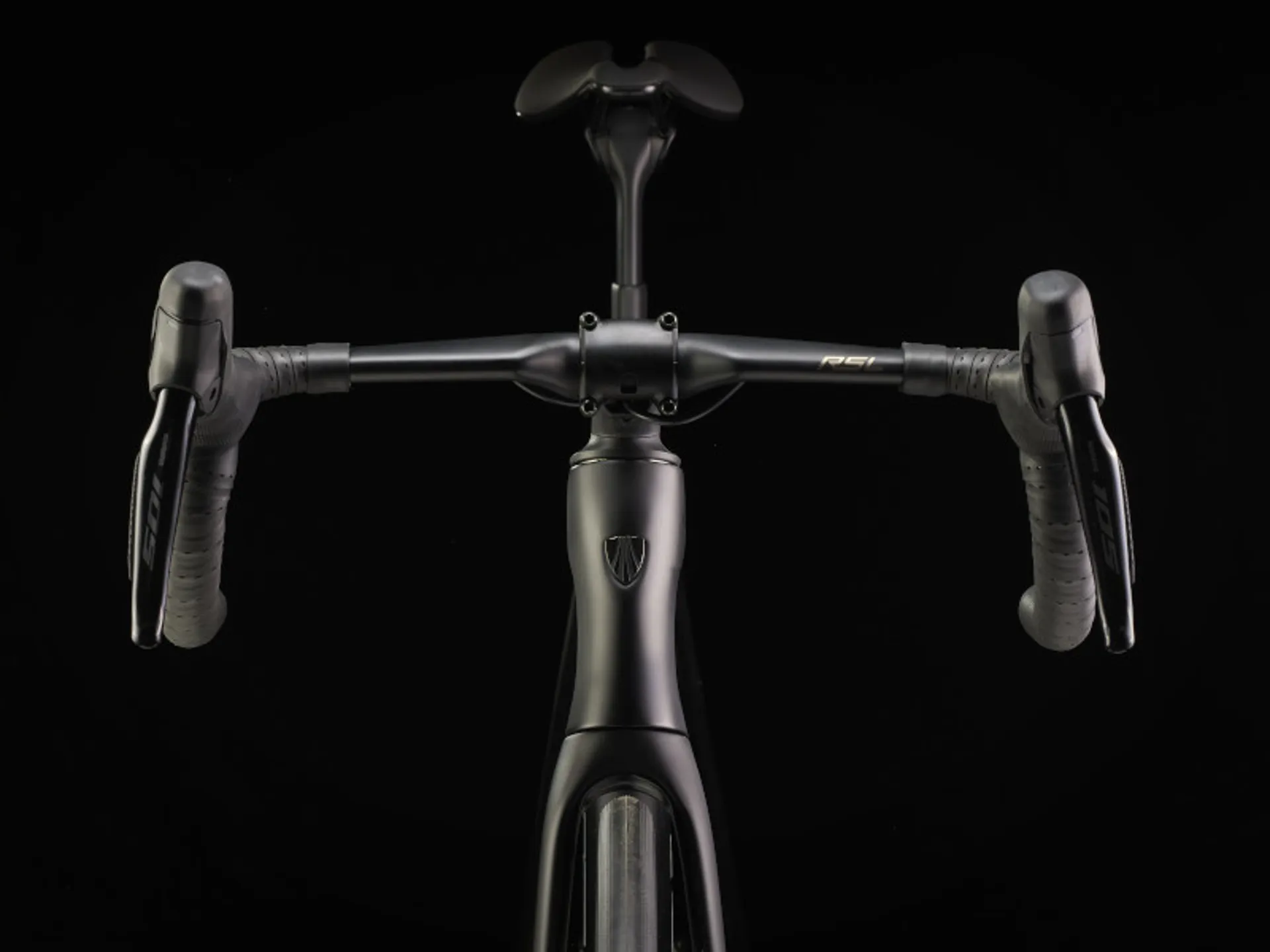

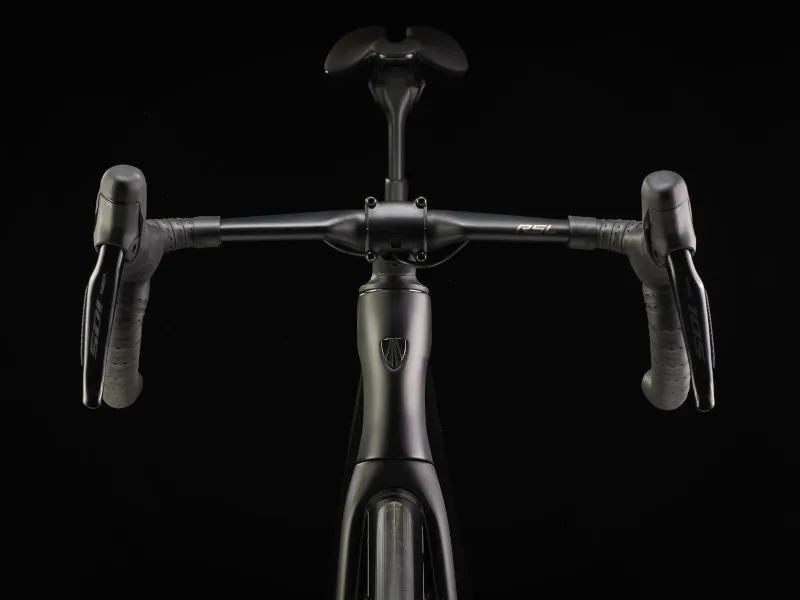

  • Handlebars:Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 35- - 41 cm control width, 38 - 44 cm drops width

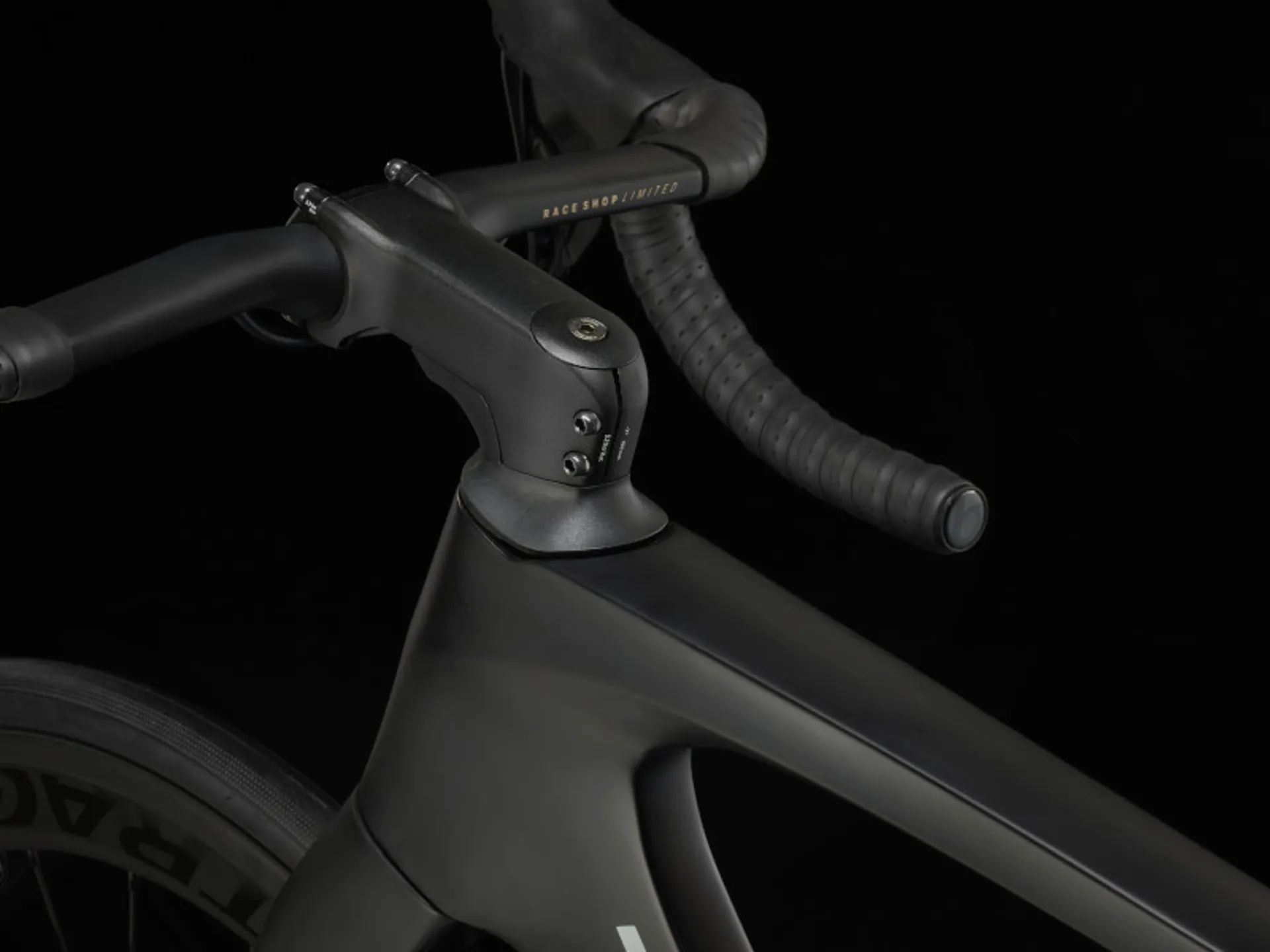

  • Stem:Trek RCS Pro, -7-degree, 70 - 110 mm length
  • Saddle:Bontrager Aeolus Comp, steel rails, 145 mm width
  • Seatpost:Madone aero carbon seatpost, integrated light mount, 0mm offset, long length
  • Weight:56 – 8.40 kg/18.52 lb
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Trek Madone SL/SLR Bikes

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.
Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
47152 - 158 cm5'0" - 5'2"71 - 75 cm28" - 30"
50158 - 163 cm5'2" - 5'4"74 - 77 cm29" - 30"
52163 - 168 cm5'4" - 5'6"76 - 79 cm30" - 31"
54168 - 174 cm5'6" - 5'9"78 - 82 cm31" - 32"
56174 - 180 cm5'9" - 5'11"81 - 85 cm32" - 33"
58180 - 185 cm5'11" - 6'1"84 - 87 cm33" - 34"
60185 - 190 cm6'1" - 6'3"86 - 90 cm34" - 35"
62190 - 195 cm6'3" - 6'5"89 - 92 cm35" - 36"

Geometry Information for Trek Madone SL/SLR Bikes


Frame size number47 cm50 cm52 cm54 cm56 cm58 cm60 cm62 cm
Wheel size700c700c700c700c700c700c700c700c
A — Seat tube42.445.348.349.652.555.357.359.3
B — Seat tube angle74.6°74.6°74.2°73.7°73.3°73.0°72.8°72.5°
C — Head tube length1011.112.113.115.117.119.121.1
D — Head angle72.1°72.1°72.8°73.0°73.5°73.8°73.9°73.9°
E — Effective top tube51.252.153.454.355.957.458.659.8
G — Bottom bracket drop7.27.27.2776.86.86.8
H — Chainstay length414141414141.141.141.2
I — Offset4.54.54.54.54444
J — Trail6.86.25.85.65.85.75.65.6
K — Wheelbase97.297.497.798.198.399.2100.1101
L — Standover69.271.173.274.476.879.381.182.9
M — Frame reach37.337.838.338.639.139.639.940.3
N — Frame stack50.752.153.354.156.358.160.162
Stem length80909090100100110110
Saddle rail height min (w/short mast)55586163.566.568.570.573
Saddle rail height max (w/short mast)62656870.57375.577.580.5
Saddle rail height min (w/tall mast)58.561.564.56770727476.5
Saddle rail height max (w/tall mast)65.568.571.57476.5798184

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
