The Madone SLR 7 Disc eTap is ultralight, insanely fast and super smooth
The Madone SLR 7 Disc eTap is ultralight, insanely fast and super smooth
Trek

Trek Madone SLR 7 eTap Aero Road Bike 2023 in Purple

Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Madone SLR 7 eTap Aero Road Bike 2023 in Purple

Season:2024

Brand:Trek

Code:35744Amethyst

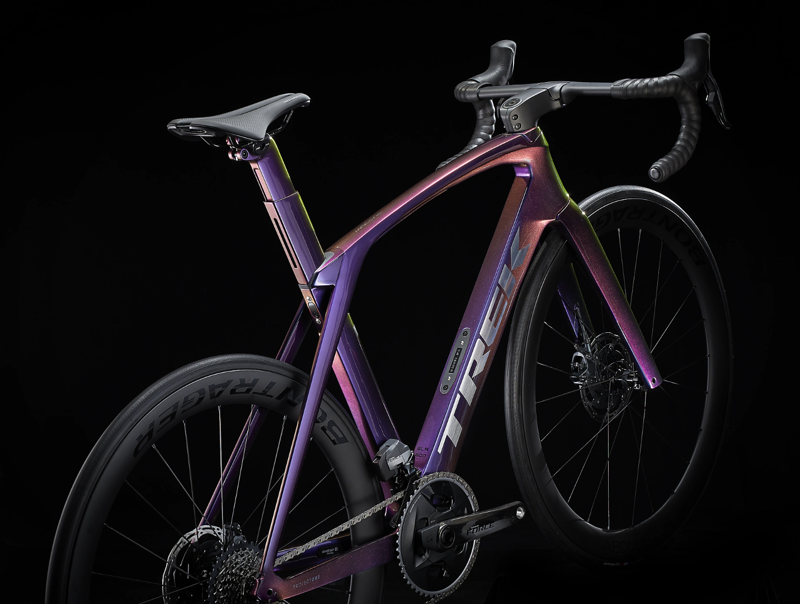

The Madone SLR 7 Disc eTap is ultralight, insanely fast and super smooth.

This carbon road bike is built with Trek's all-new 800 Series OCLV Carbon aero frame, adjustable Top Tube IsoSpeed, hydraulic disc brakes for all-weather stopping power and control and wireless electronic SRAM drive train for fast and reliable shifting.

800 Series OCLV Carbon is the lightest laminate Trek has ever made, and it makes Madone faster on any terrain, in any conditions.
Comes with a SRAM Force AXS power meter for more effective training rides from the start.

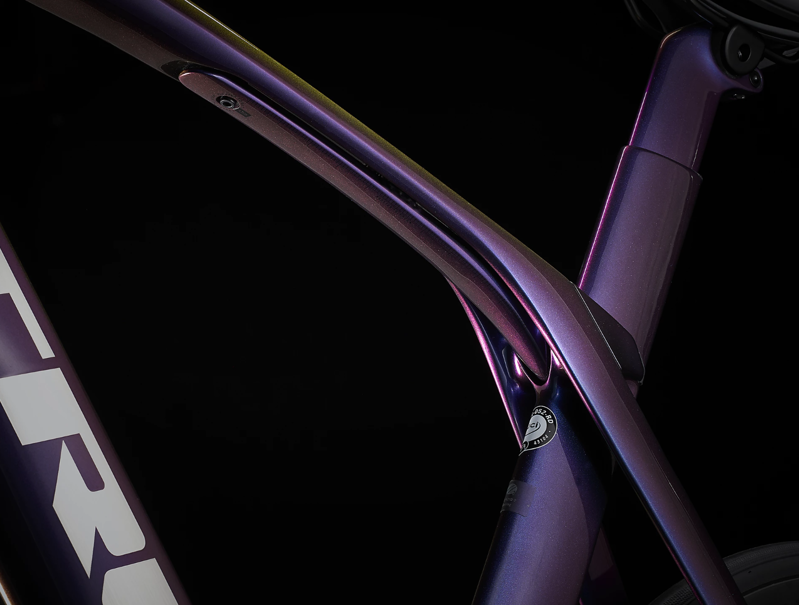

Adjustable Top Tube IsoSpeed lets you adjust compliance to your preference, and it's damped with an elastomer so it rebounds in a smooth, controlled, stable motion.

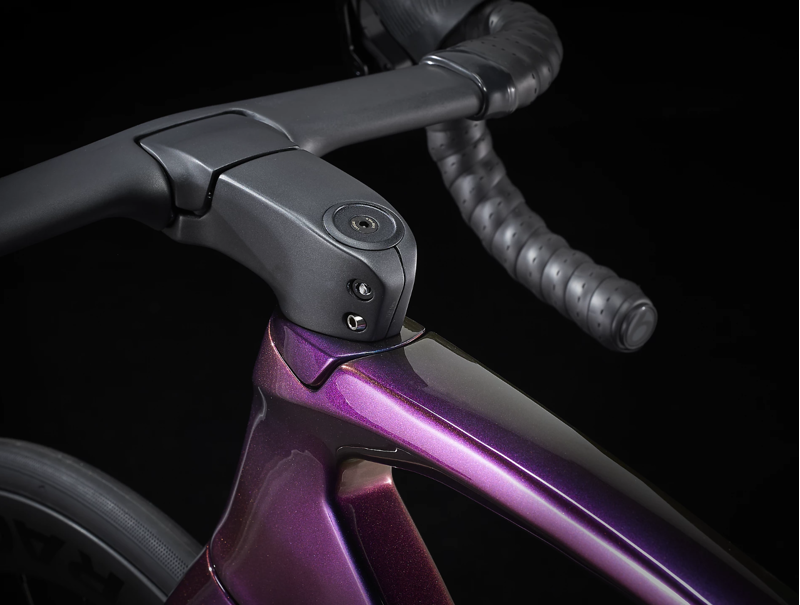

A separate bar and stem with an aero carbon faceplate gives you great adjustability without compromising on aerodynamics.
Madone Project One ICON paint schemes make the ultimate racing bike a true piece of artwork.

The Trek Madone 7 SLR eTap Disc is a light and fast aerodynamic road bike, featuring Trek's lightest carbon laminate yet. SRAM Force eTap wireless shifting and integrated power meter gives you the edge in training and at a race.

It comes with a 800 series OCLV frame and an adjustable Top Tube IsoSpeed decoupler, which allows you to adjust the amount of compliance. It is also dampened by an elastomer, so it helps you to control the rear end of your bike. The Bontrager Aeolus 50mm deep section wheels are light and allow you to cut through headwind efficiently. The SRAM Force eTap AXS groupset delivers fast, precise and intuitive shifting and the 12-speed drivetrain allows you a wide selection of gears. On top of that, it comes with a SRAM Force power meter. The SRAM Force eTap hydraulic disc brakes make sure that you can stop in every condition.

Key Features:

  • 800 Series OCLV Carbon Frame:Trek's lightest carbon laminate combines aero performance with low weight
  • Project One:P1 allows the ultimate custom finish
  • Invisible cable routing:it offers a clean look and with a separate bar and stem with an aero faceplate, you can adjust it to your needs without compromising on aerodynamics

Full Specifications:

  • Frame:800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
  • Fork:Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat-mount disc, carbon dropouts, 12x100 mm thru axle
  • Number of Gears:12
  • Gear Shifters:SRAM Force eTap AXS, 12-speed

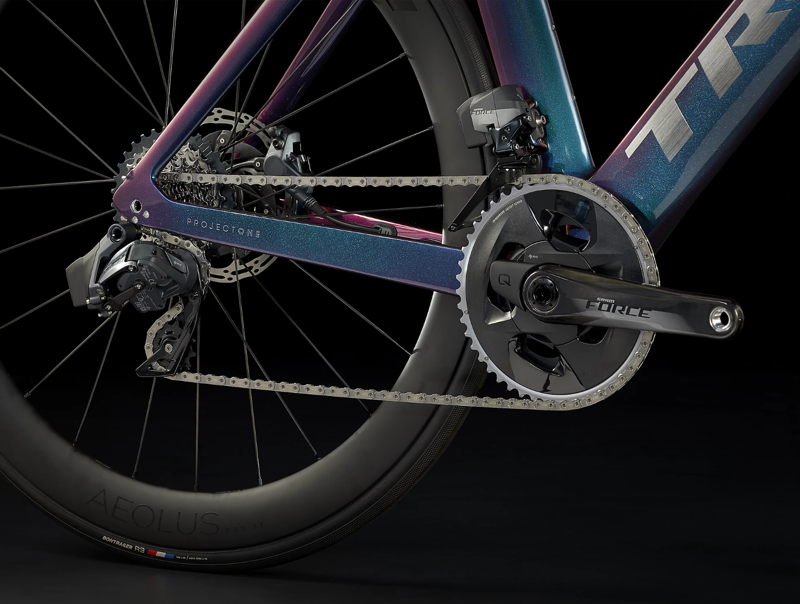

  • Chainset:SRAM Force AXS Power Meter, 48/35, DUB spindle
  • Rear Cassette:SRAM Force XG-1270, 10-33, 12-speed
  • Chain:SRAM Force, 12-speed
  • Front Derailleur:SRAM Force eTap AXS, braze-on
  • Rear Derailleur:SRAM Force eTap AXS, 36T max cog
  • Bottom Bracket:SRAM DUB, T47 threaded, internal bearing
  • Front Wheel:Bontrager Aeolus Pro 51, Tubeless Ready, 100x12 mm thru-axle
  • Rear Wheel:Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, SRAM XD-R driver, 142x12mm thru axle
  • Front Tyre:Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 c
  • Rear Tyre:Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 c

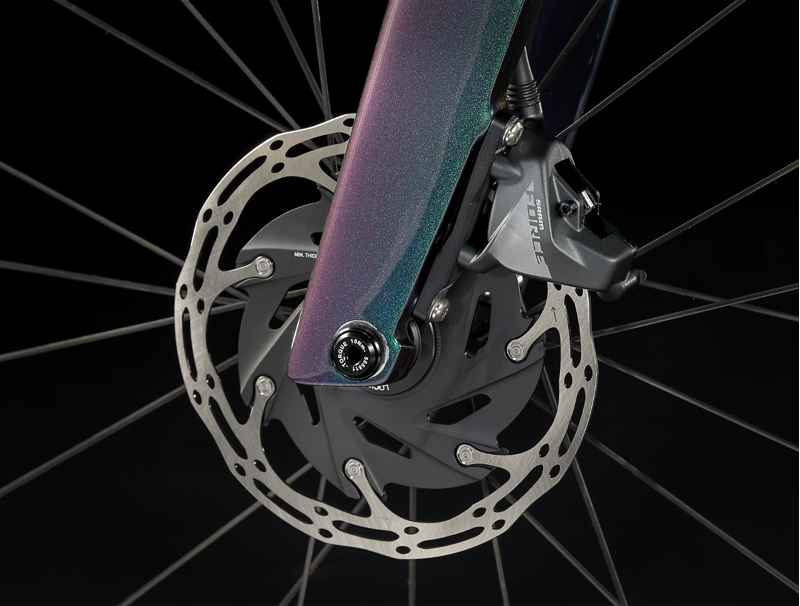

  • Brakes:SRAM Force eTap AXS hydraulic disc, flat mount
  • Handlebars:Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93 mm reach, 123 mm drop, 38-44 cm width
  • Handlebar Grips:Bontrager Supertack Perf tape
  • Stem:Trek Madone aero, invisible cable routing, 7-degree, 90-110 mm length
  • Saddle:Bontrager Aeolus Elite, austenite rails, 145 mm width
  • Seatpost:Madone aero carbon internal seat mast cap, integrated light mount, 25 mm offset, short length
  • Weight:56 - 8.2 kg / 18.08 lbs
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Trek Madone SL/SLR Bikes

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.
Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
47152 - 158 cm5'0" - 5'2"71 - 75 cm28" - 30"
50158 - 163 cm5'2" - 5'4"74 - 77 cm29" - 30"
52163 - 168 cm5'4" - 5'6"76 - 79 cm30" - 31"
54168 - 174 cm5'6" - 5'9"78 - 82 cm31" - 32"
56174 - 180 cm5'9" - 5'11"81 - 85 cm32" - 33"
58180 - 185 cm5'11" - 6'1"84 - 87 cm33" - 34"
60185 - 190 cm6'1" - 6'3"86 - 90 cm34" - 35"
62190 - 195 cm6'3" - 6'5"89 - 92 cm35" - 36"

Geometry Information for Trek Madone SL/SLR Bikes

Frame size number47 cm50 cm52 cm54 cm56 cm58 cm60 cm62 cm
Wheel size700c700c700c700c700c700c700c700c
A — Seat tube42.445.348.349.652.555.357.359.3
B — Seat tube angle74.6°74.6°74.2°73.7°73.3°73.0°72.8°72.5°
C — Head tube length1011.112.113.115.117.119.121.1
D — Head angle72.1°72.1°72.8°73.0°73.5°73.8°73.9°73.9°
E — Effective top tube51.252.153.454.355.957.458.659.8
G — Bottom bracket drop7.27.27.2776.86.86.8
H — Chainstay length414141414141.141.141.2
I — Offset4.54.54.54.54444
J — Trail6.86.25.85.65.85.75.65.6
K — Wheelbase97.297.497.798.198.399.2100.1101
L — Standover69.271.173.274.476.879.381.182.9
M — Frame reach37.337.838.338.639.139.639.940.3
N — Frame stack50.752.153.354.156.358.160.162
Saddle rail height min (w/short mast)55.558.561.56467697173
Saddle rail height max (w/short mast)61.564.567.57073757779
Saddle rail height min (w/tall mast)59626567.570.572.574.576.5
Saddle rail height max (w/tall mast)65687173.576.578.580.582.5

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Technical Information
  • Frame
    800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
  • Fork
    Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat-mount disc, carbon dropouts, 12x100 mm thru axle
  • Wheel front
    Bontrager Aeolus Pro 51, Tubeless Ready, 100x12 mm thru-axle
  • Wheel rear
    Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, SRAM XD-R driver, 142x12 mm thru axle
  • Skewer front
    Bontrager Switch thru axle, removable lever
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Tyre
    Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 c
  • Shifter
    SRAM Force eTap AXS, 12-speed
  • Front derailleur
    SRAM Force eTap AXS, braze-on
  • Rear derailleur
    SRAM Force eTap AXS, 36T max cog
  • Crank
    Size: 47, SRAM Force AXS Power Meter, 48/35, DUB spindle, 165 mm length
    Size: 50/52, SRAM Force AXS Power Meter, 48/35, DUB spindle, 170 mm length
    Size: 54/56/58, SRAM Force AXS Power Meter, 48/35, DUB spindle, 172.5 mm length
    Size: 60/62, SRAM Force AXS Power Meter, 48/35, DUB spindle, 175 mm length
  • Bottom bracket
    SRAM DUB, T47 threaded, internal bearing
  • Cassette
    SRAM Force XG-1270, 10-33, 12-speed
  • Chain
    SRAM Force, 12-speed
  • Saddle
    Size: 47/50/52, Bontrager Aeolus P2 Elite, 155 mm width
    Size: 54/56/58/60/62, Bontrager Aeolus Elite, austenite rails, 145 mm width
  • Seatpost
    Size: 47/50/52/54/56, Madone aero carbon internal seat mast cap, integrated light mount, 5 mm offset, short length
    Size: 58/60/62, Madone aero carbon internal seat mast cap, integrated light mount, 5 mm offset, tall length
  • Handlebar
    Size: 47, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93 mm reach, 123 mm drop, 38 cm width
    Size: 50/52, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93 mm reach, 123 mm drop, 40 cm width
    Size: 54/56/58, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93 mm reach, 123 mm drop, 42 cm width
    Size: 60/62, Trek Madone adjustable aero VR-CF, OCLV Carbon, invisible cable routing, 93 mm reach, 123 mm drop, 44 cm width
  • Handlebar tape
    Bontrager Supertack Perf tape
  • Stem
    Size: 47/50/52/54, Trek Madone aero, invisible cable routing, 7-degree, 90 mm length
    Size: 56/58, Trek Madone aero, invisible cable routing, 7-degree, 100 mm length
    Size: 60/62, Trek Madone aero, invisible cable routing, 7-degree, 110 mm length
  • Brake rotor
    SRAM CenterLine X, CenterLock, round edge, 160 mm
  • Electronics
    SRAM Etap Battery Pack w/ Charger
  • Weight
    56 - 18.08 lbs / 8.2 kg
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
