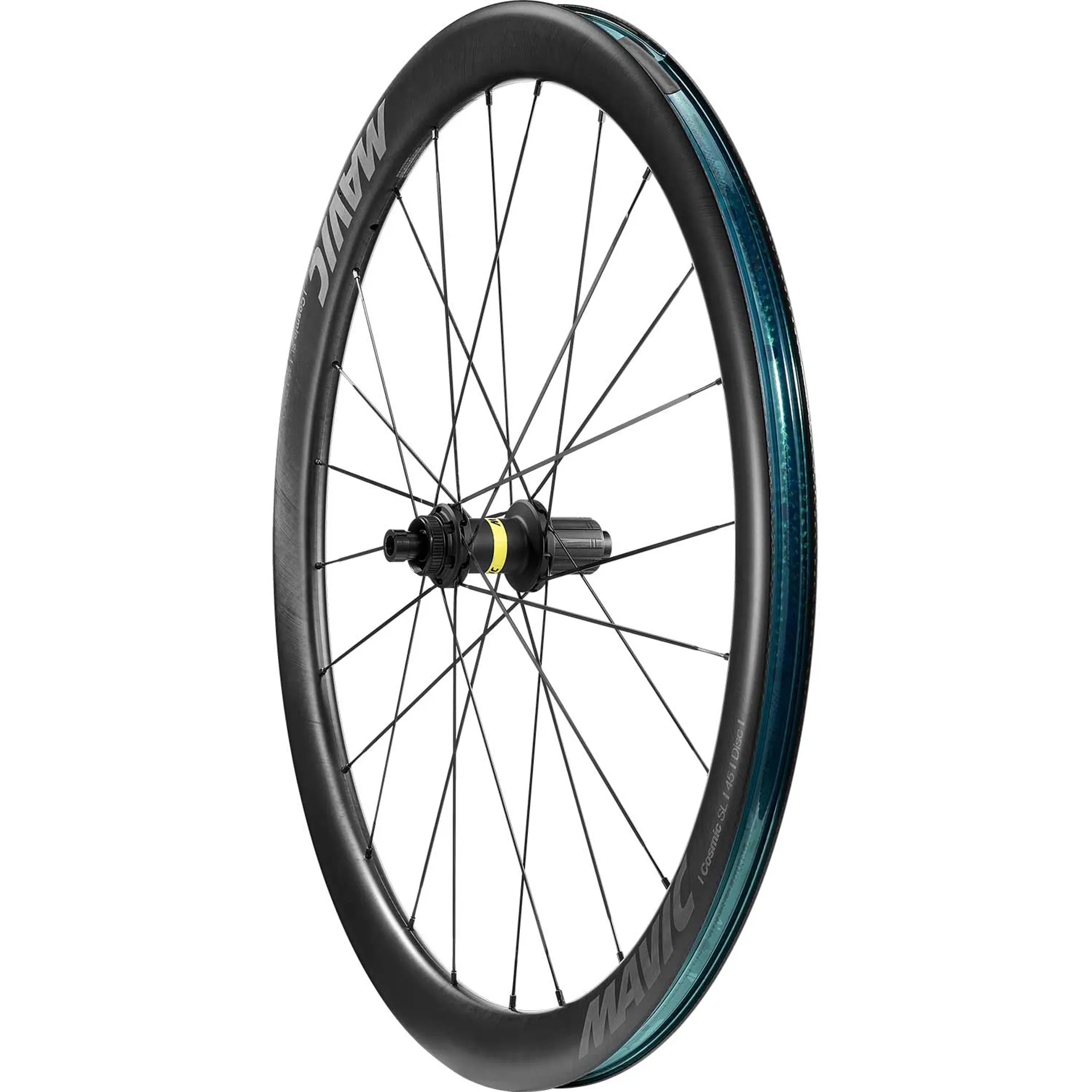

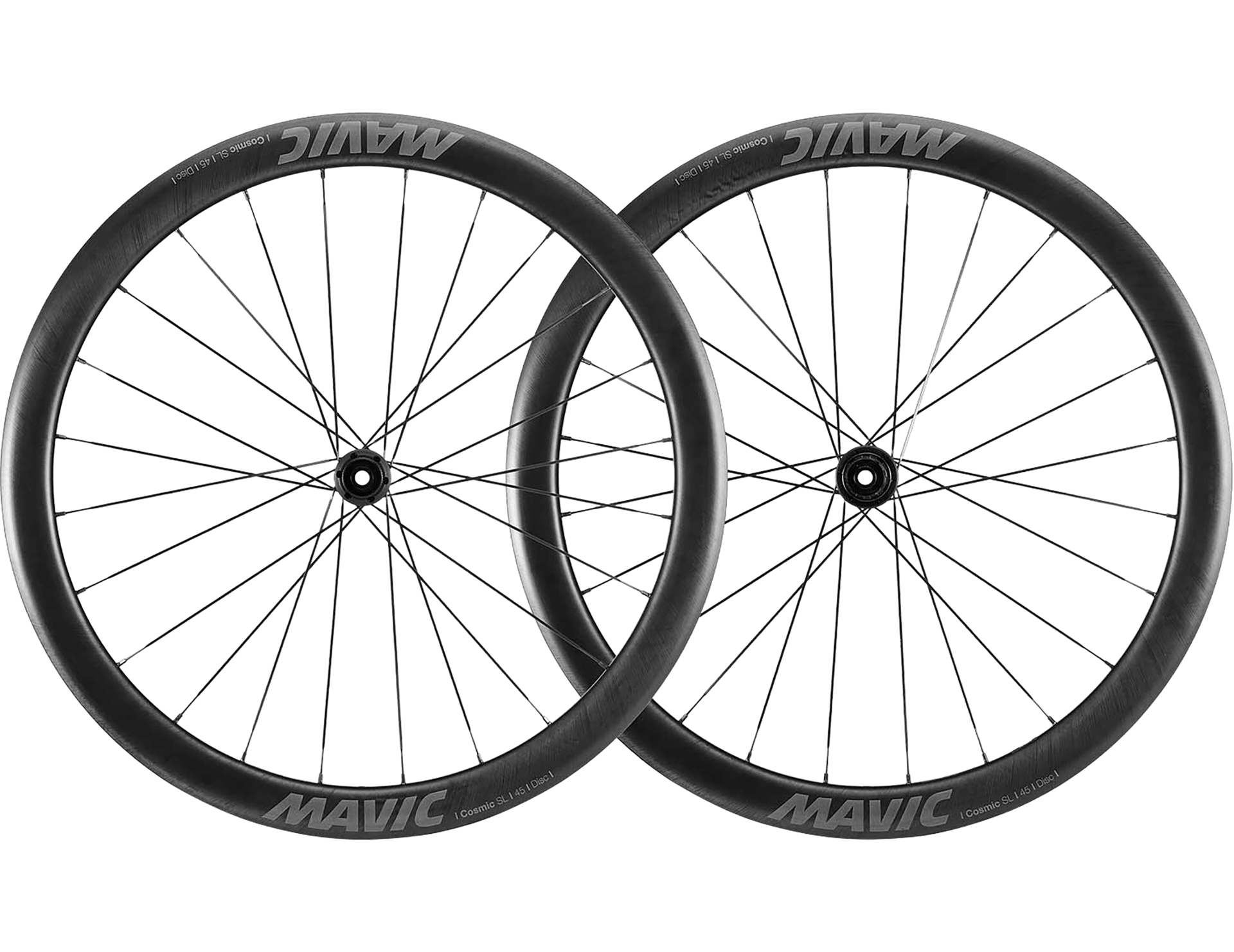

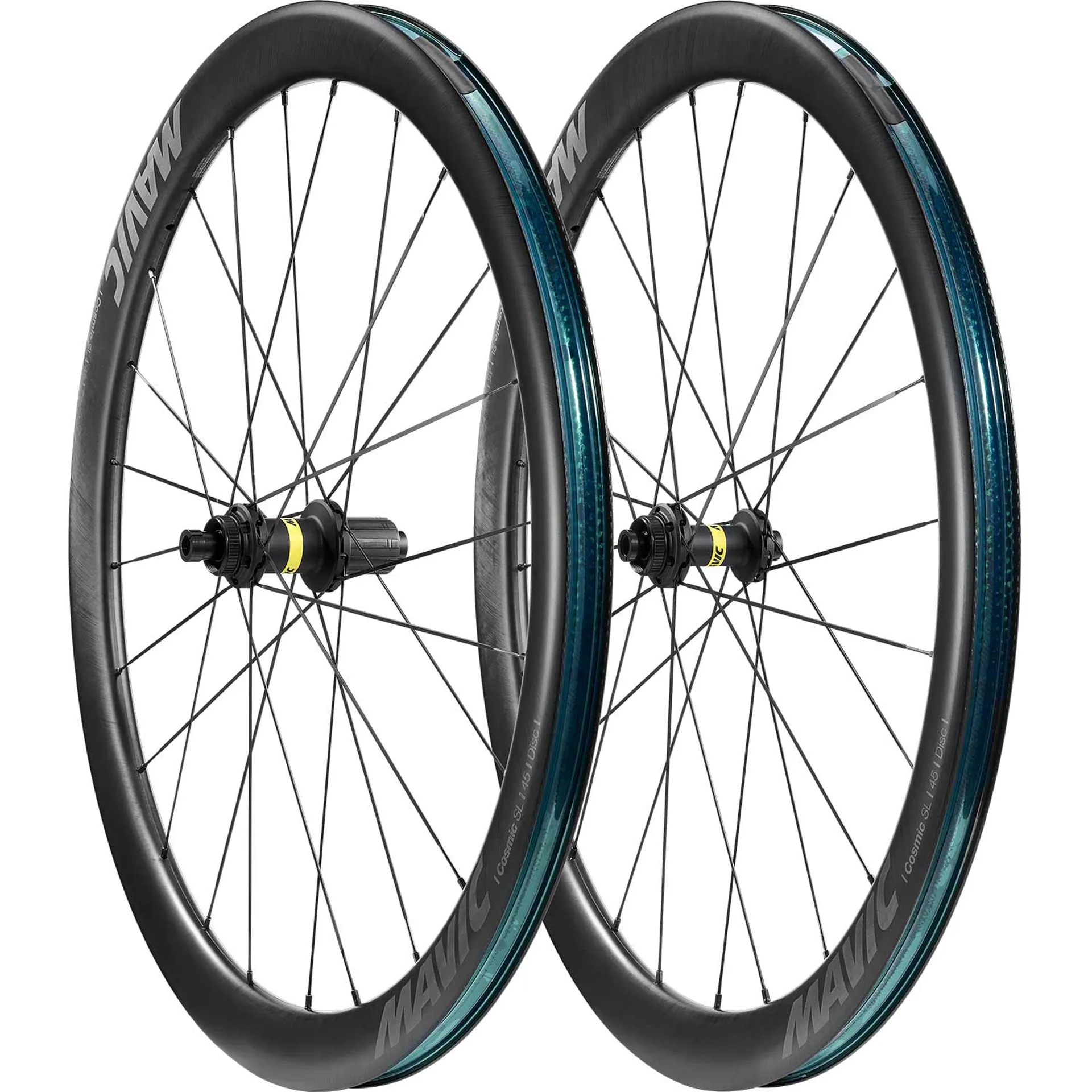

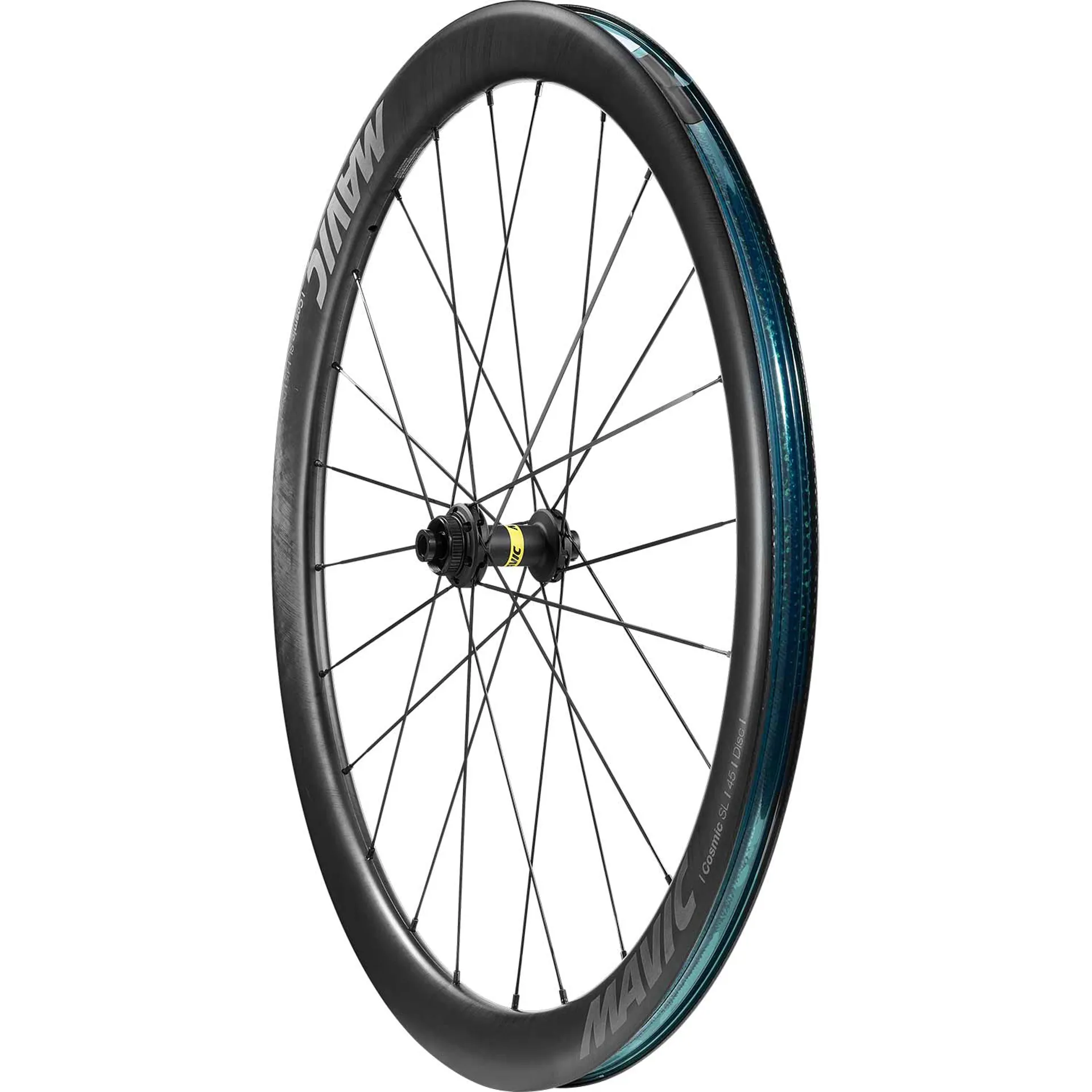

With its widened 23mm UD carbon rim, the Cosmic SL 45 is the most versatile of Mavic's carbon wheels, with improved comfort and performance. New spokes and hubs give the Cosmic SL 45 Disc a light and lively feel for climbing and accelerating. Aero efficiency, quick acceleration, and the improved ride quality of UST tubeless are all achieved with this disc-brake specific wheel, featuring easier to use road tubeless technology and lighter weight.

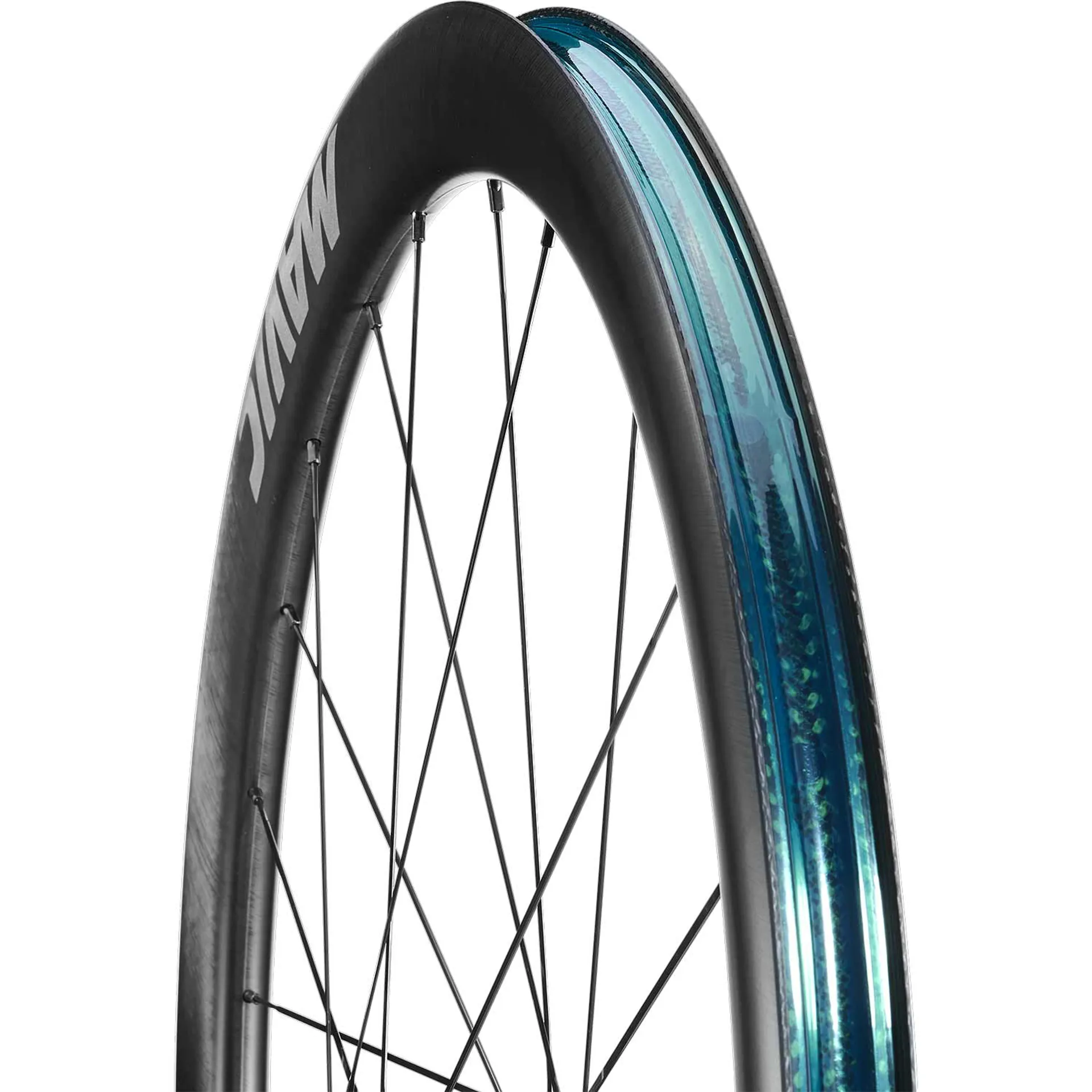

The rim is engineered with a NACA rim profile that's 45mm deep and 23mm wide, designed specifically for all-rounder performance on flat or hilly terrain. The rim bed shape makes it easier than ever to fit tubeless and tube-type tyres. Riding UST tubeless means no tube, so no friction, and more air volume means a smoother ride. The result is a faster ride with super low rolling resistance. Refined spokes make this wheelset 80g lighter than its predecessor, the Cosmic Pro Carbon UST Disc. Combined with the Infinity hub platform, which makes the wheels feel quick and responsive out of every corner, they are stiffer and more efficient.
This Cosmic SL 45 Disc is engineered specifically for disc brakes, with an optimized spoke count and lacing. They are offered in Center Lock only and are compatible with 12mm thru-axles and can convert to quick release with included adapters. They are available for Shimano cassettes and convert to SRAM XD-R or Campagnolo with an optional driver body. These wheels are designed, engineered, and patented by Mavic in Annecy, France, and are 100% handmade in their European carbon factory.
Aerodynamics and Performance:
- Improved Aerodynamics: 45mm NACA inspired rim shape minimises drag for added speed.
- Reduced Drag: Less drag and more watts thanks to the 45mm rim profile and flat spokes developed by Mavic's aero experts and wind tunnel tested.
- Instant Acceleration: Reduced inertia of the lightweight rim delivers instant acceleration.
- Versatile Performance: Minimal drag, low inertia, and high lateral stiffness makes it fast and efficient on all types of terrain, from the flats to mountain climbs.
- Unrivalled Versatility: The lightness of its 23mm rim and its spoking make the Cosmic SL 45 Disc the most versatile Mavic road wheel ever designed.
Technologies:
- Instant Drive 360 Technology: Super light and efficient. The large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.
- UST Tubeless Technology: Traction control. Ready to ride tubeless system. The UST concept improves traction, control, and comfort whilst reducing inertia and flats.

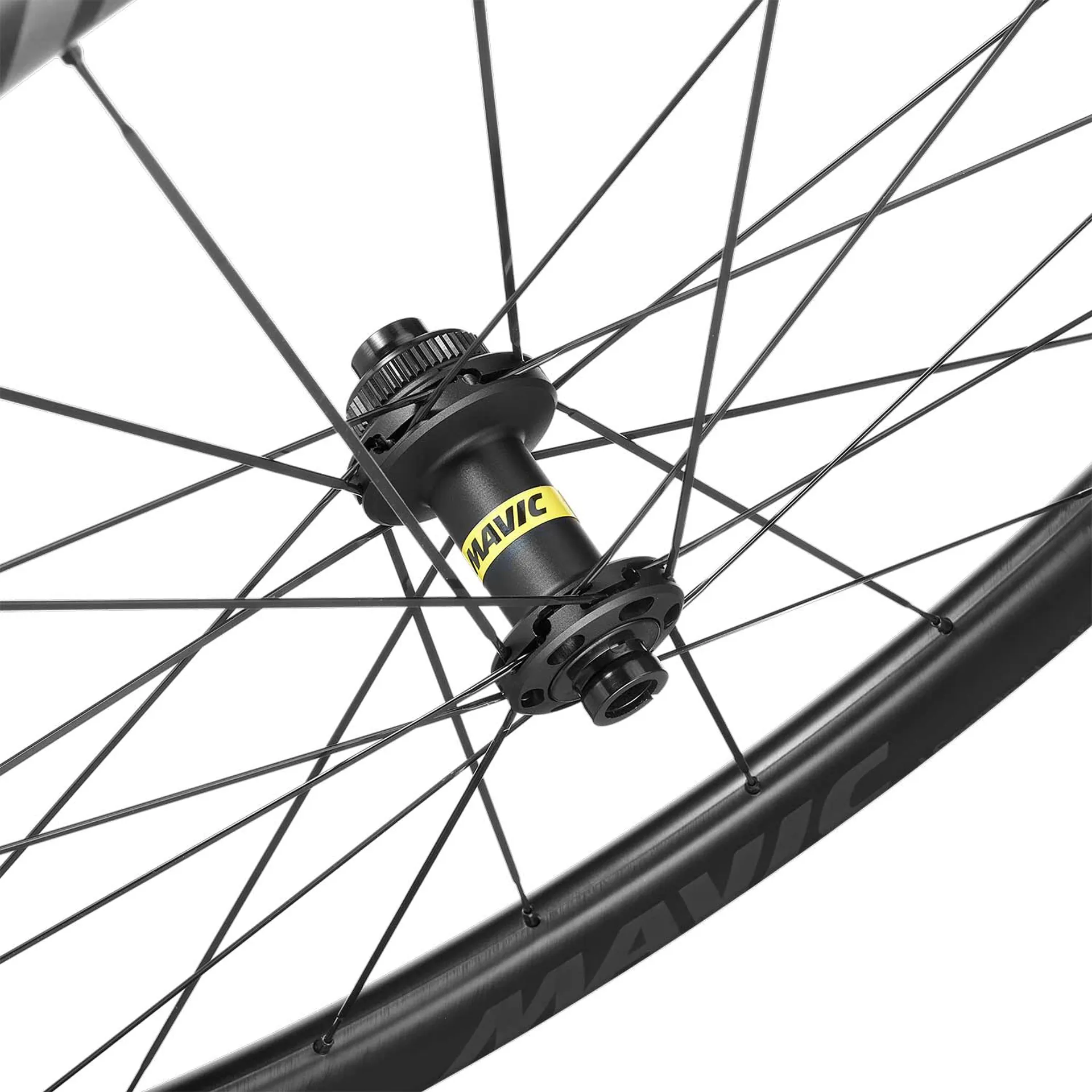

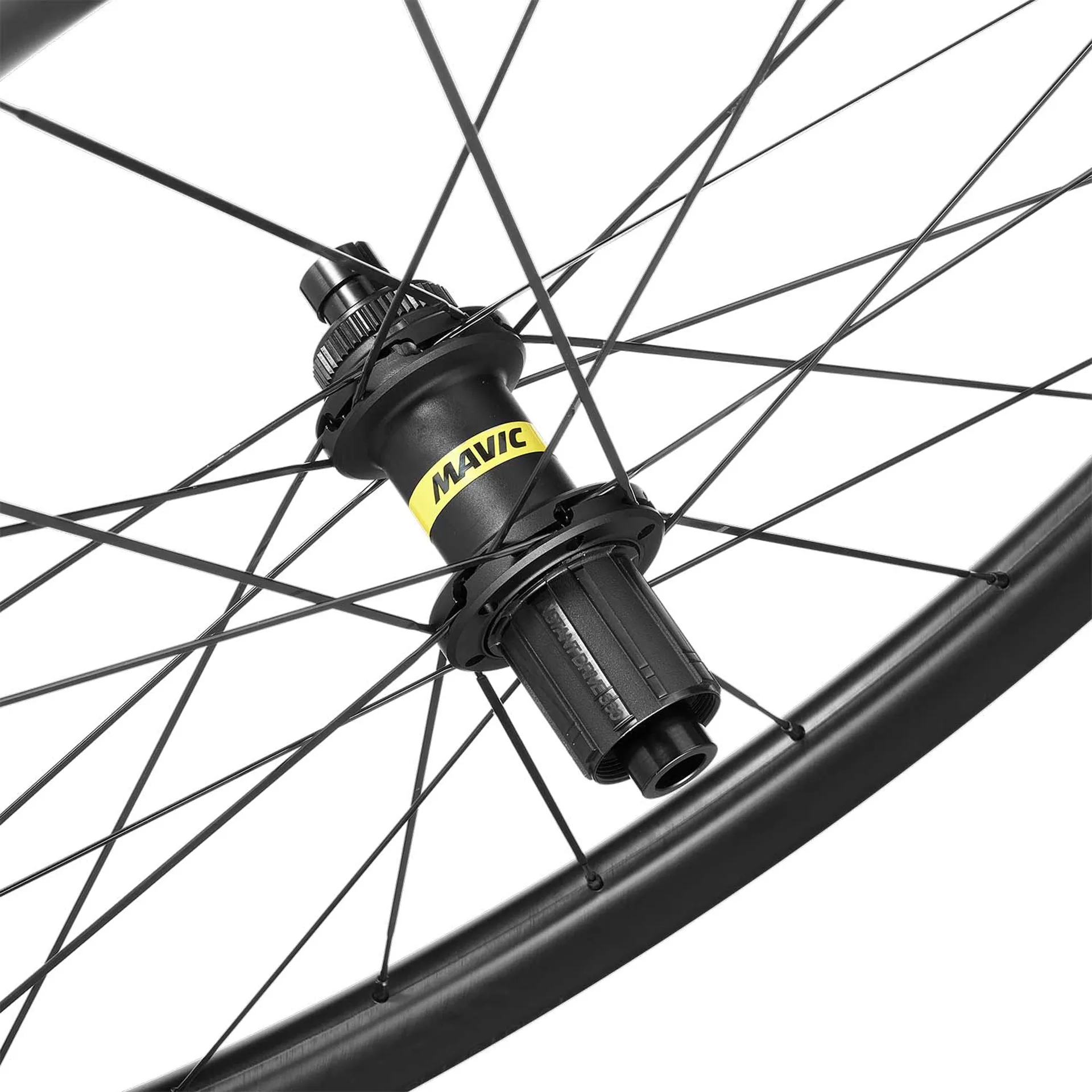

- Infinity Hub Design: An ultra reliable, high performance hub. Efficient power transfer thanks to the optimised non-contact spoke lacing and tension distribution. The length of the spokes are identical on the front and rear.
- QRM Auto Bearing Preload Technology: Qualite de Roulements Mavic Auto. Cartridge bearings are double sealed with E3 internal clearance. Preload is automatically adjusted to guarantee a perfect spin with no play on the long run.
Technical Specifications:
- Discipline: Road
- Rim Material: 100% carbon fibre with UD external layer
- Rim Diameter: 700c
- Profile Depth: 45mm
- Inner Width: 23mm
- ETRTO Size: 622x23tc
- Tyre Compatibility: UST tubeless ready
- Braking System: Center Lock only
- Front Axle: 12 x 100mm
- Rear Axle: 12 x 142mm
- Drilling: Traditional (front/rear 24 holes)
- Spokes: Steel, straight, extra flat
- Nipples: Steel, ABS, black
- Bearings: QRM automatic setting - sealed cartridge
- Maximum Weight (including bike): 120kg
- Weight (Pair): 1555g
- Weight (Rear): 835g
- Weight (Front): 720g
Intended Use:
- ASTM Category: 2 (road and offroad with jumps less than 15cm)
- Minimum Tyre Size: Width 28mm - pressure max. 5.5bar/80psi
- Maximum Tyre Size: Width 62mm - pressure max. 3.25bar/47psi
Freehub Body Compatibility:
- HG or M11: Shimano HG road 11/12x (other speeds with spacer)
- MS: Shimano MicroSpline
- XD: SRAM XD
- XD-R: SRAM XD-R
- ED11: Campagnolo 9/12x
- N3W: Campagnolo 13x
Included Accessories:
- Wheelset: Yes
- User Guide: Yes
- Rim Tape: Mounted on wheel
- UST Valve: Not mounted on wheel
- Multifunction Adjustment Wrench: Included with the rear wheel
- Quick Release Adapters: Included (for converting 12mm thru-axles)
