Arch S2 wheelsets have the versatility to handle a wide range of riding conditions and are the ideal upgrade for Trail, AM, Enduro, and eBikes. When your average ride includes both tough climbs and rough descents and you want the best tubeless system in the business, the Arch S2 is for you.
Stans Patented Bead Socket Technology means easier tubeless inflation and more confidence on the trail. The 6061 aluminium Arch S2 rims use a reinforced spoke bed and eyeletted spoke holes for strength, along with a reliable sleeved joint that creates one very tough overall wheel. The 28mm width is extremely versatile, offering excellent cornering performance with 2.2-2.5" tyres.

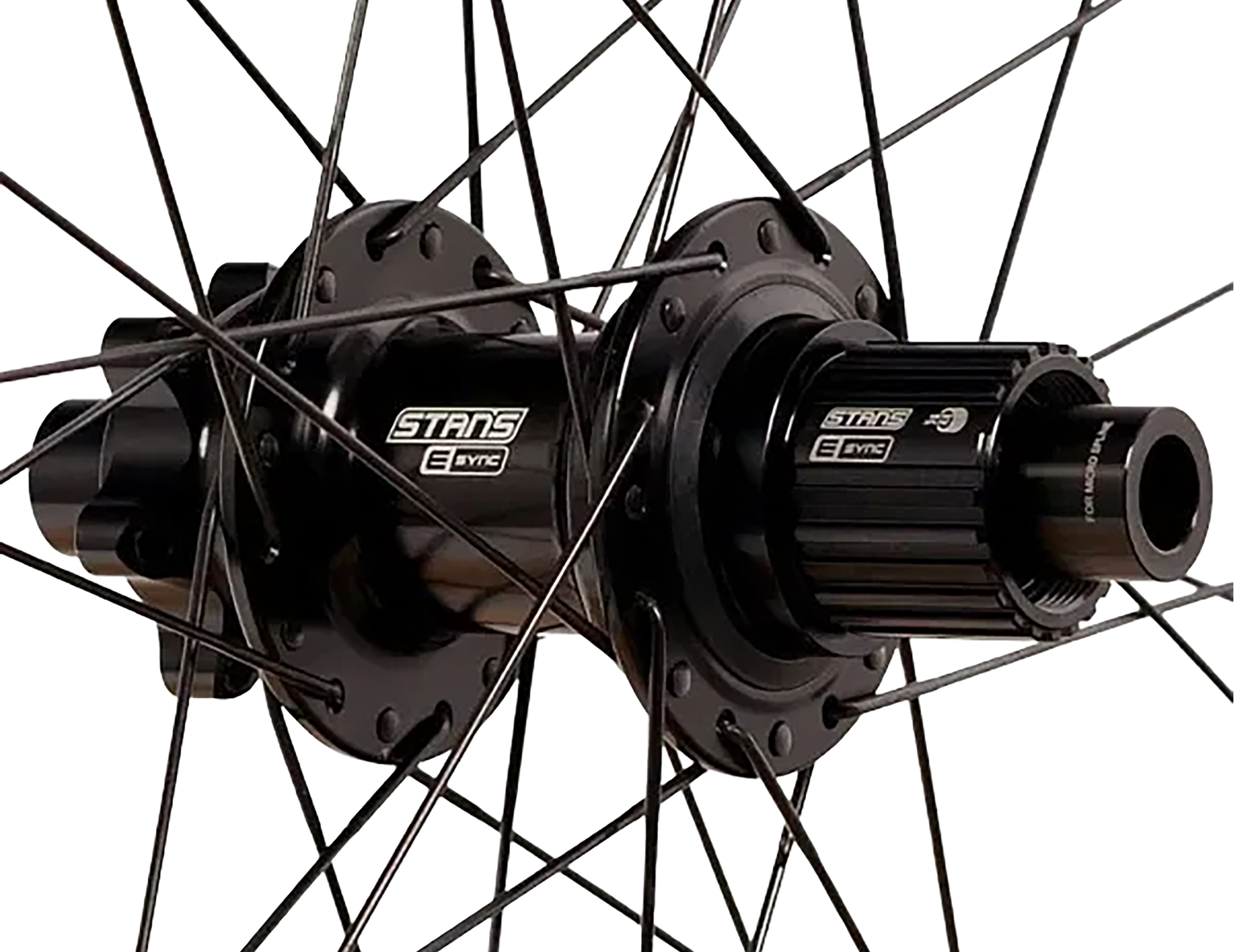

The Arch S2 rolls on E-sync hubs made specifically to handle abuse and the added forces of today's capable trail bikes and even heavier eBikes. E-sync hub durability is found in the pawl design that reduces stress on freehub and bearings, heavy-duty cromoly steel axles and double row Enduro bearings, as well as the special heat-treated steel ratchet rings. E-sync hubs are also designed for fast engagement, with four pawls needing only 8.18° of rotation to engage simultaneously and drive you forward. S2 wheels are built to last long, but also be easy to service and update with changing axle and cassette standards. Traditional J-bend spokes and lacing have a proven history of ride quality, durability, and serviceability, and matched S2 wheelsets all use a single spoke length, making it easy to own and service your S2 wheelset for years.

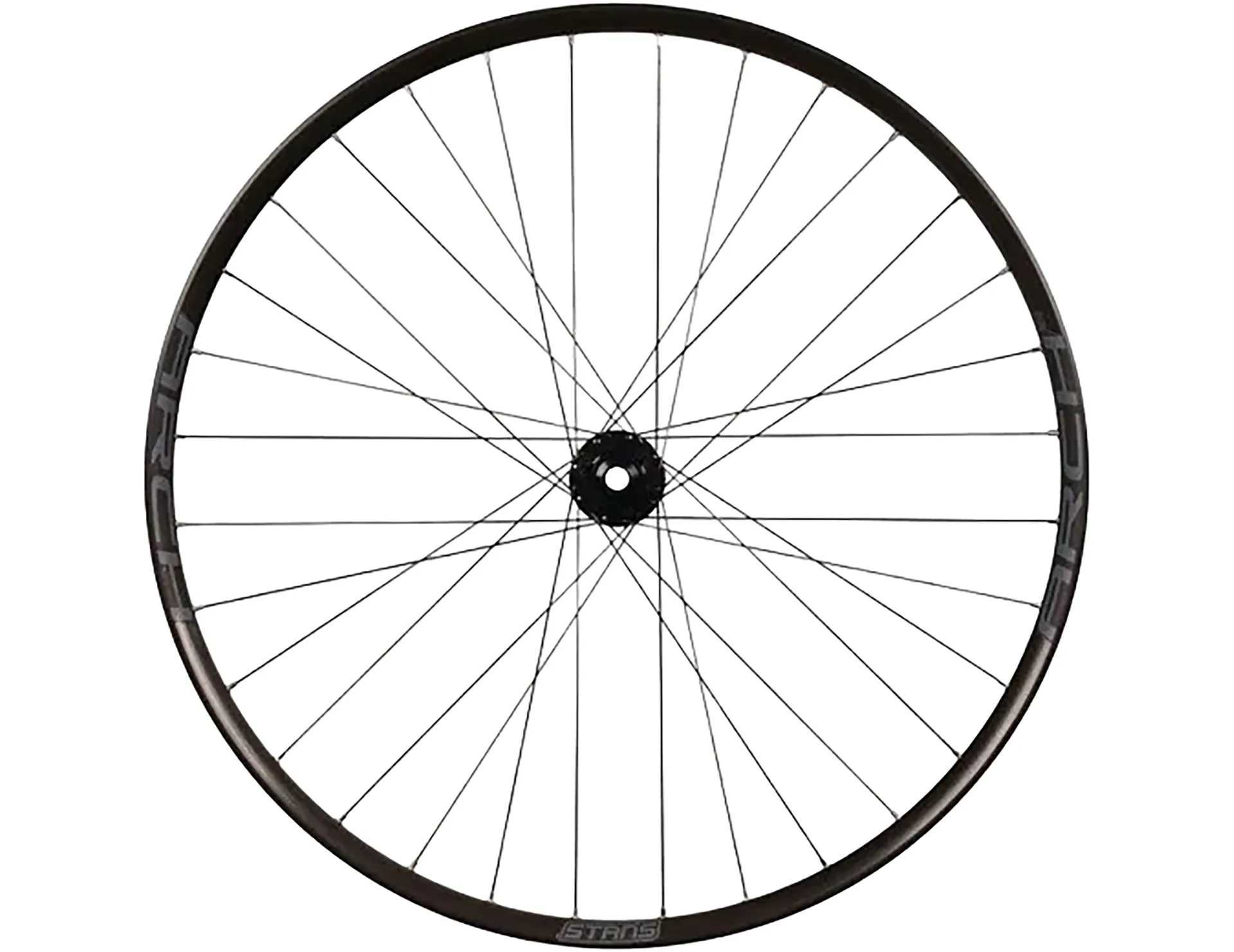

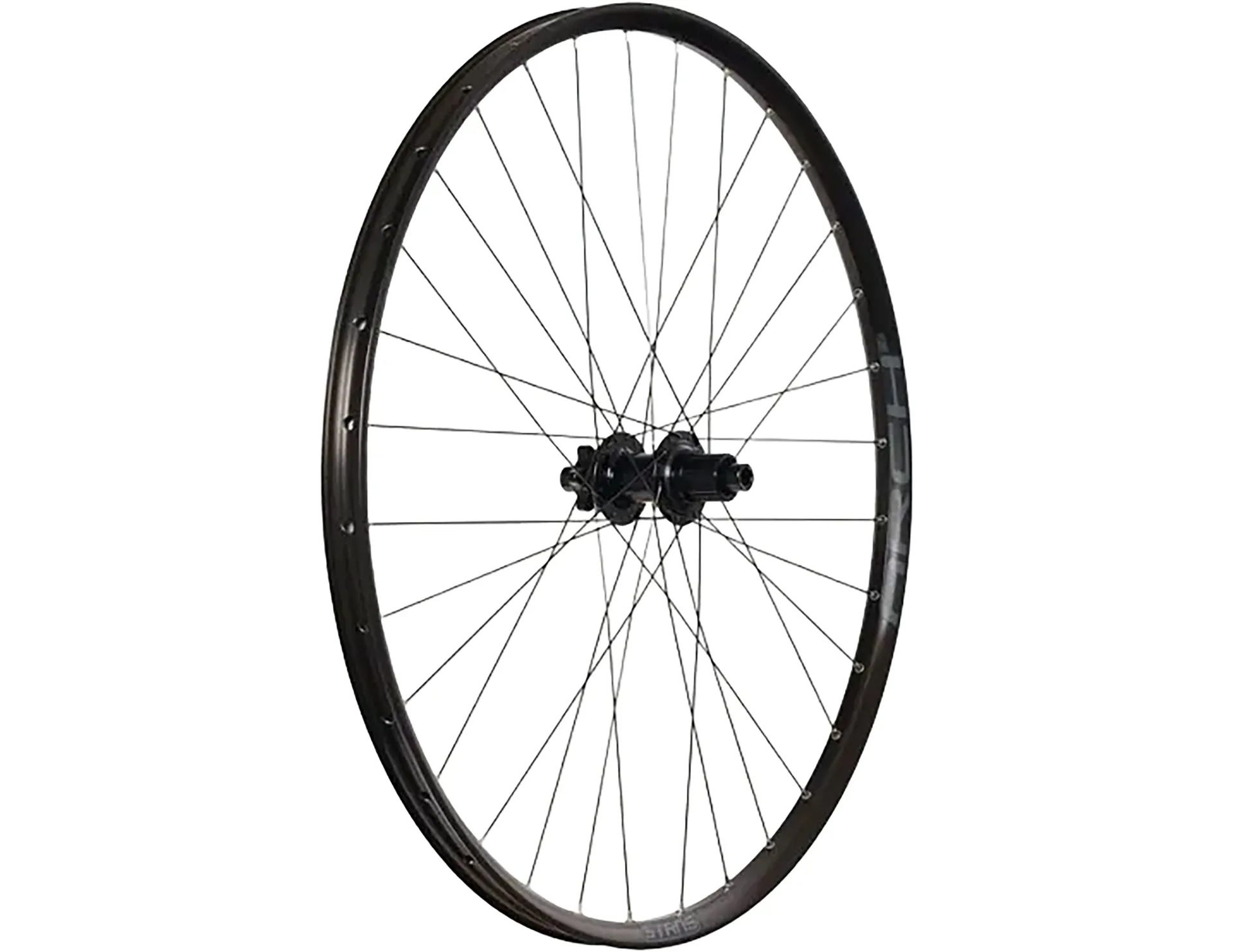

This rear wheel is the Shimano Micro Spline version. Tubeless ready with rim tape comes pre-installed.
Specification:
- Rim Internal Width: 28.0mm
- Rim External Width: 31.7mm
- Rim Depth: 18.1mm
- Weight: 1093g
- Hub: E-sync
- ISO: 29inx31.7mm
- Rim Material: 6061 Alloy
- Max Rider Weight: 105kg
- Brakes: Disc
- Valve: Presta
