Lightweight carbon e-enduro frameset with Bosch SX motor, mullet setup and 165mm Updated Zero suspension performance.
Lightweight carbon e-enduro frameset with Bosch SX motor, mullet setup and 165mm Updated Zero suspension performance.
Mondraker

Mondraker Dune RR Electric Full Suspension Mountain Bike Frameset 2027 in Black/Gray/Red

£5,899.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Mondraker Dune RR Electric Full Suspension Mountain Bike Frameset 2027 in Black/Gray/Red

Season:2027

Brand:Mondraker

Code:DUNE RR FRAMESET Black/Gr

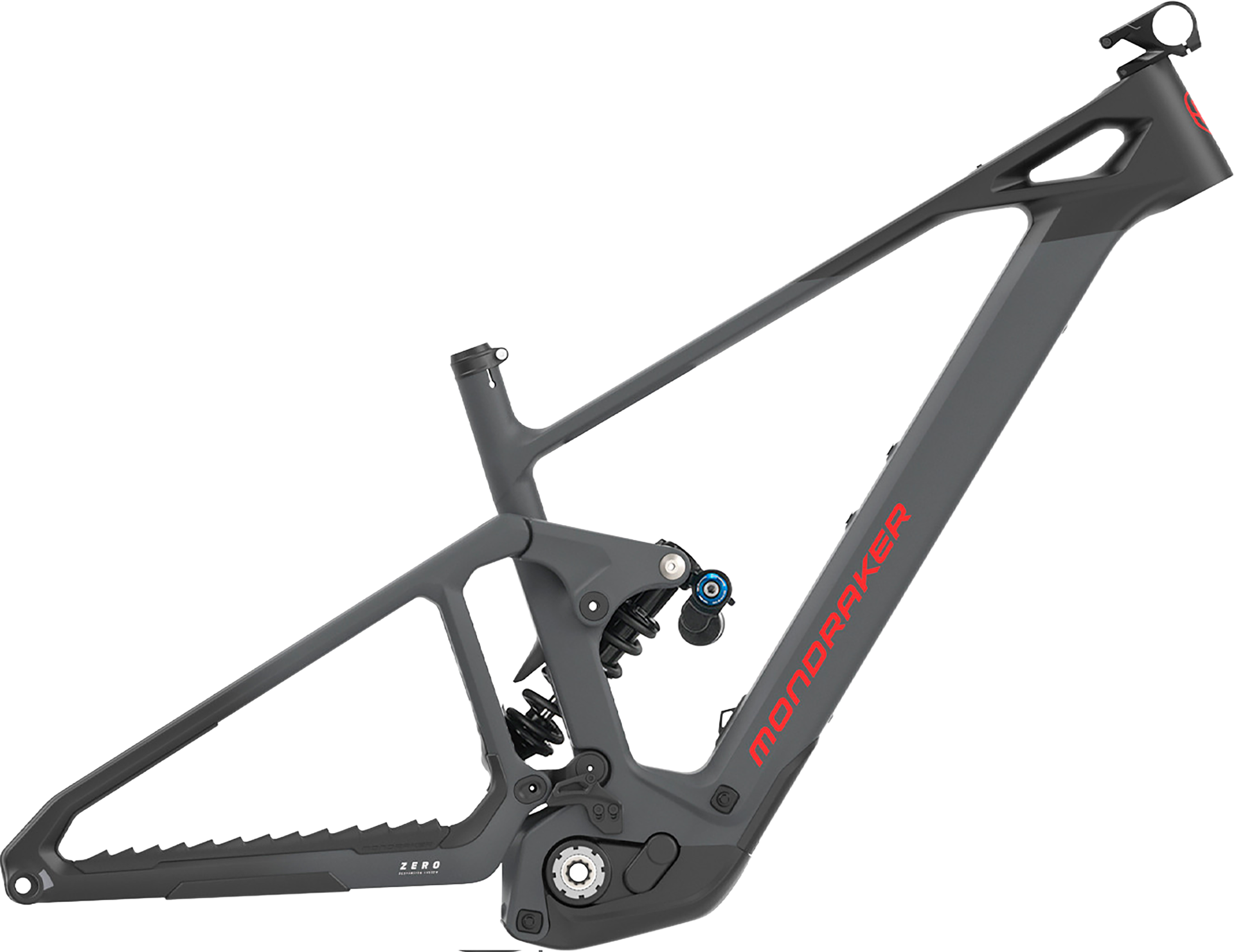

The Mondraker Dune RR Frameset is a lightweight full-power enduro platform built for aggressive riding with the agility and responsiveness of a lighter e-bike. Combining Mondraker’s Stealth Air full carbon construction with the Bosch Performance Line SX Smart System, it delivers a highly capable ride feel with powerful assistance and refined trail handling.

Designed around a mullet wheel setup and 165mm of Updated Zero Suspension travel, the Dune RR Frameset offers exceptional stability, traction and confidence on steep and technical terrain. Mondraker’s Forward Geometry and one-piece Monoblock upper link create a precise and balanced chassis ready for high-speed descending and demanding enduro riding.

The Bosch Performance Line SX motor and integrated Compact Powertube 400Wh battery provide lightweight electric assistance with a natural ride feel, making the Dune RR ideal for riders who want responsive handling without sacrificing climbing support. Premium frame details including internal cable routing, oversized pivot hardware and UDH compatibility complete this high-performance enduro frameset.

Key Features & Benefits:

  • Lightweight Enduro Performance: Stealth Air full carbon frame combines low weight with aggressive enduro capability and durability.
  • Bosch SX Smart System: Lightweight Bosch Performance Line SX motor delivers natural-feeling assistance and responsive climbing support.
  • Mullet Suspension Platform: Updated Zero Suspension System with 165mm travel provides stability, traction and confident descending.

Full Specification:

  • Motor: Bosch Performance Line SX (25km/h) GEN4 SMART SYSTEM Diagonal, Wide.
  • Battery: Bosch Compact Powertube 400Wh.
  • Display: Kiox 400C / Bosch Mini Remote.
  • Frame: Stealth Air full Carbon, Updated Zero Suspension System, mullet configuration, 165mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversized 15mm axles and exclusive plastic motor covers.
  • Rear Shock: Fox DHX2 Factory Kashima, 205x65mm with high and low-speed compression, high and low-speed rebound and spring preload adjustment. Includes Super Light Steel spring.
  • Stem: Onoff S6 forged alloy + CNC stem, 30mm length, 0° rise, 31.8mm clamp.
  • Extras: Acros custom headset with internal cable routing and sealing plugs without blocklock.
  • Weight: Not specified.

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.


Size Guide for Mondraker Dune

Frame SizeRider Height (cm)Rider Height (')
SmallUnder 165 cmUnder 5'5"
Medium170–180 cm5'7"–5'11"
Large175–185 cm5'9"–6'1"
X-Large185–195 cm6'1"–6'5"

Geometry Information for Mondraker Dune


Frame size
SMLXL
ASeattube length380mm420mm450mm490mm
BToptube length600mm620mm645mm665mm
CBottom bracket drop-21/0mm-21/0mm-21/0mm-21/0mm
DBottom bracket height352mm352mm352mm352mm
EChainstay length445mm445 mm445mm445mm
FSeat tube angle74,0º74,0º74,0º74,0º
GEffective seattube angle77,5°77,5°77,5°77,5°
HHeadtube angle64º64º64º64º
IFork Offset44mm44mm44mm44mm
JWheelbase1232mm1256mm1285mm1309mm
KHeadtube length100mm110mm130mm140mm
LReach445mm465mm485mm505mm
MStack621mm630mm648mm658mm

Warranty Information for Mondraker:

Mondraker offers an extended lifetime warranty for all its frames against defects in materials or manufacturing. Exclusions and terms apply.
It should be emphasised that each bicycle/frame has a life-cycle which will vary depending on the type of material and its construction. This life-cycle may be shortened by the form and type of use, or lack of appropriate maintenance and care. The lifetime warranty will therefore be entirely dependent on the optimal life-cycle determined by Mondraker for each specific Product.

The Avinox drive system (motor, battery, display, and charger) comes with a 2-year warranty starting from the activation date, covering up to 500 charge cycles. Exclusions and terms apply.

All warranty claims for Mondraker components or original parts will be handled through an authorised Mondraker distribution point, and the original commercial invoice must be provided.

Mondraker points of sale will handle the warranty of third-party manufacturers' components, with each manufacturer being responsible for the warranty of its components used in the product.

For Full Terms and Conditions Visit Mondrakers Website
