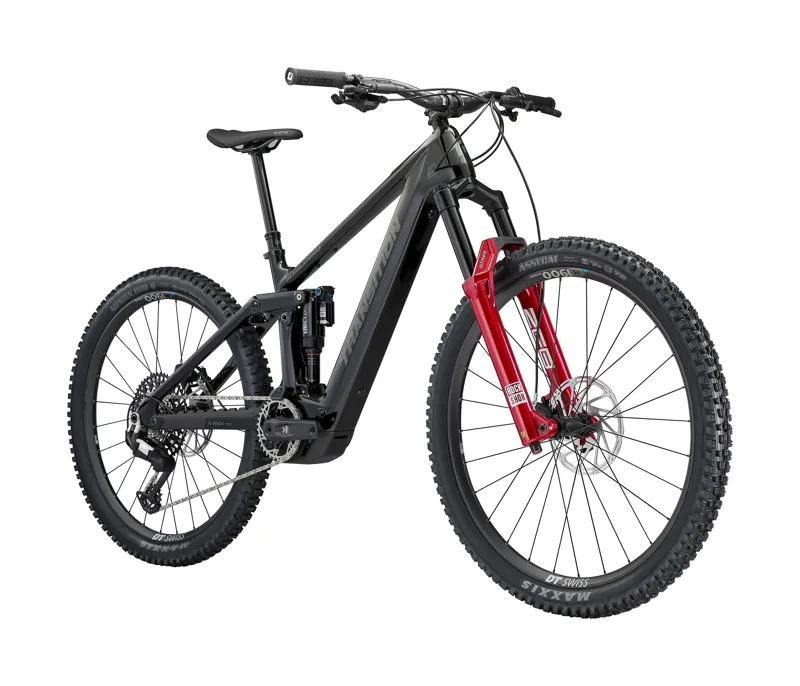

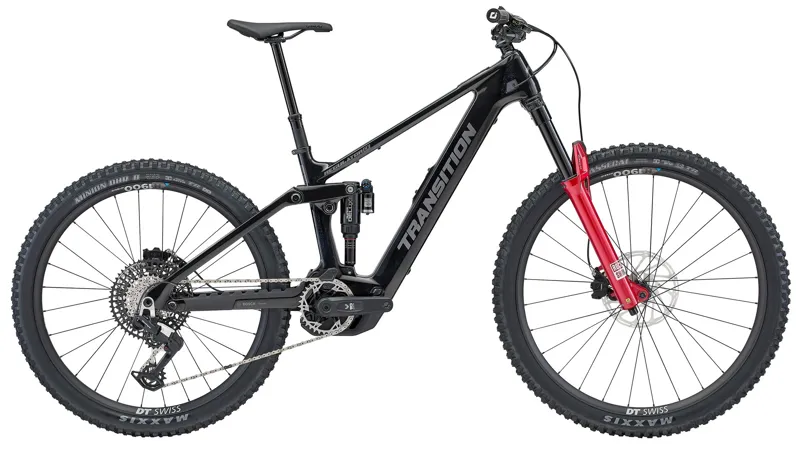

Transition Regulator CX Carbon Eagle 90 Electric Full Suspension Mountain Bike 2027 in Clear Blacknight

£8,899.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Transition Regulator CX Carbon Eagle 90 Electric Full Suspension Mountain Bike 2027 in Clear Blacknight

Season:2026

Brand:Transition

Code:thginKLBRLC09E.XC.GER.62.

The Transition Regulator CX is an all-mountain e-MTB built to make the most of every trail. Its carbon frame combines a dedicated mixed-wheel setup with 150mm of rear travel and a 160mm fork, creating a nimble, responsive ride that can handle everything from technical climbs to fast, rough descents.

Bosch's Performance Line CX drive unit delivers up to 100Nm of torque and 600W peak power with a natural-feeling response designed to maintain traction on technical terrain. A 600Wh PowerTube battery keeps weight and handling in check while providing capacity for big rides, with compatibility for the optional Bosch PowerMore 250Wh range extender when additional range is required.

Transition's GiddyUp suspension platform uses a progressive leverage curve to provide sensitivity at the start of the stroke, support through the middle and controlled progression deeper into the travel. RockShox Ultimate suspension, SRAM Eagle 90 Transmission, Maven Silver brakes and DT Swiss H 1900 wheels complete an aggressive all-mountain build ready for demanding terrain.

Key Features & Benefits:

  • Bosch Performance Line CX: Up to 100Nm of torque and 600W peak power provide strong yet natural assistance, while the compact 600Wh battery helps preserve responsive handling.
  • GiddyUp 150mm Suspension: Progressive suspension kinematics balance small-bump sensitivity, mid-stroke support and bottom-out resistance for confident all-mountain performance.
  • Mixed-Wheel Agility: A 29" front and 27.5" rear wheel combination blends front-end confidence with responsive handling for a playful ride across varied terrain.

Full Specification:

  • Frame: Regulator CX Carbon, 150mm Travel, Mixed-Wheel Platform, UDH-Compatible 12x148mm Rear Axle, Integrated Protection, Integrated Chainguide
  • Rear Shock: RockShox Super Deluxe Ultimate, 205x60mm Trunnion Mount
  • Fork: RockShox ZEB Ultimate, 160mm Travel, 44mm Offset
  • Motor: Bosch Performance Line CX BDU38, Up to 100Nm Torque, 600W Peak Power
  • Battery: Bosch PowerTube, 600Wh
  • Controller: Bosch Wireless Mini Remote
  • Charger: Bosch Charger
  • Number of Gears: 12
  • Gear Shifters: SRAM Eagle 90 MMX
  • Chainset: SRAM Eagle 90, 150mm
  • Chainrings: SRAM XX T-Type Direct Mount, 34T
  • Rear Cassette: SRAM XS-1275, 10-52T
  • Chain: SRAM GX Eagle Transmission
  • Rear Derailleur: SRAM Eagle 90
  • Pedals: Not Supplied – Shop Pedals Here
  • Wheelset: DT Swiss H 1900 Spline 30, Mixed 29" Front / 27.5" Rear
  • Front Hub: DT Swiss Hybrid 370
  • Rear Hub: DT Swiss Hybrid 370
  • Spokes: DT Swiss Hybrid 1
  • Front Tyre: Maxxis Assegai, 3C MaxxGrip, EXO+, 29x2.5"
  • Rear Tyre: Maxxis Minion DHR II, 3C MaxxTerra, DoubleDown, 27.5x2.4"
  • Brakes: SRAM Maven Silver Hydraulic Disc
  • Rotors: SRAM Centerline, 200mm
  • Handlebar: Race Face Turbine; 780x20mm (S), 780x40mm (M), 800x40mm (L, XL)
  • Stem: Race Face Aeffect R, 40mm
  • Seatpost: OneUp Dropper Post; 150mm (S), 180mm (M), 210mm (L), 240mm (XL)
  • Saddle: SDG Bel Air 3
  • Weight: 21.84kg / 48.1lbs (Size M)

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Transition

SizeRider Height
X-Small (XS)143–158 cm (4'8"–5'2")
Small (S)153–168 cm (5'0"–5'6")
Medium (M)163–178 cm (5'4"–5'10")
Large (L)173–188 cm (5'8"–6'2")
X-Large (XL)183–198 cm (6'0"–6'6")
XX-Large (XXL)188–203 cm (6'2"–6'8")

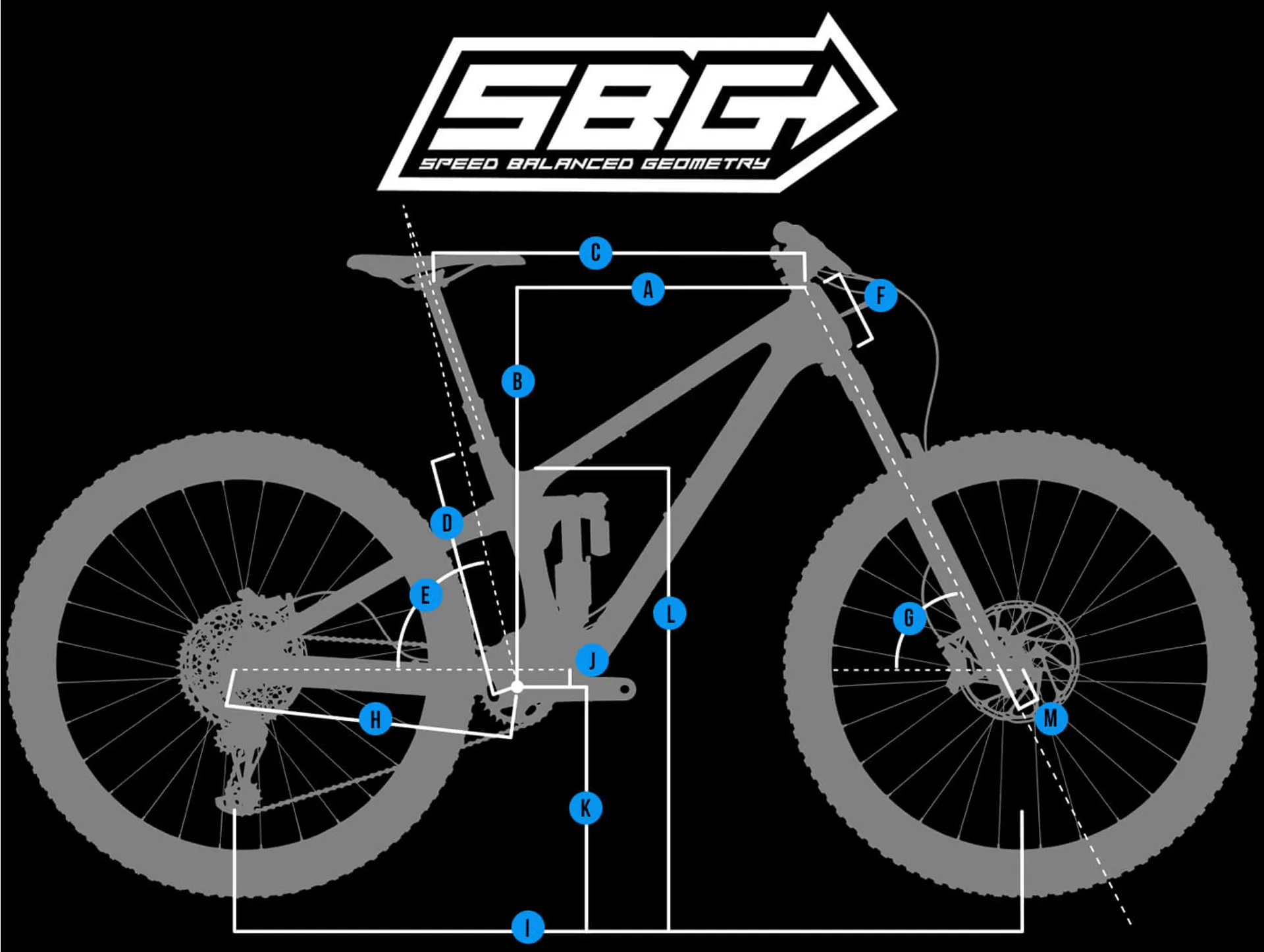

Geometry for Transition Regulator


SMMDLGXL
HIGH/LOWHIGH/LOWHIGH/LOWHIGH/LOW
A.REACH425/420455/450480/475510/505
B.STACK623/628632/637641/646651/656
C.EFFECTIVE TOPTUBE LENGTH551/554583/587610/615643/648
D.SEATTUBE LENGTH375400440470
E.EFFECTIVE SEATTUBE ANGLE78.8/78.378.5/78.078.2/77.777.9/77.4
SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE600660720780
ACTUAL SEATTUBE ANGLE75/74.575/74.575/74.575/74.5
SEATTUBE OFFSET AT BOTTOM BRACKET41414141
F.HEADTUBE LENGTH105115125135
G.HEADTUBE ANGLE64.5/64.064.5/64.064.5/64.064.5/64.0
H.CHAINSTAY LENGTH442/444442/444448/450448/450
I.WHEELBASE1201/12031235/12371271/12731305/1307
J.BOTTOM BRACKET DROP (FRONT)20/2520/2520/2520/25
J.BOTTOM BRACKET DROP (REAR)0/50/50/50/5
K.ESTIMATED BOTTOM BRACKET HEIGHT350/345350/345350/345350/345

Warranty Information for Transition:

ALL Transition frames are covered by our Unlimited Rider Support program. This program keeps you riding by providing discounted replacement frame parts or repair assistance in the event of damage - regardless of how it happened, or whether you're the original or a secondhand owner. If we are unable to replace or repair your frame part, we will work with you to find a suitable solution.
For full warranty policy please visit transition.com
