Premium carbon e-MTB with TQ HPR60 motor, SRAM X0 AXS wireless shifting, carbon wheels and Ultimate-level trail performance.
Premium carbon e-MTB with TQ HPR60 motor, SRAM X0 AXS wireless shifting, carbon wheels and Ultimate-level trail performance.
Trek

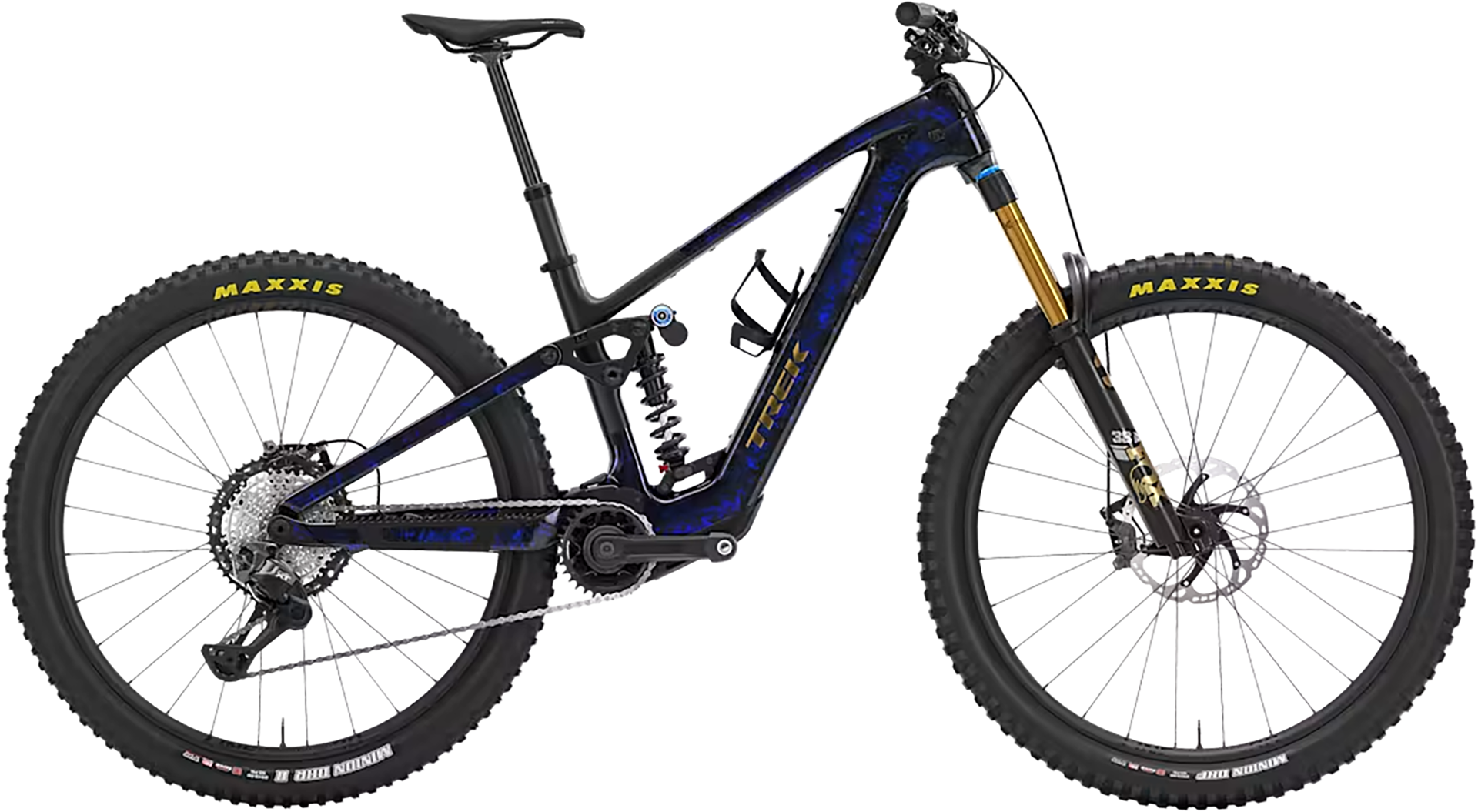

Trek Fuel+ LX 9.9 X0 AXS Gen 2 Electric Full Suspension Mountain Bike 2027 in Gloss Navy Smoke Matte Trek Black

£10,475.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Fuel+ LX 9.9 X0 AXS Gen 2 Electric Full Suspension Mountain Bike 2027 in Gloss Navy Smoke Matte Trek Black

Season:2027

Brand:Trek

Code:FUEL+LX9.9X0AXSEUBL-BK

The Trek Fuel+ EX 9.9 X0 AXS is the pinnacle of lightweight electric trail bike performance, combining a premium OCLV Mountain Carbon frame with the smooth, natural assistance of the TQ HPR60 drive system. Designed to excel on everything from technical climbs to demanding descents, it pairs a responsive chassis with RockShox Ultimate suspension to deliver exceptional control and confidence across any trail.

A wireless SRAM X0 Eagle AXS T-Type transmission delivers flawless shifting under load, while SRAM Maven Silver 4-piston brakes provide immense stopping power for aggressive riding. Finished with Bontrager Line Pro 30 OCLV Carbon wheels, a premium carbon cockpit and a wireless Fox Transfer NEO dropper post, the Fuel+ EX 9.9 X0 AXS is built for riders who want the very best in e-MTB performance.

Key Features & Benefits:

  • Natural Electric Assistance: TQ HPR60 motor and 580Wh removable battery deliver smooth, quiet power that feels natural on every climb and descent.
  • Premium Wireless Performance: SRAM X0 Eagle AXS T-Type drivetrain and Fox Transfer NEO wireless dropper deliver precision with minimal maintenance.
  • Elite Carbon Trail Build: OCLV Mountain Carbon frame, Bontrager Line Pro 30 carbon wheels and RockShox Ultimate suspension maximise speed, control and confidence.

Full Specification:

  • Frame: OCLV Mountain Carbon, Removable Battery, Angle-Adjust Headset, Adjustable Leverage Rate, Guided Internal Routing, Interchangeable Alloy Rocker Links, Interchangeable Lower Shock Mount, Downtube Guard, Shuttle Guard, ABP, UDH, Boost148, Adaptable Travel 145-160mm
  • Fork: RockShox ZEB Ultimate B1, Linear XL with ButterCups, Charger 3.2 RC2 Damper, Tapered Steerer, 44mm Offset, Boost110, 15mm Maxle Stealth, 170mm Travel
  • Motor: TQ HPR60, 60Nm Torque, 250W Continuous Power, 350W Peak Power
  • Battery: TQ 580Wh Removable Battery
  • Controller: TQ Colour LED Display with Bluetooth and ANT+ Connectivity
  • Charger: TQ 4A Charger
  • Number of Gears: 12-Speed
  • Gear Shifters: SRAM AXS Pod Controller
  • Chainset: SRAM XX or SRAM X0 Eagle Crankset (Size Dependent), 160mm/165mm
  • Chainrings: SRAM T-Type Alloy 32T
  • Rear Cassette: SRAM Eagle XS-1295 T-Type, 10-52T, 12-Speed
  • Chain: SRAM X0 Eagle T-Type, 12-Speed
  • Front Derailleur: None (1x Drivetrain)
  • Rear Derailleur: SRAM X0 Eagle AXS T-Type
  • Pedals: Not Supplied - Shop Pedals Here
  • Rims: Bontrager Line Pro 30 OCLV Mountain Carbon, Tubeless Ready, 29"
  • Front Hub: Bontrager Boost110 Hub
  • Rear Hub: Bontrager Rapid Drive 108, Boost148
  • Front Tyre: Maxxis Assegai, Tubeless Ready, EXO+ Casing, 29 x 2.5"
  • Rear Tyre: Maxxis Minion DHR II, Tubeless Ready, EXO+ Casing, 29 x 2.5"
  • Brakes: SRAM Maven Silver 4-Piston Hydraulic Disc Brakes
  • Handlebars: Race Face ERA Carbon, 35mm Clamp, 27.5mm Rise, 800mm Width
  • Stem: Race Face Turbine R, 35mm Clamp, 0°, 40mm Length
  • Saddle: Trek Aeolus Pro, Carbon Fibre Rails, AirLoom Lattice, 145mm Width
  • Seatpost: Fox Transfer NEO Wireless Dropper, 34.9mm; 150mm (S), 175mm (M), 200mm (L-XXL)
  • Other Accessories: Integrated TQ Colour LED Display, Bontrager TLR Sealant, Angle-Adjust Headset, Wireless Fox Transfer NEO Dropper Post, Class 1 E-Bike
  • Weight: Not Specified


Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly
.

Sizing Chart for Trek Fuel+ Gen 2

SizeRider HeightInseam
S155 - 165 cm5'1" - 5'5"74 - 78 cm29" - 31"
M165 - 176 cm5'5" - 5'9"79 - 83 cm31" - 33"
L177 - 188 cm5'10" - 6'2"84 - 89 cm33" - 35"
XL188 - 195 cm6'2" - 6'5"89 - 91 cm35" - 36"
2XL195 - 203 cm6'5" - 6'8"91 - 97 cm36" - 38"

Geometry for Trek Fuel+ Gen 2 (LX)


Frame size number15.5"17.5"19.5"21.5"23"
Frame size letterSMLXLXXL
Wheel size29"29"29"29"29"
A — Seat tube37404245.547.5
B — Seat tube angle71.5°71.5°71.5°71.6°71.6°
Effective seat tube angle77.0°76.7°76.3°75.9°75.4°
C — Head tube length111112.51415.5
D — Head angle63.4°63.4°63.4°63.5°63.5°
E — Effective top tube56.359.362.265.568.4
F — Bottom bracket height34.734.734.734.634.6
G — Bottom bracket drop2.62.72.72.72.7
H — Chainstay length44.444.444.444.745.2
I — Offset4.44.44.44.44.4
J — Trail13.813.813.713.713.7
K — Wheelbase121.3124.3127.5131.0134.1
L — Standover (carbon)76.375.776.076.477.3
L — Standover
(aluminium)
M — Frame reach41.844.847.349.851.8
N — Frame stack63.363.364.766.167.4

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
