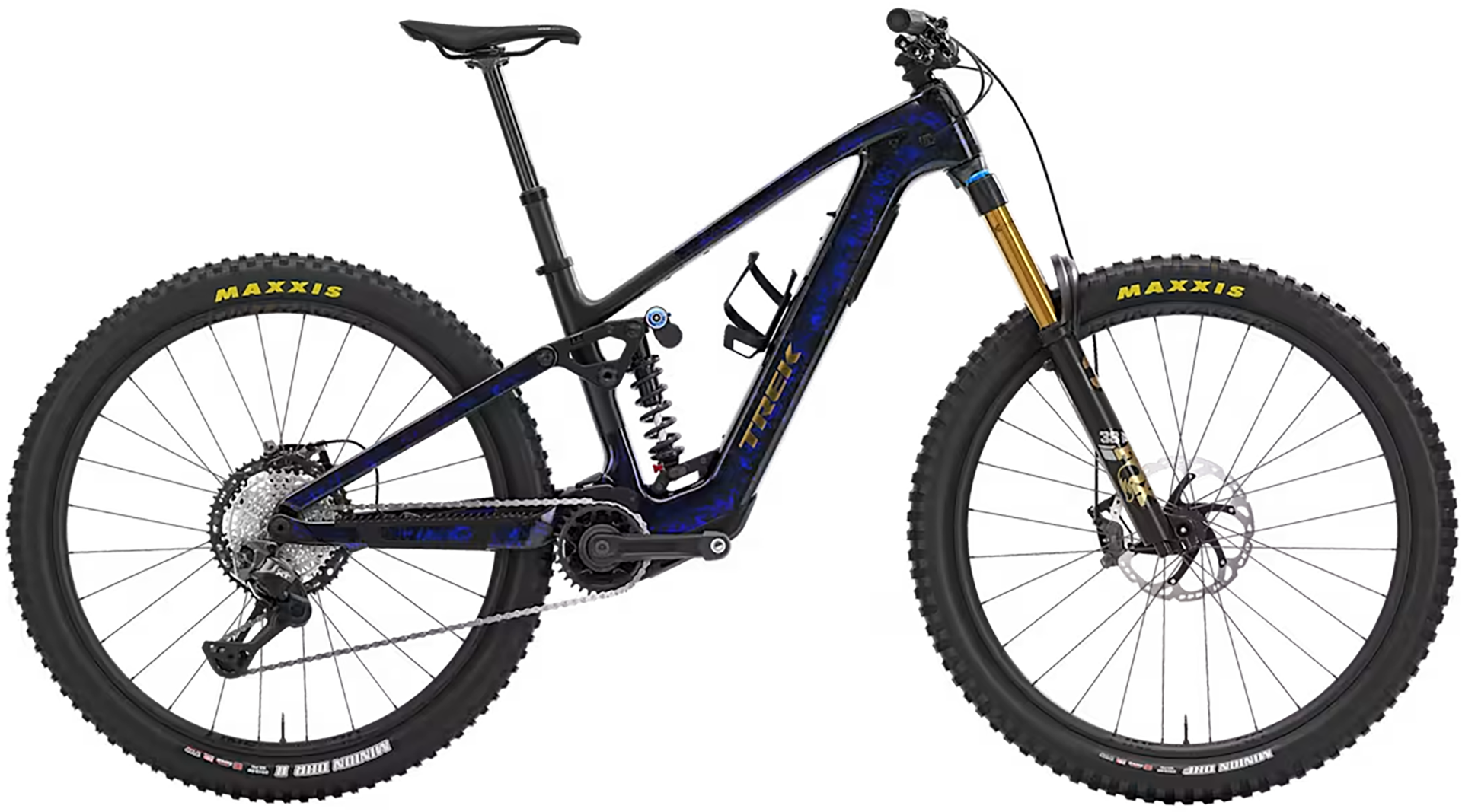

Trek Fuel+ LX 9.8 XT Di2 Gen 2 Electric Full Suspension Mountain Bike 2027 in Gloss Navy Smoke Matte Trek Black

Season:2027

Brand:Trek

Code:FUEL+LX9.8XTDI2EUBL-BK

The Trek Fuel+ LX 9.8 XT Di2 is a premium carbon e-MTB built to thrive on technical descents, rough terrain and all-day trail sessions. Its lightweight OCLV Mountain Carbon frame is powered by the smooth and whisper-quiet TQ HPR60 drive system, while a Fox Factory 38 fork and Fox DHX2 coil shock deliver 170mm of front travel and 160mm of rear travel for exceptional composure when the trail gets wild.

Shimano's XT Di2 wireless drivetrain delivers lightning-fast, fully customisable electronic shifting, while Shimano XT M8220 4-piston brakes provide superb modulation and dependable stopping power. Combined with Bontrager Line Comp 30 Tubeless Ready wheels and aggressive Maxxis tyres, the Fuel+ LX 9.8 XT Di2 is built for riders who want lightweight assistance without compromising all-out trail capability.

Key Features & Benefits:

  • Natural Electric Assistance: TQ HPR60 motor and 580Wh removable battery provide smooth, quiet power that feels natural on every climb and descent.
  • Wireless Shimano XT Di2: Shimano XT Di2 12-speed drivetrain delivers fast, fully customisable electronic shifting with exceptional reliability.
  • Factory Suspension Control: Fox Factory suspension with a DHX2 coil shock provides 170/160mm of plush, confidence-inspiring travel for demanding trails.

Full Specification:

  • Frame: OCLV Mountain Carbon, Removable Battery, Angle-Adjust Headset, Adjustable Leverage Rate, Guided Internal Routing, Interchangeable Alloy Rocker Links, Interchangeable Lower Shock Mount, Downtube Guard, Shuttle Guard, ABP, UDH, Boost148, Adaptable Travel 145-160mm
  • Fork: Fox Factory 38, Float EVOL Air Spring, GRIP X2 Damper, 44mm Offset, Boost110, 15mm Kabolt X Axle, 170mm Travel
  • Motor: TQ HPR60, 60Nm Torque, 250W Continuous Power, 350W Peak Power
  • Battery: TQ 580Wh Removable Battery
  • Controller: TQ Colour LED Display with Bluetooth and ANT+ Connectivity
  • Charger: TQ 4A Charger
  • Number of Gears: 12-Speed
  • Gear Shifters: Shimano XT Di2 M8250, 12-Speed
  • Chainset: EThirteen ESpec Plus, 160mm
  • Chainrings: E*Thirteen Helix Core Steel 32T, 55mm Chainline
  • Rear Cassette: Shimano XT M8200, 10-51T, 12-Speed
  • Chain: Shimano Ultegra/XT M8100
  • Front Derailleur: None (1x Drivetrain)
  • Rear Derailleur: Shimano XT Di2 M8260, 12-Speed
  • Pedals: Not Supplied - Shop Pedals Here
  • Rims: Bontrager Line Comp 30, Tubeless Ready, 29"
  • Front Hub: Bontrager Boost110 Hub
  • Rear Hub: Bontrager Rapid Drive 108, SRAM XD Freehub, Boost148
  • Front Tyre: Maxxis Assegai, Tubeless Ready, 3C MaxxGrip Compound, EXO+ Casing, 29 x 2.5"
  • Rear Tyre: Maxxis Minion DHR II, Tubeless Ready, 3C MaxxTerra Compound, EXO+ Casing, 29 x 2.5"
  • Brakes: Shimano XT M8220 4-Piston Hydraulic Disc Brakes
  • Handlebars: Race Face Turbine Alloy, 35mm Clamp, 40mm Rise, 780mm Width
  • Stem: Bontrager Elite, 35mm Clamp, 0°, 45mm Length
  • Saddle: Verse Short Comp, Steel Rails, 145mm Width
  • Seatpost: Bontrager Line Dropper MaxFlow, Internal Routing; 150mm (S), 170mm (M), 200mm (L-XXL)
  • Other Accessories: Integrated TQ Colour LED Display, Bontrager TLR Sealant and Rim Strips, Angle-Adjust Headset, Class 1 E-Bike
  • Weight: Not Specified


Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly
.

Sizing Chart for Trek Fuel+ Gen 2

SizeRider HeightInseam
S155 - 165 cm5'1" - 5'5"74 - 78 cm29" - 31"
M165 - 176 cm5'5" - 5'9"79 - 83 cm31" - 33"
L177 - 188 cm5'10" - 6'2"84 - 89 cm33" - 35"
XL188 - 195 cm6'2" - 6'5"89 - 91 cm35" - 36"
2XL195 - 203 cm6'5" - 6'8"91 - 97 cm36" - 38"

Geometry for Trek Fuel+ Gen 2 (LX)


Frame size number15.5"17.5"19.5"21.5"23"
Frame size letterSMLXLXXL
Wheel size29"29"29"29"29"
A — Seat tube37404245.547.5
B — Seat tube angle71.5°71.5°71.5°71.6°71.6°
Effective seat tube angle77.0°76.7°76.3°75.9°75.4°
C — Head tube length111112.51415.5
D — Head angle63.4°63.4°63.4°63.5°63.5°
E — Effective top tube56.359.362.265.568.4
F — Bottom bracket height34.734.734.734.634.6
G — Bottom bracket drop2.62.72.72.72.7
H — Chainstay length44.444.444.444.745.2
I — Offset4.44.44.44.44.4
J — Trail13.813.813.713.713.7
K — Wheelbase121.3124.3127.5131.0134.1
L — Standover (carbon)76.375.776.076.477.3
L — Standover
(aluminium)
M — Frame reach41.844.847.349.851.8
N — Frame stack63.363.364.766.167.4

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
