Trek Rail 9.7 SLX/XT Full Suspension Electric Mountain Bike 2024 in Galactic Grey

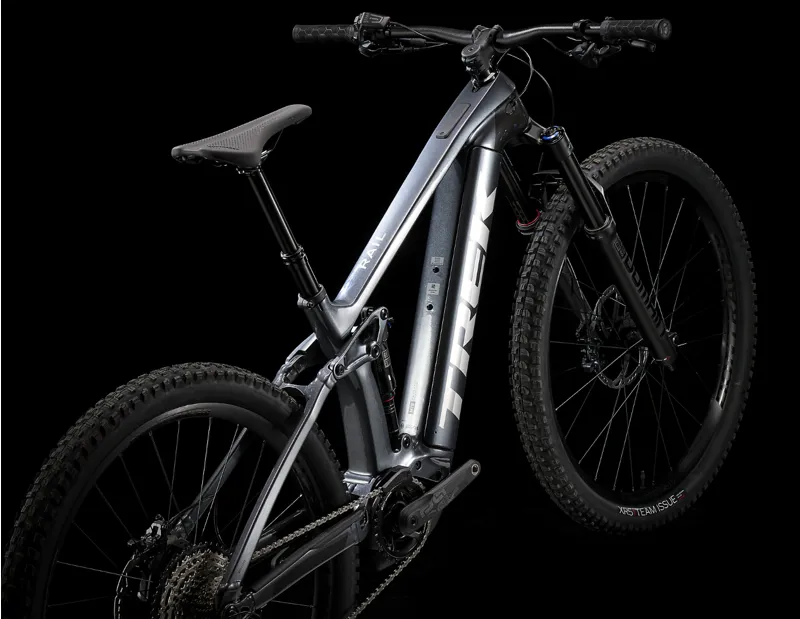

Rail 9.7 is a long-travel carbon electric mountain bike that gets you to the fun stuff faster. It's decked out with an upgraded frame that offers more reach for serious stability on the trail and a Bosch smart system drive unit with beefy 750 Wh battery that makes the climbs go by fast and the laps feel endless.

You’re looking for a super capable long-travel e-MTB that’s built to conquer techy runs and big drops. You want the light weight and responsive ride of an OCLV Mountain Carbon frame with a high-powered motor to get to more descents faster.

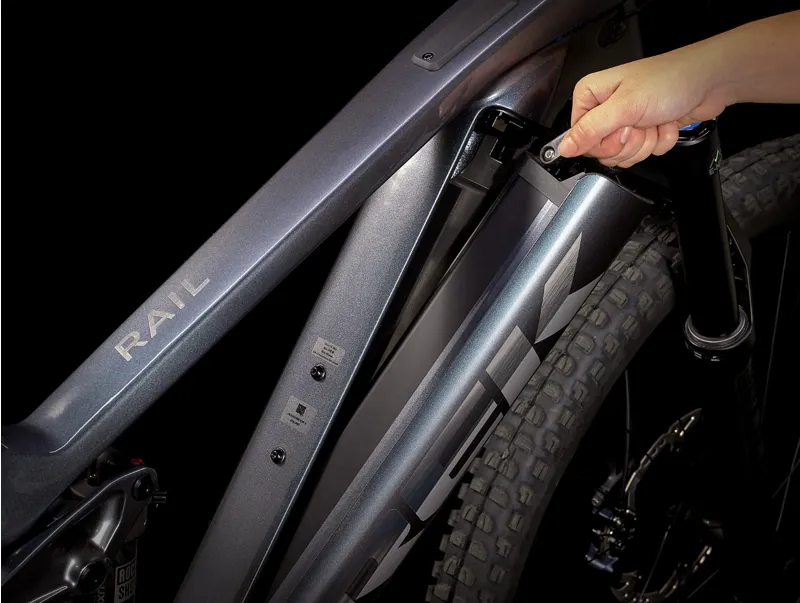

An OCLV Mountain Carbon frame with a 750 Wh Removable Integrated Battery, a 160 mm RockShox Domain fork, 150 mm of rear travel with a RockShox Deluxe Select+ shock and the latest from Bosch with smart system Performance Line CX capable of speeds up to 20 mph (25 km/h in Europe), including a Bluetooth® LED remote for easy connectivity and activity tracking through the eBike Flow app. A 1x12 Shimano SLX/XT drivetrain, Bontrager Line dropper post, powerful 4-piston brakes for confident descents and Bontrager Line Comp 30 29er wheels that are already completely tubeless-ready, including sealant.

Rail 9.7 hits the sweet spot of carbon performance and amazing value. It’s spec'd with quality trail-specific parts and a powerful Bosch drive system so you can send it through the rough stuff and motor right back up for another run.

Key Features & Benefits:

  • 160mm front and 150mm rear suspension:Eats up the rough stuff.
  • New Bosch Performance Line CX motor:Lighter and more powerful.
  • 750Wh integrated battery:Will keep you riding for longer.

Full Specification:

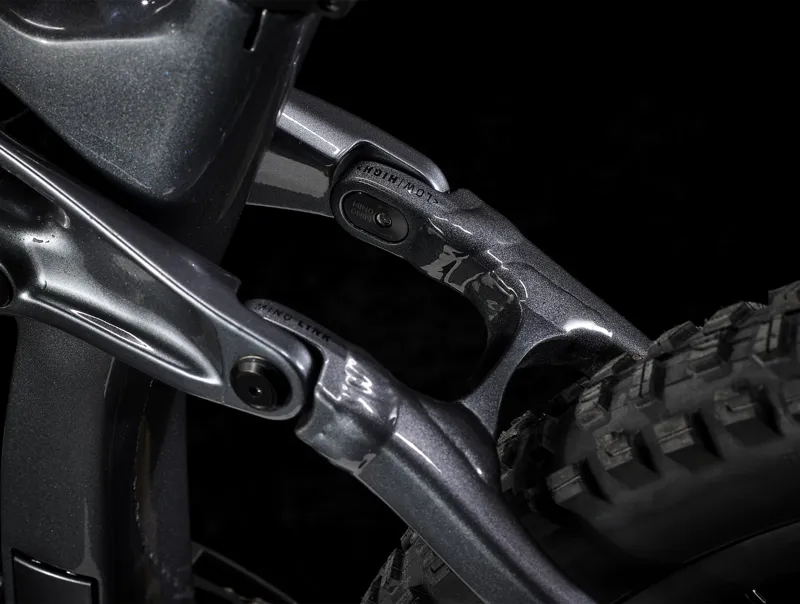

  • Frame:OCLV Mountain Carbon main frame, 1.8'' lower head tube, Bosch System Controller-compatible, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9 mm seat tube, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru-axle, 150 mm travel

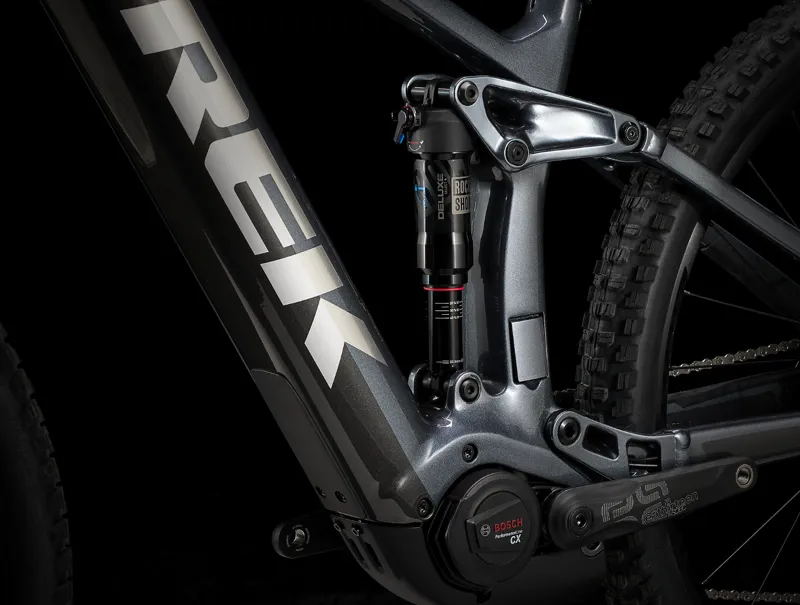

  • Rear Suspension:RockShox Deluxe Select+ RT, 230mm x 57.5mm
  • Fork:RockShox Domain RC, DebonAir, Motion Control damper, lockout, 1.8" oversized tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm Maxle Stealth, 160mm travel

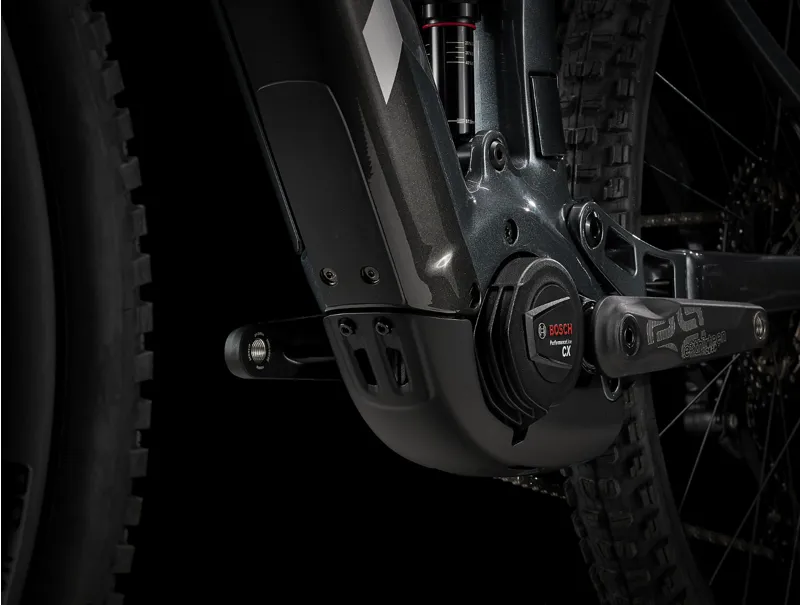

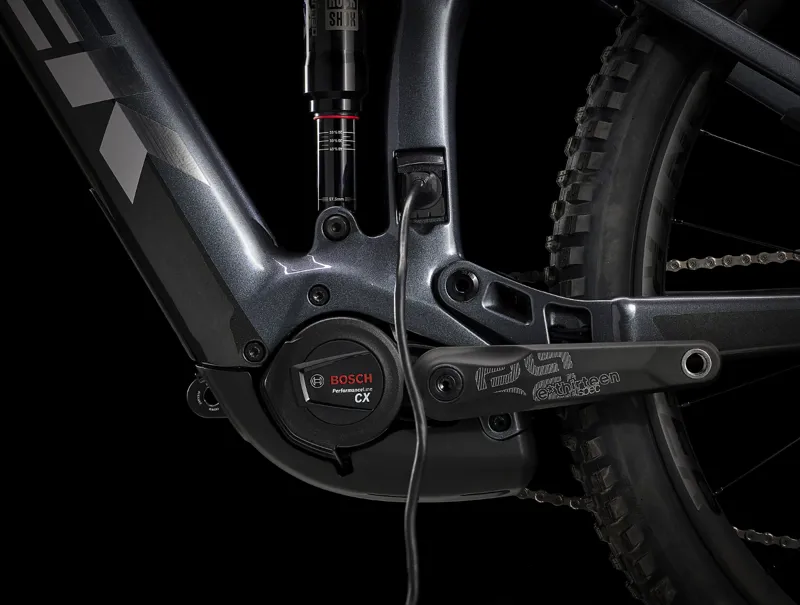

  • Motor:NEW Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
  • Battery:Bosch PowerTube 750Wh, smart system

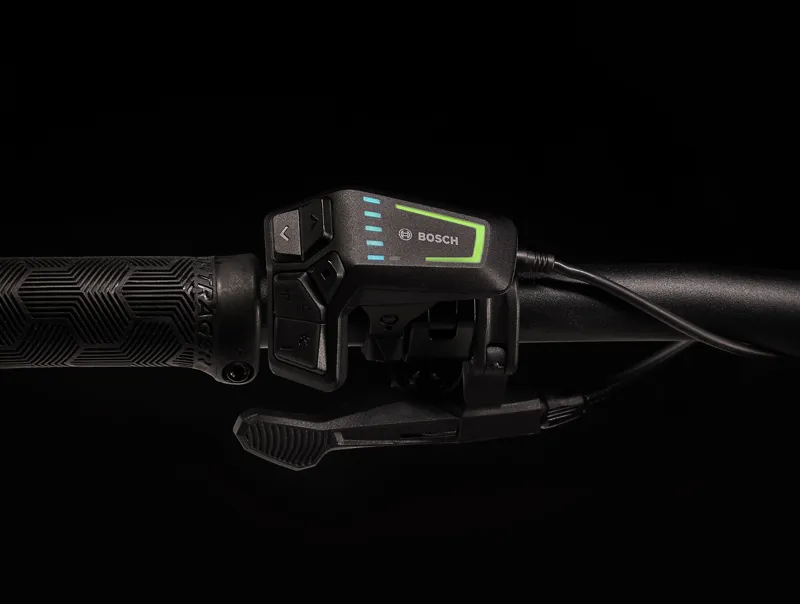

  • Controller:Bosch LED remote, smart system
  • Charger:Bosch standard 4A, 230V, smart system
  • Number of Gears:12
  • Gear Shifters:Shimano SLX M7100, 12-speed
  • Chainset:E*thirteen E*spec Plus, 165 mm length
  • Chainrings:E*thirteen E*spec, 34T alloy, 55 mm chainline
  • Rear Cassette:Shimano SLX M7100, 10-51, 12-speed
  • Chain:Shimano SLX M7100, 12-speed
  • Front Derailleur:N/A

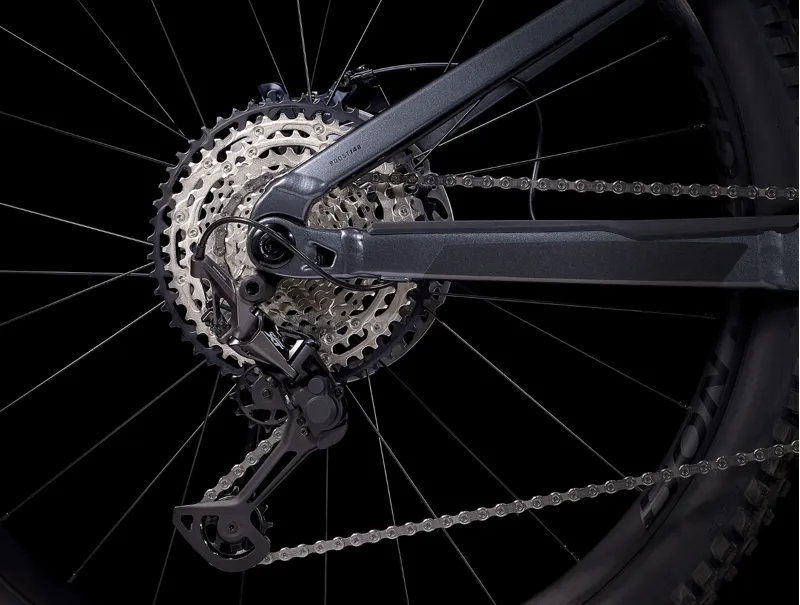

  • Rear Derailleur:Shimano XT M8100, long cage
  • Bottom Bracket:N/A
  • Pedals:Wellgo VPE-536
  • Rims:Bontrager Line Comp 30, Tubeless Ready, 28-hole, Presta valve
  • Front Hub:Bontrager 6-bolt, Boost110, 15 mm thru axle
  • Rear Hub:Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12mm thru axle

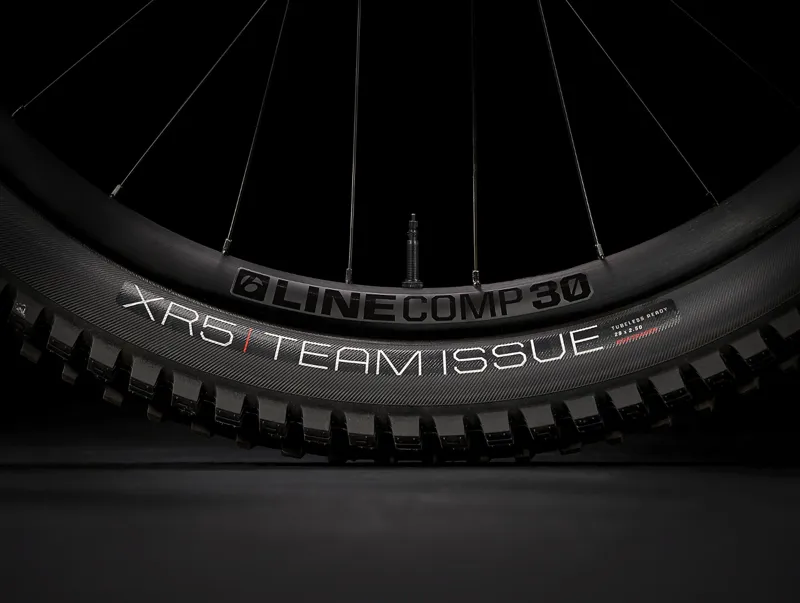

  • Front Tyre:Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50"
  • Rear Tyre:Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50"
  • Brakes:Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
  • Handlebars:Bontrager Comp, alloy, 31.8 mm, 15 mm rise, 780 mm width
  • Handlebar Grips/Tape:Bontrager XR Trail Comp, nylon lock-on
  • Headset:Knock Block Integrated, cartridge bearing, 1-1/8" top, 1.5"

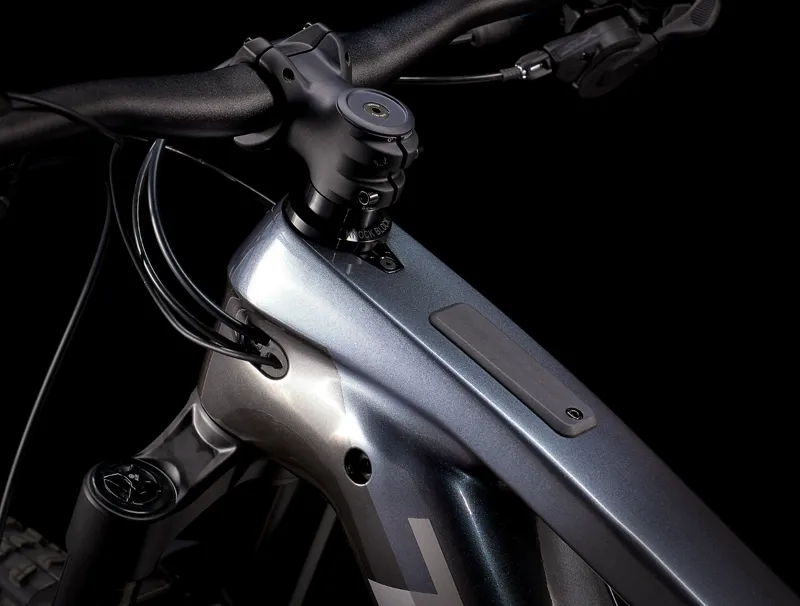

  • Stem:Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
  • Saddle:Bontrager Arvada, steel rails, 138 mm width
  • Seatpost:TranzX JD-YSP39, 100 - 170mm travel, internal routing, 34.9 mm
  • Accessories:N/A
  • Weight:M – 24.65kg/54.35 lb
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek Rail with Bosch Smart System

Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
S155 - 165 cm5'1" - 5'5"74 - 78 cm29" - 31"
M165 - 176 cm5'5" - 5'9"79 - 83 cm31" - 33"
L177 - 188 cm5'10" - 6'2"84 - 89 cm33" - 35"
XL188 - 195 cm6'2" - 6'5"89 - 91 cm35" - 36"

Geometry Information for Trek Rail with Bosch Smart System

Frame size letterSSMMLLXLXL
Geometry positionLowHighLowHighLowHighLowHigh
Wheel size29"29"29"29"29"29"29"29"
A — Seat tube4141424245455050
B — Seat tube angle70.8°71.2°70.8°71.2°70.8°71.2°70.8°71.2°
Effective seat tube angle76.7°77.1°76.7°77.1°76.7°77.1°76.7°77.1°
C — Head tube length10.510.5111112.512.51414
D — Head angle64.2°64.6°64.2°64.6°64.2°64.6°64.2°64.6°
E — Effective top tube5857.960.16063.963.867.367.1
F — Bottom bracket height34.134.634.134.634.134.634.134.6
G — Bottom bracket drop3.
H — Chainstay length44.844.744.844.744.844.744.844.7
I — Offset4.
J — Trail13.31313.31313.31313.313
K — Wheelbase121.4121.3123.6123.6127.8127.7131.4131.3
L — Standover75.676.176.877.376.57776.376.8
M — Frame reach43.243.645.245.648.749.151.752.1
N — Frame stack62.862.563.362.964.664.36665.6

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.
