The Diamant Mahon Style Pro Midstep combines Shimano Alfine 11-speed hub gearing, a Gates belt drive and dynamo lighting for refined everyday riding.
The Diamant Mahon Style Pro Midstep combines Shimano Alfine 11-speed hub gearing, a Gates belt drive and dynamo lighting for refined everyday riding.
Diamant

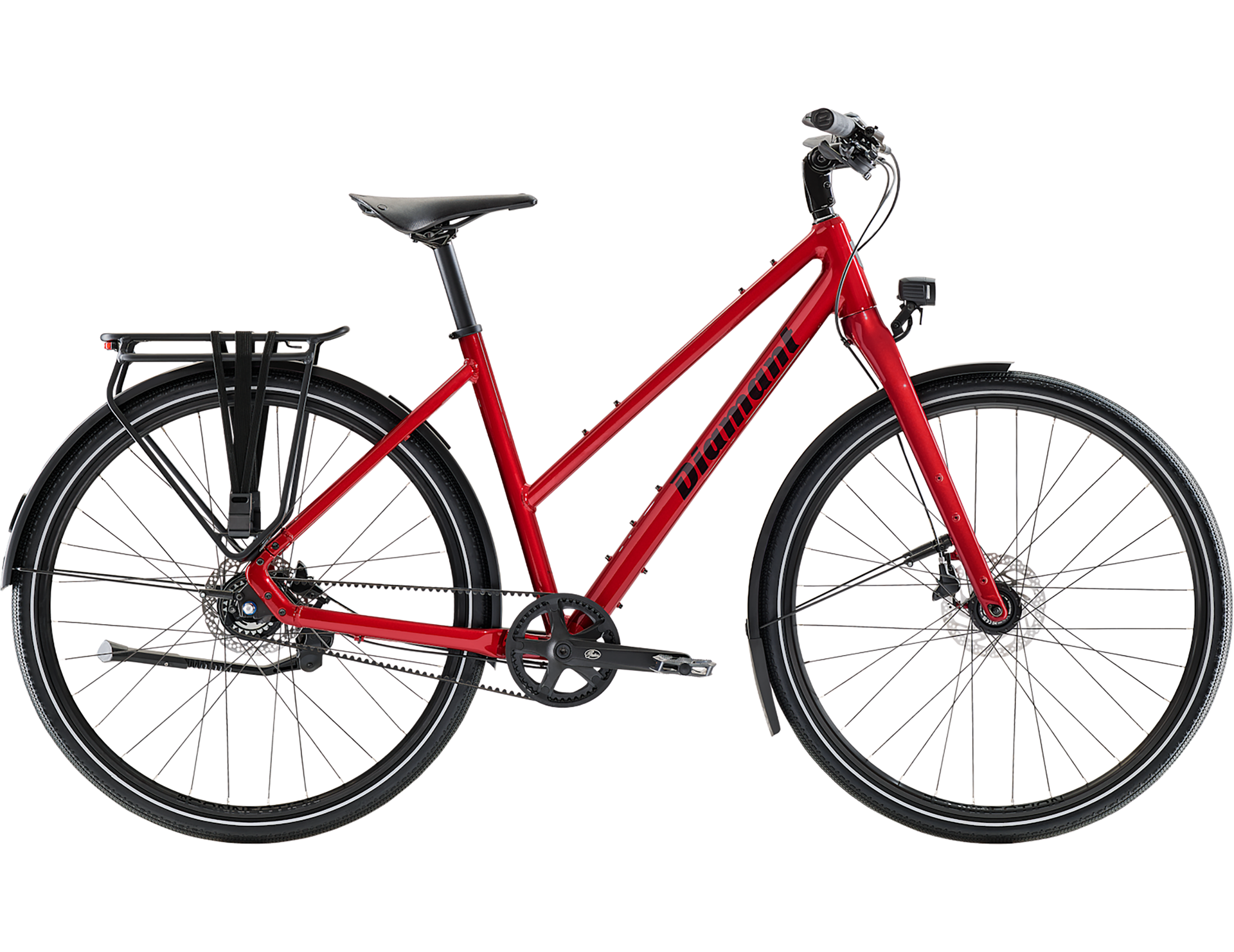

Diamant Mahon Style Pro Midstep 700c Hybrid Bike 2027 in Aventurinrot Metallic

£1,650.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Diamant Mahon Style Pro Midstep 700c Hybrid Bike 2027 in Aventurinrot Metallic

Season:2027

Brand:Diamant

Code:72696RED

The Diamant Mahon Style Pro Midstep is a premium trekking bike designed to combine everyday practicality with smooth, low-maintenance performance. Its Alpha Smooth Aluminium frame uses a midstep design for convenient access, with internal cable routing and a rigid alloy touring fork equipped with accessory mounts.

Shimano Alfine 11-speed internal hub gearing is paired with a Gates CDN CenterTrack belt drive, keeping the drivetrain clean and straightforward while providing a broad choice of gears for everyday journeys. Wide 700x42c Bontrager Girona Comp tyres feature puncture protection and reflective detailing for versatile urban and trekking use.

A Shimano dynamo hub powers the integrated lighting, removing the need to routinely recharge separate lights. Shimano MT200 hydraulic disc brakes provide dependable stopping control, while ergonomic grips, an adjustable stem and a Brooks Cambium C19 Special saddle complete the comfort-focused specification.

Features & Benefits:

  • Smooth, Low-Maintenance Drivetrain: Shimano Alfine 11-speed internal hub gearing and a Gates CDN belt drive provide a clean drivetrain with fewer exposed components than a conventional derailleur system.
  • Dynamo-Powered Visibility: The Shimano dynamo hub powers integrated front and rear lighting, providing convenient illumination without relying on separately charged lights.
  • Everyday Trekking Comfort: Wide 700x42c tyres, ergonomic grips, an adjustable stem and Brooks Cambium C19 Special saddle create a versatile setup for regular urban and trekking journeys.

Full Specification:

  • Frame: Alpha Smooth Aluminium, internal cable routing, post-mount disc, replaceable dropouts, belt split, ringlock mount
  • Fork: Alloy disc touring with accessory mounts, 100x5mm ThruSkew
  • Number of Gears: 11
  • Gear Shifters: Shimano Alfine, 11-speed
  • Chainset: Gates CDN S150, 170mm (S/M), 175mm (L)
  • Chainrings: 46T
  • Rear Cassette: Gates CDC CenterTrack, 24T
  • Chain: Gates CDN CenterTrack belt, 120T
  • Pedals: Bontrager City pedals
  • Rims: Bontrager Connection, double-wall, 32-hole, 20mm width, Presta valve
  • Front Hub: Shimano DH-3D72 dynamo hub, 6V, 3W, 100mm
  • Rear Hub: Shimano Alfine 11-speed internal, Center Lock, 32-hole
  • Spokes: 14g stainless steel, black
  • Front Tyre: Bontrager Girona Comp, sub-tread puncture protection, reflective stripe, 700x42c, made with recycled content
  • Rear Tyre: Bontrager Girona Comp, sub-tread puncture protection, reflective stripe, 700x42c, made with recycled content
  • Brakes: Shimano MT200 hydraulic disc, Shimano SM-RT30 Center Lock 160mm rotors
  • Handlebars: Alloy lowriser, 31.8mm, 25mm rise, 11-degree backsweep, 660mm or 690mm width
  • Grips: Ergotec EG Active Flex, lock-on, flex adjustment
  • Headset: FSA Integrated, sealed cartridge bearing, 1-1/8in top, 1.5in bottom
  • Stem: Adjustable aluminium, 31.8mm; size-specific specification
  • Saddle: Brooks Cambium C19 Special
  • Seatpost: Bontrager alloy, 31.6mm, 12mm offset, 330mm length
  • Mudguards: SKS plastic rear mudguard
  • Lights: Herrmans Nordic MR9 180-lumen LED front light with stand light function; Spanninga Pimento Large rear light with stand light function
  • Max System Weight: 136kg (300lb), combined maximum weight of bicycle, rider and cargo
  • Weight: 14.80kg (32.63lb), size M
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Diamant Nhoma and Mahon

Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
S155 – 1655’1″ – 5’5″72 - 7828 - 31
M165 - 1755’5″ – 5’9”77 - 8330 - 33
L175 – 1865’9” – 6’1″82 - 8832 - 35
XL186 – 1976’1” – 6’5″87 - 9334 - 37
XXL197 – 2036’6” – 6’8″92 - 9536 - 37

Geometry Information Diamant Nhoma and Mahon

Frame size number50cm54cm58cm62cm
Frame size letterMLXLXXL
Wheel size29"29"29"29"
A —Seat tube50545862
B —Seat tube angle73.0°73.0°73.0°73.0°
C —Head tube length14.5172020
D —Head angle69.0°69.0°69.0°69.0°
E —Effective top tube58.259.76263.3
F —Bottom bracket height29.129.129.129.1
G —Bottom bracket drop7777
H —Chainstay length46.846.846.846.8
I —Offset4.54.54.54.5
J —Trail9999
K —Wheelbase111.7113.4115.8117.1
L —Standover78.982.486.387.4
M —Frame reach38.539.340.742
N —Frame stack57.559.862.662.6

Geometry Information Diamant Mahon Mid-Step

Frame size number45cm50cm55cm
Frame size letterSML
Wheel size29"29"29"
A — Seat tube455055
B — Seat tube angle73.0°73.0°73.0°
C — Head tube length12.514.517
D — Head angle69.0°69.0°69.0°
E — Effective top tube57.358.259.8
F — Bottom bracket height29.129.129.1
G — Bottom bracket drop777
H — Chainstay length46.846.846.8
I — Offset4.54.54.5
J — Trail999
K — Wheelbase110.6111.7113.4
L — Standover63.564.565.1
M — Frame reach38.238.539.4
N — Frame stack55.657.459.8

Warranty Information for Diamant:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
