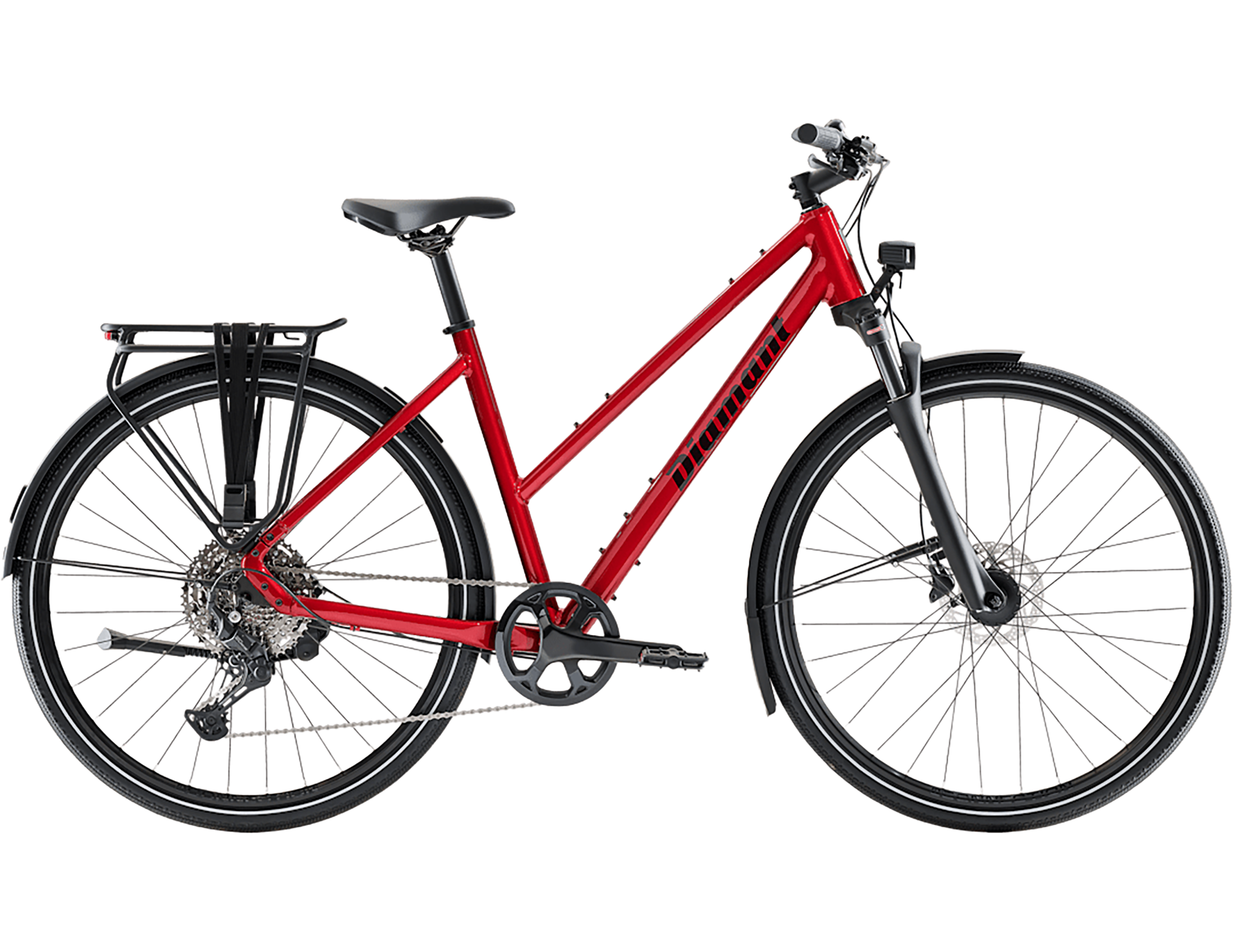

Diamant Mahon Trip Plus Midstep Hybrid Bike 2027 in Aventurinrot Metallic

Season:2027

Brand:Diamant

Code:MAHONTRIPPLUSRD

The Trek Mahon Trip Plus is a lightweight trekking bike designed to bring flexibility to everyday riding and weekend adventures. Its Alpha Smooth Aluminium midstep frame makes getting on and off easy, while practical carrying capability makes it well suited to commuting, shopping and longer leisure rides.

A 75mm SR Suntour NCX32 suspension fork and wide 700x42c Bontrager Girona Comp tyres help smooth out rough roads and paths. Shimano CUES 11-speed gearing provides a wide 11-50T range for tackling varied terrain, while Shimano MT200 hydraulic disc brakes offer dependable stopping performance.

Dynamo-powered front and rear lights provide visibility without needing to recharge separate batteries, while included mudguards and a kickstand add everyday practicality. The result is a capable trekking bike that's ready for daily journeys and trips beyond the city.

Key Features & Benefits:

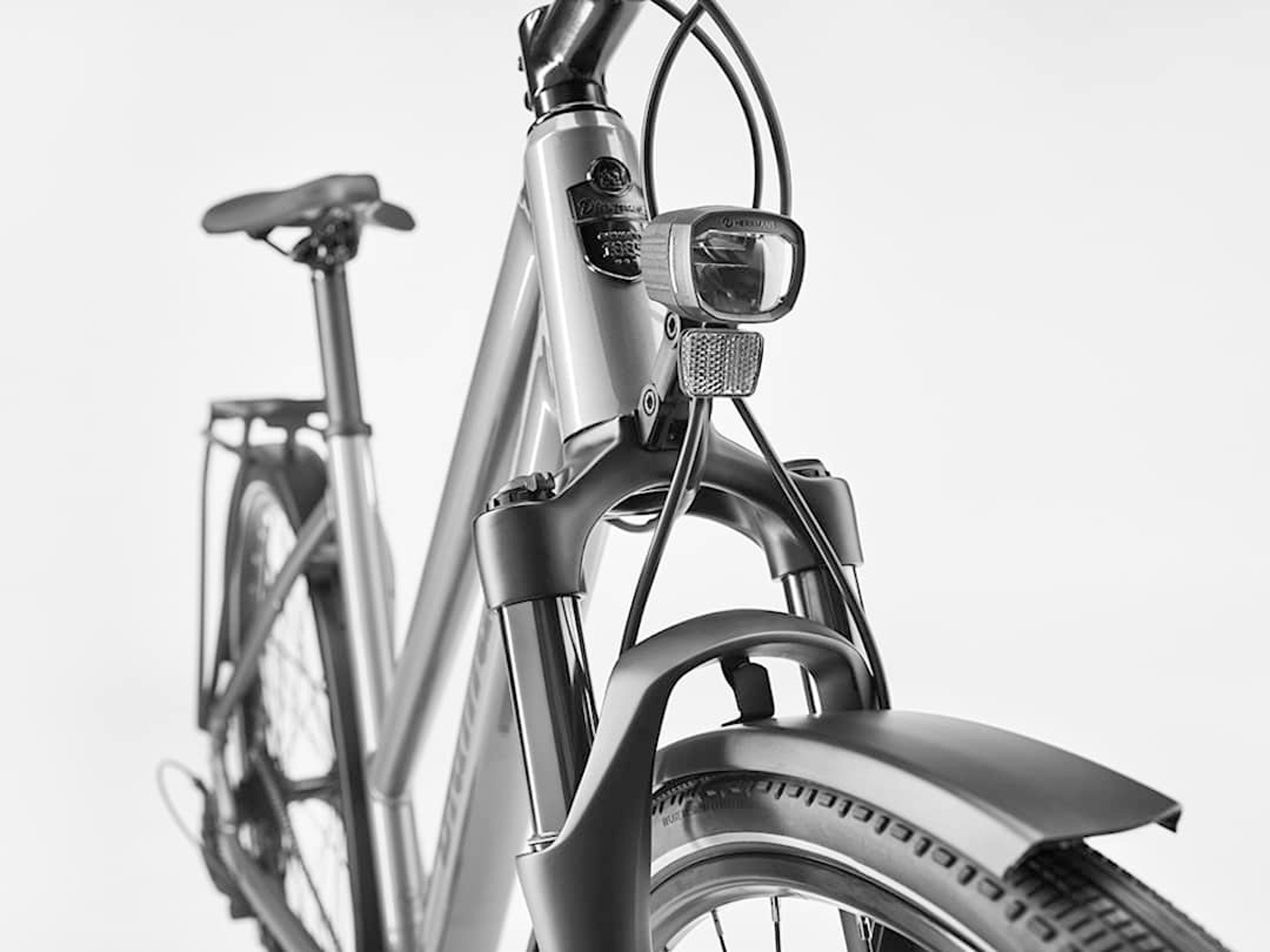

  • 75mm Front Suspension: The SR Suntour NCX32 fork helps absorb bumps and rough surfaces for greater comfort and control.
  • Shimano CUES 11-Speed Drivetrain: A wide-range 11-50T cassette provides useful gearing for everything from flat commutes to steeper climbs.
  • Ready for Everyday Riding: Dynamo-powered lighting, mudguards and a kickstand equip the Mahon Trip Plus for year-round transport and leisure riding.

Full Specification:

  • Frame: Alpha Smooth Aluminium, Internal Cable Routing, Post-Mount Disc, Replaceable Dropouts, Belt Split, Ring Lock Mount
  • Fork: SR Suntour NCX32, Coil Spring, 75mm Suspension
  • Number of Gears: 11
  • Gear Shifters: Shimano U6000, 11-Speed
  • Chainset: ProWheel Alloy, 42T, 175mm
  • Chainrings: 42T
  • Rear Cassette: Shimano CUES LG400 LINKGLIDE, 11-50T, 11-Speed
  • Chain: Shimano LG500, 9/10/11-Speed
  • Rear Derailleur: Shimano CUES U6000 GS
  • Pedals: VP-536 Nylon Platform
  • Wheelset: Bontrager Connection Double-Wall Rims, 32-Hole, 20mm Width; Shimano 3.0W Dynamo Front Hub and Shimano QC400 32-Hole CentreLock 135x5mm Rear Hub
  • Tyres: Bontrager Girona Comp, Sub-Tread Puncture Protection, Reflective Stripe, 700x42c, Made with Recycled Content
  • Brakes: Shimano MT200 Hydraulic Disc
  • Rotors: Shimano SM-RT30, CentreLock, 160mm
  • Handlebar: Alloy Low-Riser, 31.8mm, 25mm Rise, 11° Backsweep
  • Stem: Bontrager Elite/Comp, 31.8mm, Blendr-Compatible, 7°; 70mm (S), 80mm (M), 90mm (L)
  • Grips: Bontrager XR Endurance Comp/Trek Ergonomic Comp, Lock-On
  • Seatpost: Bontrager Alloy, 31.6mm, 12mm Offset, 330mm Length
  • Saddle: Bontrager Commuter Comp/Selle Royal Vivo Moderate Ergo
  • Front Light: Herrmans Nordic MR9, 180 Lumen, LED, Stand Light Function
  • Rear Light: Spanninga Pimento Large, Stand Light Function
  • Mudguards: SKS Plastic, Front and Rear
  • Kickstand: Pletscher Comp Flex 40
  • Load Capacity: 136kg Maximum Total System Weight (Combined Bike, Rider and Cargo)
  • Weight: 15.80kg (Size M)
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Diamant Nhoma and Mahon

Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
S155 – 1655’1″ – 5’5″72 - 7828 - 31
M165 - 1755’5″ – 5’9”77 - 8330 - 33
L175 – 1865’9” – 6’1″82 - 8832 - 35
XL186 – 1976’1” – 6’5″87 - 9334 - 37
XXL197 – 2036’6” – 6’8″92 - 9536 - 37

Geometry Information Diamant Nhoma and Mahon

Frame size number50cm54cm58cm62cm
Frame size letterMLXLXXL
Wheel size29"29"29"29"
A —Seat tube50545862
B —Seat tube angle73.0°73.0°73.0°73.0°
C —Head tube length14.5172020
D —Head angle69.0°69.0°69.0°69.0°
E —Effective top tube58.259.76263.3
F —Bottom bracket height29.129.129.129.1
G —Bottom bracket drop7777
H —Chainstay length46.846.846.846.8
I —Offset4.54.54.54.5
J —Trail9999
K —Wheelbase111.7113.4115.8117.1
L —Standover78.982.486.387.4
M —Frame reach38.539.340.742
N —Frame stack57.559.862.662.6

Geometry Information Diamant Mahon Mid-Step

Frame size number45cm50cm55cm
Frame size letterSML
Wheel size29"29"29"
A — Seat tube455055
B — Seat tube angle73.0°73.0°73.0°
C — Head tube length12.514.517
D — Head angle69.0°69.0°69.0°
E — Effective top tube57.358.259.8
F — Bottom bracket height29.129.129.1
G — Bottom bracket drop777
H — Chainstay length46.846.846.8
I — Offset4.54.54.5
J — Trail999
K — Wheelbase110.6111.7113.4
L — Standover63.564.565.1
M — Frame reach38.238.539.4
N — Frame stack55.657.459.8

Warranty Information for Diamant:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
