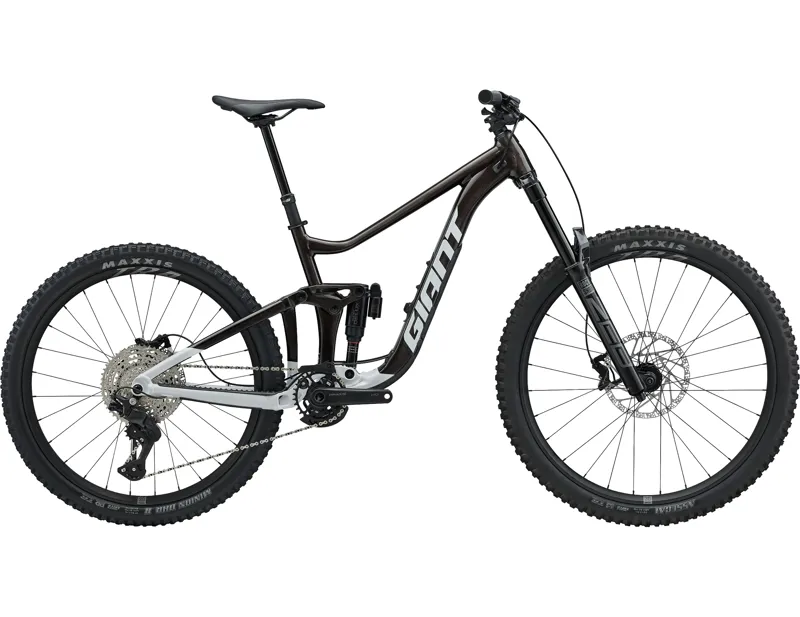

The Giant Reign is designed for mountain-bike riding, combining the supplied frame platform with suspension and components selected for off-road control.
The frame uses ALUXX SL-Grade Aluminium front and rear triangles, Maestro Suspension, 160mm travel, 12x148mm thru-axle. Rear suspension is handled by RockShox SuperDeluxe, R, 205x62,5, custom tuned for Giant, recommended sag 30%. Up front, the specification uses NEW RockShox Zeb Delta RC damper 29"Boost 15x110 Maxle Stealth 170mm.
The drivetrain is built around NEW Shimano Deore RD M7200, Shadow +. Braking is provided by TRP EVO Comp, black HD-M7040 4 piston. The supplied tyre specification is [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, 60 TPI, EXO+, TR [R] Maxxis Minion DHR II 29 27.5x2,4WT.
Features & Benefits:
- Controlled Handling: NEW RockShox Zeb Delta RC damper 29"Boost 15x110 Maxle Stealth 170mm supports control across the bike’s intended terrain.
- Purpose-Built Gearing: NEW Shimano Deore RD M7200, Shadow + provides the model’s shifting system.
- Tyre Performance: [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, 60 TPI, EXO+, TR [R] Maxxis Minion DHR II 29 27.5x2,4WT, 3C MaxxTerra provides the contact point for the bike’s intended use.
Full Specification:
- Frame: ALUXX SL-Grade Aluminium front and rear triangles, Maestro Suspension, 160mm travel, 12x148mm thru-axle, integrated storage solution frame size S/XL: 29"F & 29"R commercial spec and 27.5" rear wheel compatible
- Rear Shock: RockShox SuperDeluxe, R, 205x62,5, custom tuned for Giant, recommended sag 30%
- Fork: NEW RockShox Zeb Delta RC damper 29"Boost 15x110 Maxle Stealth 170mm
- Number of Gears: 12
- Gear Shifters: NEW Shimano Deore SL M6200, 1x12
- Chainset: Praxis Cadet HD M24 Boost, 32T, steel chainring, 55mm chainline with NEW MRP AMg CS Guide, Next generation upper guide
- Chainrings: 32T
- Rear Cassette: NEW Shimano Deore, CS M6200 10x51
- Chain: KMC X12
- Rear Derailleur: NEW Shimano Deore RD M7200, Shadow +
- Bottom Bracket: Shimano PressFit Praxis Pressfit
- Pedals: Al body/AL cage Platform (GC,GT)
- Wheelset: Giant TRA 2, F29"-R27.5" hookless ALUXX wheelsystem, 30mm IW, 40mm OW, 21mm H,72t POE, 28 j-bend spokes, MS driver body
- Spokes: Giant TRA 2, F29"-R27.5" hookless ALUXX wheelsystem, 30mm IW, 40mm OW, 21mm H,72t POE, 28 j-bend spokes, MS driver body
- Front Tyre: Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, 60 TPI, EXO+, TR
- Rear Tyre: Maxxis Minion DHR II 29 27.5x2,4WT, 3C MaxxTerra, DD 2x60 TPI TR
- Brakes: TRP EVO Comp, black HD-M7040 4 piston
- Handlebars: Giant Contact TR35, 800x35mm, 35mm rise,AL6061
- Grips or Bar Tape: Giant Tactal Pro single lock-on
- Headset: NO57
- Stem: Giant Contact SL 35, Diameter 35mm, 8 degree
- Saddle: Giant Romero
- Seatpost: Contact Switch AT DSP with remote lever, 30,9mm
- Other Accessories: MRP AMG CS chain guide for all GSC's, Tubeless Prepared, maximum tyre size 2.5", maximum chainring size 36T
- Weight: N/A
