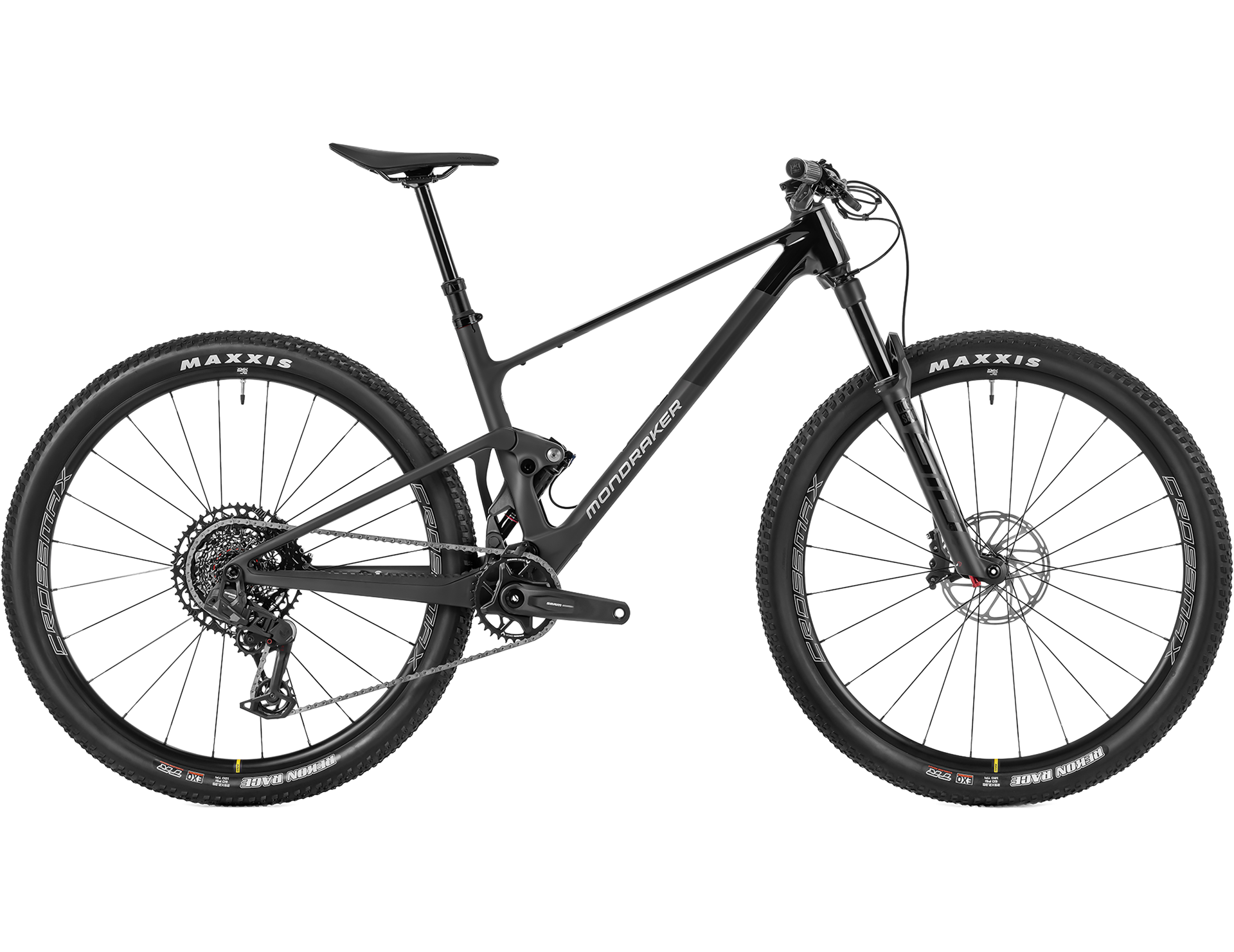

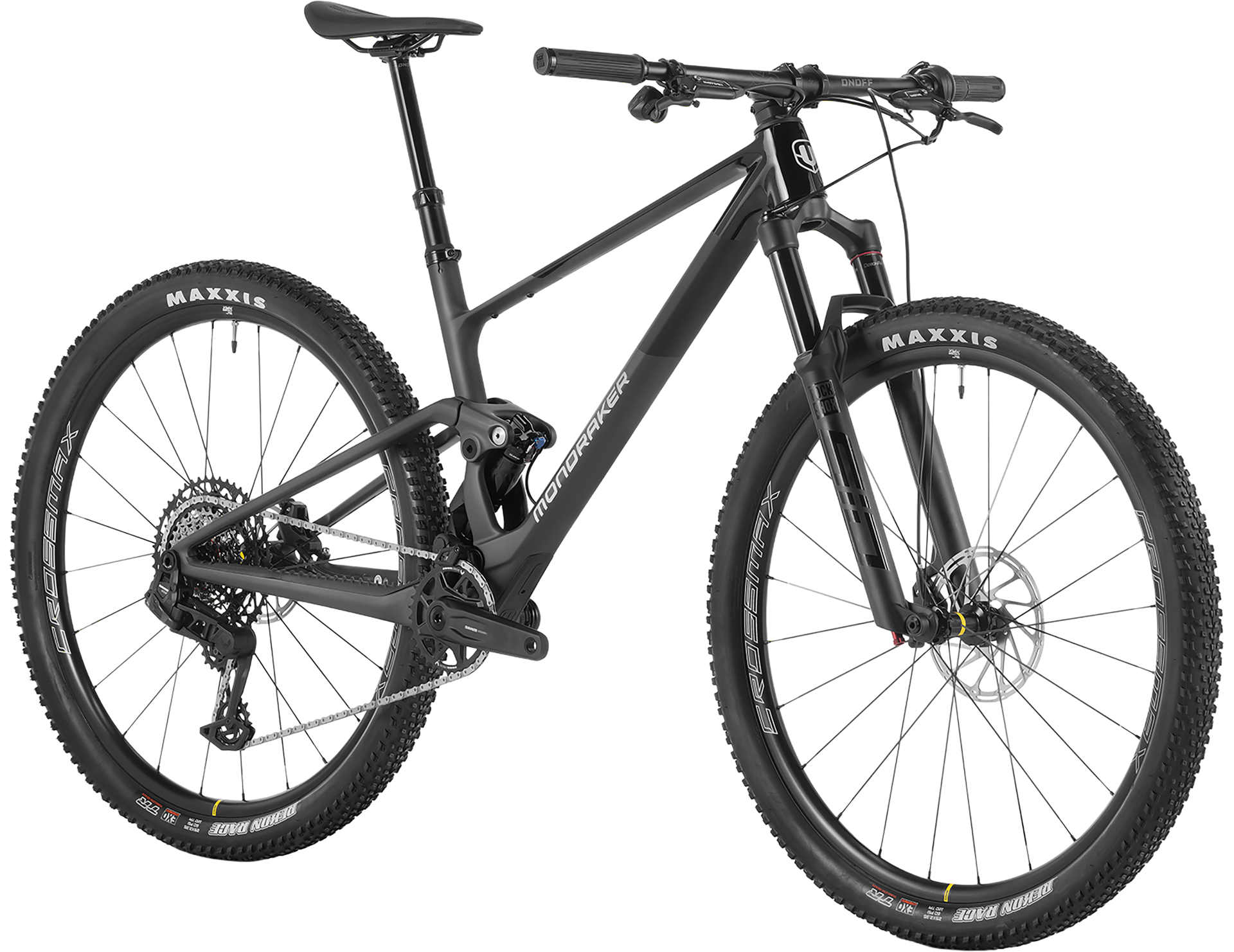

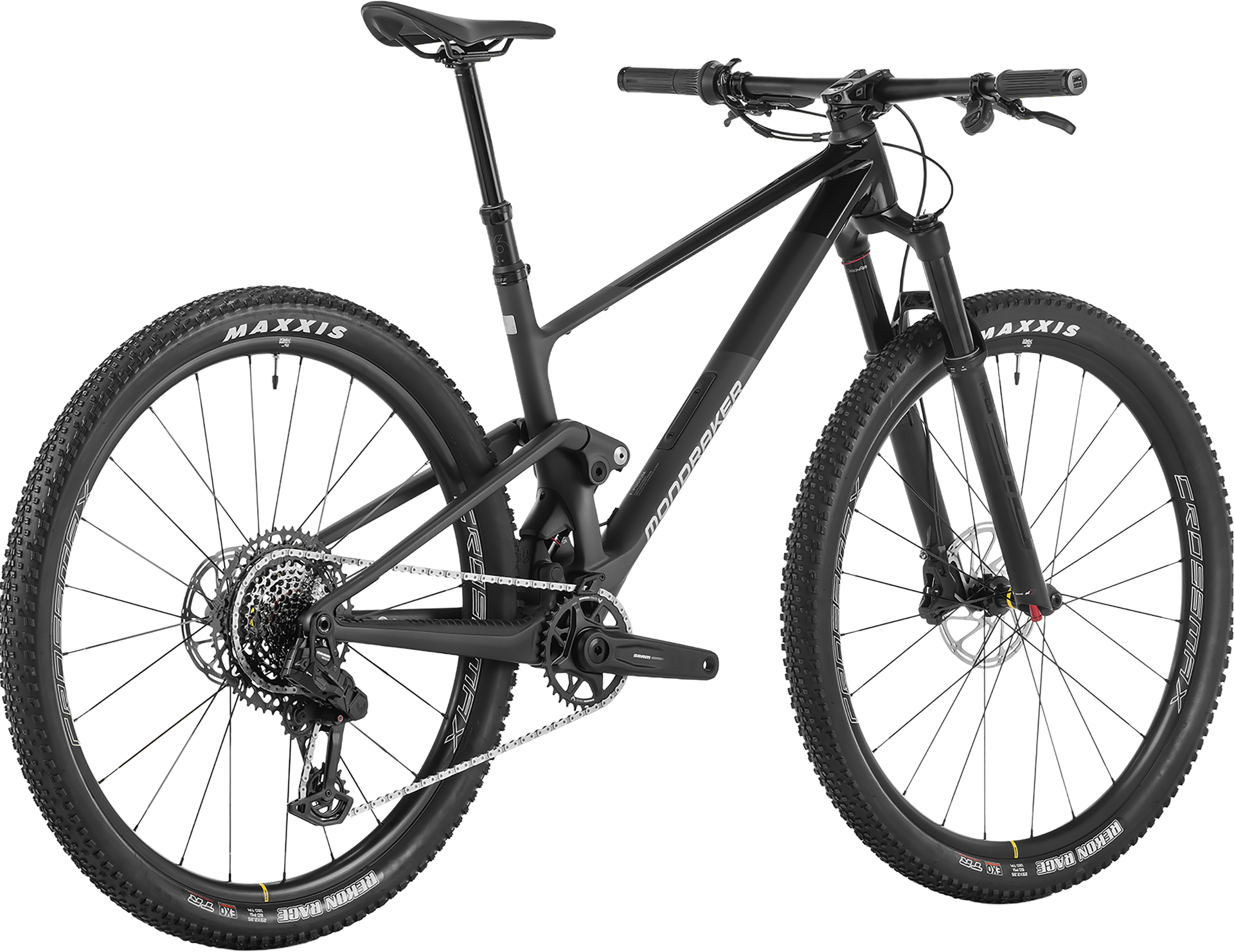

The Mondraker F-Podium R is a pure cross-country race machine built to combine lightweight climbing efficiency with modern XC capability. Designed around Mondraker’s Stealth Air Full Carbon frame and XCO Optimized Zero Suspension System, it delivers explosive acceleration, precise handling and impressive composure when the trails become technical.
With 120mm front travel and 110mm rear travel, the F-Podium R blends race-focused efficiency with added confidence for demanding modern XC courses and marathon riding. Mondraker’s XC Forward Geometry creates a stable and aggressive riding position, while the RockShox SID suspension package keeps the bike composed and efficient under power.
Wireless SRAM Eagle AXS T-Type shifting, lightweight Mavic CrossMax wheels and a carbon race frame ensure the F-Podium R is fast, responsive and ready to compete. Integrated cable routing, dropper post compatibility and refined suspension kinematics complete a highly capable XC platform built for riders who want speed without compromise.
Key Features & Benefits:
- Efficient XC Suspension: Zero Suspension System with RockShox SID suspension delivers traction, control and exceptional pedalling efficiency.
- Lightweight Carbon Performance: Stealth Air Full Carbon frame combines low weight, stiffness and modern XC geometry for race-ready speed.
- Wireless Eagle Transmission: SRAM Eagle AXS T-Type drivetrain provides precise wireless shifting and reliable performance under load.
Specifications:
- Frame: F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm travel, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1x drivetrain design, Boost 12x148mm rear axle, UDH, shock mudguard, postmount rear brake mount.
- Fork: RockShox SID Base 3P Remote 29, 120mm travel, DebonAir, tapered steerer tube, Boost 15x110mm axle, 44mm offset.
- Number of Gears: 12-speed.
- Gear Shifters: SRAM Eagle AXS Pod, 12-speed.
- Chainset: SRAM S1000 Eagle T-Type, Boost, DUB axle, direct mount chainring, S/M: 165mm, L/XL: 170mm, CL55.
- Chainrings: 34T CNC-machined alloy, T-Type.
- Rear Cassette: SRAM XS-1270, 10-52T, T-Type, 12-speed.
- Chain: SRAM GX Eagle T-Type, 12-speed, PowerLock.
- Rear Derailleur: SRAM S1000 Eagle AXS T-Type, 12-speed.
- Bottom Bracket: SRAM DUB BSA, sealed bearings, 73mm wide.
- Pedals: Not Supplied — Shop Pedals Here
- Rims: Mavic CrossMax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes.
- Front Hub: Mavic Boost 15x110mm, IS 6-bolt.
- Rear Hub: Mavic Boost 12x148mm, ID360 Ratchet system, IS 6-bolt, HG freehub.
- Front Tyre: Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead.
- Rear Tyre: Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead.
- Brakes: SRAM Motive Bronze 4P Stealth hydraulic disc brakes with 180mm front and 160mm rear rotors.
- Handlebars: Onoff S6 0.2 7050 alloy, 760mm width, 5mm rise, 8° backsweep, 4° upsweep, 31.8mm clamp.
- Handlebar Tape: RockShox TwistLoc grips.
- Stem: Onoff S6 7050 T6 Alloy + CNC, -7°, S/M: 50mm, L: 60mm, XL: 70mm.
- Saddle: Fizik Vento Argo X5 140mm.
- Seatpost: Onoff Pija internal dropper post, 31.6mm diameter, size-specific travel.
- Accessories: RockShox TwistLoc Base FullSprint 3-position remote lockout.
- Weight: 12.2kg.
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.
Sizing Chart for Mondraker F-Podium

Geometry Information for Mondraker F-Podium

| Frame size | S | M | L | XL |
|---|
| A | Seattube length | 410 mm | 440 mm | 470 mm | 500 mm |
|---|
| B | Toptube length | 576 mm | 601 mm | 629,4 mm | 657,8 mm |
|---|
| C | Bottom bracket drop | -40 mm | -40 mm | -40 mm | -40 mm |
|---|
| D | Bottom bracket height | 335 mm | 335 mm | 335 mm | 335 mm |
|---|
| E | Chainstay length | 435 mm | 435 mm | 435 mm | 435 mm |
|---|
| F | Seat tube angle | 72,5° | 72,9° | 73,2° | 73,5° |
|---|
| G | Effective seattube angle | 76,2° | 76,2° | 76,2° | 76,2° |
|---|
| H | Headtube angle | 66,5° | 66,5° | 66,5° | 66,5° |
|---|
| I | Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
|---|
| J | Wheelbase | 1152 mm | 1177 mm | 1208 mm | 1239 mm |
|---|
| K | Headtube length | 90 mm | 90 mm | 105 mm | 120 mm |
|---|
| L | Reach | 430 mm | 455 mm | 480 mm | 505 mm |
|---|
| M | Stack | 594,6 mm | 594,6 mm | 608,3 mm | 622,1 mm |
|---|
Warranty Information for Mondraker:
GENERAL WARRANTY EXCLUSIONS
1. Damage or faults caused by accident, incorrect or improper usage, abuse or negligence.
2. Wear and tear. Both on the frame and those components subject to wear and tear through usage (transmission, tyres, bearings, axles, nuts, bolts, tyres, handle grips, chain, brake shoes/pads, chain guide, hubs, etc.).
3. Faults caused by inappropriate handling or maintenance, or through the installation of parts and accessories that are not compatible or do not comply with the specific usage conditions for this model of bicycle.
4. Any manipulation, modification or structural repair, or paintwork, performed by any person or company unconnected with Mondraker, or without the authorisation of Mondraker.
The warranty governed by Consumer and User protection legislation which applies if the Purchaser has such status, only covers a malfunction caused by proven manufacturing defects, in other words non-conformities which exist at the time of delivery of the product. Nonetheless, this warranty will not be valid for external damage suffered by the Product through any cause, wear and tear through usage, or because of culpable or negligent actions by the Purchaser, nor in the case of incidents caused by force majeure. In summary, the commercial warranty will not cover any damage resulting from any cause outside the responsibility of the manufacturer, in other words Mondraker.
Nonetheless, in the event that Consumer and User protection legislation establishes presumptions regarding the existence of non-conformities at the time of delivery of the product to the end Consumer, consideration will be given to whether the presumption is compatible with the nature of the product and the type of non-conformity arising.
For Full Terms and Conditions Visit Mondrakers Website
