Mondraker Raze Carbon RR trail bike with Fox Factory suspension, SRAM X0 AXS drivetrain, and carbon frame performance.
Mondraker Raze Carbon RR trail bike with Fox Factory suspension, SRAM X0 AXS drivetrain, and carbon frame performance.
Mondraker

Mondraker RAZE CARBON RR Carbon Full Suspension Mountain Bike 2027 in Obsidian Grey/Blue/Black

£6,299.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

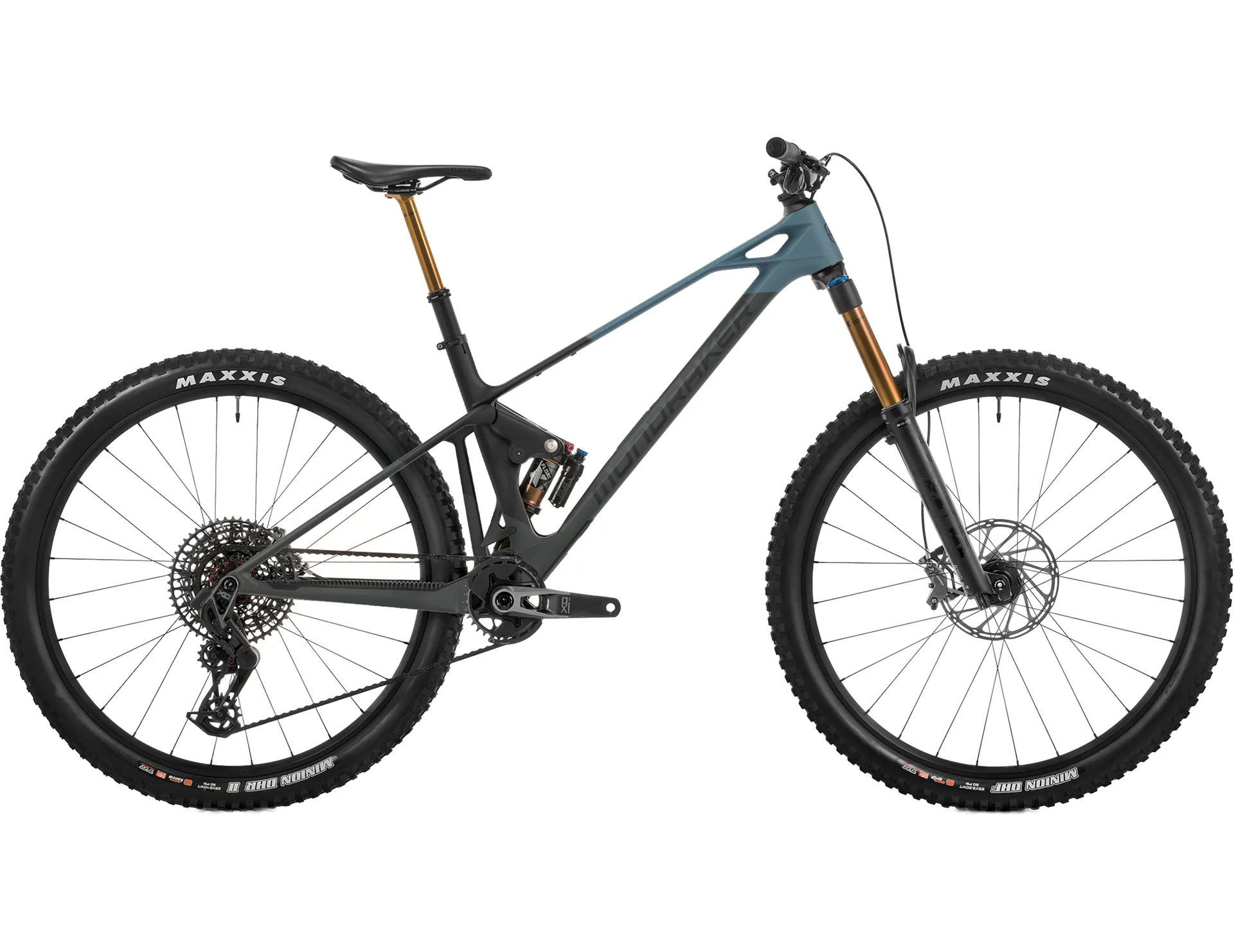

Mondraker RAZE CARBON RR Carbon Full Suspension Mountain Bike 2027 in Obsidian Grey/Blue/Black

Season:2027

Brand:Mondraker

Code:RAZE CARBON RR Grey/Blue/

The Mondraker Raze Carbon RR is a high-performance trail bike designed to combine aggressive descending capability with efficient climbing and playful handling. Built around Mondraker’s Stealth Air Full Carbon frame and Zero Suspension System, it delivers a lightweight yet highly capable ride for riders who want speed, control, and versatility across technical trail terrain.

Its 130mm Zero Suspension System paired with a 150mm Fox 36 Factory GRIP X2 fork provides impressive traction, sensitivity, and composure on demanding descents while maintaining excellent pedalling efficiency for all-day trail riding. Mondraker’s Forward Geometry creates a stable and confidence-inspiring ride feel without sacrificing agility or responsiveness through tighter terrain.

The SRAM X0 Eagle AXS T-Type wireless drivetrain delivers precise electronic shifting and exceptional durability under load, while premium DT Swiss wheels, powerful SRAM Motive Silver brakes, and Maxxis tyres complete a highly capable trail-ready package. Lightweight, fast, and incredibly versatile, the Raze Carbon RR is built for riders who want one bike that excels everywhere.

Key Features & Benefits:

  • Advanced Trail Suspension: Zero Suspension System with Fox Factory suspension delivers exceptional control, traction, and efficiency.
  • Lightweight Carbon Performance: Stealth Air Carbon frame combines responsive climbing performance with confident descending capability.
  • Wireless Trail Drivetrain: SRAM X0 Eagle AXS T-Type drivetrain provides precise electronic shifting and trail-ready durability.

Specifications:

  • Frame: Raze 29 Stealth Air Full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, UDH, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors
  • Fork: Fox 36 Float GRIP X2 Factory Kashima, 150mm travel, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset, high and low-speed compression and rebound adjustment, air preload
  • Number of Gears: 12
  • Gear Shifters: SRAM Eagle AXS Pod, 12-speed
  • Chainset: SRAM X0 Eagle T-Type, Boost, DUB axle, direct mount chainring, 165mm
  • Chainrings: 32T CNC-machined alloy, T-Type
  • Rear Cassette: SRAM XS-1275, 10-52T, T-Type, 12-speed
  • Chain: SRAM GX Eagle T-Type, 12-speed, PowerLock
  • Front Derailleur: None
  • Rear Derailleur: SRAM X0 Eagle AXS T-Type, 12-speed
  • Bottom Bracket: 73mm BSA
  • Pedals: Not supplied — Shop Pedals Here
  • Rims: DT Swiss XM1700 Spline 29, 30mm internal width, welded aluminium, tubeless ready, 28 spokes
  • Front Hub: DT 350, Boost 15x110mm, IS 6-bolt
  • Rear Hub: DT 350, Boost 12x148mm, 36T SL Ratchet system, IS 6-bolt, XD freehub
  • Front Tyre: Maxxis Minion DHF 29x2.5 WT, 3C MaxxGrip compound, EXO+ Protection, 60TPI, tubeless ready, folding bead
  • Rear Tyre: Maxxis Dissector 29x2.4 WT, 3C MaxxTerra compound, EXO+ Protection, 120TPI, tubeless ready, folding bead
  • Brakes: SRAM Motive Silver 4P Stealth hydraulic disc brakes
  • Handlebars: Onoff S9 1.0 Carbon, 25mm rise, 800mm width, 8º backsweep, 5º upsweep, 31.8mm clamp. L and XL sizes feature 38mm rise
  • Handlebar Tape: Onoff Desert Pro CNC lock-on grips, 135mm
  • Stem: Onoff S9 30mm, 0º, Full CNC
  • Saddle: Fizik Vento Argo X5
  • Seatpost: Fox Transfer Factory Kashima internal dropper post with adjustable travel. S: 95-120mm, M: 125-150mm, L: 155-180mm, XL: 185-210mm
  • Accessories: Shock mudguard, ISCG 05 tabs, custom frame protectors
  • Weight: 13.4kg

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

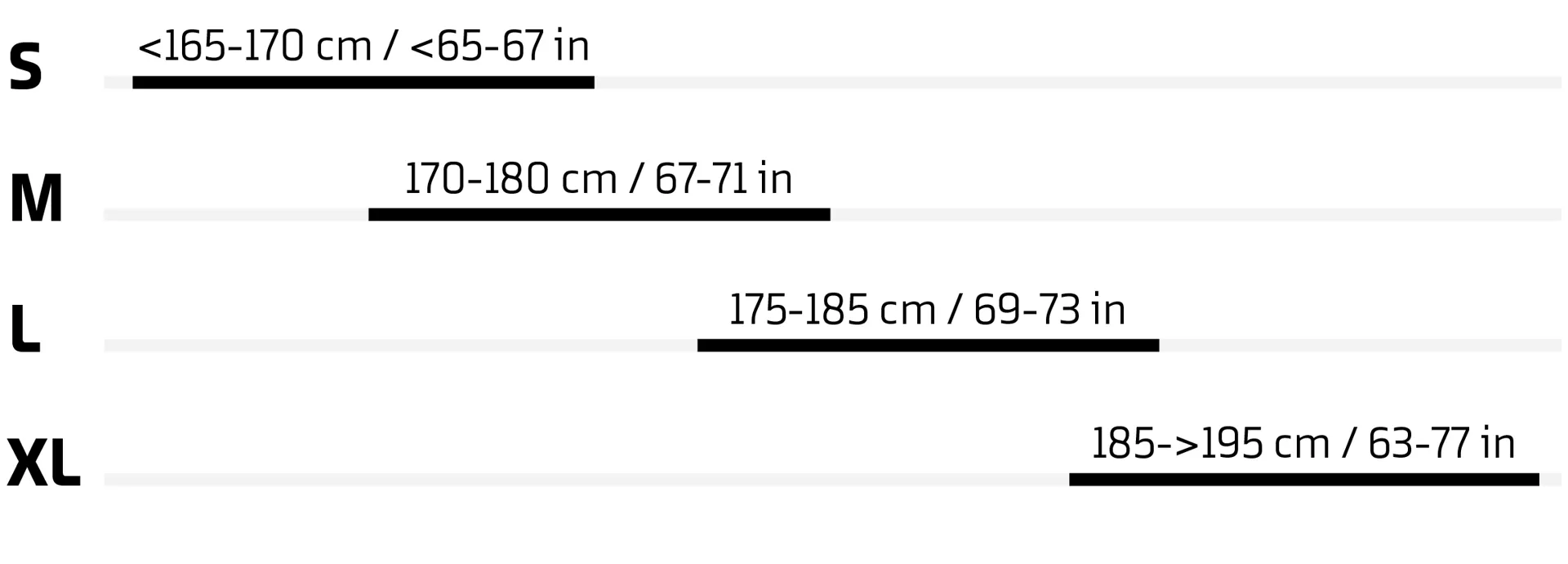

Sizing Chart for Mondraker Raze

Mondraker Raze Size Guide

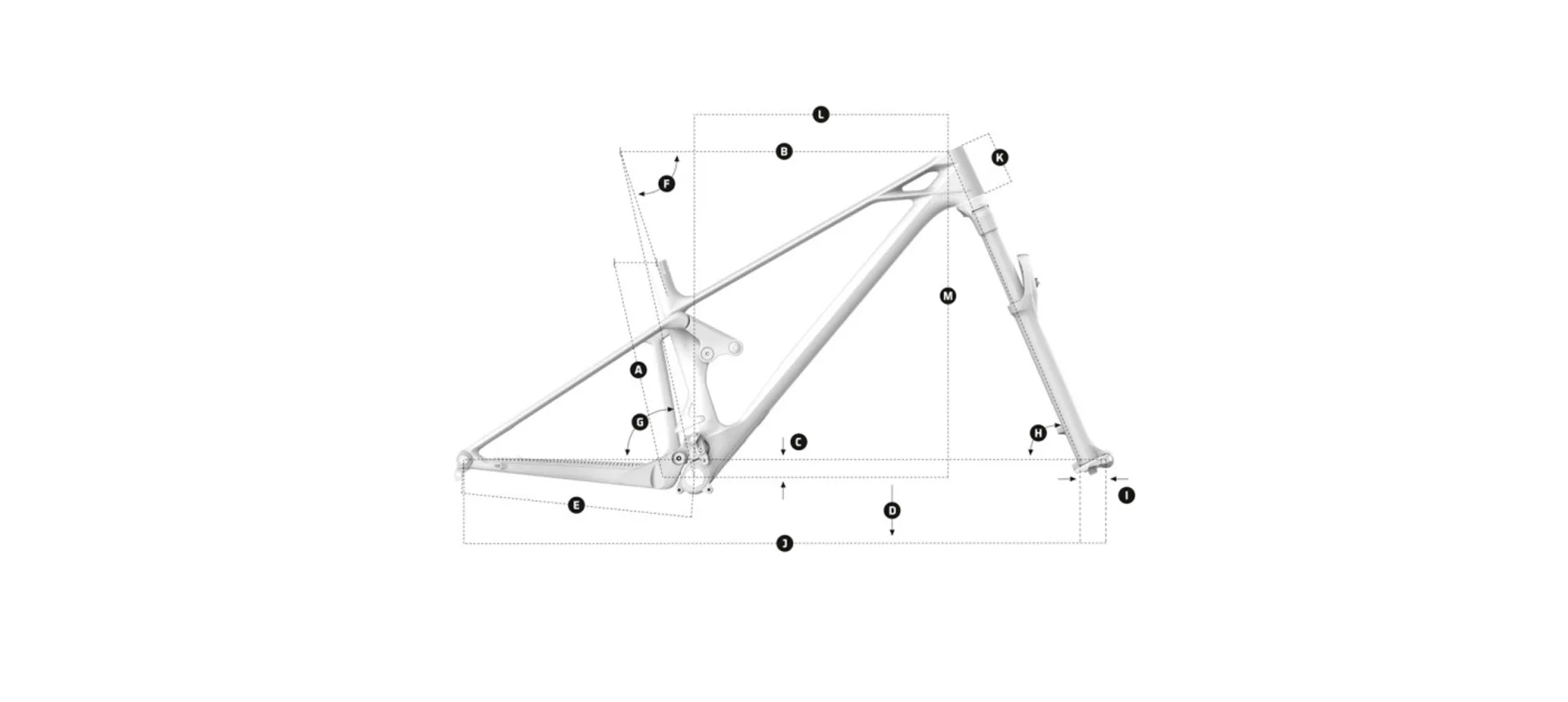

Geometry Information for Mondraker Raze

Raze Frame Geometry

Frame size
SMLXL
ASeattube length375 mm415 mm445 mm500 mm
BToptube length595 mm620 mm645 mm670 mm
CBottom bracket drop-30 mm-30 mm-30-30 mm
DBottom bracket height343 mm343 mm343 mm343 mm
EChainstay length435 mm435 mm435 mm435 mm
FSeat tube angle71°71°71°71°
GEffective seattube angle76.5°76.5°76.5°76.5°
HHeadtube angle65.5°65.5°65.5°65.5°
IFork Offset44 mm44 mm44 mm44 mm
JWheelbase1193 mm1217 mm1243 mm1269 mm
KHeadtube length90 mm100 mm115 mm130 mm
LReach455 mm475 mm495 mm515 mm
MStack608 mm617 mm631 mm645 mm
NStem Length60 mm70 mm80 mm90 mm
OFork Height420 mm420 mm420 mm420 mm

Warranty Information for Mondraker:

Mondraker offers an extended lifetime warranty for all its frames against defects in materials or manufacturing. Exclusions and terms apply.
It should be emphasised that each bicycle/frame has a life-cycle which will vary depending on the type of material and its construction. This life-cycle may be shortened by the form and type of use, or lack of appropriate maintenance and care. The lifetime warranty will therefore be entirely dependent on the optimal life-cycle determined by Mondraker for each specific Product.

The Avinox drive system (motor, battery, display, and charger) comes with a 2-year warranty starting from the activation date, covering up to 500 charge cycles. Exclusions and terms apply.

All warranty claims for Mondraker components or original parts will be handled through an authorised Mondraker distribution point, and the original commercial invoice must be provided.

Mondraker points of sale will handle the warranty of third-party manufacturers' components, with each manufacturer being responsible for the warranty of its components used in the product.

For Full Terms and Conditions Visit Mondrakers Website
