The Colnago V4 combines a stiff carbon monocoque frame, Shimano Ultegra Di2 12-speed groupset and Vision SC45 carbon wheels for responsive race performance.
The Colnago V4 combines a stiff carbon monocoque frame, Shimano Ultegra Di2 12-speed groupset and Vision SC45 carbon wheels for responsive race performance.
Colnago

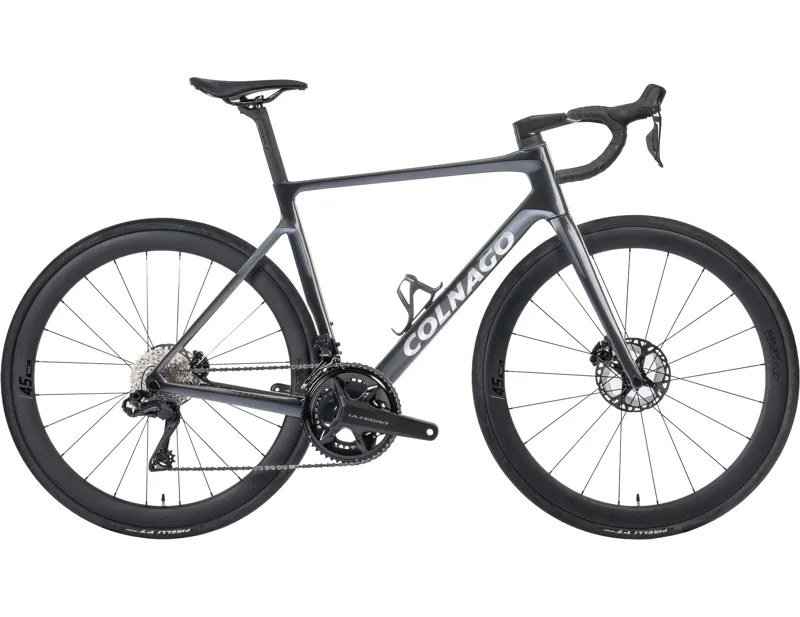

Colnago V4 Disc Road Bike SC45 Wheels Ultegra Di2 12s 2025 in VDDK Black

£4,499.00 £5,999.00 25% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Colnago V4 Disc Road Bike SC45 Wheels Ultegra Di2 12s 2025 in VDBL Blue Colnago V4 Disc Road Bike SC45 Wheels Ultegra Di2 12s 2025 in VDRD Red Colnago V4 Disc Road Bike SC45 Wheels Ultegra Di2 12s 2025 in VDWH White
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Colnago V4 Disc Road Bike SC45 Wheels Ultegra Di2 12s 2025 in VDDK Black

Season:2026Sale

Brand:Colnago

Code:KDDV54CS.21.2ID.CSID.4V.5

The Colnago V4 is an all-round carbon road bike with a racing character, combining a stiff, solid and responsive monocoque frame with the carbon development and aerodynamic research that went into the V4Rs. Its refined design is built to deliver an engaging ride across fast road riding and racing.

The front of the frame draws on the aerodynamic characteristics of the V4Rs, with a sleek head tube and revised fork designed to improve airflow, particularly during fast technical descents. The frame accommodates tyres up to 30mm and uses integrated cable routing through the Colnago cockpit and fork for a clean, streamlined appearance.

This build combines Shimano Ultegra Di2 12-speed electronic shifting with hydraulic disc brakes, a 52/36T chainset and 11-34T cassette. Vision SC45 carbon wheels and Pirelli P7 Sport 28mm tyres complete the package, providing a fast, responsive setup for performance road riding.

Key Features & Benefits:

  • Responsive Carbon Frameset: The V4's carbon monocoque frame combines stiffness, solidity and responsiveness with aerodynamic development derived from the V4Rs.
  • Shimano Ultegra Di2: The 12-speed electronic groupset provides precise shifting with a 52/36T chainset and wide-range 11-34T cassette.
  • Vision SC45 Carbon Wheels: The 45mm-deep carbon wheelset provides an aerodynamic complement to the V4 frame, paired with 28mm Pirelli P7 Sport tyres.

Full Specification:

  • Frame: Colnago V4 Carbon Monocoque, Disc Brake
  • Fork: Colnago V4 Carbon
  • Number of Gears: 12
  • Gear Shifters: Shimano Ultegra Di2, 12-Speed
  • Chainset: Shimano Ultegra Di2
  • Chainrings: 52/36T
  • Rear Cassette: Shimano Ultegra Di2, 11-34T, 12-Speed
  • Chain: Shimano Ultegra Di2
  • Rear Derailleur: Shimano Ultegra Di2
  • Bottom Bracket: T47
  • Pedals: Not Supplied – Shop Pedals Here
  • Front Wheel: Vision SC45 Carbon Wheels i23
  • Rear Wheel: Vision SC45 Carbon Wheels i23
  • Front Tyre: Pirelli P7 Sport, 700x28c
  • Rear Tyre: Pirelli P7 Sport, 700x28c
  • Brakes: Shimano Ultegra Di2 Hydraulic Disc
  • Rotors: 160mm Front / 140mm Rear
  • Handlebar: Colnago CC01 Carbon Integrated
  • Headset: Acros SS 1.1/4" 3547 Bearing
  • Seatpost: Colnago Carbon
  • Saddle: Selle Italia Novus Boost Evo
  • Thru-Axles: Threaded, Front Ø12 L123mm / Rear Ø12 L163.5mm
  • Weight: Not specified

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Colnago V4 Bikes

Rider height

Rider inseam

Saddle height*

Size

155 cm

68 cm

60.5 cm

420

158 cm

70 cm

62 cm

420

161 cm

72 cm

64 cm

420

164 cm

73 cm

65 cm

455

167 cm

75 cm

66.5 cm

455

170 cm

77 cm

68.5 cm

455

172 cm

79 cm

70.5 cm

485

174 cm

81 cm

72 cm

485

176 cm

83 cm

73.5 cm

485

178 cm

85 cm

75.5 cm

510

180 cm

86 cm

76.5 cm

510

182 cm

87 cm

77 cm

530

184 cm

88 cm

78 cm

530

186 cm

89 cm

79 cm

530

188 cm

90 cm

80 cm

550

190 cm

91 cm

80.5 cm

550

192 cm

92 cm

81.5 cm

570

194 cm

93 cm

82.5 cm

570

196 cm

94 cm

83.5 cm

570

Size Chart for Colnago V4 Bikes



Colnago V4 geometry chart

Size420455485510530550570
Cf420455485510530550570
Fork379379379379379379379
rake43434343434343
Sc°75.57574.57473.57373
A576582591597599608619
C408408408408408408408
Hs103114130148164181200
Ss°70.67171.571.872.572.973.1
bbdrop72727272727272
O504517535550567586599
Stack510522539557575593612
Reach370375383388395403410
RealReach372377385390397405412


Handlebar - COLNAGO CC.01 S - Carbon integrated Cockpit (one-piece)

Sizes 420 - 485

Width: 420 mm


Sizes 510 - 570

Width: 440 mm


Stem - COLNAGO CC.01 S - Carbon integrated Cockpit (one-piece)

Size 420-455

Length: 90 mm

Size 485-510

Length: 100 mm

Sizes 530

Length: 110 mm

Size 550-570

Length: 120 mm



Warranty Information for Colnago:

Colnago Ernesto E C Srl guarantees its frames, if purchased from authorised Colnago dealers, free of production defects or materials for:

Three years from the date of purchase at retail if, within ten days of the purchase, it is registered on the site www.colnago.com.

Two years if it does not register within ten days of purchase or for warranty replacement products.

Two years for the E64 model from the retail purchase date.

A frame that is recognised as defective by Colnago Ernesto E C Srl in the terms of this warranty will be repaired or replaced, at the discretion of Colnago. In case of NON availability of the original product, the replacement will take place with a similar product of equivalent value. We remind you that the Colnago warranty covers any aesthetic and/or painting defects for 12 months (1 year).

Products of other companies, mounted on Colnago bicycles, are covered by the guarantees of the respective manufacturers, to which you are kindly requested.

Click here to find out more and to read the full warranty terms and conditions.
