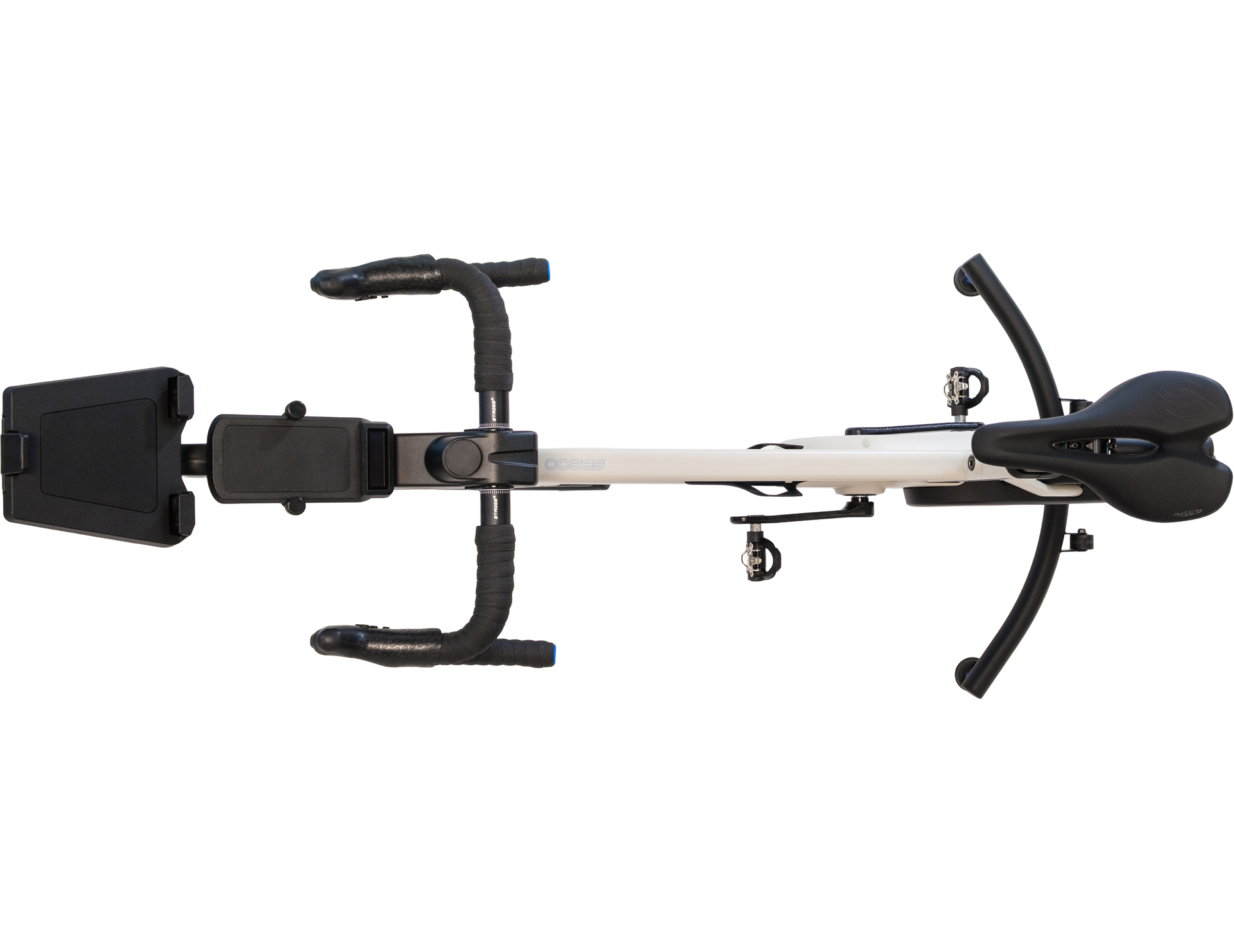

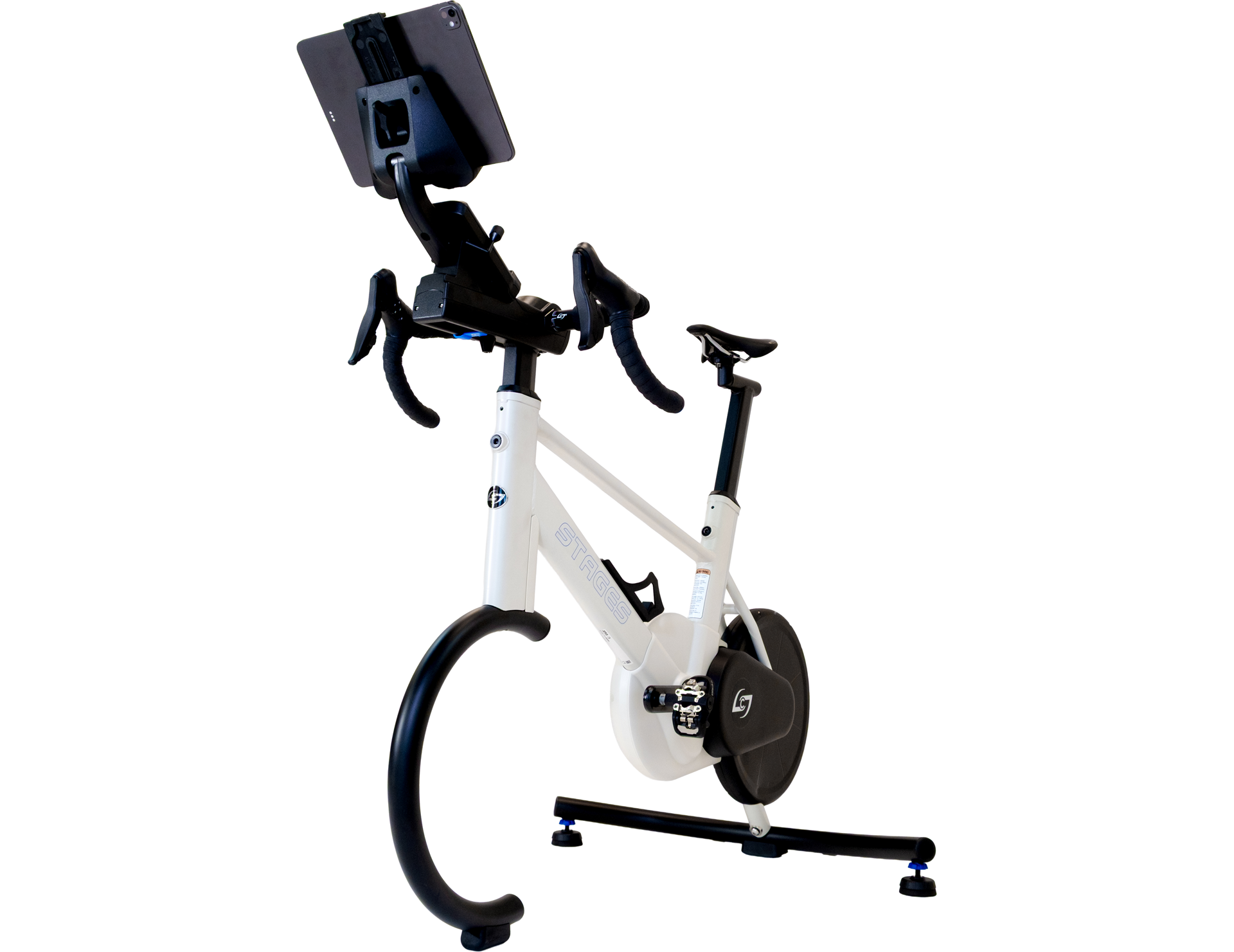

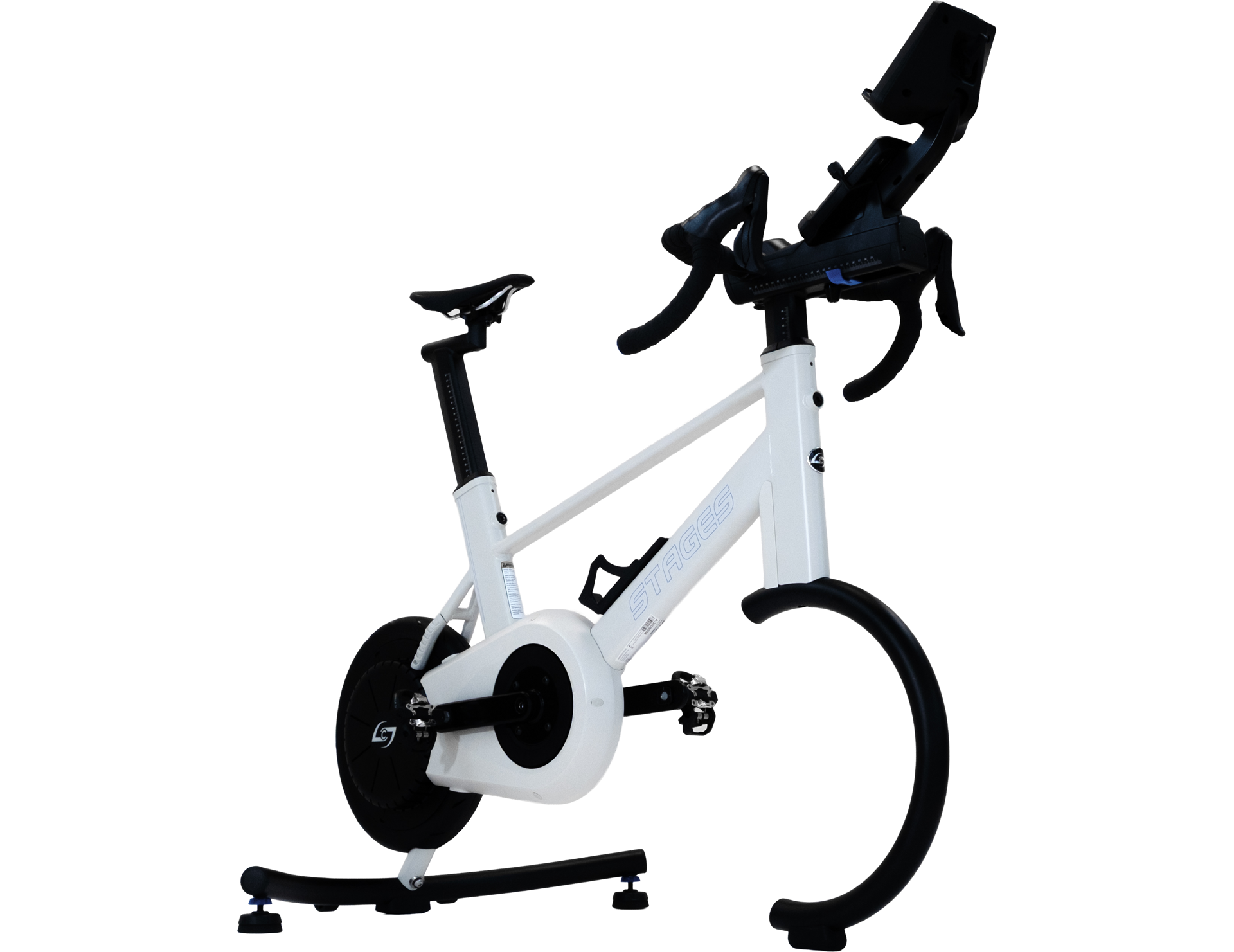

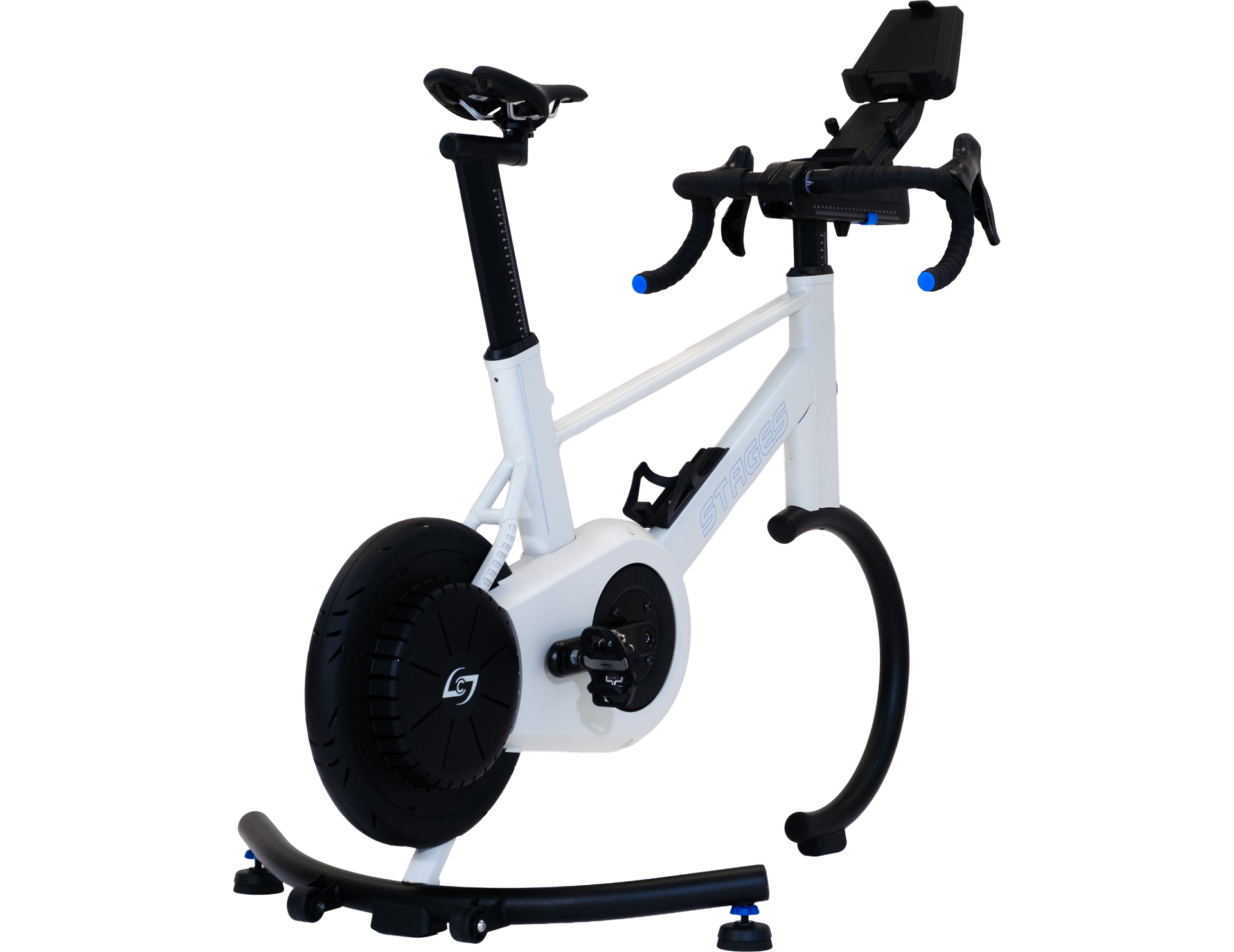

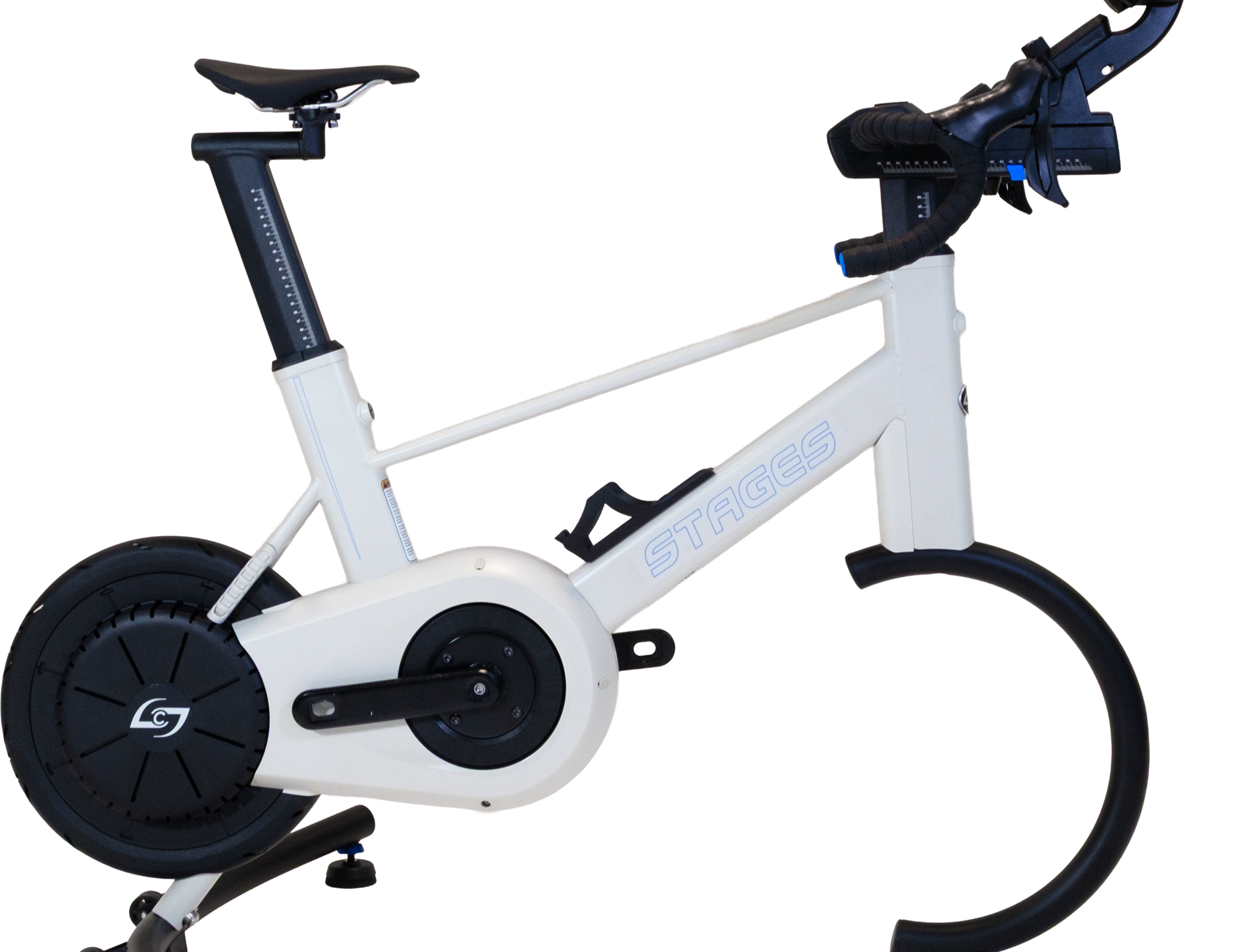

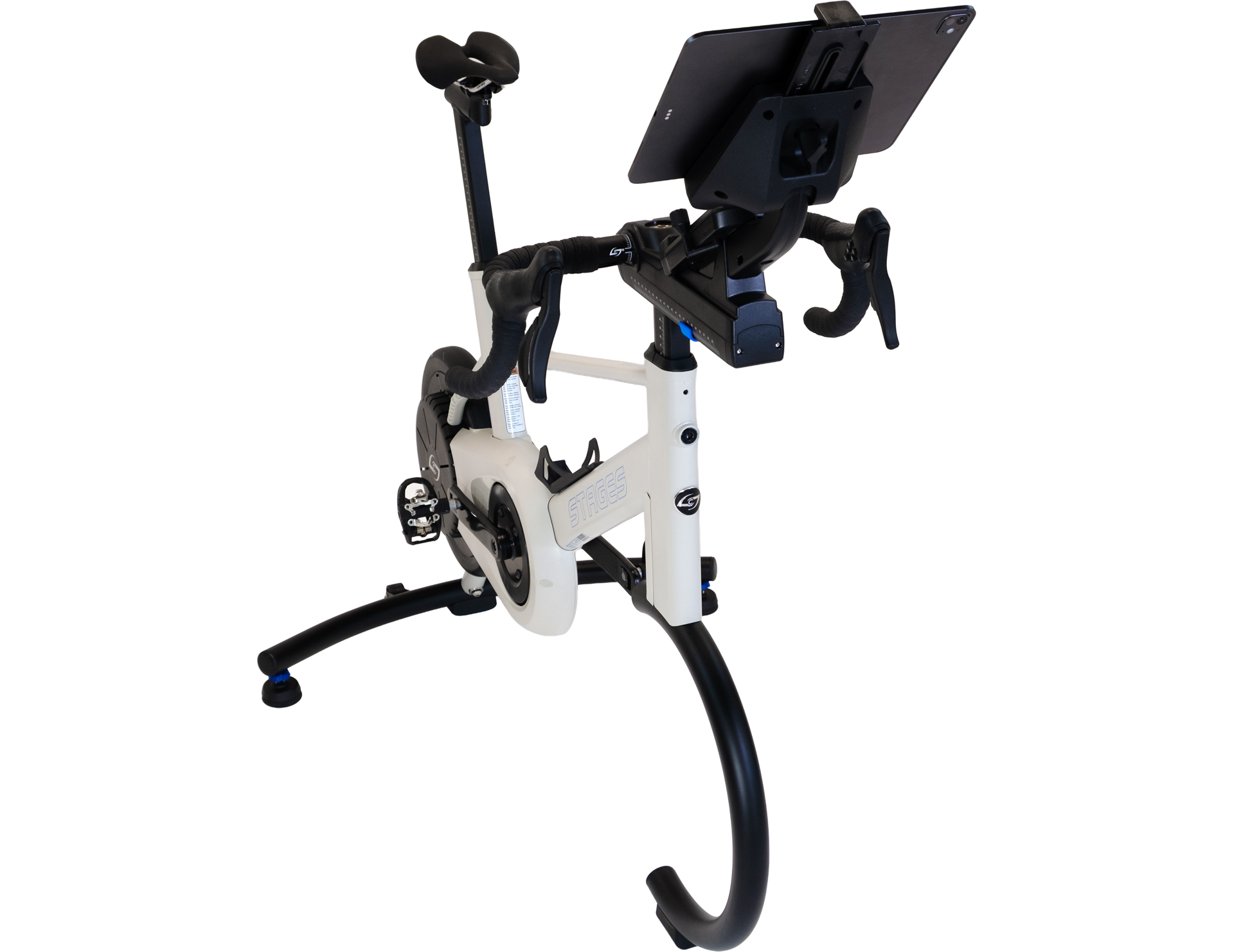

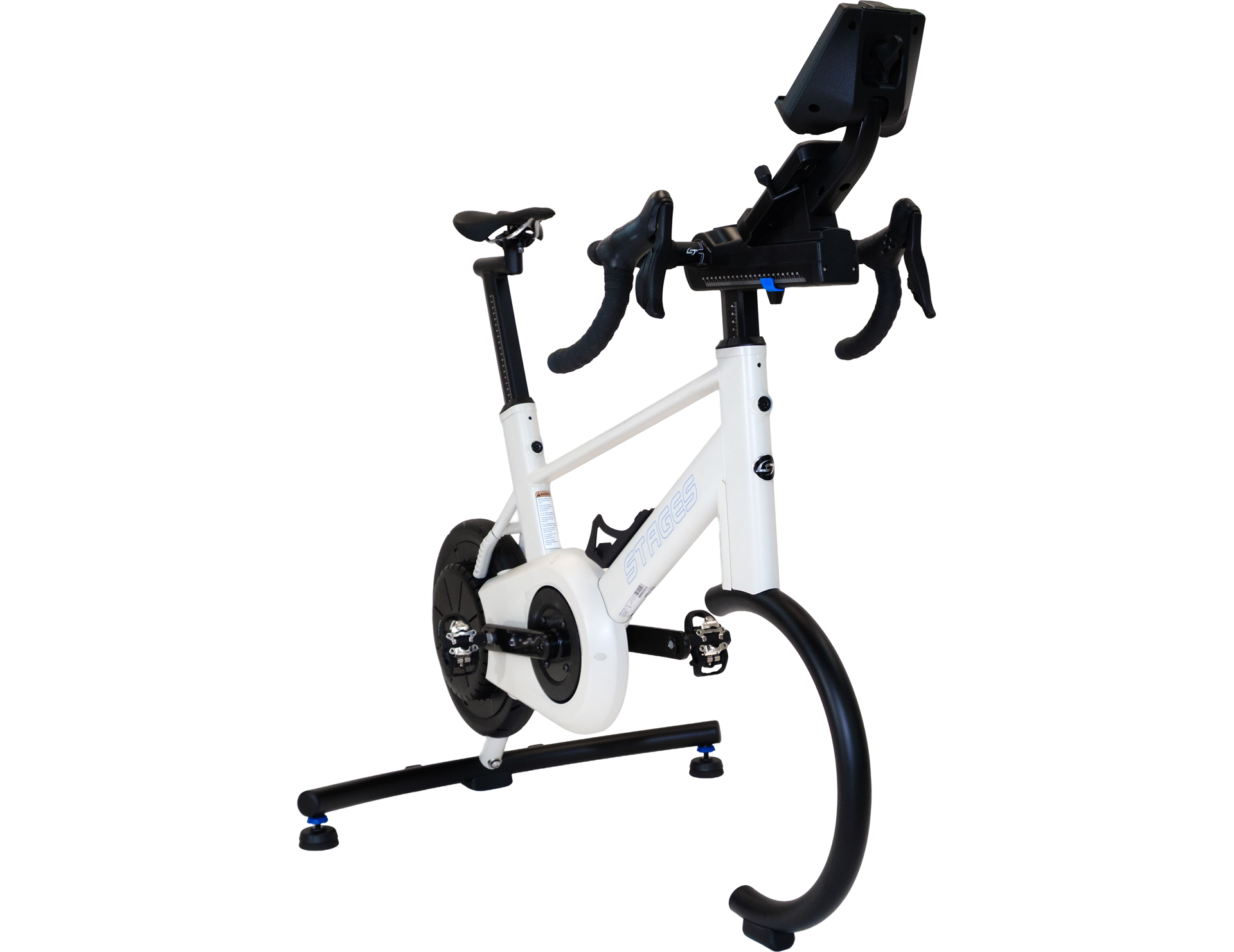

The Stages SB200 Smart Bike is designed to recreate more of the physics, movement and control of riding outdoors within an indoor training environment. Building on the original SB20, the SB200 combines a high-inertia two-stage drive system with a chassis engineered to move naturally beneath the rider.
Its two-stage drive uses a 25:1 gear ratio to generate high inertia for a smooth and quiet ride feel. An electromagnetic brake delivers 400 watts of resistance at 40 RPM and more than 1,500 watts at 120 RPM, while the system is designed to handle rider outputs of up to 2,500 watts. Together, the drive and braking systems are engineered to reproduce the sensations of acceleration, climbing and sprinting.

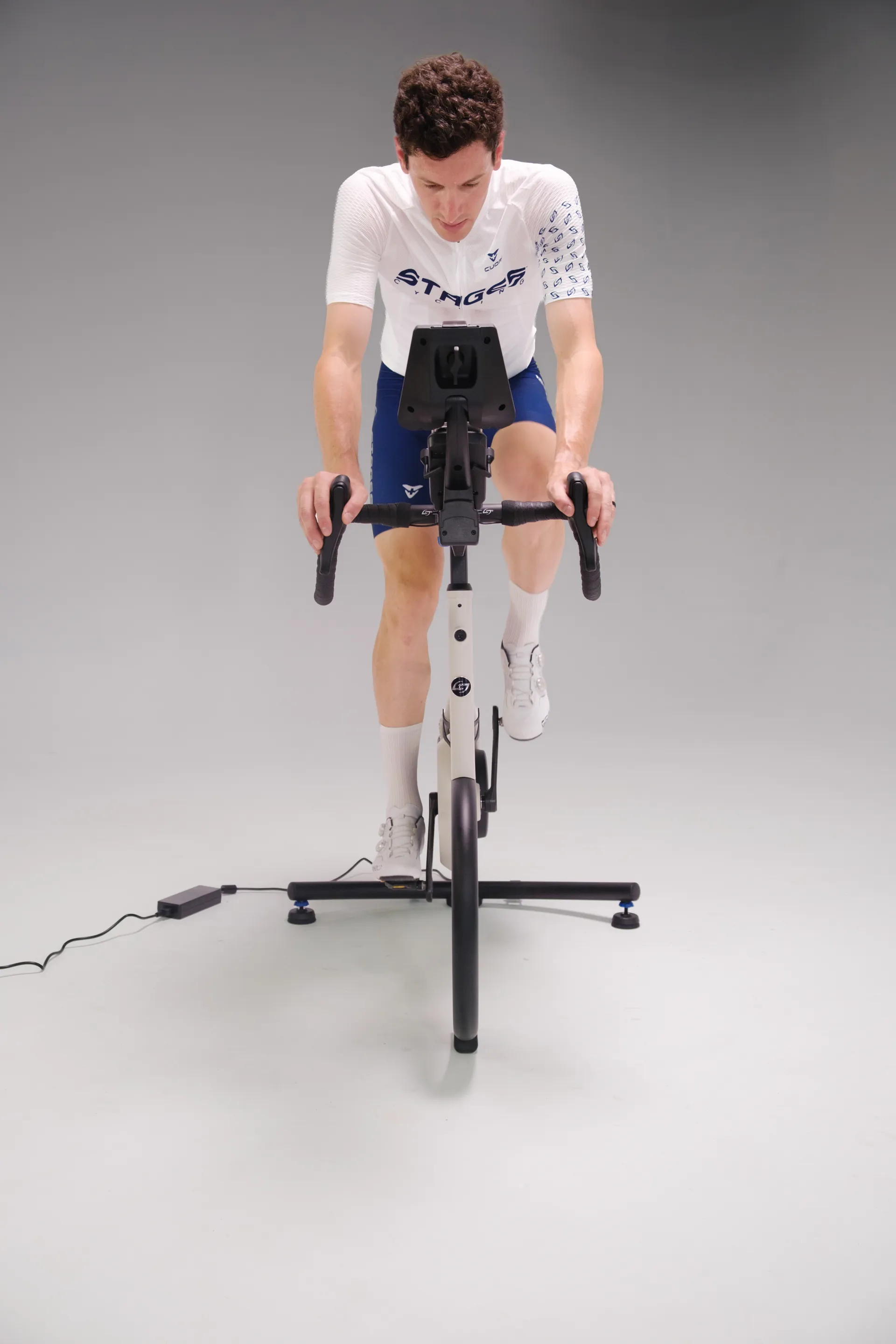

Rather than fixing the bike completely rigidly to the floor, the SB200 uses stabilisers positioned to mirror the front and rear tyre contact points of an outdoor bicycle. This allows controlled chassis movement beneath the rider, while interchangeable foot pads let you choose between a more compliant or more stable feel.

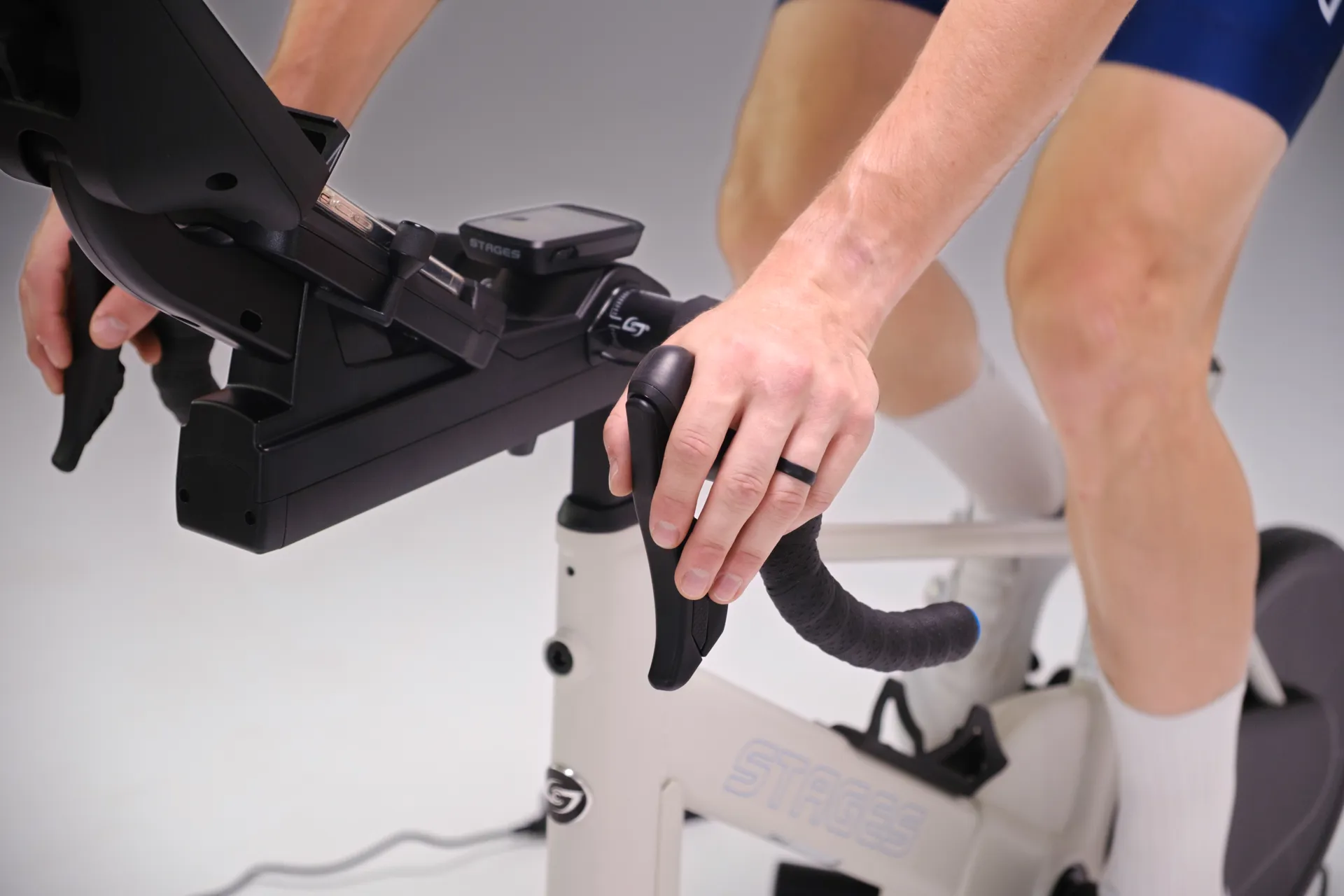

Integrated shifters and brake levers bring familiar cycling controls to virtual riding, complemented by 10 independently programmable buttons for functions including navigation, workout control and steering. Ride data and control inputs are communicated over Wi-Fi and Bluetooth, with direct native functionality available for Zwift, TrainingPeaks Virtual, Rouvy and MyWhoosh.
A wide adjustment range accommodates riders from 4ft 10in to 6ft 10in, while adjustable 165–175mm crank lengths and standard pedal and saddle interfaces make it easy to tailor the SB200 to the rider. An integrated tablet, phone and head-unit mount, two USB-C charging ports and cable storage complete a setup designed for dedicated training spaces or use elsewhere in the home.
Features:
- High-inertia two-stage drive system for a smooth, outdoor-inspired ride feel
- 25:1 drive-system gear ratio
- Electromagnetic resistance system
- Delivers 400 watts at 40 RPM and more than 1,500 watts at 120 RPM
- System capable of handling rider outputs up to 2,500 watts
- Controlled chassis movement designed to mimic the natural movement of an outdoor bike
- Interchangeable foot pads allow the stability and movement characteristics to be tuned
- Integrated shifters and brake levers
- 10 independently programmable control buttons
- Wi-Fi and Bluetooth connectivity
- Native functionality with Zwift, TrainingPeaks Virtual, Rouvy and MyWhoosh
- Adjustable fit for riders from 4ft 10in to 6ft 10in
- Adjustable 165–175mm crank length
- Standard pedal and saddle interfaces for easy personalisation
- Integrated tablet, phone and head-unit mount
- Two USB-C charging ports
- Integrated cable storage
- Steel chassis
Specification:
- Product Type: Smart Bike
- Drive System: High-inertia two-stage drive
- Drive Ratio: 25:1
- Resistance: Electromagnetic brake
- Resistance at 40 RPM: 400W
- Resistance at 120 RPM: 1,500W+
- Maximum System Capability: Up to 2,500W rider output
- Movement: Controlled moving chassis with interchangeable foot pads
- Controls: Integrated shifters and brake levers
- Programmable Controls: 10 buttons
- Connectivity: Wi-Fi and Bluetooth
- Native Platforms: Zwift, TrainingPeaks Virtual, Rouvy and MyWhoosh
- Rider Height Range: 4ft 10in–6ft 10in
- Crank Length: Adjustable from 165–175mm
- Pedal Interface: Standard
- Saddle Interface: Standard
- Frame/Chassis: Steel
- Device Mounting: Integrated tablet, phone and head-unit mount
- Charging Ports: 2 x USB-C
