Sizing Chart for Mondraker Foxy

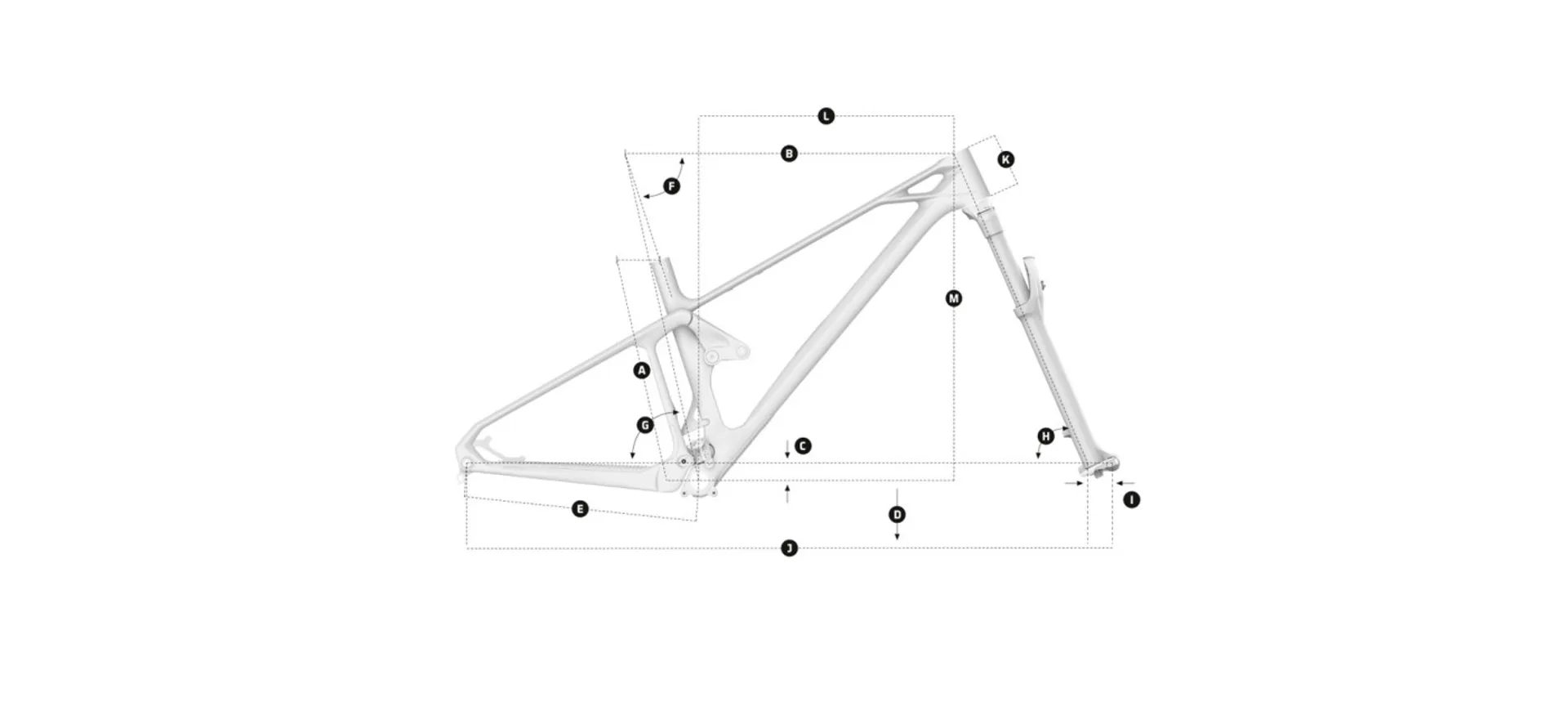

Geometry Information for Mondraker Foxy
| Frame size | S [Std/Low] | M [Std/Low] | L [Std/Low] | XL [Std/Low] |
|---|
| A | Seattube length | 375 mm | 415 mm | 445 mm | 500 mm |
|---|
| B | Toptube length | 600 mm | 620 mm | 650 mm | 670 mm |
|---|
| C | Bottom bracket drop | -23mm / -28 mm | -23/-28 mm | -23mm / -28 mm | -23mm / -28 mm |
|---|
| D | Bottom bracket height | 350 mm / 345 mm | 350 mm/345 mm | 350 mm / 345 mm | 350 mm / 345 mm |
|---|
| E | Chainstay length | 435 mm / 445 mm | 435 mm/445 mm | 435 mm / 445 mm | 435 mm / 445 mm |
|---|
| F | Seat tube angle | 70.5° / 70° | 70.5°/70° | 70.5° / 70° | 70.5° / 70° |
|---|
| G | Effective seattube angle | 76° / 75.5° | 76°/75.5° | 76° / 75.5° | 76° / 75.5° |
|---|
| H | Headtube angle | 65° / 64.5° | 65°/64.5° | 64.5° | 65° / 64.5° |
|---|
| I | Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
|---|
| J | Wheelbase | 1203 mm / 1210 mm | 1227 mm/1233 mm | 1253 mm / 1260 mm | 1279 mm / 1286 mm |
|---|
| K | Headtube length | 90 mm | 100 mm | 115 mm | 130 mm |
|---|
| L | Reach | 445 mm / 440 mm | 465 mm/460 mm | 485 mm / 480 mm | 505 mm / 500 mm |
|---|
| M | Stack | 615 mm / 617 mm | 623 mm/627 mm | 637 mm / 641 mm | 651 mm / 656 mm |
|---|
Warranty Information for Mondraker:
GENERAL WARRANTY EXCLUSIONS
1. Damage or faults caused by accident, incorrect or improper usage, abuse or negligence.
2. Wear and tear. Both on the frame and those components subject to wear and tear through usage (transmission, tyres, bearings, axles, nuts, bolts, tyres, handle grips, chain, brake shoes/pads, chain guide, hubs, etc.).
3. Faults caused by inappropriate handling or maintenance, or through the installation of parts and accessories that are not compatible or do not comply with the specific usage conditions for this model of bicycle.
4. Any manipulation, modification or structural repair, or paintwork, performed by any person or company unconnected with Mondraker, or without the authorisation of Mondraker.
The warranty governed by Consumer and User protection legislation which applies if the Purchaser has such status, only covers a malfunction caused by proven manufacturing defects, in other words non-conformities which exist at the time of delivery of the product. Nonetheless, this warranty will not be valid for external damage suffered by the Product through any cause, wear and tear through usage, or because of culpable or negligent actions by the Purchaser, nor in the case of incidents caused by force majeure. In summary, the commercial warranty will not cover any damage resulting from any cause outside the responsibility of the manufacturer, in other words Mondraker.
Nonetheless, in the event that Consumer and User protection legislation establishes presumptions regarding the existence of non-conformities at the time of delivery of the product to the end Consumer, consideration will be given to whether the presumption is compatible with the nature of the product and the type of non-conformity arising.
For Full Terms and Conditions Visit Mondrakers Website
