Bergamont E-Horizon Tour 10 Belt – Bosch PX motor, 800Wh battery, Gates belt, Nexus 5-speed hub, and full touring equipment.

Bergamont E-Horizon Tour 10 Belt – Bosch PX motor, 800Wh battery, Gates belt, Nexus 5-speed hub, and full touring equipment.

Bergamont

Bergamont E-Horizon Tour 10 Belt Electric Hybrid Bike 2026 in Dusky Purple

£4,149.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Bergamont E-Horizon Tour 10 Belt Electric Hybrid Bike 2026 in Dusky Purple

Season:2026

Brand:Bergamont

Code:425737duskyPUR

The E-Horizon Tour 10 Belt is a fully equipped e-trekking bike with perfectly integrated components. It includes features such as LED lights with a rear brake light function that increase rider safety in urban environments. The rear carrier is approved for 27 kg and child transportation in combination with a Thule Yepp (Nexxt) 2 maxi seat. The internal gear hub drivetrain provides reliable shifting and is low maintenance. The hydraulic disc brakes offer superior braking power and modulation even in adverse weather conditions.

The Bosch Performance Line PX electric drive system offers strong, silent and long-lasting support, giving you the freedom to explore beyond your usual routes.

The high-capacity Bosch PowerTube battery integrated into the frame can be removed for remote charging, while the battery cover remains on the bike to protect the empty battery bay from the elements. With the Bosch Smart System advanced connectivity features and upgrades are available: Use the eBike Flow App to control your bike or add optional extras like a Bosch PowerMore battery for increased range.

Key Features & Benefits:

  • Powerful Support: Bosch Performance Line PX motor with Smart System for effortless touring.
  • Smooth & Silent: Gates Carbon Belt Drive and Nexus hub for clean, quiet, low-maintenance riding.
  • Ready to Explore: Air fork, Marathon tyres, and integrated rack and lights for comfort and utility.

Full Specification:

  • Frame: 28", super lite AL-6061 tubing, PowerTube battery integration
  • Fork: Suntour Mobie 34 DS, air, 100 mm travel, 15x110 mm axle
  • Motor: Bosch Smart System Performance Line PX (BDU347Y), 250 W, 36 V, max 25 km/h
  • Battery: Bosch PowerTube 800 Wh, removable
  • Controller: Bosch Kiox 300 with LED Remote
  • Number of Gears: 5
  • Gear Shifters: Shimano Nexus SL-C7000, 5-speed, revo-shifter
  • Chainset: Miranda Virage, 170 mm, 46t
  • Chainrings: 46t
  • Rear Cassette: Gates CDX, 32t
  • Chain: Gates CDX Carbon Drive Belt, Center-Track
  • Rear Derailleur: N/A (internal gear hub)
  • Bottom Bracket: Bosch ISIS
  • Pedals: Marwi SP-827, sandblock
  • Rims: Syncros X17, disc, eyelets
  • Front Hub: Shimano HB-TC500-B, centerlock, disc, 15x110 mm axle
  • Rear Hub: Shimano Nexus SG-C7000-5, freehub, centerlock, disc
  • Front Tyre: Schwalbe Marathon Performance GreenGuard, reflective stripe, 55-622 (Schwalbe AV19B Light tube)
  • Rear Tyre: Schwalbe Marathon Performance GreenGuard, reflective stripe, 55-622 (Schwalbe AV19B Light tube)
  • Brakes: Shimano BR-MT410 hydraulic disc
  • Handlebars: Syncros 3.0 riserbar, 15° backsweep, 12 mm rise
  • Handlebar Tape: Syncros Urban Ergo, double density, lock-on grips
  • Headset: Acros semi-integrated, tapered, with internal cable routing
  • Stem: Syncros adjustable with SP Connect mount
  • Saddle: Syncros Capilano Trekking
  • Seatpost: Syncros
  • Accessories: Front: Lezyne Hecto E350 110 Lux LED / Rear: LED with brake light, Racktime BGM Trekking Pro Snapit 2.0 rack, Curana Apollo fenders with stainless stays, Syncros U-mount kickstand
  • Weight: 29 kg (Max system weight: 160 kg)
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

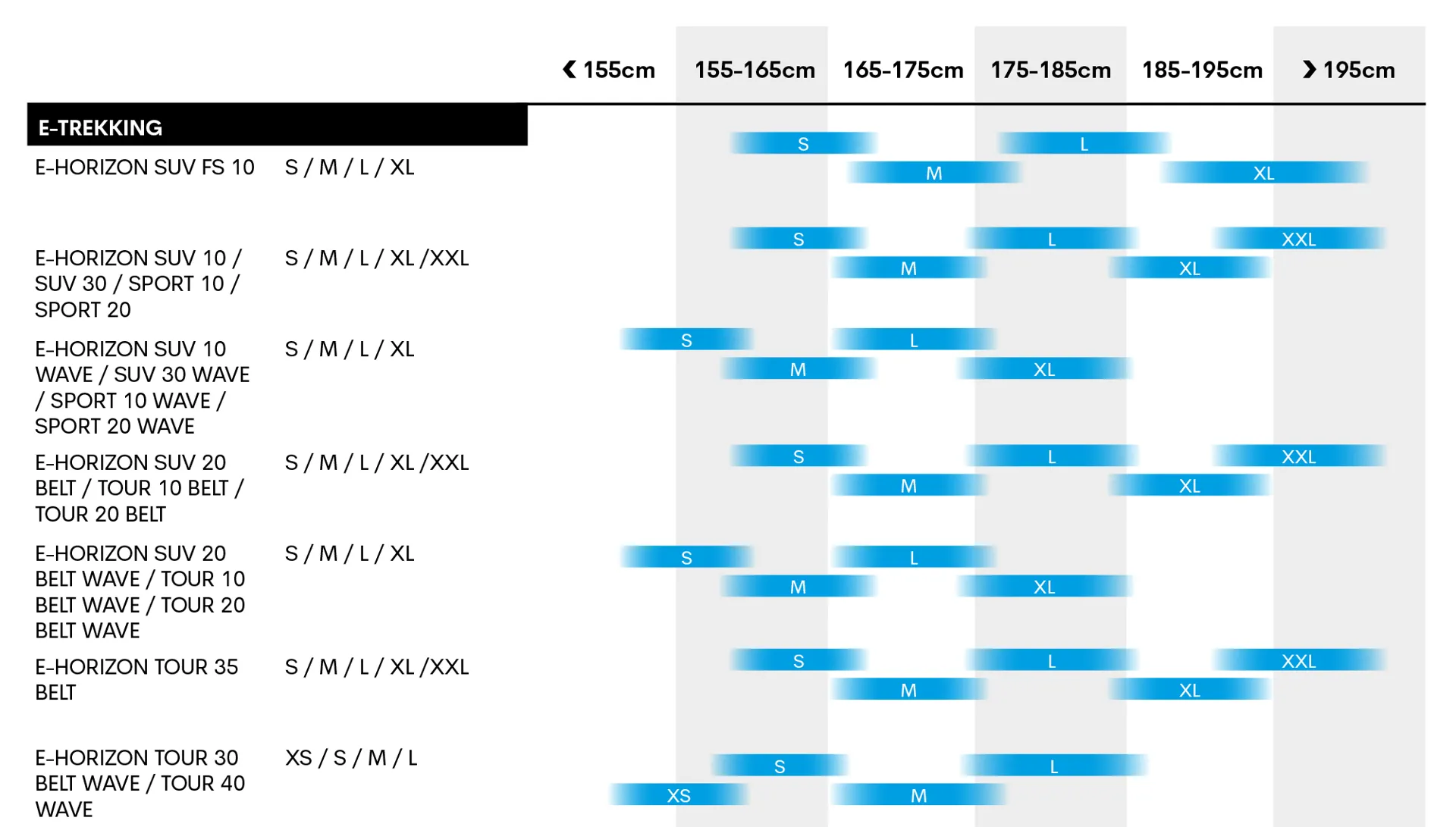

Bergamont E-Horizon Size Guide

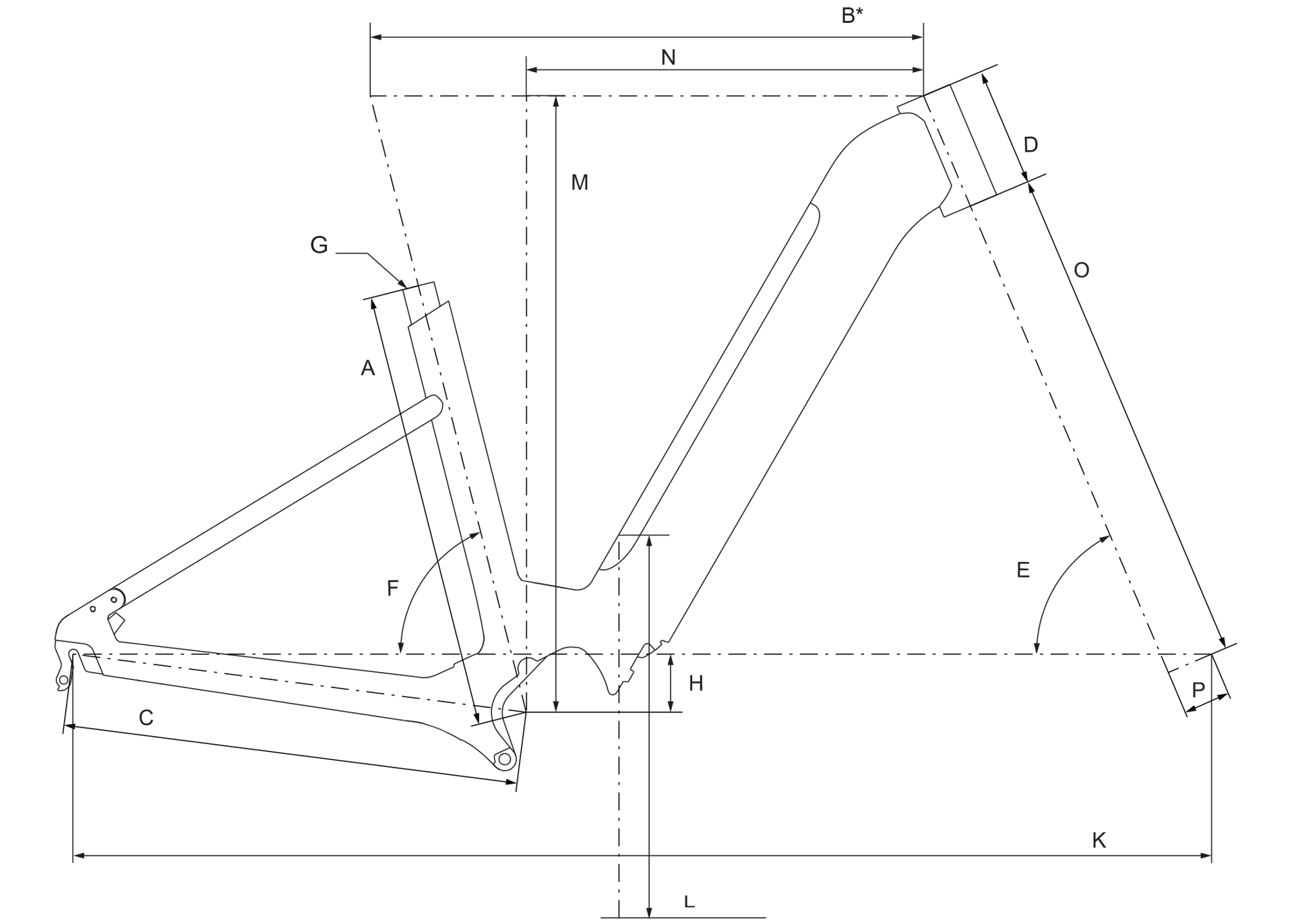

Bergamont E-Horizon Geometry Guide

SMLXL
ABB center to top of seattube440 mm480 mm520 mm560 mm
Btop tube parallel
B*top tube horizontal575 mm595 mm615 mm615 mm
Cchainstay495 mm495 mm495 mm495 mm
Dheadtube length160 mm160 mm170 mm170 mm
Ehead angle67,0 °67,0 °67,0 °67,0 °
Fseat angle76,0 °76,0 °76,0 °76,0 °
HBB offset63 mm63 mm63 mm63 mm
Kwheelbase1.214 mm1.234 mm1.256 mm1.256 mm
Lstandover height448 mm448 mm448 mm448 mm
Mstack696 mm696 mm705 mm705 mm
Nreach399 mm419 mm437 mm437 mm
fork length547 mm547 mm547 mm547 mm
fork rake51 mm51 mm51 mm51 mm
Gseatpost diameter31,6 mm
Ishock dimension
headset dimensionZS56/ZS56
BB standardBosch
hanger typeBGM-H058CD
max. rotor size180 mm

Warranty Information for Bergamont:

The manufacturer's guarantee is granted from the date of purchase for a period of five years on bicycle frames and rear ends. The guarantee period is reduced to three years, if the BERGAMONT bicycle is not serviced at least once a year by an authorized BERGAMONT dealer. Maintenance services must be carried out in accordance with the maintenance instructions in the BERGAMONT manual and must be confirmed there by the stamp and signature of the authorized BERGAMONT dealer.

For frames and rear ends of Category 5 bicycle models and for rigid forks manufactured by BERGAMONT, the duration of the manufacturer's guarantee is limited to two years.

If a defect on the BERGAMONT bicycle is remedied within the scope of a manufacturer’s guarantee or a warranty claim, the duration of the manufacturer's guarantee is not extended. The manufacturer's guarantee ends, when the first-time buyer transfers ownership of the BERGAMONT bicycle to a third person.
For full warranty policy please visit https://www.bergamont.com/gb/en/support/warranty
