Scott Lumen 900 eRIDE: Lightweight trail e-MTB with TQ HPR60 motor, 520Wh total range, Fox suspension & SRAM AXS
Scott Lumen 900 eRIDE: Lightweight trail e-MTB with TQ HPR60 motor, 520Wh total range, Fox suspension & SRAM AXS
Scott

Scott Lumen 900 Electric Full Suspension Mountain Bike 2026 in Carbon Black

£8,699.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

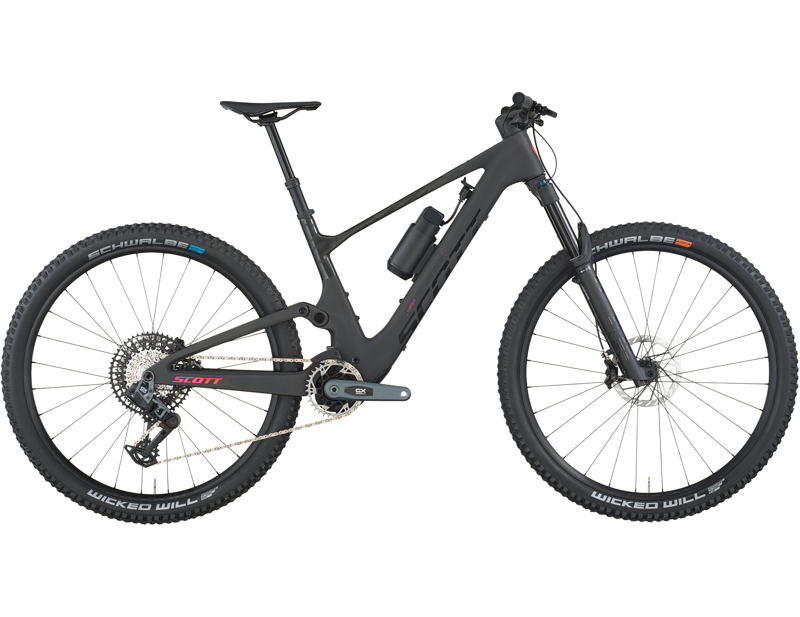

Scott Lumen 900 Electric Full Suspension Mountain Bike 2026 in Carbon Black

Season:2026

Brand:Scott

Code:425437302

Lighting up your MTB ride has never felt more electrifying than on the updated Lumen 900 e-MTB. With more power and additional range in a lightweight, playful build, your ultimate downcountry trail bike happens to pack the pep to take your rides to the next level.

Updated from the previous Lumen 900 is TQ’s new HPR60 motor unit which boosts torque to 60Nn for 20% more thrust than before. It’s a dream upgrade that adds extra grunt and power to capitalize on the nimble, responsive, quick-handling traits riders love about the Lumen. Blast out of hairpins, crush monster climbs, and keep up with full-powered e-bikes on even the most challenging trails.

Scott built Lumen as the mountain biker’s e-bike. And fittingly, Lumen gets a bump up in range, so you can stay out on the trails longer and push yourself further. Lumen’s 360Wh main battery now gets extra support with an included 160 Wh Range Extender Battery. The pint-size extender easily attaches with a quick-release mount to supply that extra juice and maximum performance you’ll need to send a massive ride. Or you can stow it away in a small pack to carry along for those just-in-case moments. And not to worry, if you blow it all before you’re back to the trailhead, the Lumen 900 is lightweight enough to pedal it on empty with the no-drag motor switched off.

This Lumen 900 features a brightly illuminated black and white data management screen and is specced with performance-focused components like FOX’s 36SL Performance Elite 140mm fork, custom 130mm integrated shock, SRAM GX Eagle AXS, and Motive Silver brakes.

Key Features & Benefits

  • TQ HPR60 Motor:Delivers more performance for the same weight as the previous motor
  • SRAM AXS Gears:The wireless electronic SRAM AXS drivetrain offers quick, precision shifts that you can count on in the most demanding conditions
  • Fox Suspension:Providing comfort and control on the trails

Full Specification:

  • Frame:Carbon HMX, Integrated Suspension Technology, Flex Pivot / Adjustable head angle, Syncros Cable Integration System, UDH Interface / 12x148mm with 55mm Chainline
  • Rear Suspension:FOX NUDE 6T Factory EVOL Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Lockout-Traction Control-Descend, Low Speed Adj. / Custom large Air volume / Kashima / Reb. Adj., Bearing Hardware / Travel 130-90-Lockout / T165X45mm
  • Fork:FOX 36SL Factory Air, Kashima Grip SL, 3-Modes with low Speed adj., Kabolt 15x110mm axle, 44mm offset, Tapered steerer, Lockout, Reb. Adj. 140mm travel
  • Motor:TQ HPR60 Mid Motor drive 60Nm max Torque
  • Battery:TQ Internal 360Wh + Range Extender 160Wh
  • Controller:TQ HPR Color, Bluetooth, ANT+, Dedicated Smartphone app
  • Charger:TQ 100-240V-4A
  • Number of Gears:12
  • Gear Shifters:SRAM AXS Pod Ultimate Controller
  • Chainset:SRAM GX Eagle, Alloy
  • Chainrings:SRAM 34T
  • Rear Cassette:SRAM GX Eagle XS 1275 Transmission 10-52
  • Chain:SRAM CN GX Eagle Transmission
  • Rear Derailleur:SRAM GX Eagle AXS Transmission 12 Speed, Wireless Electronic Shift System
  • Pedals:Not supplied:Shop pedals here
  • Rims:Syncros Silverton 1.5-30 CL
  • Front Hub:15x110mm
  • Rear Hub:12x148mm
  • Front Tyre:Schwalbe Wicked Will 29x2.4" EVO, Super Race / TLE / 67EPI / Addix Speed Soft
  • Rear Tyre:Schwalbe Wicked Will 29x2.4" EVO, Super Race / TLE / 67EPI / Addix Speed Grip
  • Brakes:SRAM Motive Silver Stealth 4-Piston Disc, HS2 CL Rotors, F&R 180mm
  • Handlebars:Syncros Fraser iC SL DC Carbon, 0° rise, back sweep 8°, mini Rise, 760mm
  • Grips:Syncros Performance XC lock-on grips
  • Stem:Syncros
  • Saddle:Syncros Tofino 1.5 Regular Titanium rails
  • Seatpost:Syncros Duncan Dropper Post 1.5S, Travel Adjust, 31.6mm, S size 140mm, M size 160mm, L size 180mm, XL size 210mm
  • Accessories: Syncros Sealant, Transport Axle
  • Weight:17.0kg Tubless setup without Range Extender (1.1kg)
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Geometry Guide for Scott Lumen eRIDE

SMLXL
Ahead tube angle65.5 °65.5 °65.5 °65.5 °
Bhead tube length110.0 mm110.0 mm120.0 mm135.0 mm
Ctop tube horizontal562.0 mm589.0 mm620.0 mm645.0 mm
Dstandover height765.0 mm767.0 mm780.0 mm800.0 mm
EBB offset-38.5 mm-38.5 mm-38.5 mm-38.5 mm
FBB height338.5 mm338.5 mm338.5 mm338.5 mm
Gwheel base1,176.0 mm1,206.0 mm1,240.0 mm1,270.0 mm
HBB center to toptube center
IBB center to top of seattube415.0 mm440.0 mm480.0 mm520.0 mm
Jseat angle76.8 °77.0 °77.2 °77.5 °
Kchainstay450.0 mm450.0 mm450.0 mm450.0 mm
Lreach416.0 mm446.0 mm476.0 mm501.0 mm
Mstack615.0 mm615.0 mm625.0 mm638.0 mm
Nstem length50.0 mm60.0 mm70.0 mm70.0 mm
Otrail126.0 mm126.0 mm126.0 mm126.0 mm
PFork length540.0 mm540.0 mm540.0 mm540.0 mm
QMaximum Seatpost Insertion150.0 mm175.0 mm215.0 mm255.0 mm
RCrank Length170.0 mm170.0 mm175.0 mm175.0 mm


SMLXL
Ahead tube angle65.5 °65.5 °65.5 °65.5 °
Bhead tube length4.3 in4.3 in4.7 in5.3 in
Ctop tube horizontal22.1 in23.2 in24.4 in25.4 in
Dstandover height30.1 in30.2 in30.7 in31.5 in
EBB offset-1.5 in-1.5 in-1.5 in-1.5 in
FBB height13.3 in13.3 in13.3 in13.3 in
Gwheel base46.3 in47.5 in48.8 in50.0 in
HBB center to toptube center
IBB center to top of seattube16.3 in17.3 in18.9 in20.5 in
Jseat angle76.8 °77.0 °77.2 °77.5 °
Kchainstay17.7 in17.7 in17.7 in17.7 in
Lreach16.4 in17.6 in18.7 in19.7 in
Mstack24.2 in24.2 in24.6 in25.1 in
Nstem length2.0 in2.4 in2.8 in2.8 in
Otrail5.0 in5.0 in5.0 in5.0 in
PFork length21.3 in21.3 in21.3 in21.3 in
QMaximum Seatpost Insertion5.9 in6.9 in8.5 in10.0 in
RCrank Length6.7 in6.7 in6.9 in6.9 in
