Scott Voltage 920: 19.8kg e-MTB with carbon/alloy frame, TQ HPR60 motor, 520Wh range, 160/155mm suspension & SRAM Transmission
Scott Voltage 920: 19.8kg e-MTB with carbon/alloy frame, TQ HPR60 motor, 520Wh range, 160/155mm suspension & SRAM Transmission
Scott

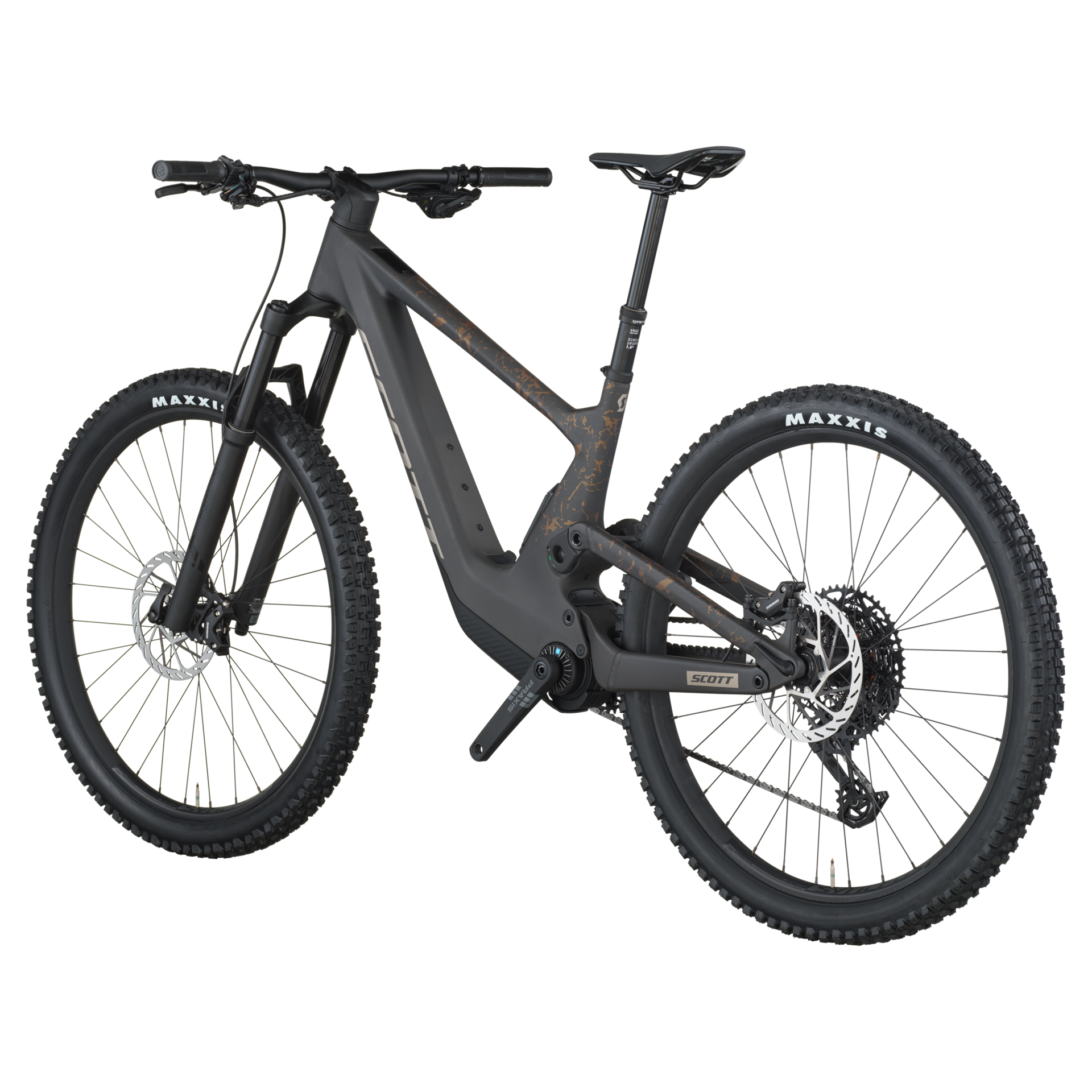

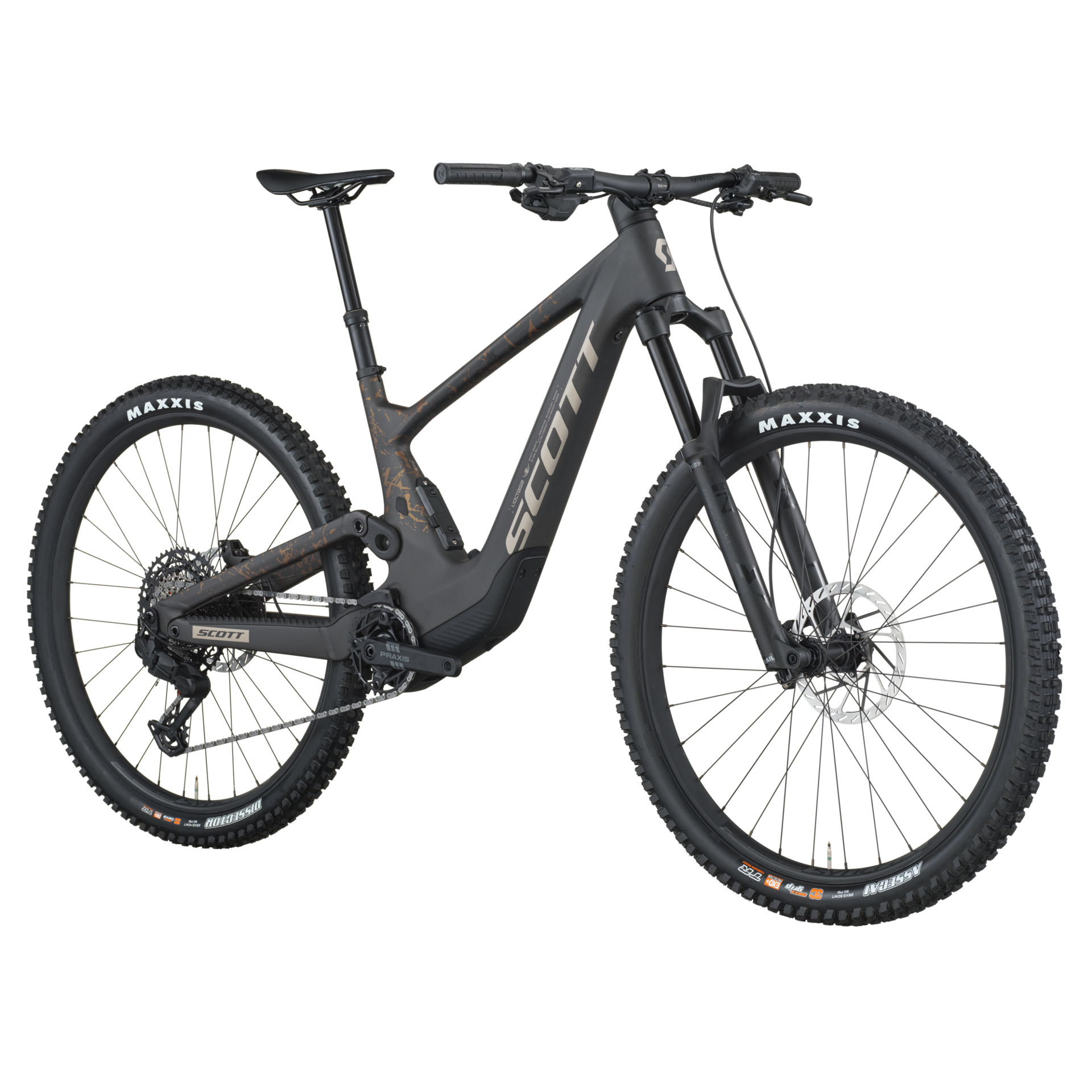

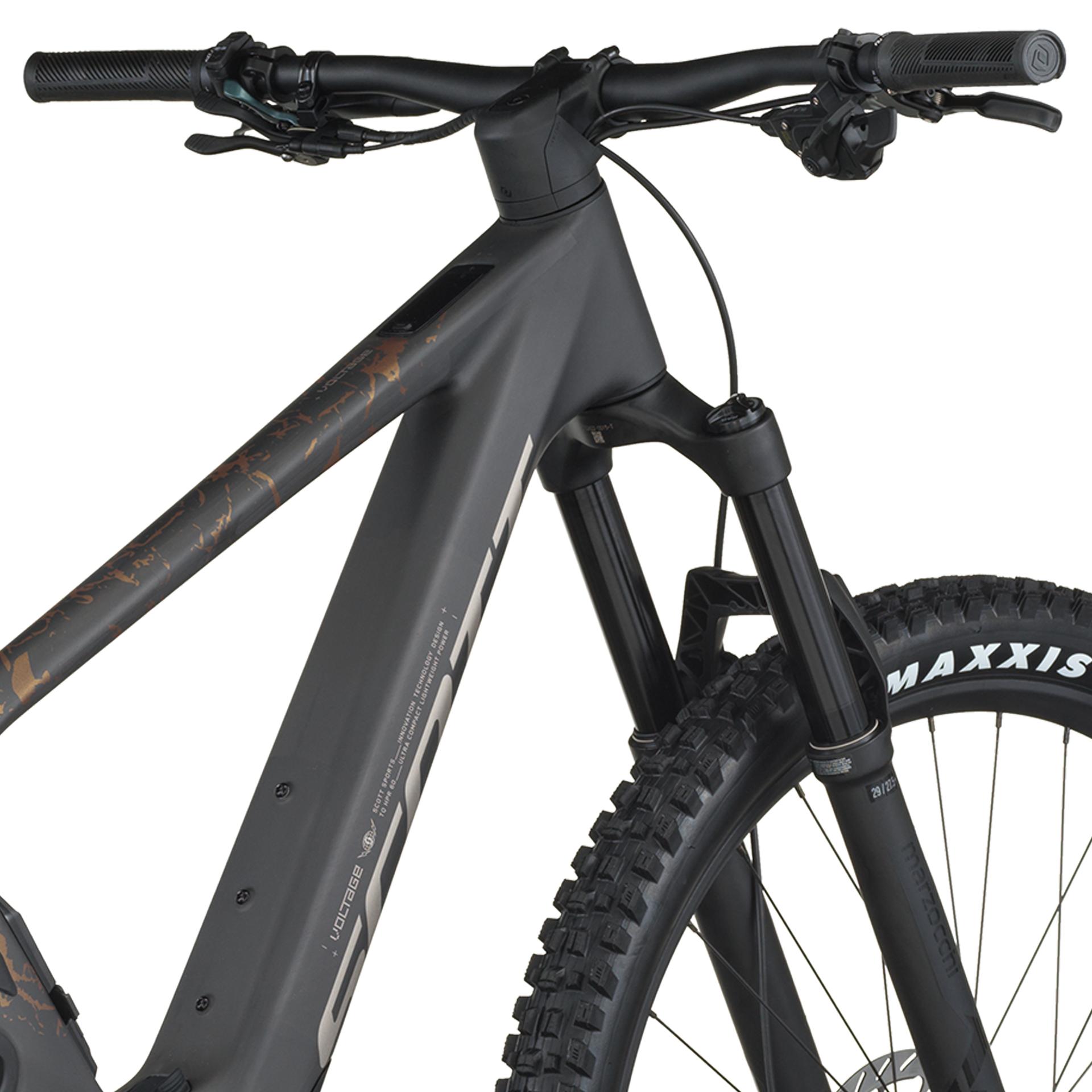

Scott Voltage 920 Electric Full Suspension Mountain Bike 2026 in Carbon Black / Crackle Bronze

£5,999.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Scott Voltage 920 Electric Full Suspension Mountain Bike 2026 in Carbon Black / Crackle Bronze

Season:2026

Brand:Scott

Code:425591831

Voltage 920 is Scott's long-travel e-MTB with a carbon front and alloy rear triangle for riders who want all the heart-pumping excitement of a top-tier trail bike without the top-tier price tag. With its lightweight design, 160mm front and 155mm rear travel suspension, and an updated, high-performance motor unit, Voltage 920 is the ideal big riding, epic sending, e-rig that handles its own shuttle laps.

Power is boosted to 60Nm compared to the 50Nm on the previous Voltage thanks to TQ’s new HPR60 motor, which leaves you feeling like there’s no switchback too tight and no obstacle is too challenging. Range is also upgraded also with an included Range Extender Battery. It attaches with a quick-release mount and supplies 160 additional watt hours to the 360Wh main battery. It’s the assist you need to enjoy bigger days on the trails, and it’s small enough to pack if you want to have it along on any given ride.

NUDE Suspension technology with the X-Fusion NUDE shock that favors more adjustability. When you pedal up to have the most fun on the way down, you want a shock that gives you full factory performance when things point downwards, but also a shock that won’t slow you down when you need to ride back up.

This Voltage also comes with SRAM’s Transmission groupset and powerful Maven four-piston brakes to give you the range and the stopping power to make every ride one to remember.

Key Features & Benefits

  • TQ HPR60 Motor:Delivers more performance for the same weight as the previous motor
  • SRAM Transmission:Reliablemechanical shifting without the faff of electronics
  • NUDE Suspension Technology:Providing comfort and control on the trails

Full Specification:

  • Frame:Carbon HMF Main Frame, Alloy SST-CST, Integrated Suspension Technology
    Virtual 4 Link kinematic, Adjustable head angle, Syncros Cable Integration System
    TQ HPR60, UDH Interface, 12x148mm with 55mm Chainline
  • Rear Suspension:X-Fusion NUDE 5 RLX Trunnion, SCOTT custom w. travel, geo adj.
    3 modes: Lockout-Traction Control-Descend, Reb. Adj. Travel 155-100-Lockout, T185X55mm
  • Fork:Marzocchi Z2 Air Rail, Sweep Adj, 15x110mm QR axle, tapered steerer
    44mm offset, Reb. Adj., Lockout, 150mm travel
  • Motor:TQ HPR60 Mid Motor drive 60Nm max
  • Battery:TQ Internal 360Wh + TQ Range Extender 160Wh
  • Controller:TQ HPR, Bluetooth, ANT+, Dedicated Smartphone app
  • Charger:TQ 100-240V-4A
  • Number of Gears:12
  • Gear Shifters:SRAM Eagle 70 Shifter
  • Chainset:Praxis Alloy
  • Chainrings:Praxis alloy spider, SRAM Eagle Transmission 34T chainring
  • Rear Cassette:SRAM Eagle XS 1270 Transmission 10-52
  • Chain:SRAM CN Eagle 70 Transmission
  • Rear Derailleur:SRAM Eagle 70 Transmission 12 Speed
  • Pedals:Not supplied:Shop pedals here
  • Rims:Syncros X-30S, 32H, 30mm, Sleeve Joint, Tubeless ready
  • Front Hub:Formula CL-811, 15x110mm
  • Rear Hub:Formula CL-148S, 12x148mm
  • Front Tyre:Maxxis Assegai / 2.5" / 60TPI Foldable, Tubeless Ready / EXO+ 3C maxx Terra
  • Rear Tyre:Maxxis Dissector / 2.5" / 60TPI Foldable, Tubeless Ready / EXO+ 3C maxx Terra
  • Brakes:SRAM DB4 Stealth 4-Piston Disc, HS2 Rotors F&R 200mm
  • Handlebars:Syncros Hixon 2.0 Alloy 6061, Size S & M 15mm rise, Size L & XL 25mm rise, back sweep 8°, 780mm
  • Grips:Syncros Endurance lock-on grips
  • Stem:Syncros AM AM 2.0, Syncros Cable Integration System
    4° rise, 6061 Alloy, 31.8mm, 1 1/8"
  • Saddle:Syncros Tofino 2.0 Regular
  • Seatpost:Syncros Duncan Dropper Post 1.5s, Travel Adjust, 31.6mm, S size 140mm, M size 180mm, L size 180mm, XL size 210mm
  • Accessories:
  • Weight:19.8kg Tubless setup without Range Extender (1.1kg)
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Geometry Guide for Scott Voltage eRIDE

SMLXL
Ahead tube angle63.9 °63.9 °63.9 °63.9 °
Bhead tube length110.0 mm110.0 mm120.0 mm130.0 mm
Ctop tube horizontal580.2 mm600.0 mm629.9 mm659.8 mm
Dstandover height765.0 mm765.0 mm772.0 mm788.0 mm
EBB offset27.4 mm27.5 mm27.4 mm27.3 mm
FBB height349.6 mm349.5 mm349.6 mm349.7 mm
Gwheel base1,232.8 mm1,252.6 mm1,284.8 mm1,316.9 mm
HBB center to toptube center
IBB center to top of seattube404.6 mm424.5 mm449.6 mm479.7 mm
Jseat angle77.1 °77.1 °77.1 °77.1 °
Kchainstay455.0 mm455.0 mm455.0 mm455.0 mm
Lreach437.4 mm457.2 mm485.0 mm512.7 mm
Mstack622.3 mm622.4 mm631.3 mm640.2 mm
Nstem length40.0 mm40.0 mm50.0 mm50.0 mm
Otrail135.7 mm135.7 mm135.7 mm135.7 mm
PFork length571.0 mm571.0 mm571.0 mm571.0 mm
QMaximum Seatpost Insertion190.0 mm210.0 mm235.0 mm265.0 mm
RCrank Length170.0 mm170.0 mm175.0 mm175.0 mm


SMLXL
Ahead tube angle63.9 °63.9 °63.9 °63.9 °
Bhead tube length4.3 in4.3 in4.7 in5.1 in
Ctop tube horizontal22.8 in23.6 in24.8 in26.0 in
Dstandover height30.1 in30.1 in30.4 in31.0 in
EBB offset1.1 in1.1 in1.1 in1.1 in
FBB height13.8 in13.8 in13.8 in13.8 in
Gwheel base48.5 in49.3 in50.6 in51.8 in
HBB center to toptube center
IBB center to top of seattube15.9 in16.7 in17.7 in18.9 in
Jseat angle77.1 °77.1 °77.1 °77.1 °
Kchainstay17.9 in17.9 in17.9 in17.9 in
Lreach17.2 in18.0 in19.1 in20.2 in
Mstack24.5 in24.5 in24.9 in25.2 in
Nstem length1.6 in1.6 in2.0 in2.0 in
Otrail5.3 in5.3 in5.3 in5.3 in
PFork length22.5 in22.5 in22.5 in22.5 in
QMaximum Seatpost Insertion7.5 in8.3 in9.3 in10.4 in
RCrank Length6.7 in6.7 in6.9 in6.9 in


Warranty Information for Scott:

The manufacturer's guarantee is only granted to the first-time buyer of a SCOTT bicycle who has purchased it from an authorized SCOTT dealer. The manufacturer's guarantee only applies if the bicycle is registered to the first buyer at www.scott-sports.com within ten days of purchase.
The manufacturer's guarantee is granted from the date of purchase for a period of five years on bicycle frames and rear ends. The guarantee period is reduced to three years, if the SCOTT bicycle is not serviced at least once a year by an authorized SCOTT dealer.
For frames and rear ends of Category 5 bicycle models and for rigid forks manufactured by SCOTT, the duration of the manufacturer's guarantee is limited to two years.
For full warranty policy please visit scott-sports.com
