Scott Passage 10 Belt Wave Electric Hybrid Bike 2027 combines Bosch Performance Line SX and Compact Tube 400Wh for commuting, leisure and everyday riding.
Scott Passage 10 Belt Wave Electric Hybrid Bike 2027 combines Bosch Performance Line SX and Compact Tube 400Wh for commuting, leisure and everyday riding.
Scott

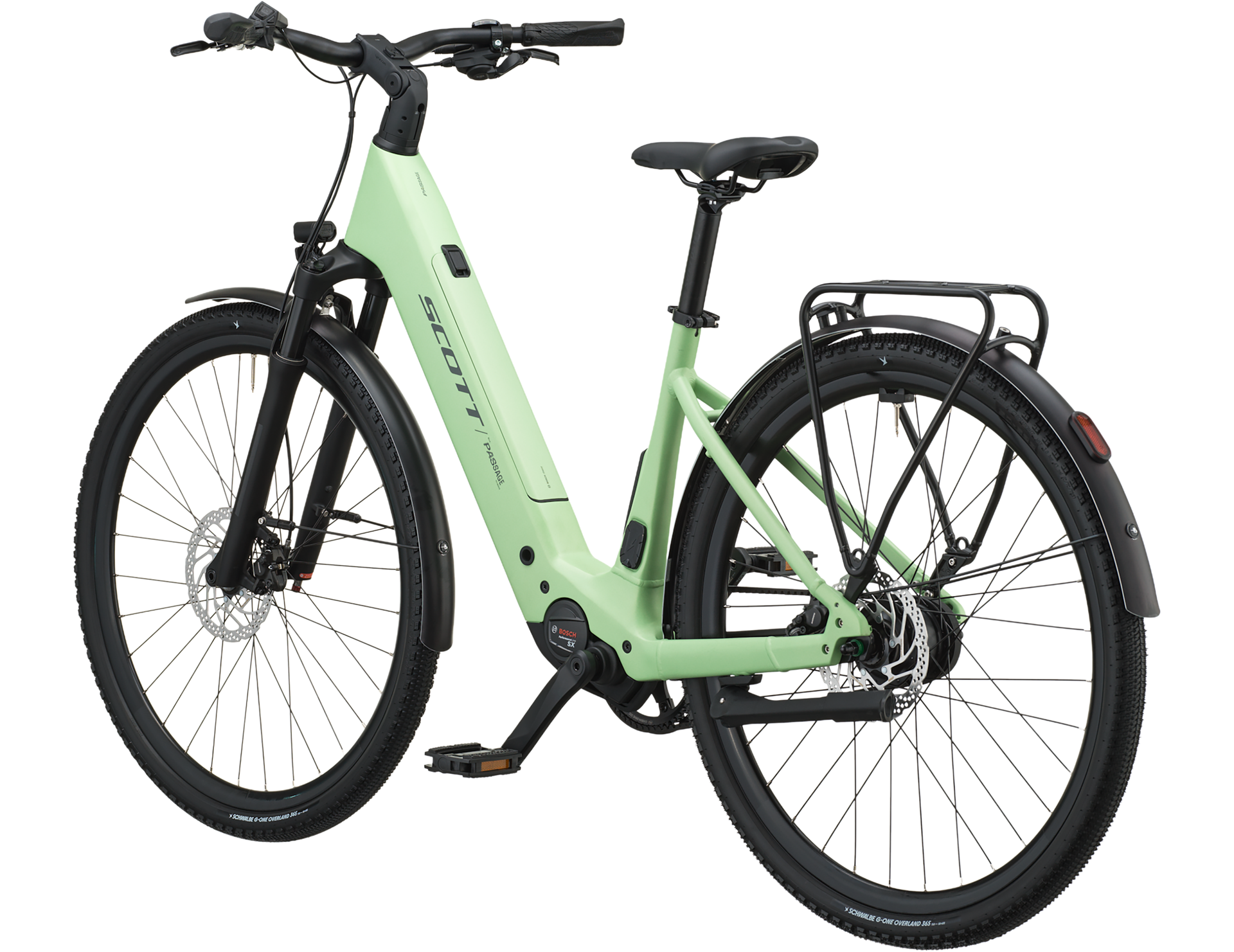

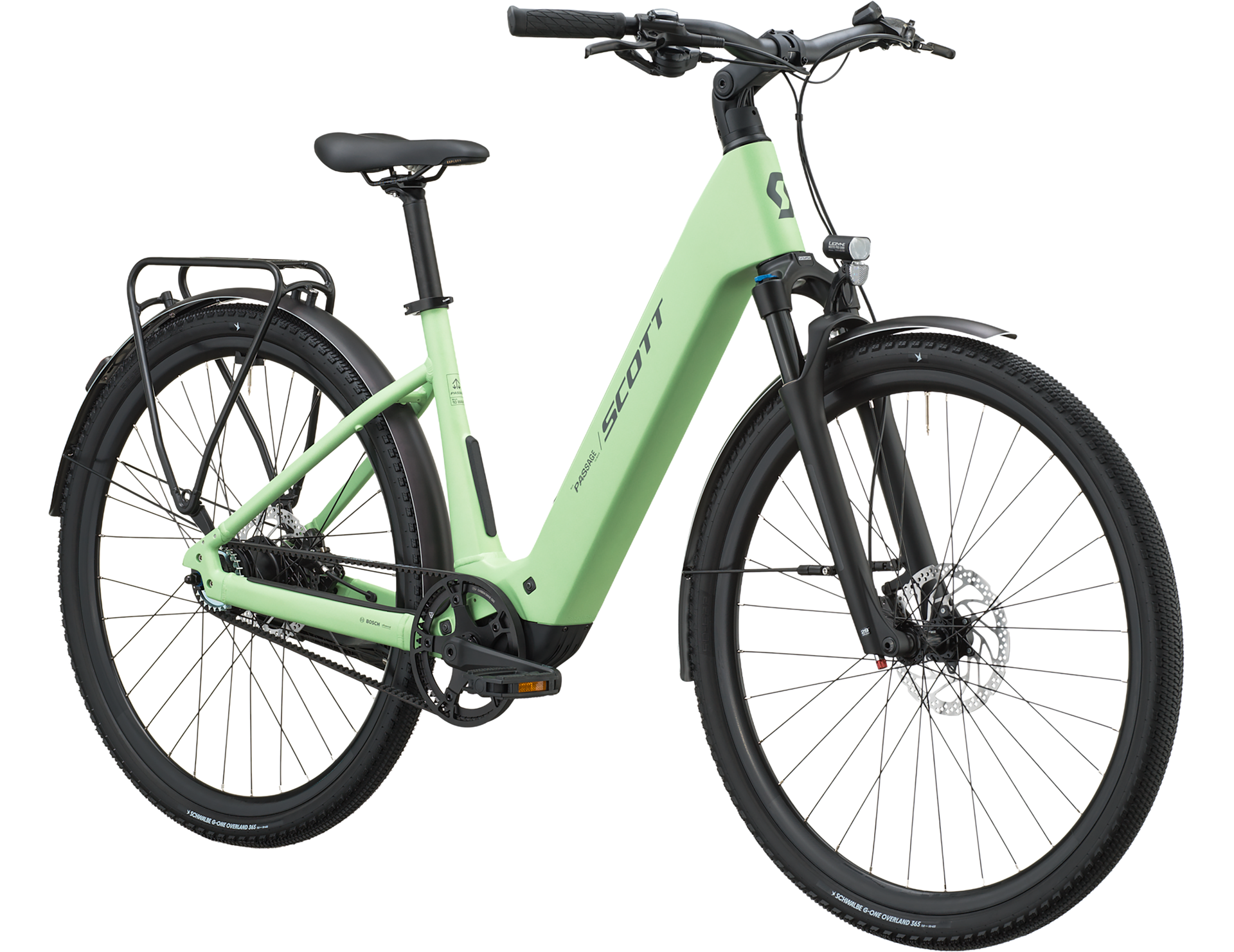

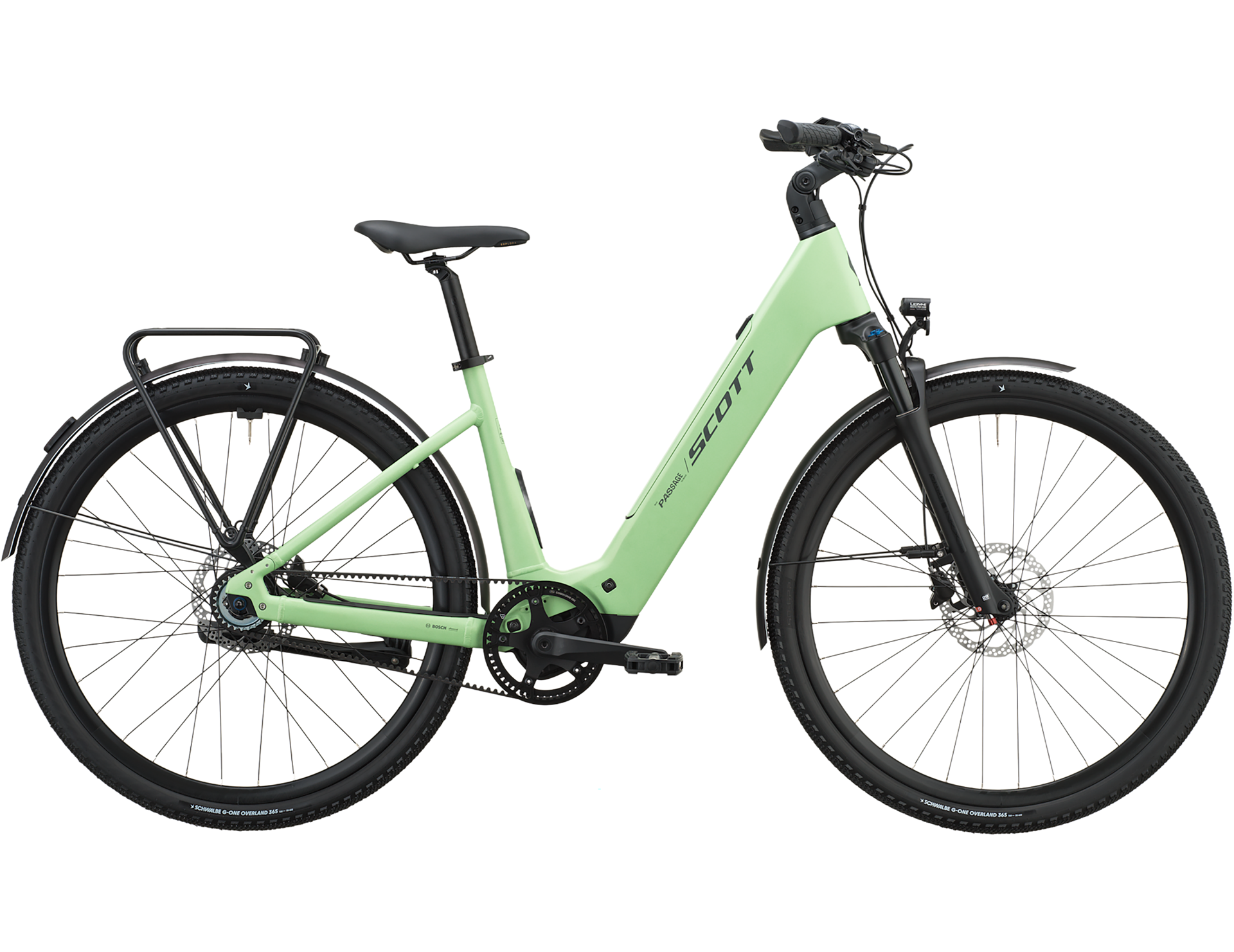

Scott Passage 10 Belt Wave Electric Hybrid Bike 2027 in Paradise Green

£3,699.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Scott Passage 10 Belt Wave Electric Hybrid Bike 2027 in Paradise Green

Season:2027

Brand:Scott

Code:4276628423Passage 10 Belt

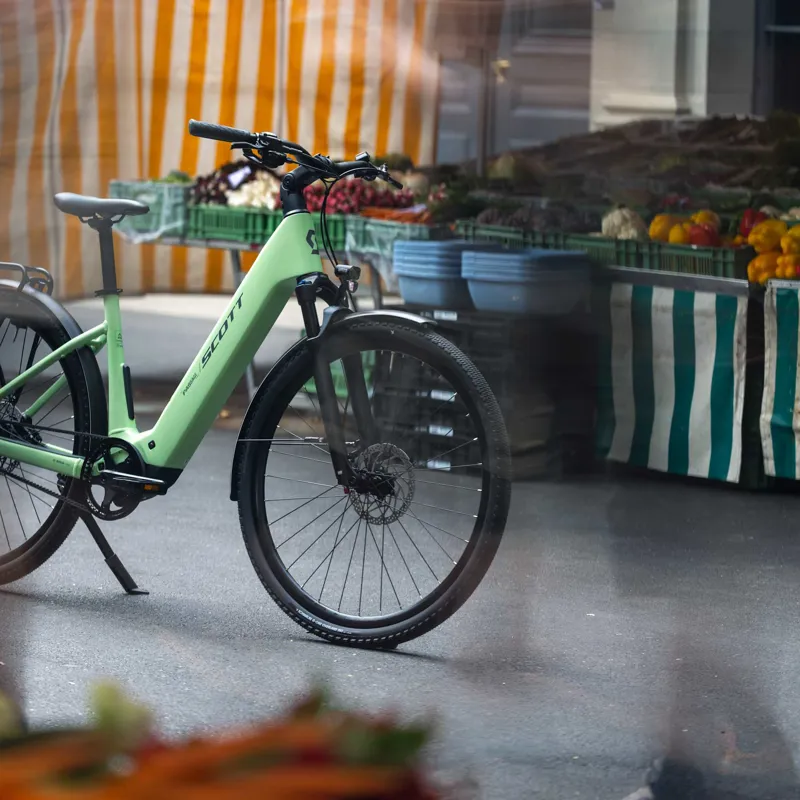

The SCOTT Passage 10 Belt Wave E-Bike is your ticket to easy, fun, city riding and low-maintenance living. Its frame shape allows for easy mounting and dismounting, while its trim build and sleek design perfectly house the lightweight Bosch Performance SX motor and a removable 400Wh battery. On the road, Passage looks and feels light and agile thanks to its balanced geometry and low center of gravity. The Bosch motor’s narrower design lets you enjoy a natural pedaling style, and when pavement gets rough, the 75mm suspension fork cushions each bump, keeping control smooth and steady.

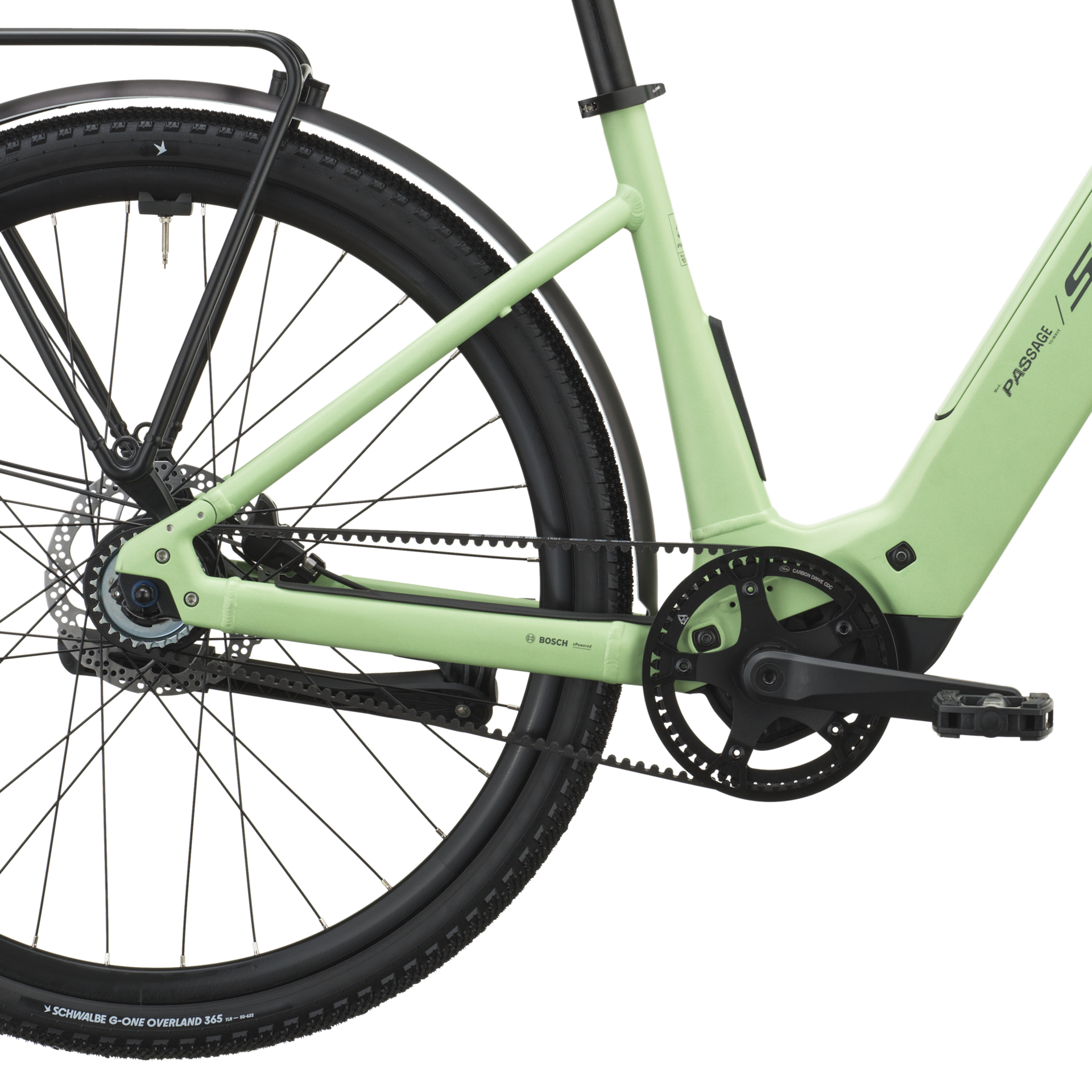

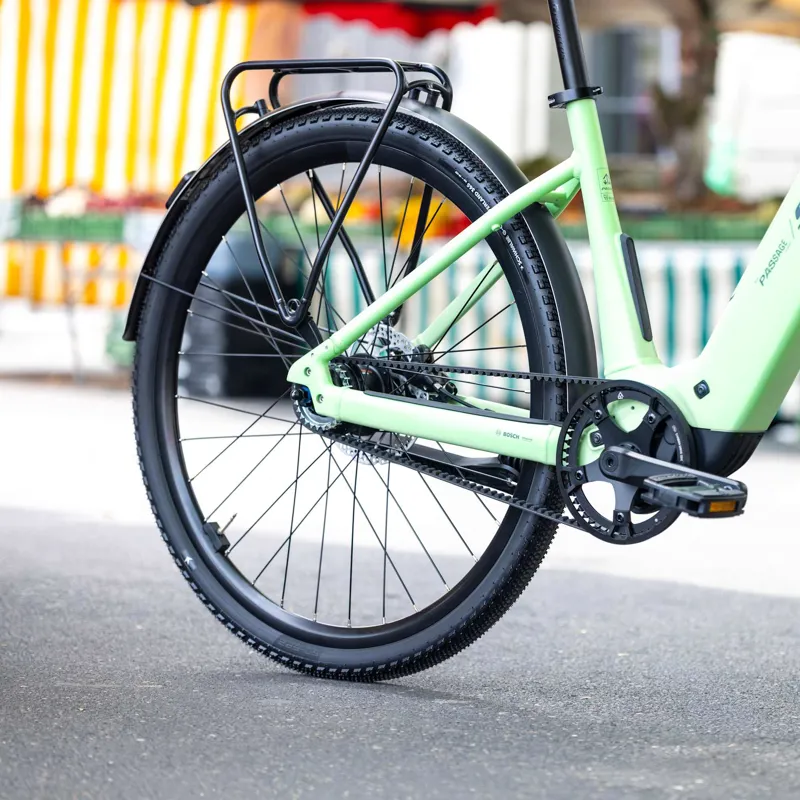

The Passage's belt drive stays cleaner than a traditional drivetrain, needs no lube, won't snag on clothing, and demands very little upkeep. So, enjoy worry-free E-Biking, and when you're ready to park the bike for the day, just swing out the kickstand. Along with its Wave design, additional practicality is built in: an adjustable stem lets you customize your fit for a relaxed, comfortable posture or a sportier riding position, while an integrated SP connection provides a secure spot for your phone and keeps navigation in view. The rear rack holds up to 20kg, giving you room for groceries and essentials.

Electric assistance comes from Bosch Performance Line SX, Compact Tube 400Wh, Bosch Purion 200, giving the bike the source-specified support system for commuting, leisure and everyday riding.

Features & Benefits:

  • Integrated Electric Assistance: The Bosch Performance Line SX works with a 400Wh battery to add smooth support for longer rides, sustained climbs and everyday mileage.
  • Everyday Ride Comfort: SR Suntour NRX32 E AIR LO; Schwalbe G-One Overland 365 Perf; 700x50C help smooth imperfect roads and paths, supporting a more comfortable ride for commuting, leisure and longer journeys.
  • Purpose-Matched Gearing: The Shimano Alfine SL-S503 Rapid Fire Plus, Shimano Nexus 8 Speed Disc, Gates CDC 26T gives a practical spread of gears so motor assistance can be matched with the terrain and riding pace.

Full Specification:

  • Frame: Alloy S-XL=29", 6061 Alloy custom butted tubing, Top extraction battery; Travel: 75mm

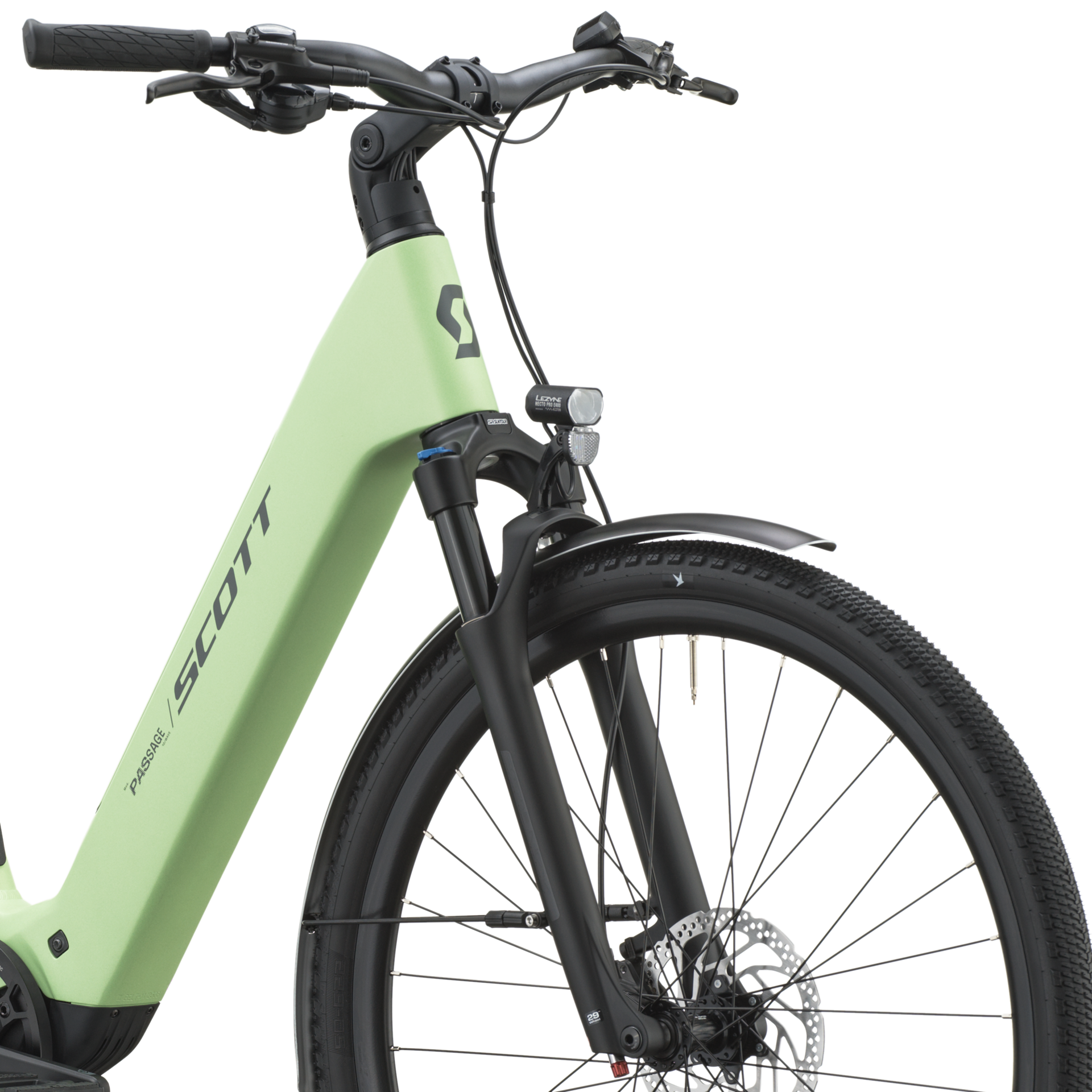

  • Fork: SR Suntour NRX32 E AIR LO

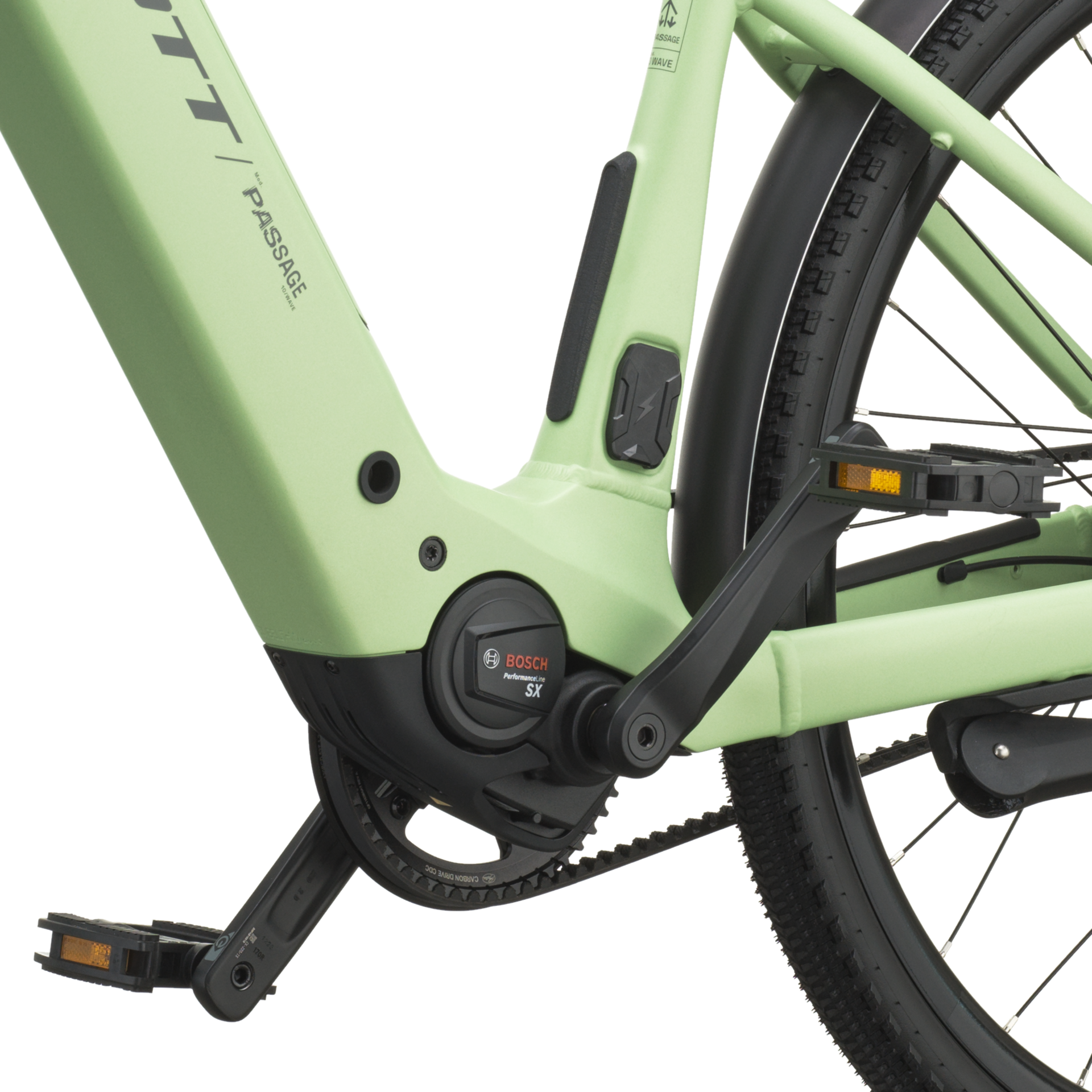

  • Motor: Bosch Performance Line SX

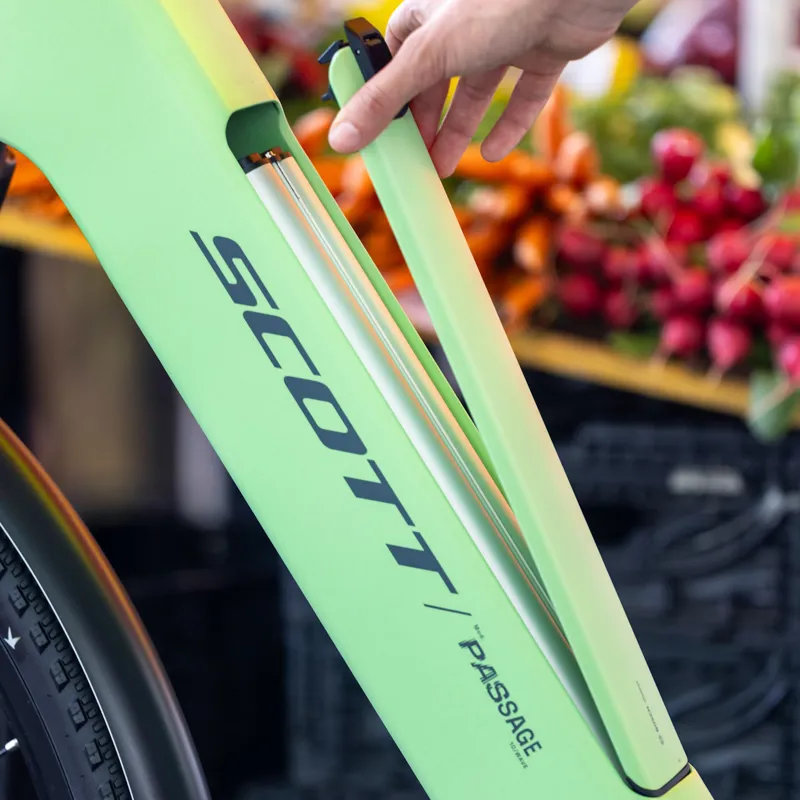

  • Battery: Compact Tube 400Wh
  • Controller: Bosch Purion 200
  • Charger: Bosch 2A Charger 230V
  • Number of Gears: 8
  • Gear Shifters: Shimano Alfine SL-S503 Rapid Fire Plus
  • Chainset: FSA CK 220 170mm
  • Chainrings: Gates CDC 52T w/Guard
  • Rear Cassette: Gates CDC 26T
  • Chain: Gates CDC 125T

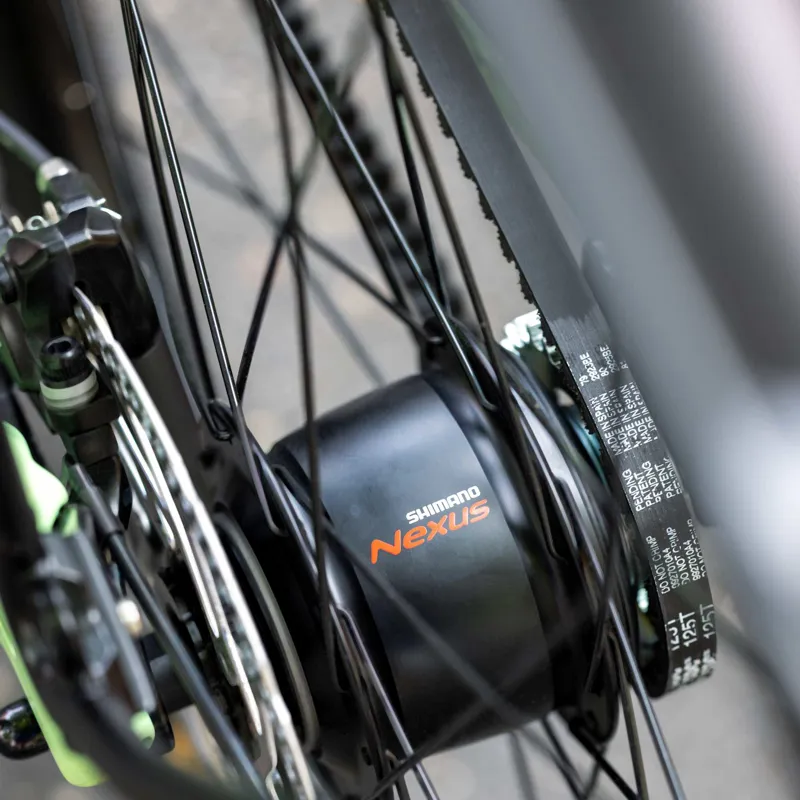

  • Rear Derailleur: Shimano Nexus 8 Speed Disc
  • Pedals: Marwi SP-827
  • Rims: Front: X15 Disc; Rear: X15 Disc; Spokes: Stainless Black 13G
  • Front Hub: Shimano HBTC50015B CL, 15x100mm
  • Front Tyre: Schwalbe G-One Overland 365 Perf, 700x50C
  • Rear Tyre: Schwalbe G-One Overland 365 Perf, 700x50C
  • Brakes: Shimano BR-MT201 2-Piston; Front rotor: Shimano SM-RT30 CL, 180mm; Rear rotor: Shimano SM-RT30 CL, 160mm
  • Handlebars: Syncros UC3.0 680mm, Rise 26mm, Backsweep 30°
  • Grips or Bar Tape: Urban Comfort
  • Headset: Feimin, 28.8-56-62(39.8), Sealed Bearing, Alloy Cup

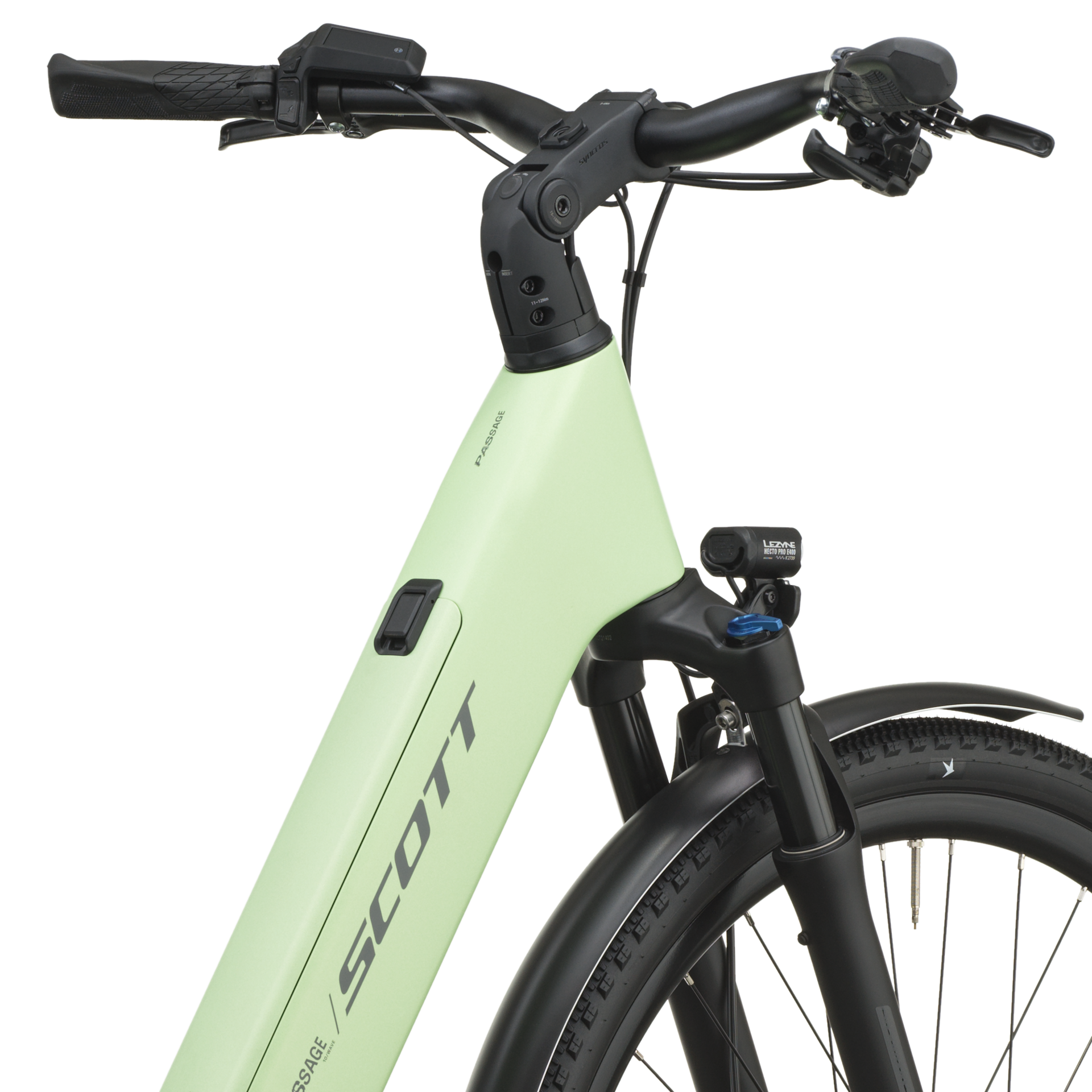

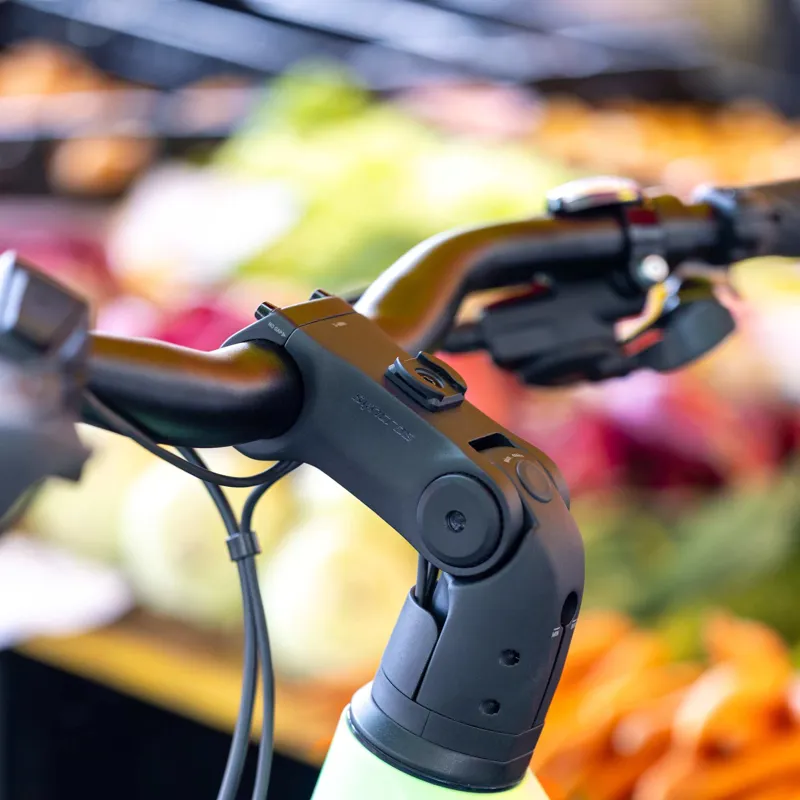

  • Stem: JD, Adjustable, 31.8*90 mm −10°~+60°, SP Connect

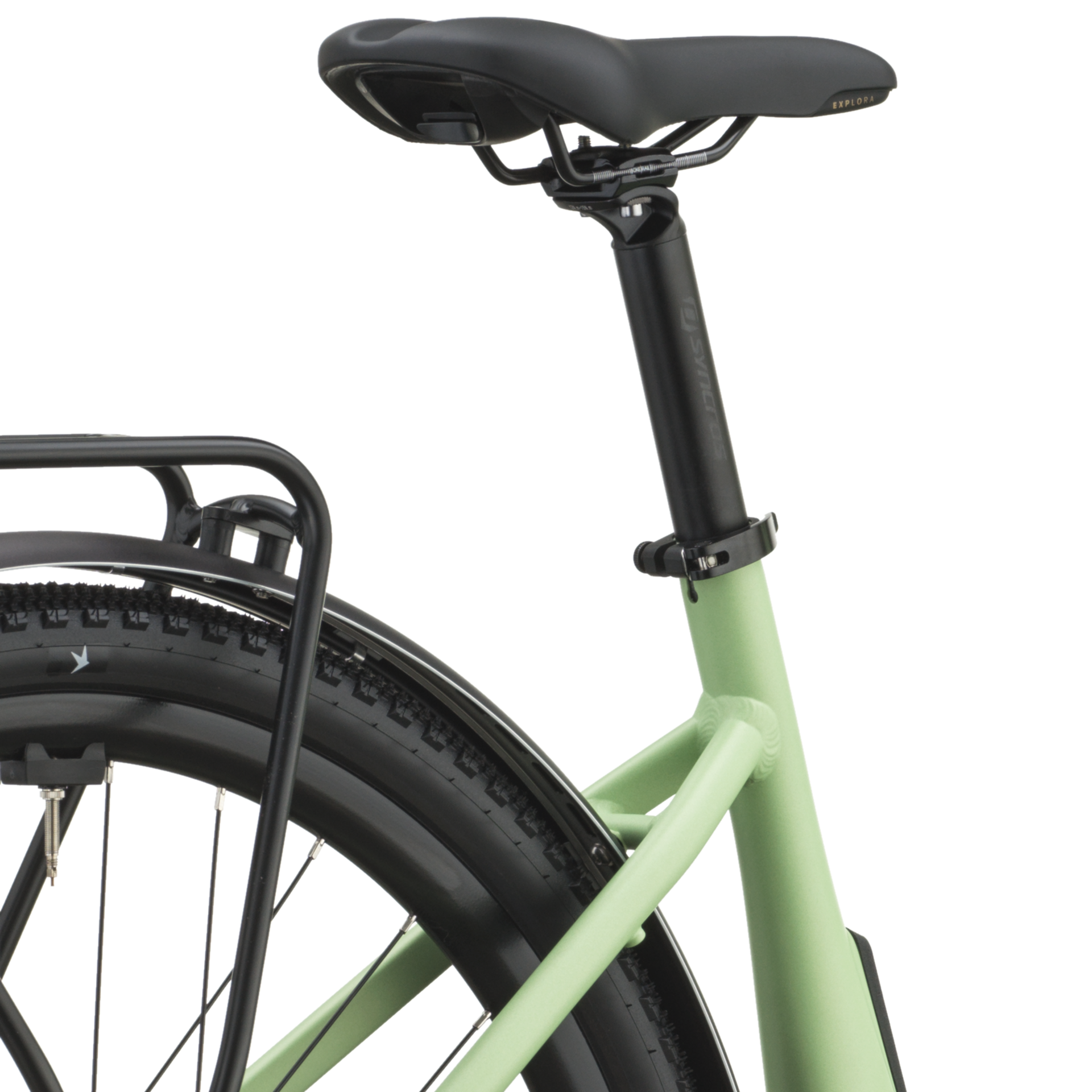

  • Saddle: Selle Royal Explora Athletic 155mm
  • Seatpost: Syncros M3.0, 31.6mm, 350mm
  • Mudguards: Curana C-Lite 55
  • Lights: Front: Lezyne Hecto Pro STVZO E400; Rear: Supernova TL3Z
  • Pannier Rack: Racktime carrier Snapit 2.0 20Kg
  • Other Accessories: Hebie IC Kickstand
  • Weight: 22.5kg
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Geometry Guide for Scott Passage

Passage Slope

S / 900M / 900L / 900XL / 900
Ahead tube angle67.0 °67.5 °67.0 °67.5 °
Bhead tube length140.0 mm140.0 mm160.0 mm160.0 mm
Ctop tube horizontal570.0 mm590.0 mm610.0 mm630.0 mm
Dstandover height420.0 mm420.0 mm420.0 mm420.0 mm
EBB offset-60.0 mm-60.0 mm-60.0 mm-60.0 mm
FBB height302.0 mm302.0 mm302.0 mm302.0 mm
Gwheel base1,163.9 mm1,178.3 mm1,206.8 mm1,221.0 mm
HBB center to toptube center
IBB center to top of seattube410.0 mm450.0 mm500.0 mm550.0 mm
Jseat angle75.0 °75.0 °75.0 °75.0 °
Kchainstay475.0 mm475.0 mm475.0 mm475.0 mm
Lreach401.9 mm421.2 mm436.9 mm456.3 mm
Mstack627.5 mm630.0 mm645.9 mm648.5 mm
Nstem length90.0 mm90.0 mm90.0 mm90.0 mm
Otrail103.7 mm100.2 mm103.7 mm100.2 mm


Warranty Information for Scott:

The manufacturer's guarantee is only granted to the first-time buyer of a SCOTT bicycle who has purchased it from an authorized SCOTT dealer. The manufacturer's guarantee only applies if the bicycle is registered to the first buyer at www.scott-sports.com within ten days of purchase.
The manufacturer's guarantee is granted from the date of purchase for a period of five years on bicycle frames and rear ends. The guarantee period is reduced to three years, if the SCOTT bicycle is not serviced at least once a year by an authorized SCOTT dealer.
For frames and rear ends of Category 5 bicycle models and for rigid forks manufactured by SCOTT, the duration of the manufacturer's guarantee is limited to two years.
For full warranty policy please visit scott-sports.com
