The HSD is the right amount of bike if you want the benefits of a cargo bike but still fancy the convenience and handling of something less bulky. Lean and nimble, the HSD is shorter than a regular bike yet capable of hauling a max gross vehicle weight (MGVW) of 180 kg (397 lb). And thanks to best-in-class components, rigorous lab testing, and UL 2849 certification, you can count on having a safe, reliable bike.
The compact HSD electric cargo bike stuns with its heavy-hauling abilities. Load up on groceries, carry a furry friend, or make extended errand runs without worrying about overloading. A long wheelbase and extra-low center of gravity ensure easy handling and stability, even under load. The HSD is more than enough bike for reliable urban hauling.

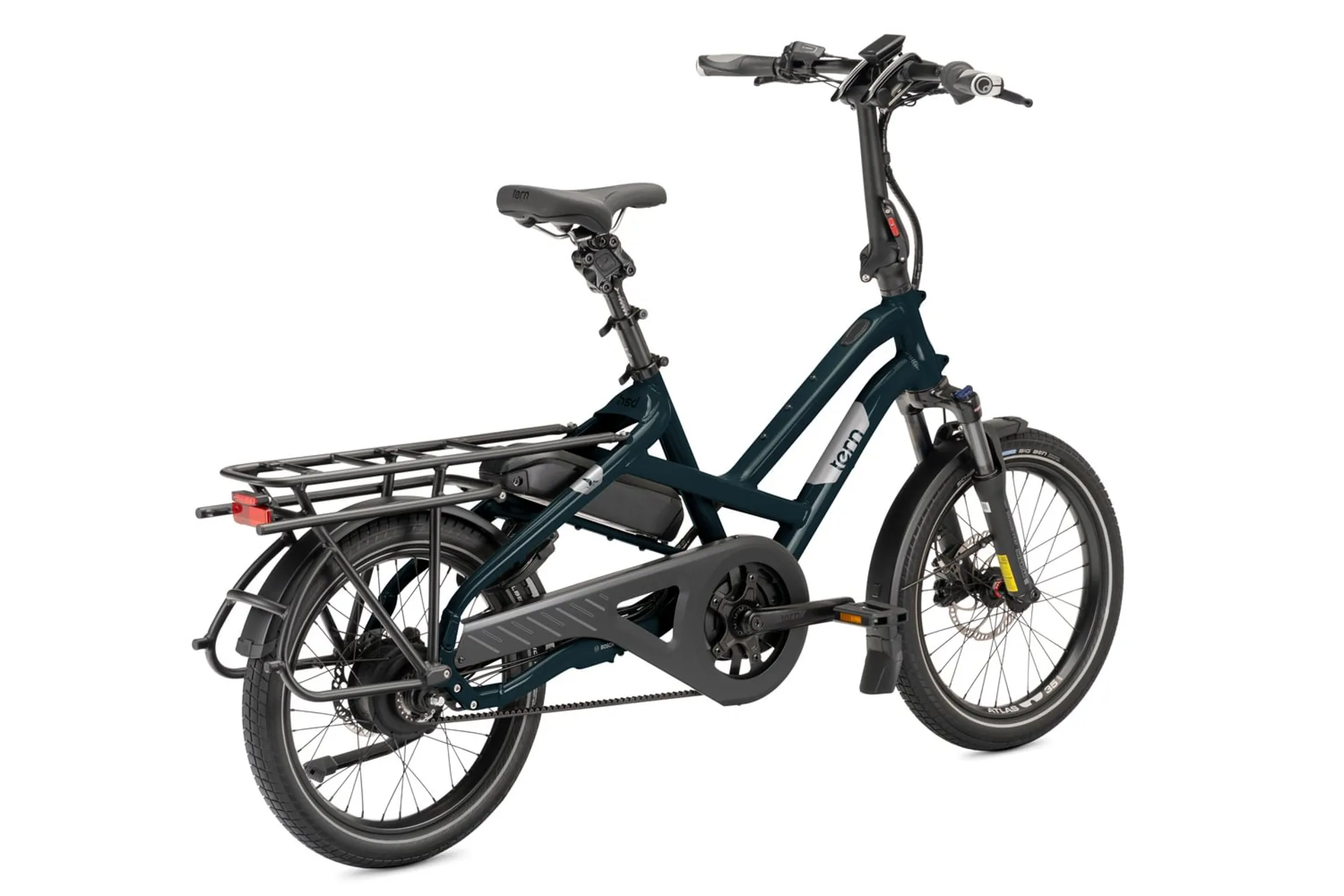

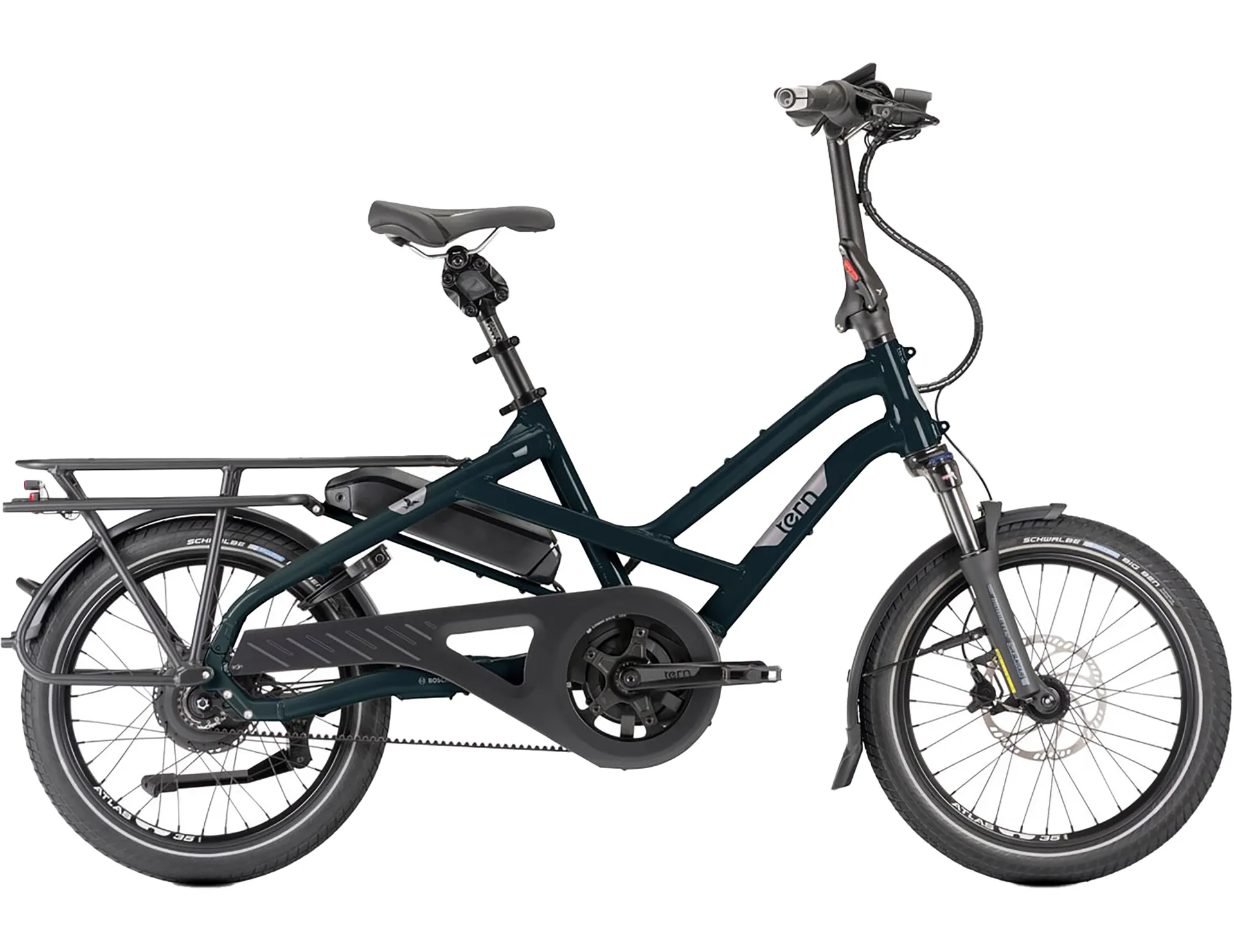

The Tern HSD S00 is a compact, premium cargo e-bike built for effortless everyday transport with outstanding comfort and capability. Powered by the Bosch Performance Line motor with the Smart System, it delivers smooth, quiet assistance and intuitive control through the Kiox 300 display. A Gates CDX belt drive, Enviolo Heavy Duty hub and high-capacity 80 kg rear rack make it a low-maintenance, high-utility option for carrying kids, cargo or commuting in all conditions. With EFBE-certified strength, adjustable cockpit and powerful Magura MT4 braking, the HSD S00 offers confidence, reliability and practicality for riders of all experience levels.
Key Features & Benefits:
- Bosch Smart Power: Bosch Performance Line motor with Smart System delivers 75Nm torque and smooth, natural assistance.
- Low-Maintenance Belt & Hub:Gates CDX belt and Enviolo Heavy Duty CVT hub give silent operation, huge gear range and virtually zero drivetrain upkeep.
- Compact Utility Design: Cargo- and passenger-ready with 80kg rack capacity and EFBE-certified 180kg max system weight.
Full Specification:
- Frame: Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved 180 kg
- Fork: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, thru-axle, 70 mm travel, EFBE approved 180 kg
- Motor: Bosch Performance Line, 340% assist, 75 Nm torque, max speed 25 kph (EU)
- Battery: Bosch PowerPack 545

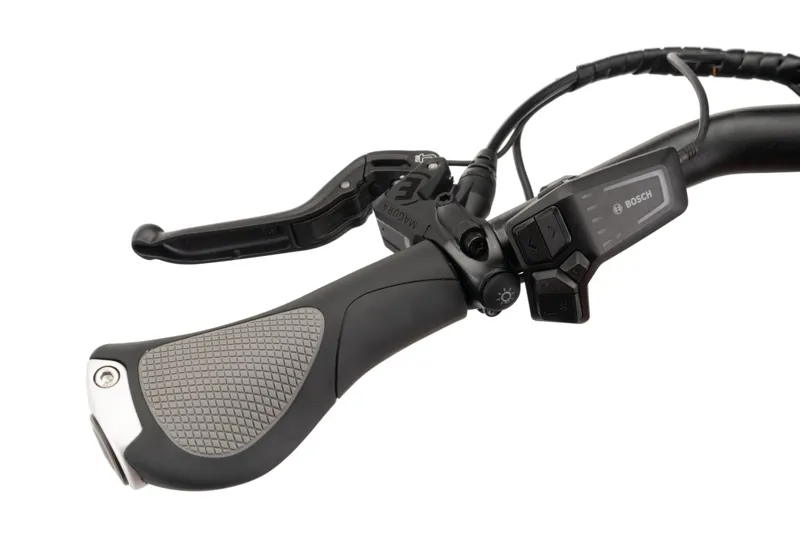

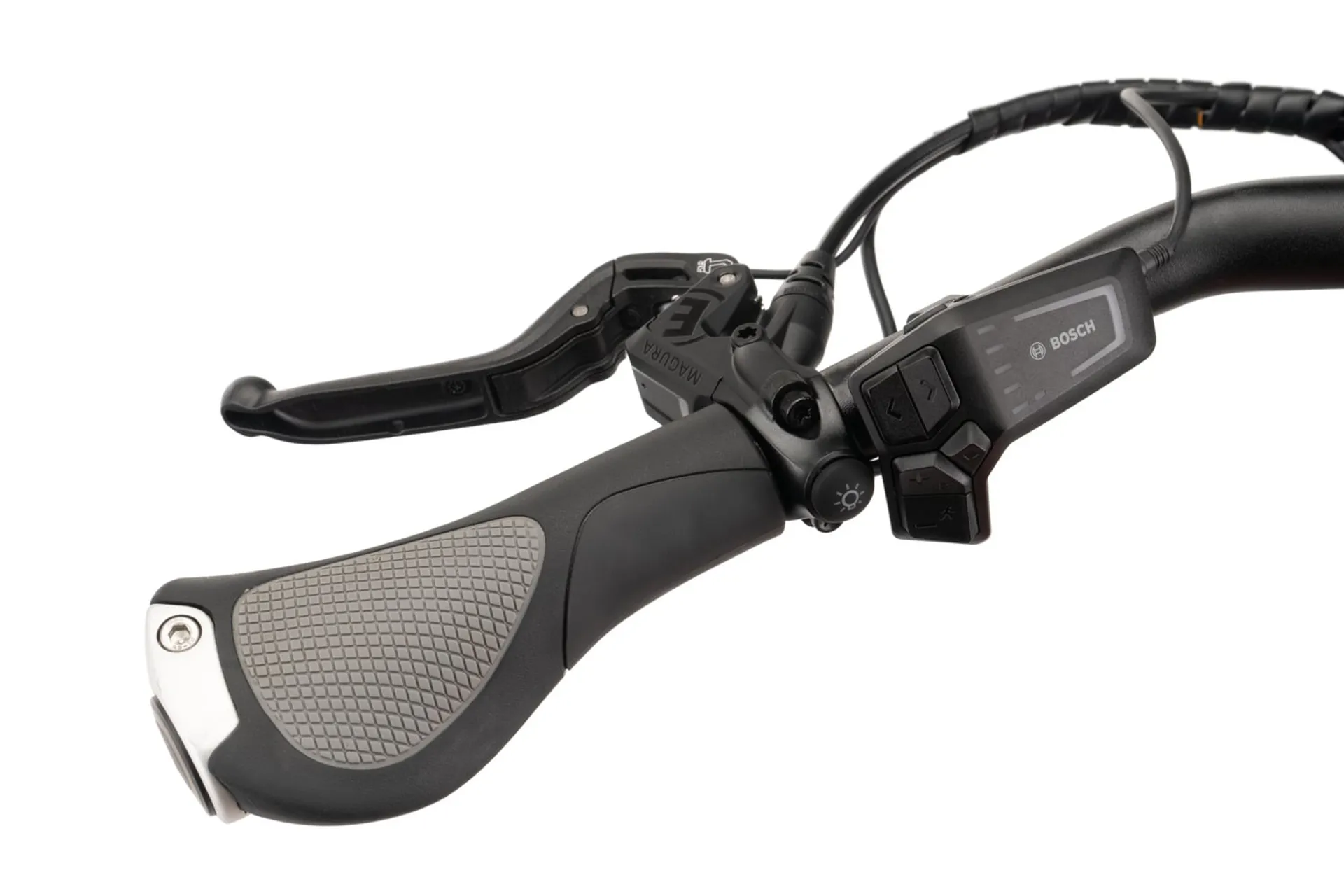

- Controller: Bosch Kiox 300 with LED remote, Flow app connectivity, electronic bike lock
- Number of Gears: Enviolo continuously variable transmission
- Gear Shifters: Enviolo twist shifter
- Chainset: Tern HSD custom, Gates CDX CNC machined beltring
- Chainrings: Gates CDX
- Rear Cassette: Gates CDX precision CNC machined cog
- Chain: Gates Carbon Drive CDX belt
- Front Derailleur: Not applicable
- Rear Derailleur: Not applicable
- Bottom Bracket: Motor integrated
- Pedals: Urban with non-slip surface, sealed bearings
- Rims: Tern Atlas H, wide 35 mm
- Front Hub: Novatec, thru-axle, sealed bearings
- Rear Hub: Enviolo Heavy Duty, 380% continuously variable range
- Front Tyre: Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certified
- Rear Tyre: Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certified

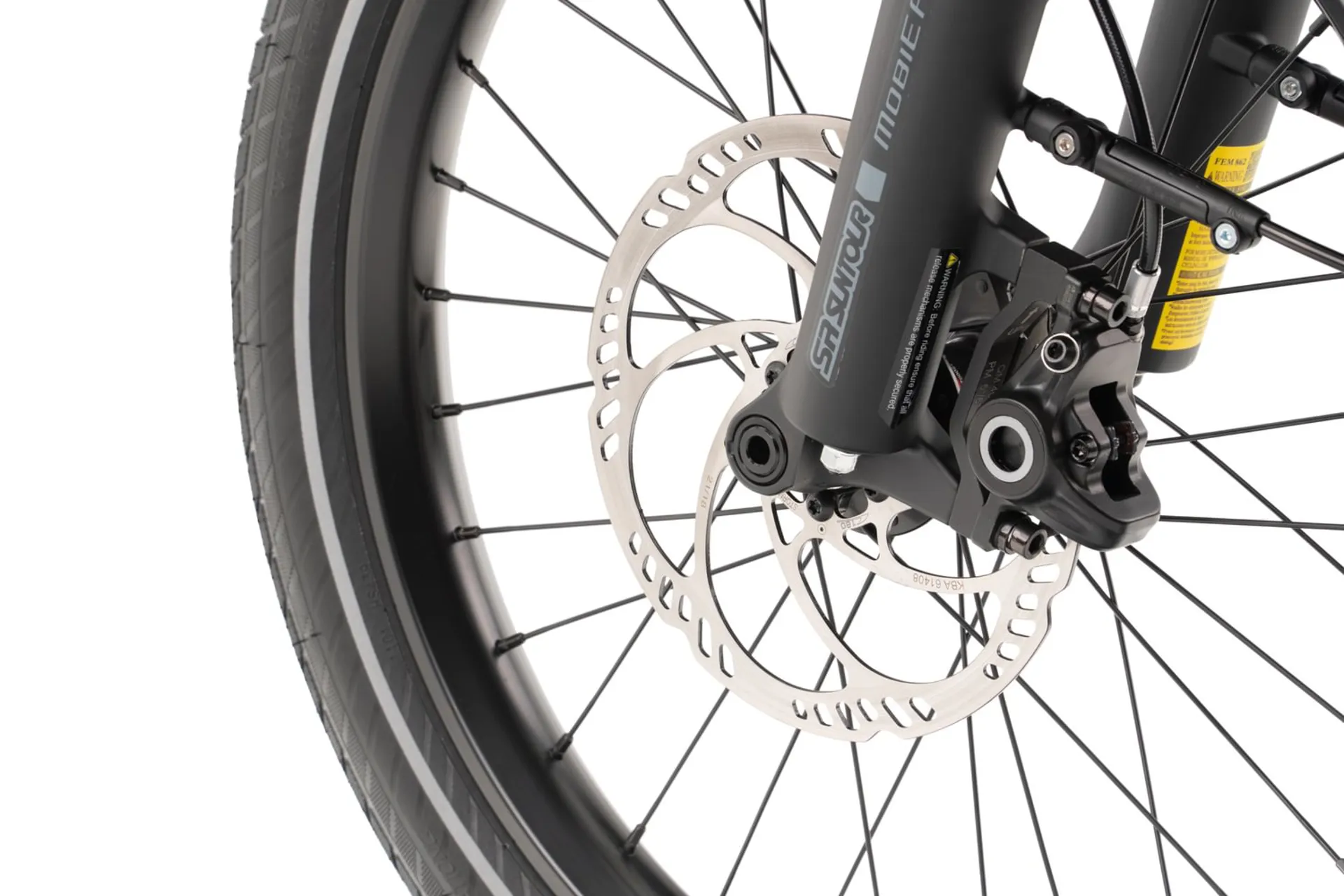

- Brakes: Magura MT4 hydraulic discs, 180 mm front rotor, 160 mm rear rotor
- Handlebars: Tern Sweep, 6061-AL, Andros adapted
- Handlebar Grips: Ergon
- Headset: Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated

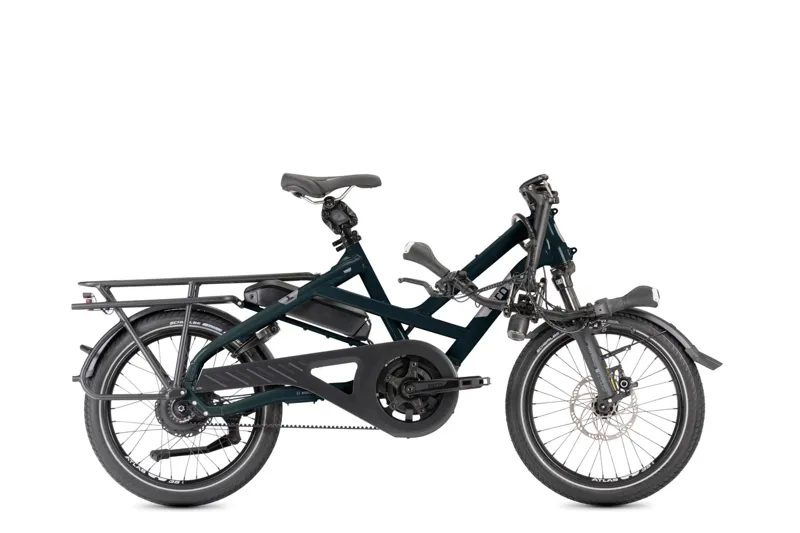

- Stem: Tern Andros adjustable, forged construction
- Saddle: Tern Upright by Velo

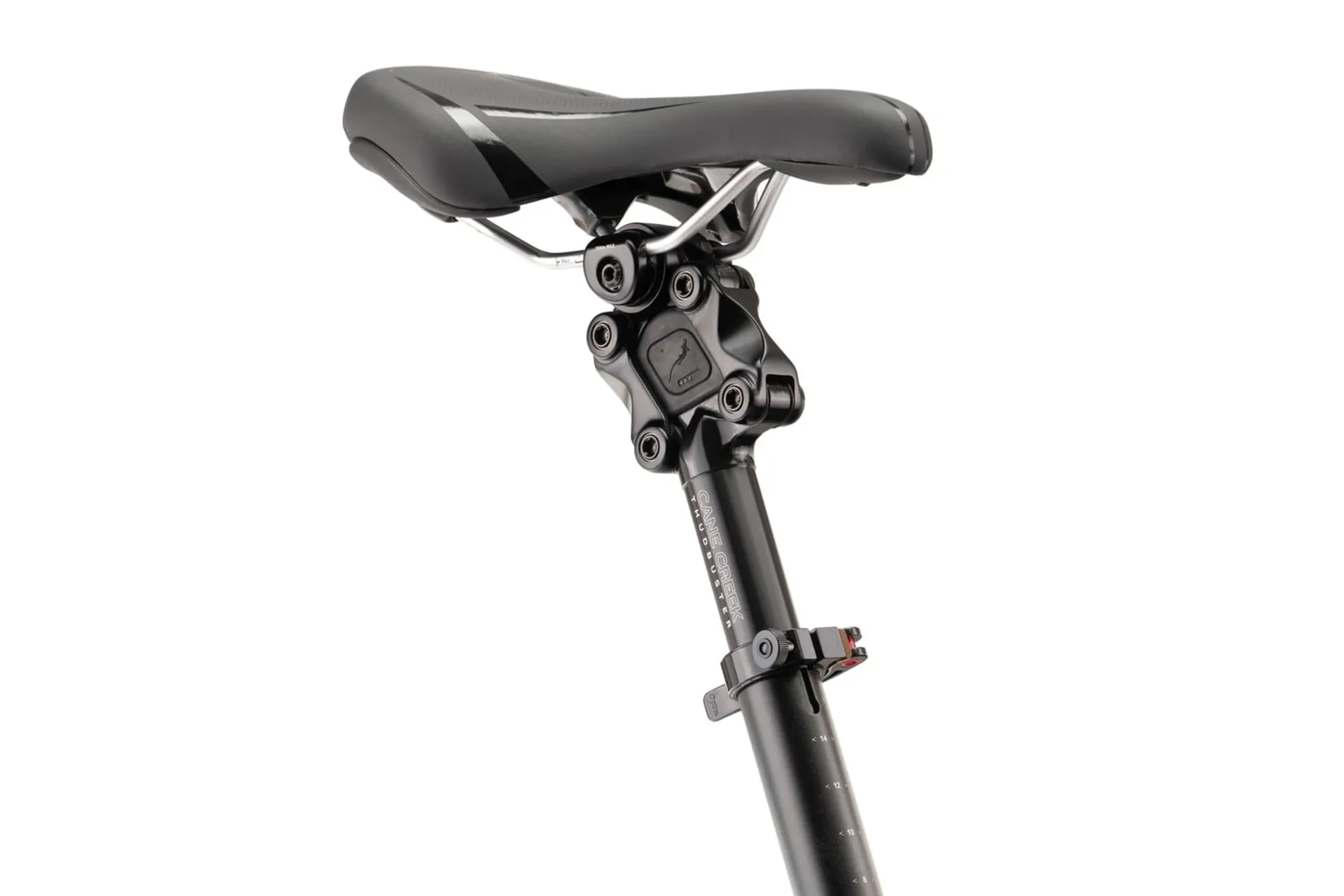

- Seatpost: Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm

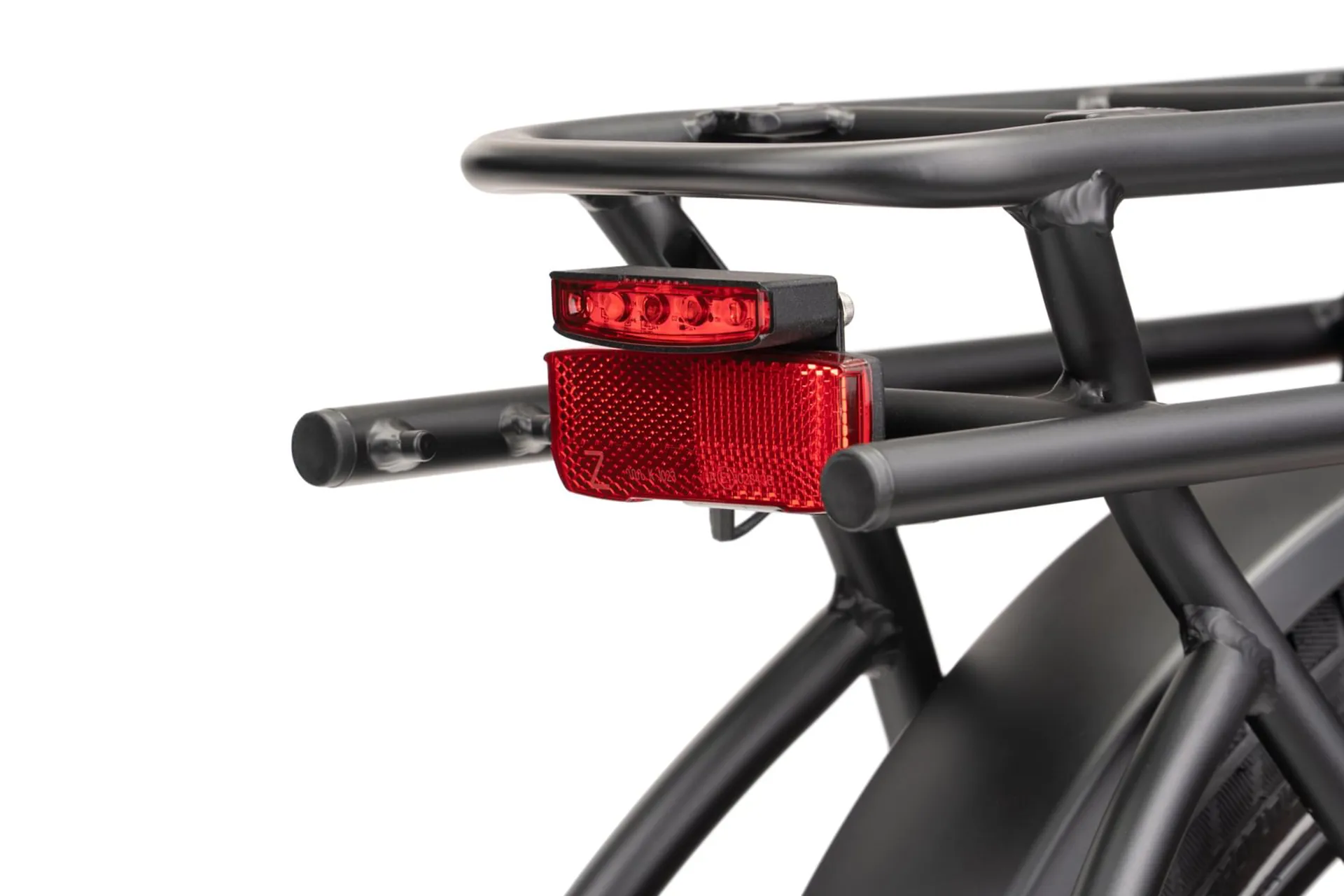

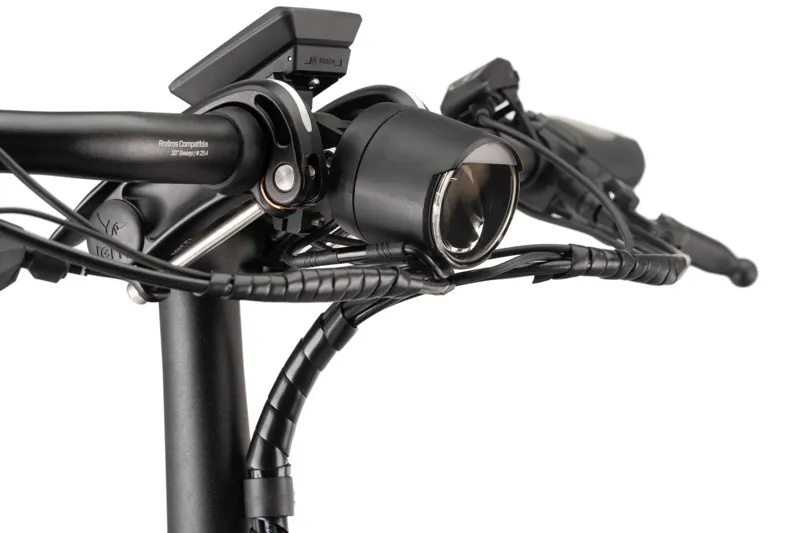

- Accessories: Bell, chainguard, kickstand, Combo Mount, Ignis 700-lumen headlight, RearStop brake light, fenders, Atlas H rack (80 kg capacity), ABUS frame lock keyed-alike
- Weight: 28 kg
