Compact Bosch Smart System e-bike with Gates CDX belt, 3 x 3 9 speed wireless gears, and 545Wh battery for smooth, low-maintenance power.

Compact Bosch Smart System e-bike with Gates CDX belt, 3 x 3 9 speed wireless gears, and 545Wh battery for smooth, low-maintenance power.

Tern

Tern HSD Gen 3 S9i Performance PX Electric Cargo Bike 2027 in Basalt

£5,800.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

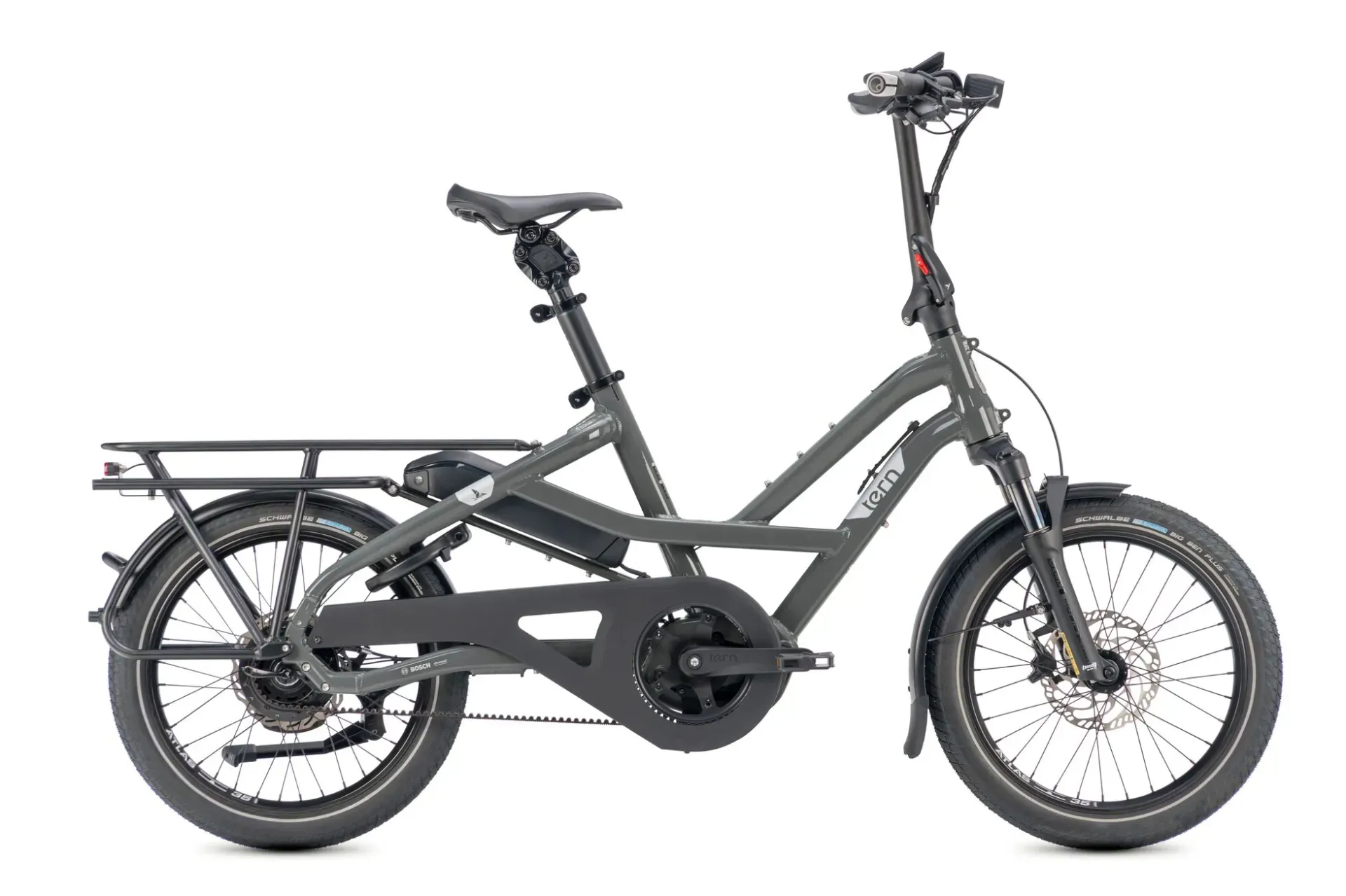

Tern HSD Gen 3 S9i Performance PX Electric Cargo Bike 2027 in Basalt

Season:2027

Brand:Tern

Code:810067168731

What makes it an S9i?
Bosch Performance Line PX motor delivers up to 90 Nm of torque and 600% pedal assist with Performance Upgrade 2.0
Bosch Smart System with ConnectModule allows access to advanced features like eBike Alarm, GPS tracking, and easy control via Kiox 300 display and LED Remote
Bosch eShift lets you shift under load or at a stop, set your preferred starting gear, and offers a wireless design for less maintenance
3x3 NINE 9-speed internal gear hub with a best-in-class 554% range for efficient, low-maintenance shifting
Silent, smooth, and virtually maintenance-free Gates Belt Drive
Bosch PowerPack 545 battery provides long range of up to 103 km (64 mi)
HSD Highlights
Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 190 kg (419 lb) with a rear rack load capacity of 80 kg (176 lb)
Optimized frame geometry, a longer wheelbase, and a low center of gravity keep rides stable, even with heavy loads or at higher speeds
Magura hydraulic disc brakes deliver precise and responsive stopping power
Custom Suntour suspension fork absorbs road shocks for a smoother, more comfortable ride
Easy-sharing cockpit adjusts without tools to fit riders 153 - 205 cm (5'0" - 6'9") tall and weighing up to 130 kg (287 lb)
Third-party tested and certified to UL 2849 (complete e-bike system) and EN 17860 (frame and fork, 190 kg) for proven cargo e-bike safety and reliability

Key Features & Benefits:

  • Bosch Smart Power: Bosch Performance PX motor with Smart System delivers 90Nm torque and smooth, natural assistance.
  • Low-Maintenance Drive: Silent, grease-free Gates CDX belt and 9 speed wireless gears for effortless, reliable shifting.
  • Compact Utility Design: Cargo- and passenger-ready with 80kg rack capacity and EFBE-certified 190kg max system weight.

Full Specification:

  • Frame: Tern HSD, 6061-AL, patented design, EFBE Tri-Test approved: 190kg

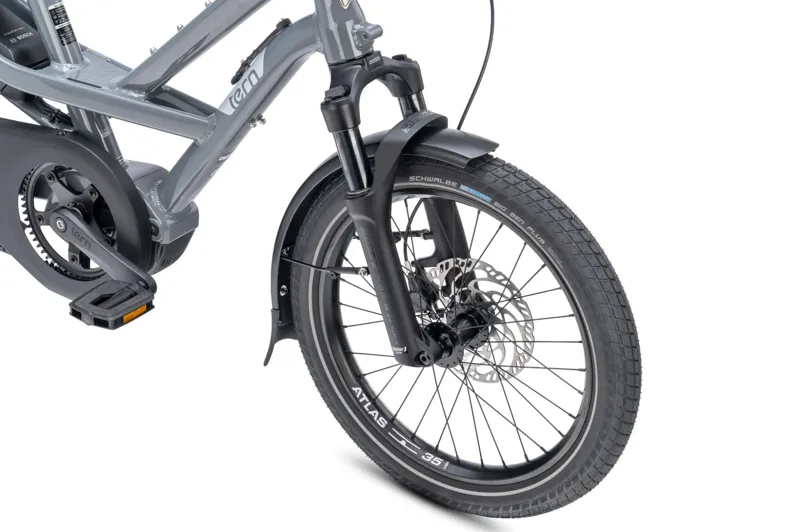

  • Fork: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 34mm stanchions, thru-axle, 70mm travel, EFBE approved: 190kg

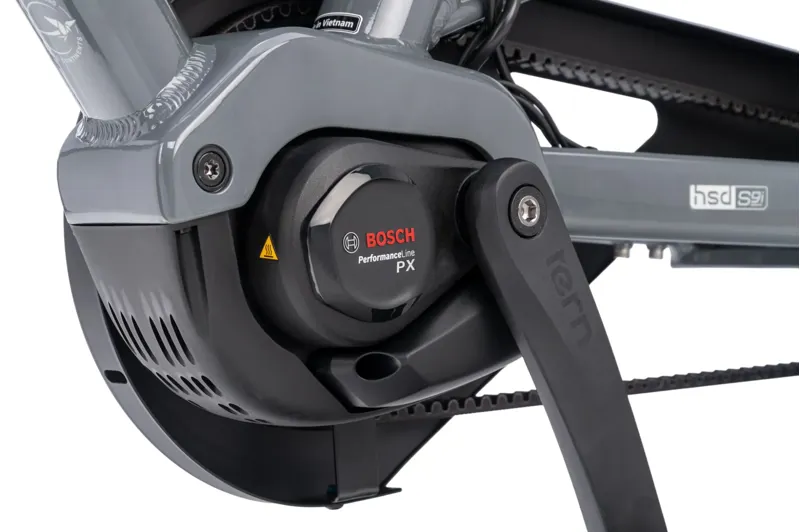

  • Motor: Bosch Performance Line PX Smart System, 90Nm torque, up to 600% assist, max speed 25kph (EU)

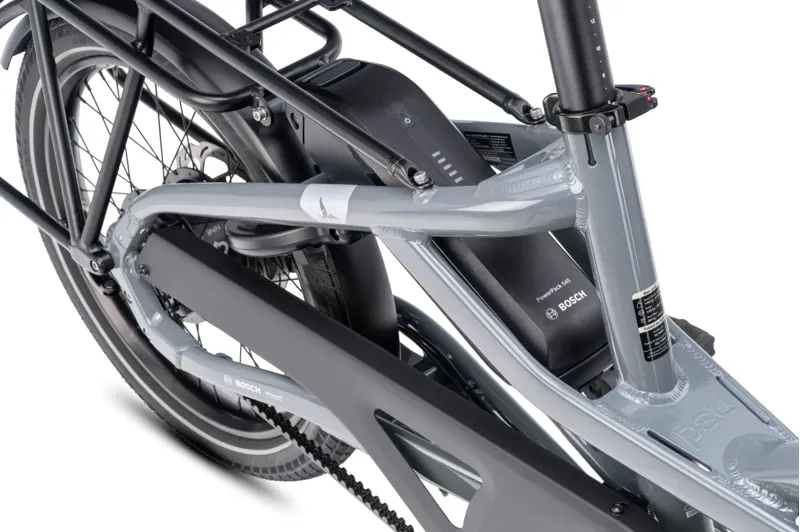

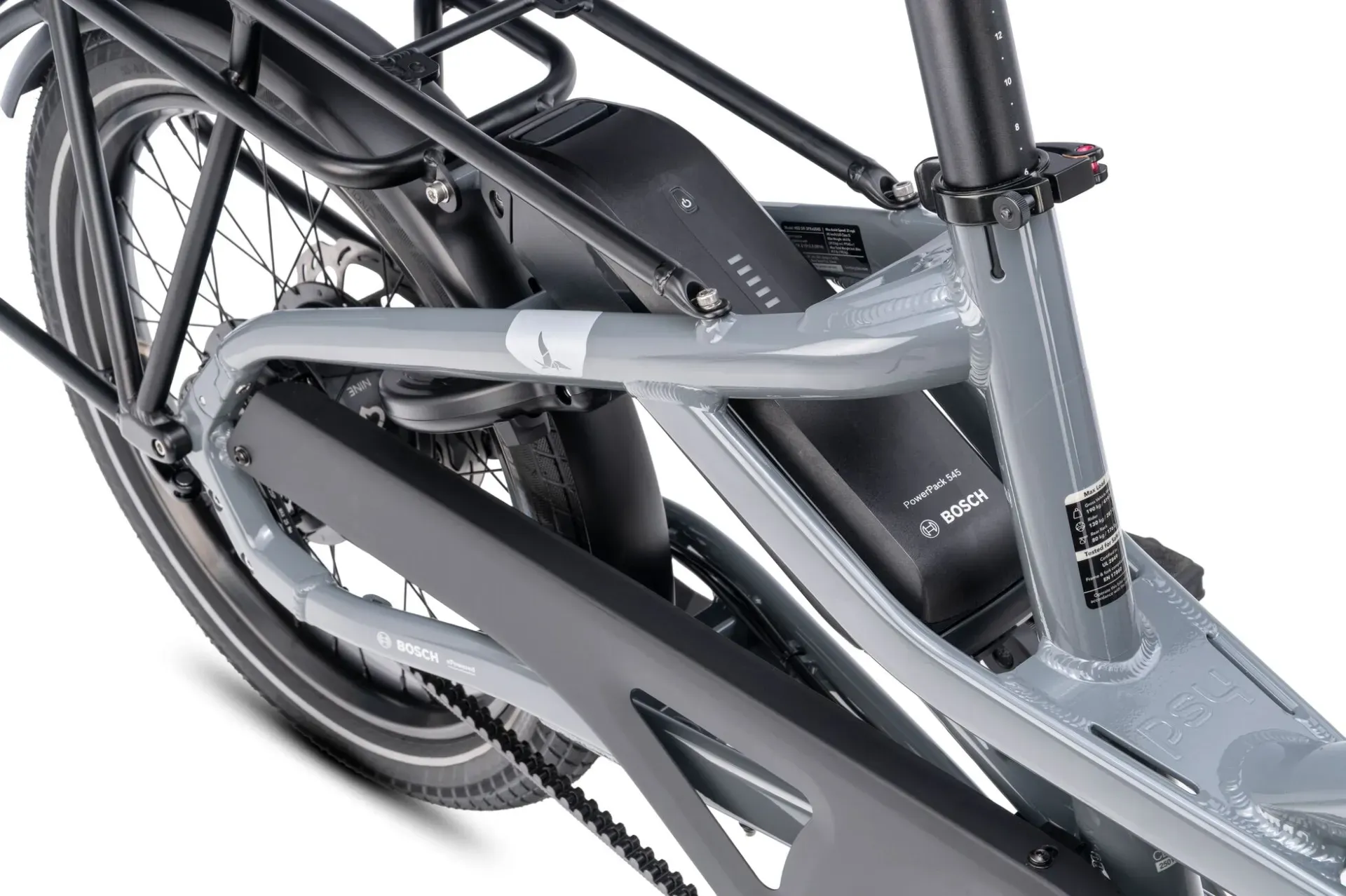

  • Battery: Bosch PowerPack 545Wh

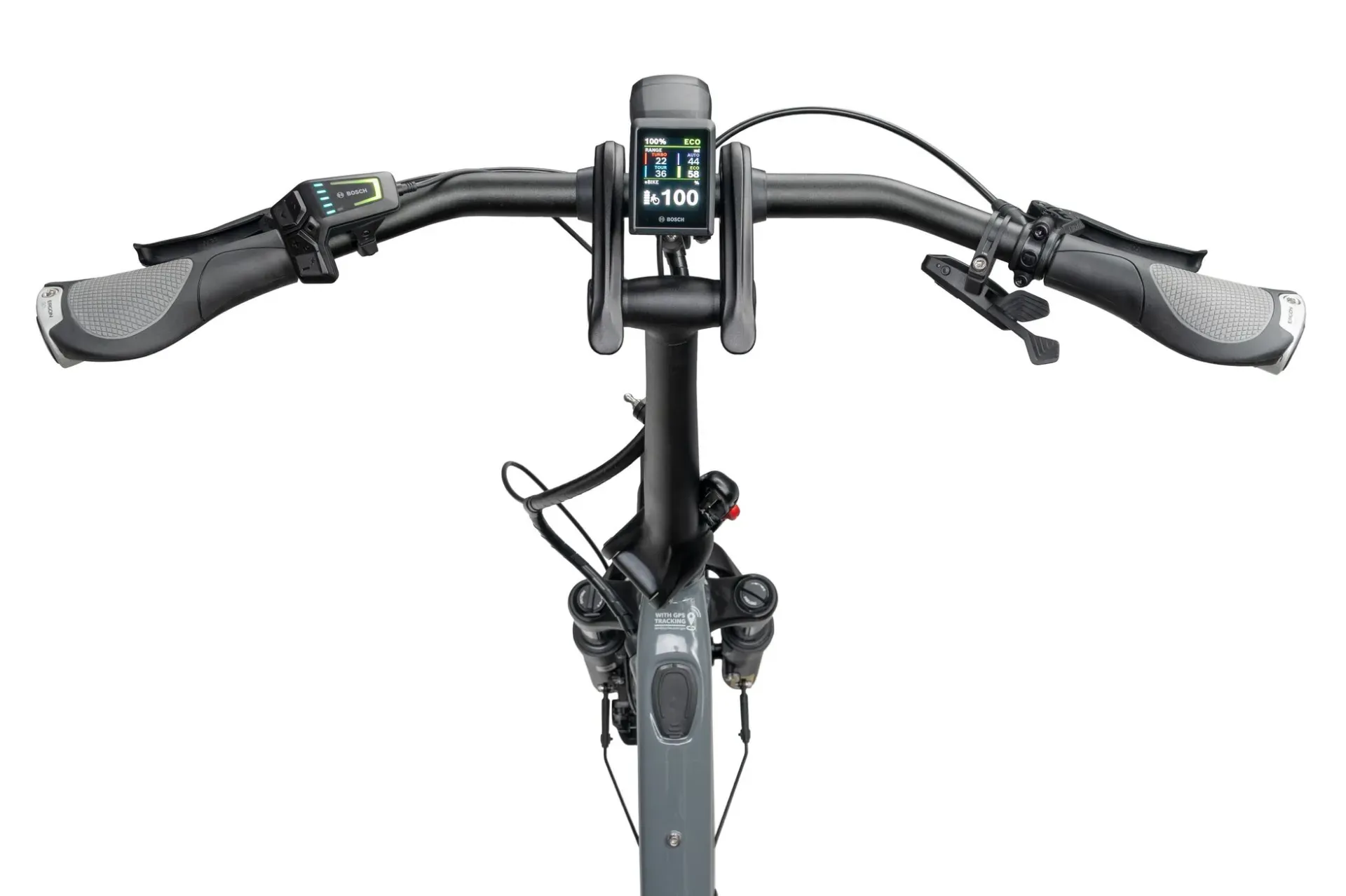

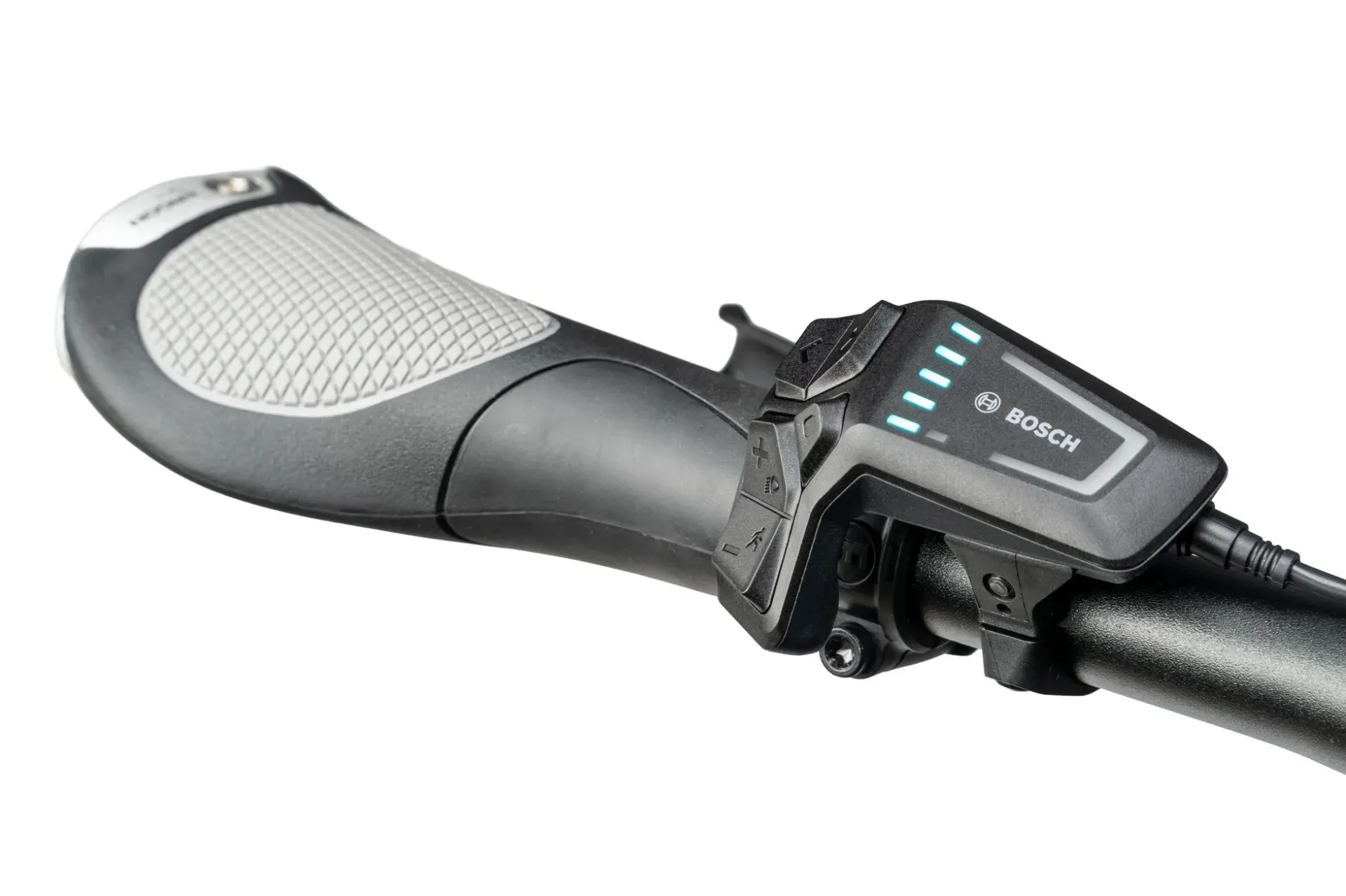

  • Controller: Bosch Kiox 300 w/ LED remote, connectivity with Bosch eBike Flow app, electronic bike lock
  • Charger: Fast Charging, 220V, 4A (EU)
  • Number of Gears: 9
  • Gear Shifters: 3x3 CMD, wireless e-shifter, w/ Bosch eShift
  • Chainset: Tern HSD custom, Gates CDX CNC-machined beltring
  • Chainrings: Gates CDX, 55T
  • Rear Cassette: Gates CDX precision CNC-machined cog
  • Chain: Gates Carbon Drive CDX belt
  • Front Derailleur:
  • Rear Derailleur:
  • Bottom Bracket: Motor integrated
  • Pedals: Urban platform with non-slip surface
  • Rims: Tern Atlas H, 35mm wide cargo rims
  • Front Hub: Novatec, sealed cartridge bearings, thru-axle

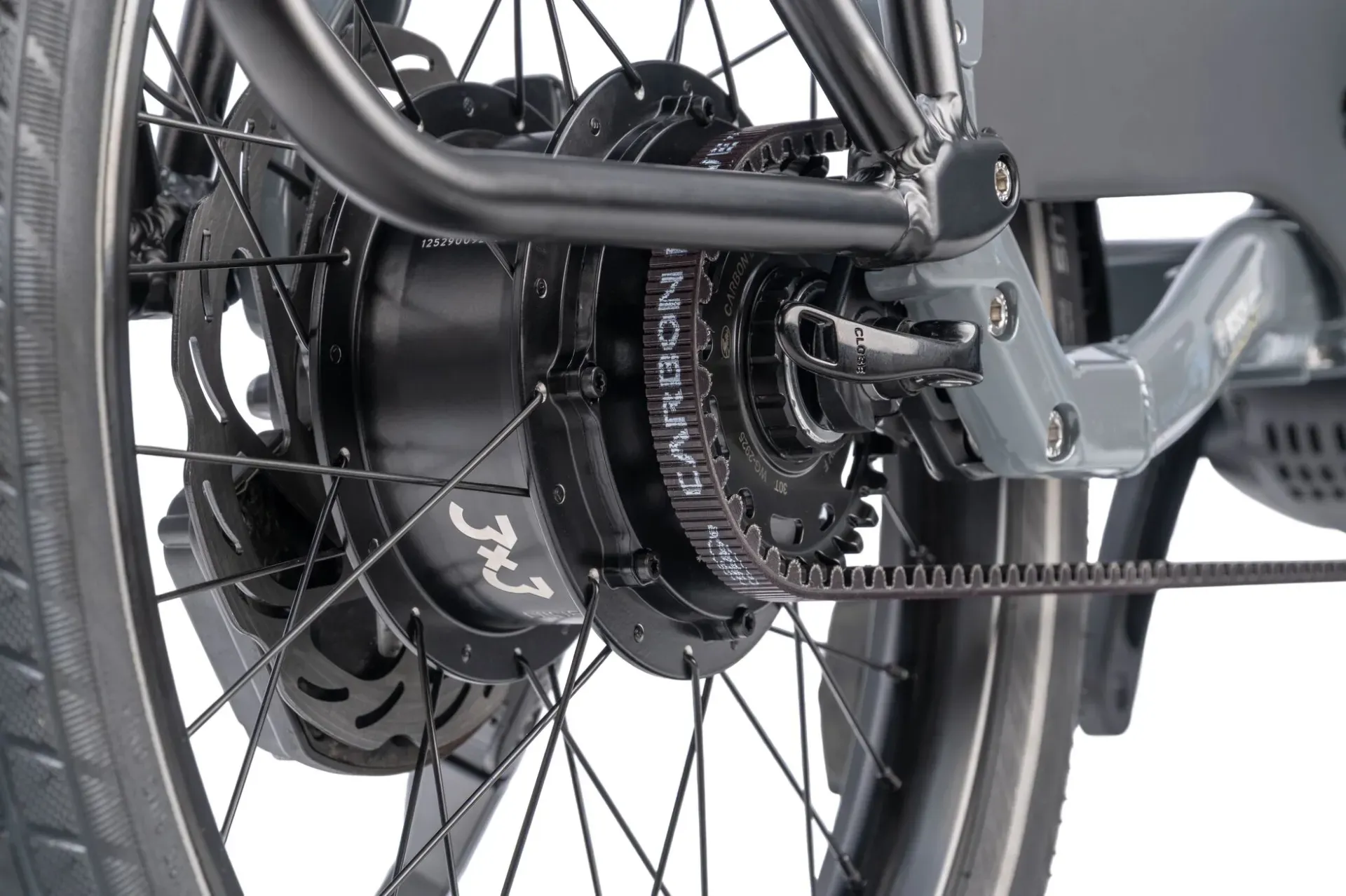

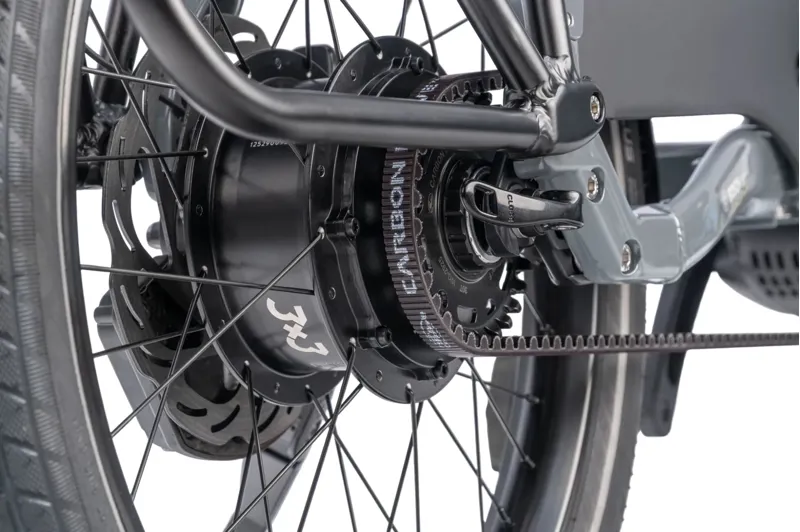

  • Rear Hub: CMD Bluetooth internal gear hub

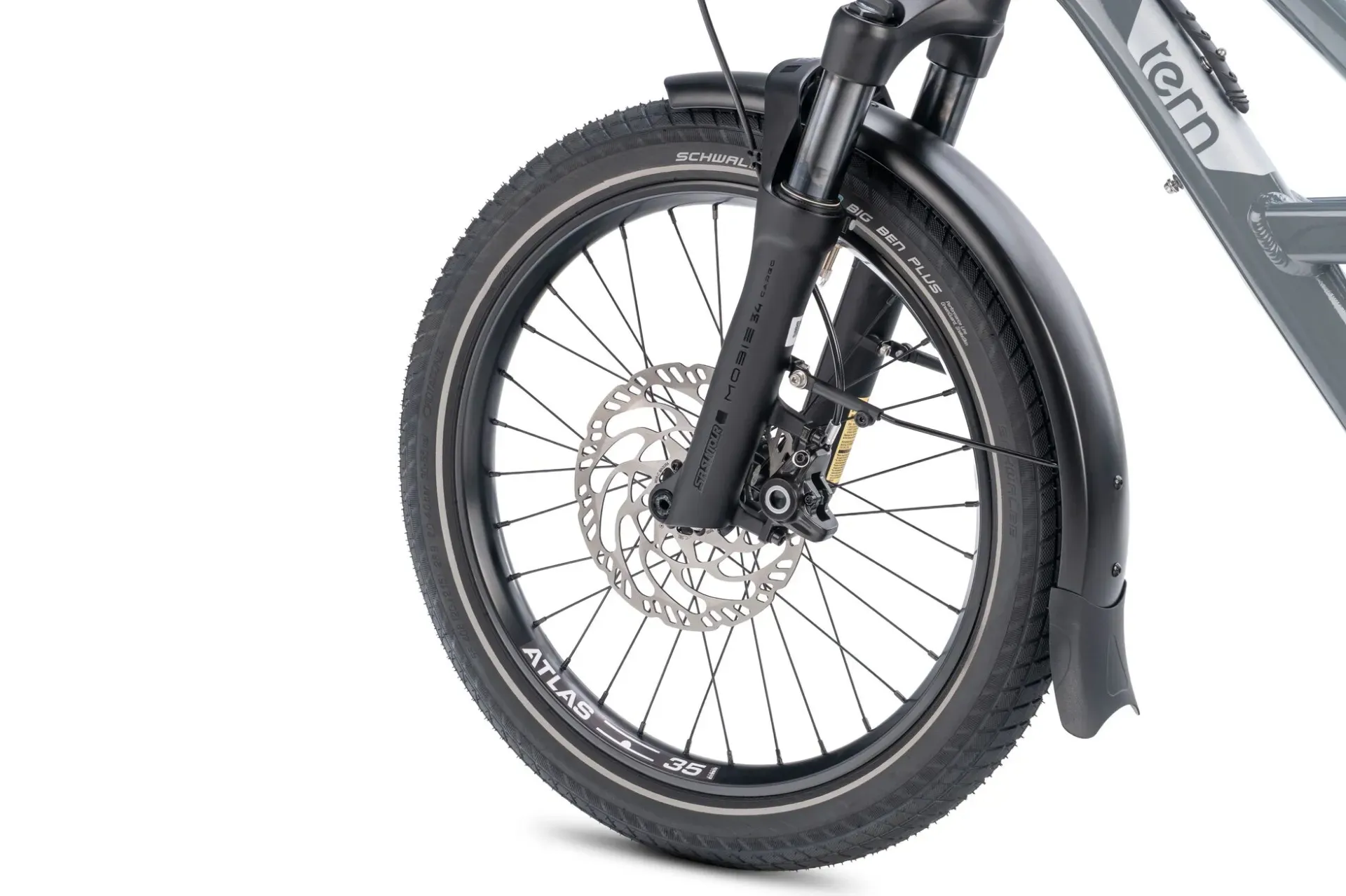

  • Front Tyre: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex
  • Rear Tyre: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex
  • Brakes: Magura MT4, hydraulic disc, 180 mm rotor
  • Handlebars: Tern Sweep, 6061-AL, Tern Andros adapted
  • Handlebar Tape: Ergon grips
  • Headset: Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
  • Stem: Tern Andros, adjustable, forged construction
  • Saddle: Tern Upright by Velo

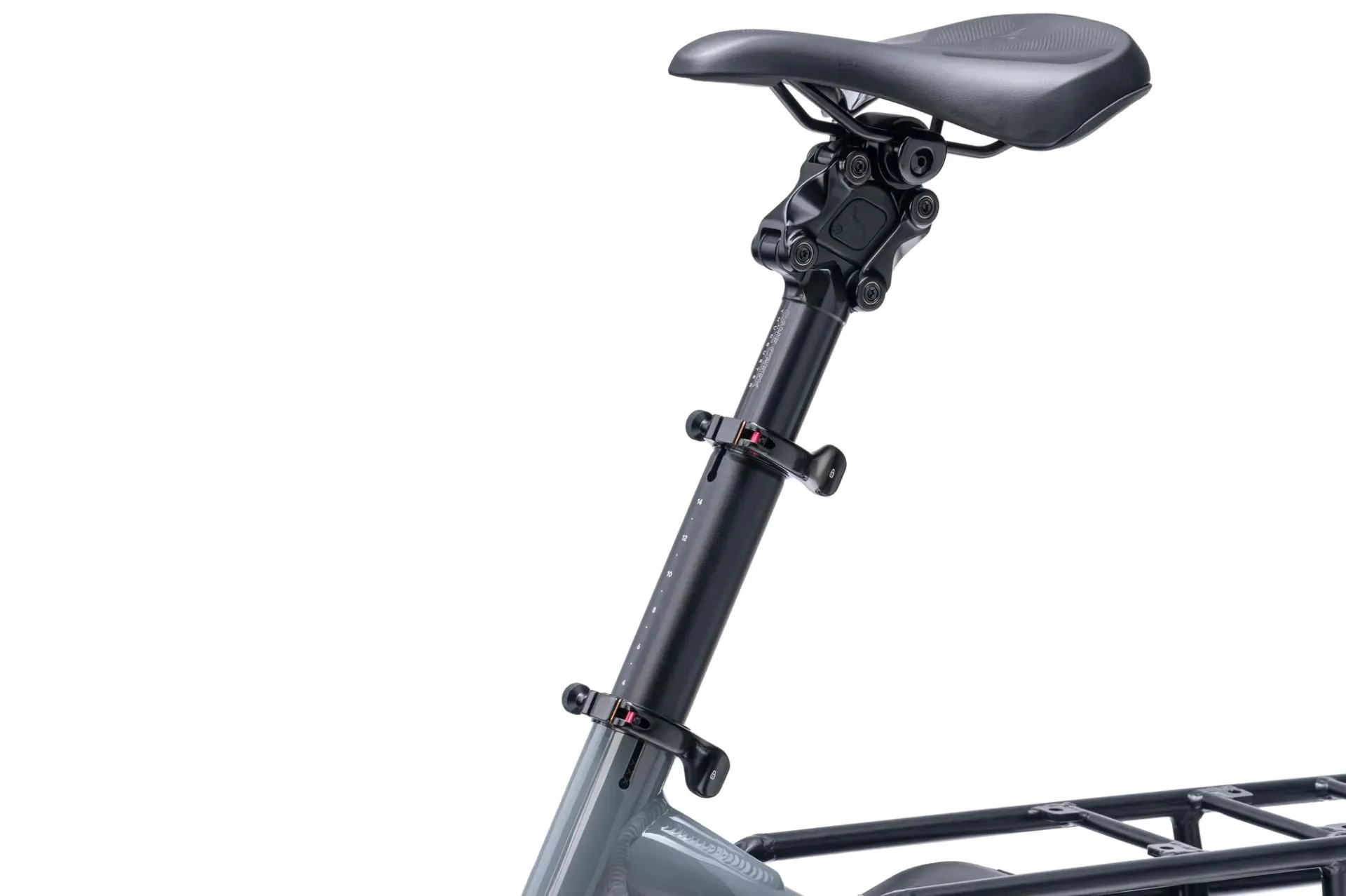

  • Seatpost: Tern VLT 40/34.9mm, with Cane Creek suspension and LightAction levers

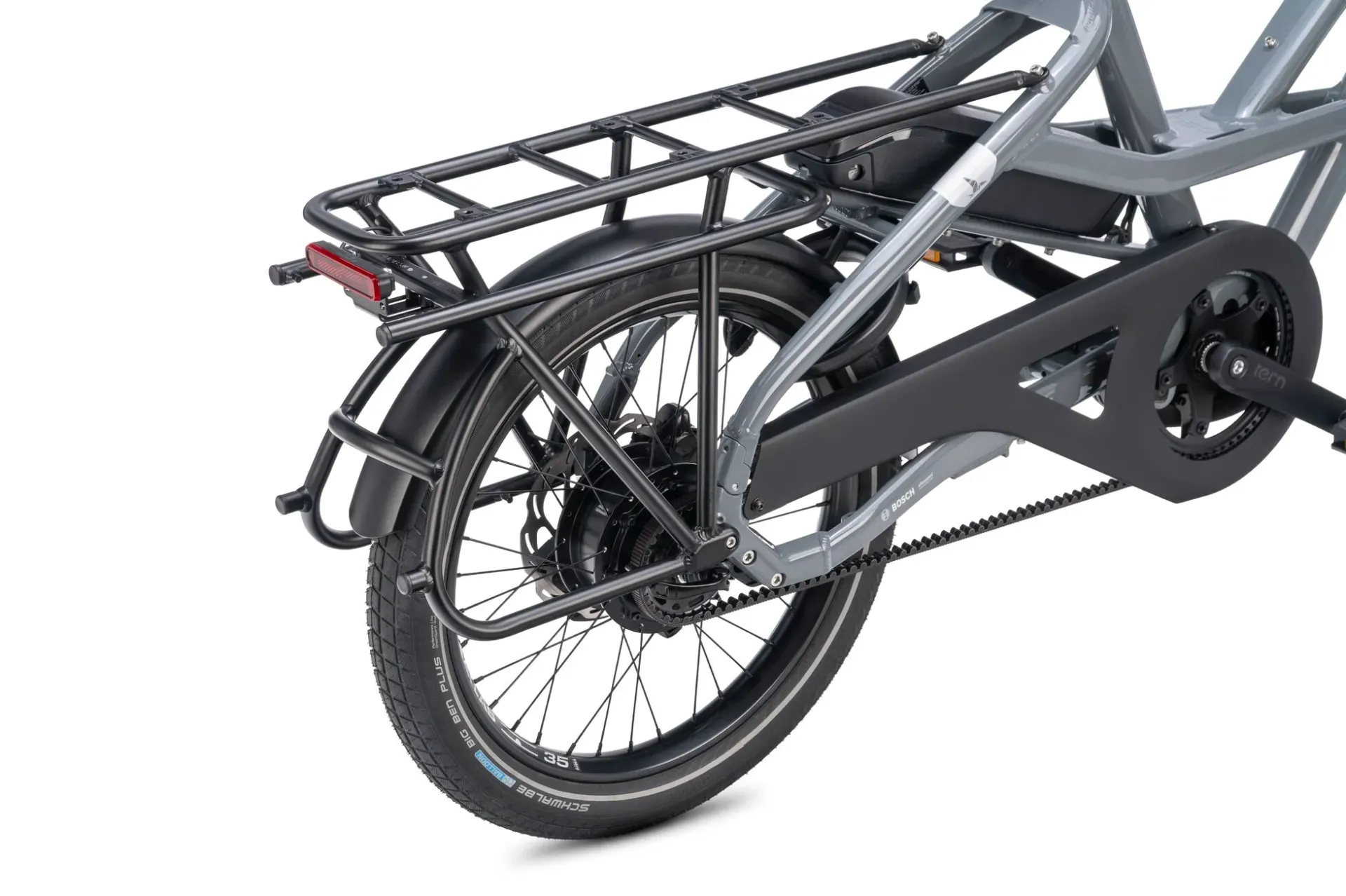

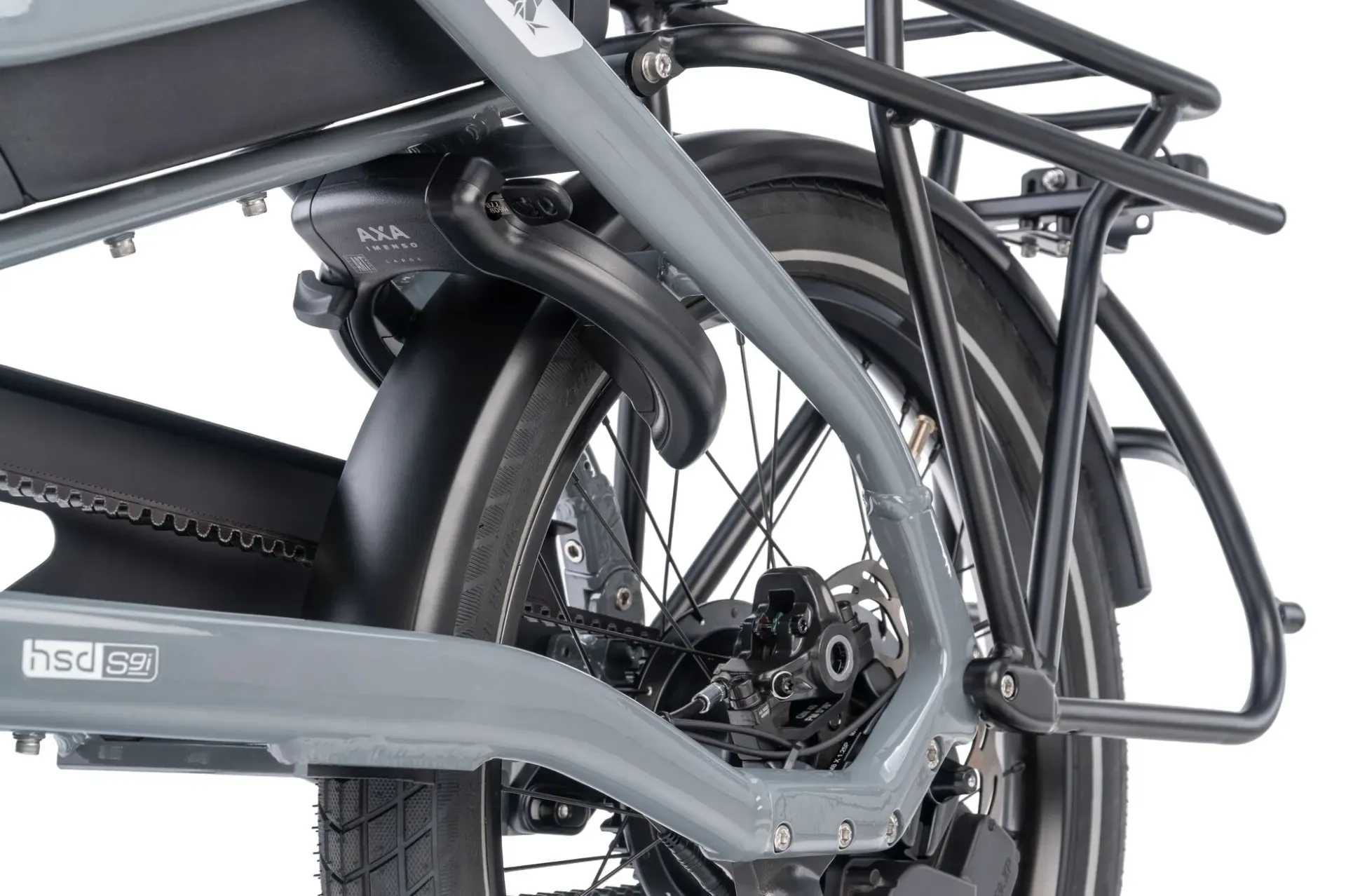

  • Accessories: Herrmans, 240 lumens front light, Herrmans LED rear light, SKS stainless fenders, Atlas H rear rack (80kg capacity), Ursus kickstand, AXA frame lock keyed alike with battery, full chainguard, bell
  • Weight: 28.9kg (Max system weight: 190kg)

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly

Explore Terns recommended accessories here (opens in new tab), or find the entire line of compatible accessories for your Tern bike with theCompatibility Checker.

Clubhouse Fort - weatherproof passenger transport

Balfe's are offering an exclusive Bundle to go with your Tern Quick Haul or HSD
To Fully Equip your Quick Haul or HSD Gen 2 with a rain cover for your passengers, you can buy everything you need for the Clubhouse Fort Mini here (opens in new tab)



Warranty Information for Tern:

For Bosch Electrical components, see Bosch website, in general motors and batteries have a 2 year warranty.
Tern bicycles are sold on behalf of “Tern” by selected Authorized Tern Dealers who understand the assembly and service needs of our products. Tern provides a warranty against defects in materials and workmanship to the original retail purchaser (“Owner”) of a Tern bicycle from the date of purchase according to the following terms:

  • Five Years:All Frames, Handleposts, and Forks developed by Tern.
  • One Year:All Tern or BioLogic branded parts and components, except as noted below.
  • Other:All other parts or components, including third-party Handleposts and Forks, are covered by the stated warranty of the original manufacturer of that part or component.

For full warranty policy please visit ternbicycles.com
