Trek Fuel+ EX 9.7 Gen 2 Electric Full Suspension Mountain Bike 2026 in Carbon Smoke

Season:2026

Brand:Trek

Code:56295SK-CH

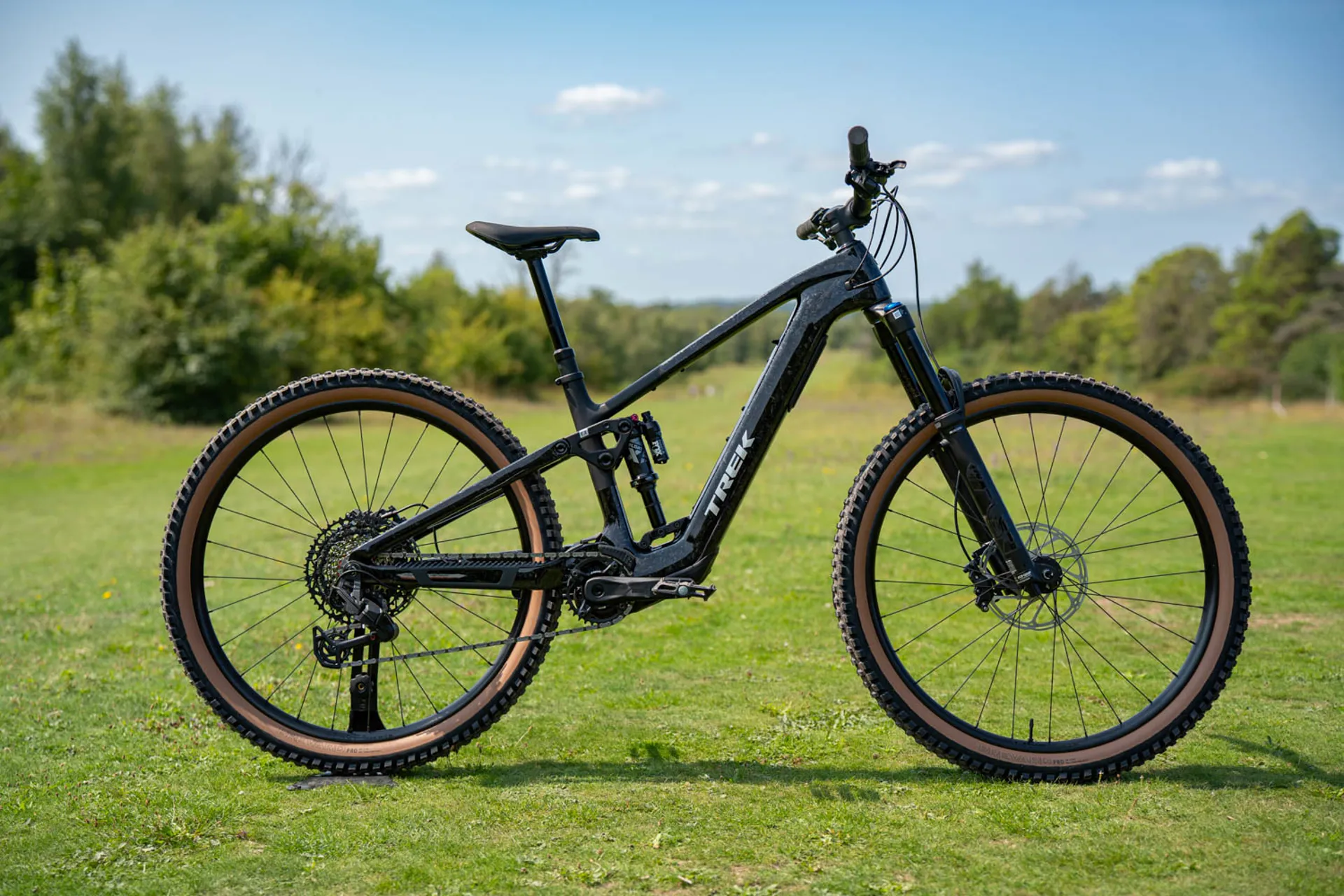

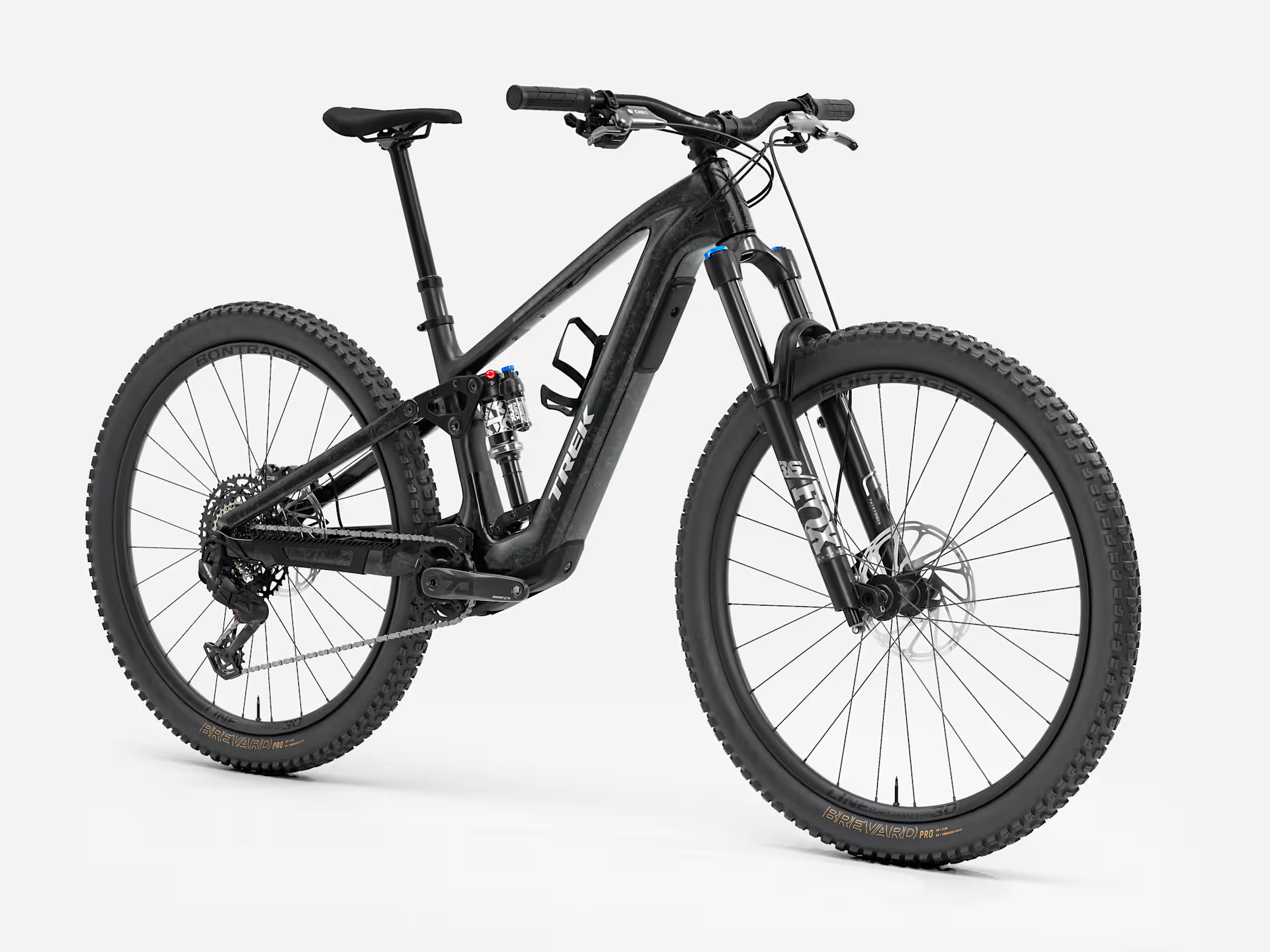

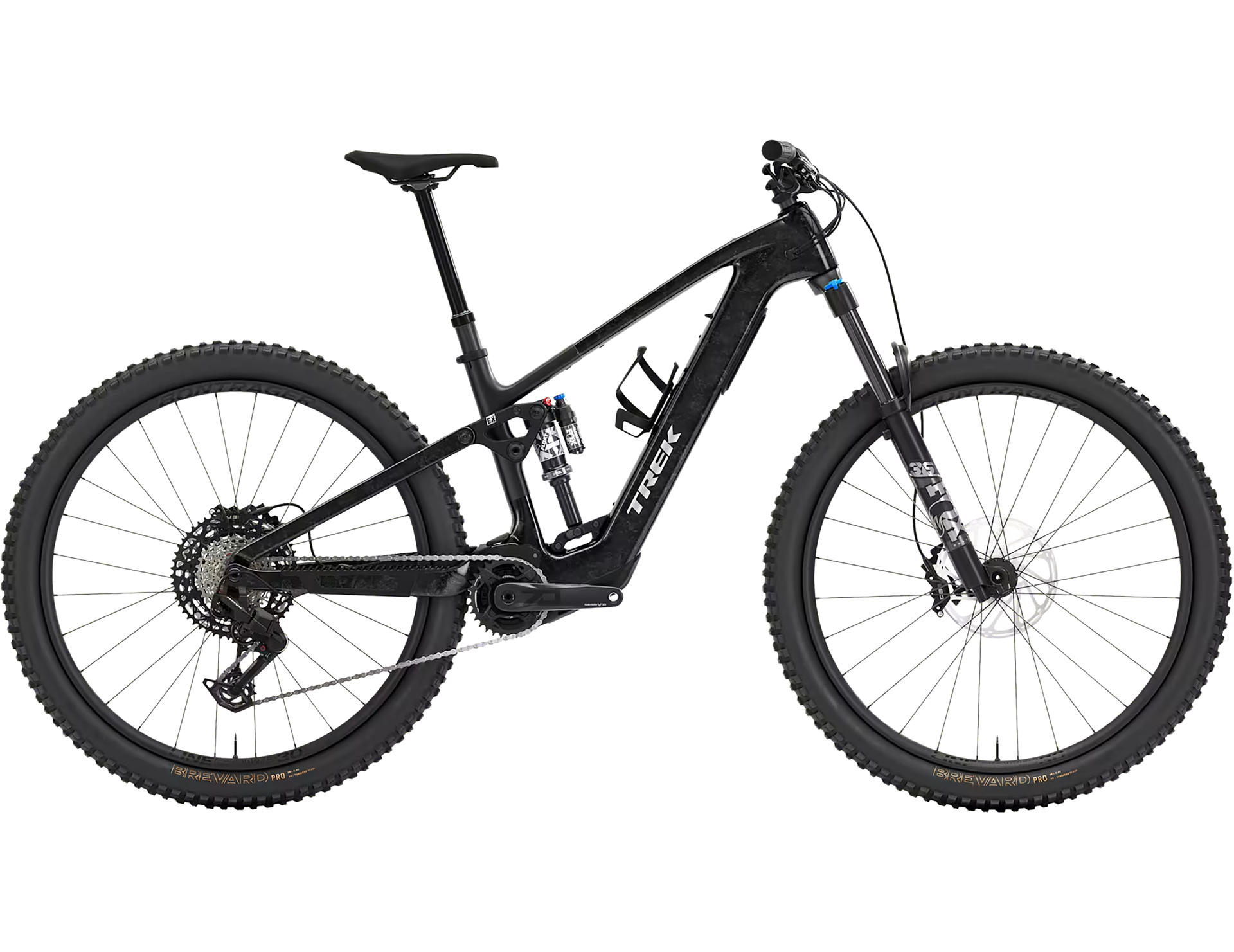

The Fuel+ EX 9.7 is a carbon e-MTB that packs in adaptability for any kind of trail and any style of riding. It's equipped with the smooth and quiet boost of TQ's HPR60 motor with a 580 Wh battery for bigger rides. You get the perfect balance of price and performance, with components like a Fox Rhythm 36 fork, Fox Performance Float X shock, SRAM Eagle T-Type shifting and a Bontrager Line dropper post.

Key Features & Benefits:

  • Fox Suspension:For precise control out on the trails and jumps
  • New TQ HPR60 Motor:Not only more powerful, but quieter and more efficient too
  • 12-Speed SRAM Eagle 70:Reliable mechanical shifting without the faff of electronics

Full Specification:

  • Frame:OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mm

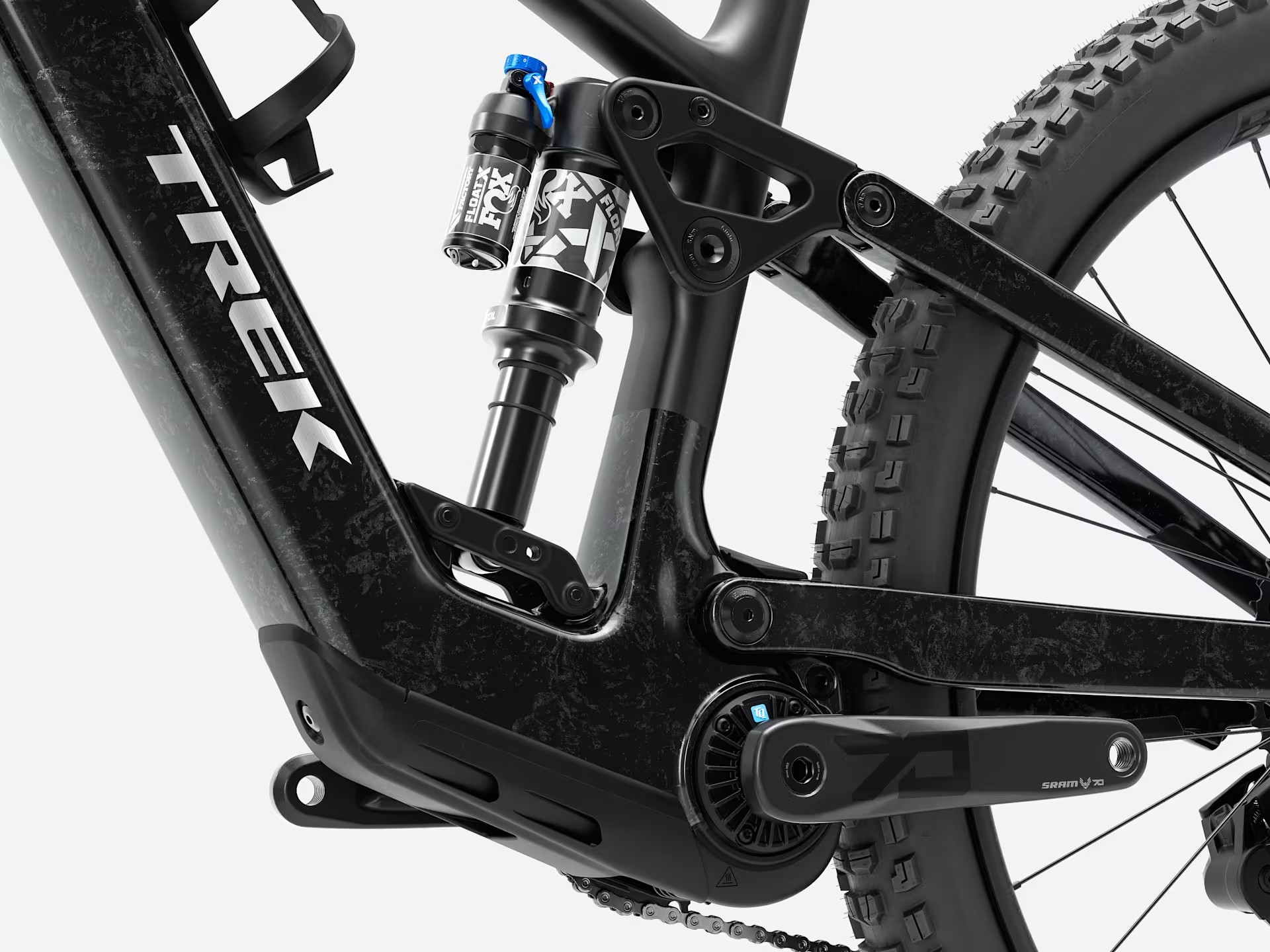

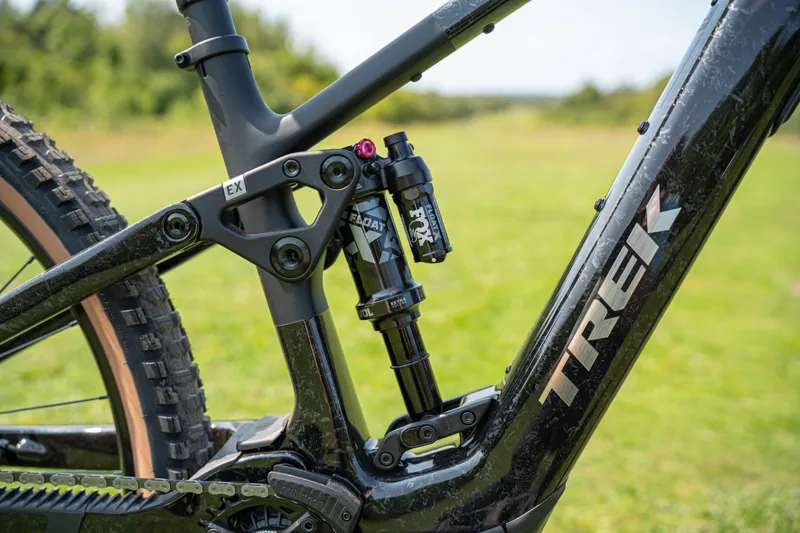

  • Rear Shock:Fox Performance Float X, 2-position damper, 205 mm x 60 mm
  • Fork:Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt X axle, 150 mm travel

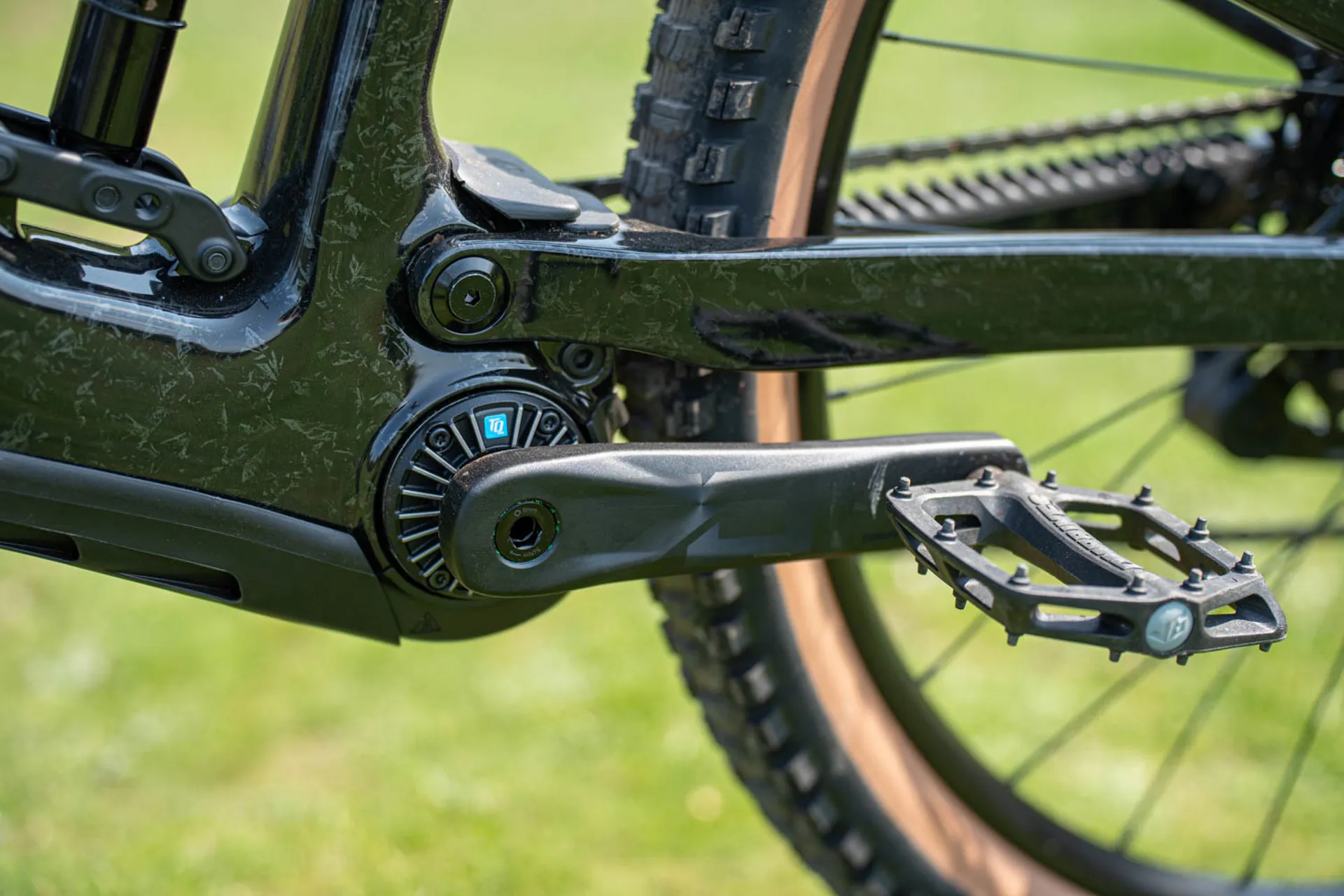

  • Motor:TQ HPR60
  • Battery:TQ 580 Wh

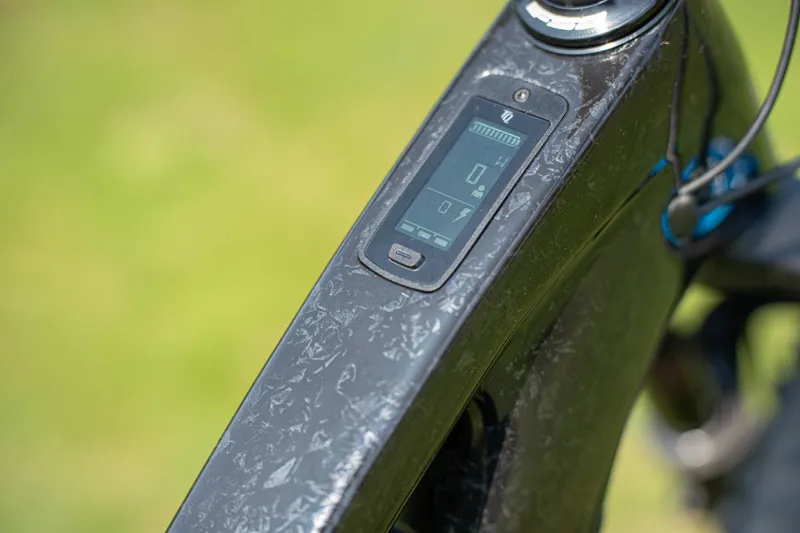

  • Controller:TQ LED display with Bluetooth & ANT+ connectivity
  • Number of Gears:12
  • Gear Shifters:SRAM Eagle 70, 12-speed
  • Chainset:SRAM EAGLE 70, 160 mm length
  • Chainrings:SRAMT-Type, 32T, alloy

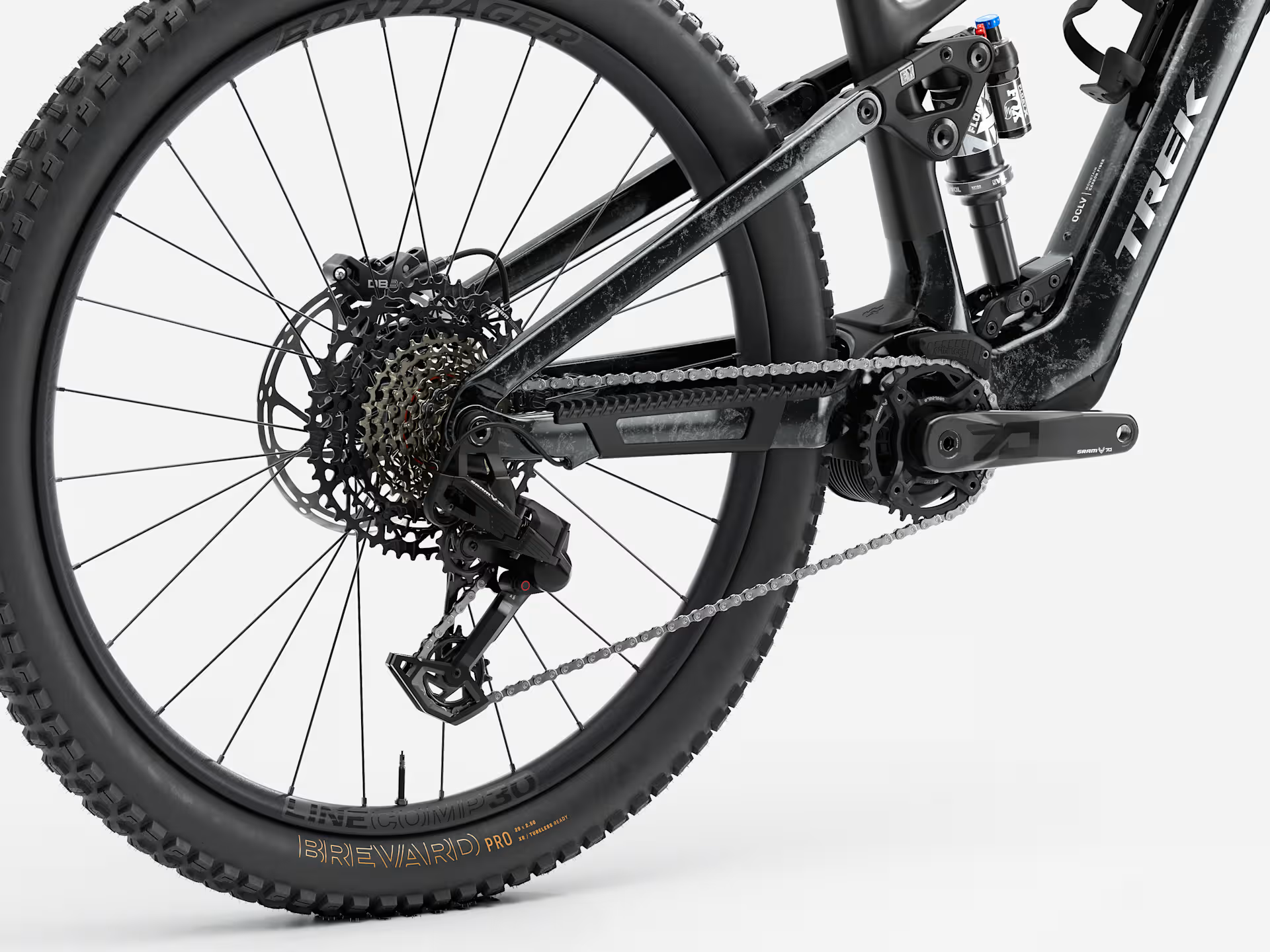

  • Rear Cassette:SRAM Eagle XS-1270, T-Type,10-52, 12-speed
  • Chain:SRAM Eagle 70, T-Type, 12-speed
  • Front Derailleur:N/A
  • Rear Derailleur:SRAM Eagle 70, T-Type
  • Bottom Bracket:
  • Pedals:Not Included
  • Front Wheel:Bontrager Line TLR 30
  • Rear Wheel:Bontrager LineTLR 30
  • Front Tyre:Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
  • Rear Tyre:Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" (Size S 27.5)
  • Brakes:SRAM DB 8 4-piston hydraulic disc, SRAM Centerline 2.0, 6-bolt 200mm
  • Handlebars:Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width
  • Handlebar Grips:Trek Line Elite, Lock On
  • Headset:FSA Orbit, sealed cartridge bearing, 1-1/8" top, 1.5" bottom, 1.5 crown
  • Stem:Bontrager Elite, 35 mm, 0-degree, 45 mm length
  • Saddle:Bontrager Verse P3, Chromoly Rails
  • Seatpost:Bontrager Line Dropper, Max Flow, Internal Routing. Size S 150mm Travel 410mm length, Size M 170 / 450. Size L/XL/XXL 200/515
  • Accessories:TQ 4A charger
  • Weight:M - 19.73 kg / 43.5 lbs (with TLR sealant, no tubes)


Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly
.

Sizing Chart for Trek Fuel+ Gen 2

SizeRider HeightInseam
S155 - 165 cm5'1" - 5'5"74 - 78 cm29" - 31"
M165 - 176 cm5'5" - 5'9"79 - 83 cm31" - 33"
L177 - 188 cm5'10" - 6'2"84 - 89 cm33" - 35"
XL188 - 195 cm6'2" - 6'5"89 - 91 cm35" - 36"
2XL195 - 203 cm6'5" - 6'8"91 - 97 cm36" - 38"

Geometry for Trek Fuel+ Gen 2 (EX)


Frame size number15.5"17.5"19.5"21.5"23"
Frame size letterSMLXLXXL
Wheel size29"/27.5"29"29"29"29"
A — Seat tube37404245.547.5
B — Seat tube angle72.7°72.6°72.6°76.9°76.4°
Effective seat tube angle78.2°77.8°77.3°76.9°76.4°
C — Head tube length111112.51415.5
D — Head angle64.6°64.5°64.5°64.5°64.5°
E — Effective top tube55.958.961.365.168.0
F — Bottom bracket height33.933.933.933.933.9
G — Bottom bracket drop3.43.53.53.53.5
H — Chainstay length44.144.444.444.745.2
I — Offset4.44.44.44.44.4
J — Trail12.912.912.912.912.9
K — Wheelbase120.0123.2125.8129.8133.0
L — Standover (carbon)75.474.775.075.576.4
L — Standover
(aluminium)
75.474.674.375.3-
M — Frame reach43.146.048.551.053.0
N — Frame stack62.462.463.865.166.5

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
