The Trek Zing Trip Core.II 800 2027 combines Bosch CX power, an 800Wh battery and practical trekking equipment for comfortable longer-distance riding.
The Trek Zing Trip Core.II 800 2027 combines Bosch CX power, an 800Wh battery and practical trekking equipment for comfortable longer-distance riding.
Diamant

Trek Zing Trip Core.II 800 Electric Hybrid Bike 2027 in Perlbeige Metallic

£3,400.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Zing Trip Core.II 800 Electric Hybrid Bike 2027 in Perlbeige Metallic

Season:2027

Brand:Diamant

Code:ZINGTRIPCORELS800BG

The Trek Zing Trip Core.II 800 is a practical electric trekking bike designed to make covering longer distances straightforward. Its hydroformed aluminium frame features internal cable routing and an external, easily removable battery, while the 800Wh Bosch PowerPack provides substantial capacity for riders looking to spend more time between charges.

Power comes from the Bosch Performance Line CX system, paired with a Bosch Purion 200 controller and Shimano CUES 9-speed drivetrain. A 40T chainring and wide-range 11–46T LINKGLIDE cassette provide versatile gearing, while the 63mm-travel SR Suntour XCR32 suspension fork helps smooth rougher roads and tracks.

Four-piston Magura Louise Elite Leisure hydraulic disc brakes provide powerful braking, while wide Schwalbe G-One Allround 650B tyres add grip and puncture protection. Integrated lighting, mudguard, kickstand and a MIK-compatible rear rack with a 25kg maximum load complete a well-equipped package for everyday journeys and longer leisure rides.

Features & Benefits:

  • Extended-Range Bosch Assistance: The 800Wh Bosch PowerPack combines with the Performance Line CX motor to provide a high-capacity system suited to longer journeys between charges.
  • Comfort and Control Across Varied Surfaces: A 63mm-travel SR Suntour suspension fork, wide Schwalbe G-One Allround tyres and four-piston Magura hydraulic brakes help provide confident control on mixed surfaces.
  • Equipped for Everyday Practicality: Integrated lighting, a rear mudguard, kickstand and 25kg-capacity MIK-compatible rear rack make the bike ready for commuting, leisure riding and carrying everyday loads.

Full Specification:

  • Frame: High-performance hydroformed alloy, internal cable routing, external battery mount
  • Fork: SR Suntour XCR32, coil spring, preload adjuster, lockout, 100mm QR, 63mm travel

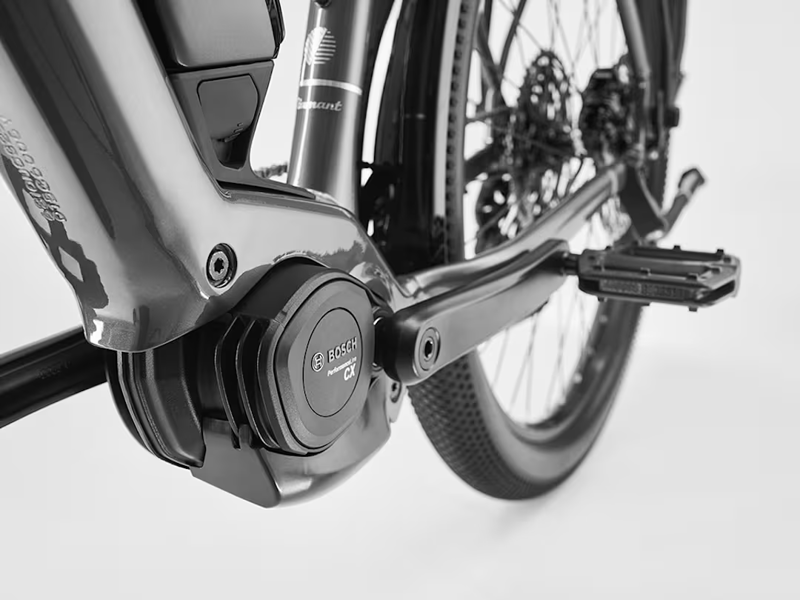

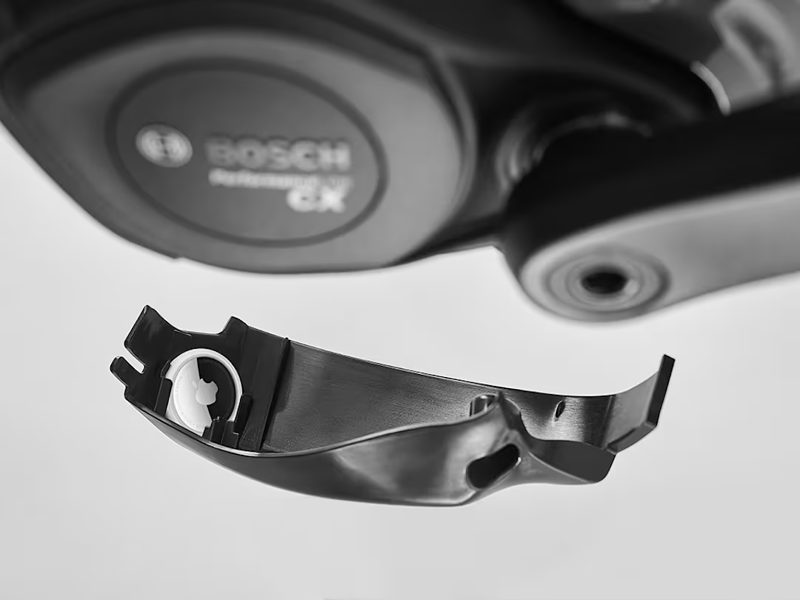

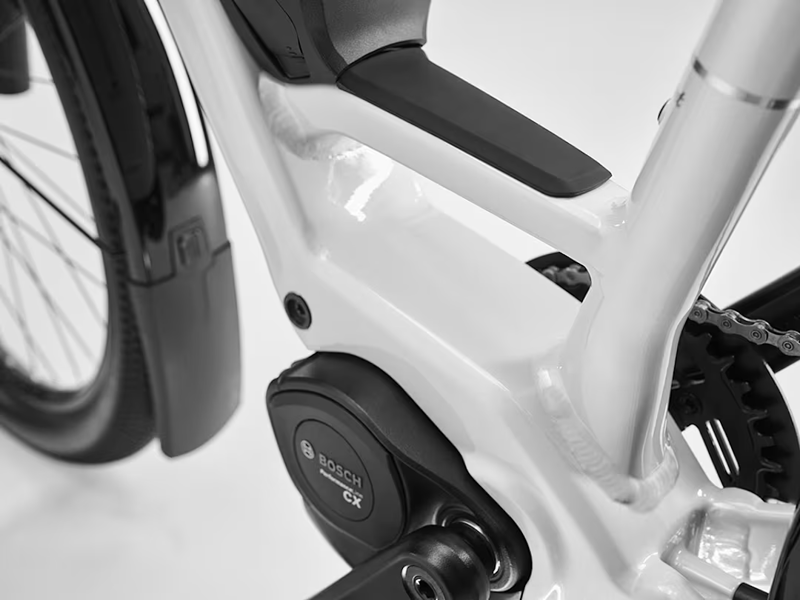

  • Motor: Bosch Performance Line CX, maximum assisted speed 15.5mph
  • Battery: Bosch PowerPack 800Wh, smart system
  • Controller: Bosch Purion 200
  • Charger: Bosch standard 2A, 230V, smart system
  • Number of Gears: 9
  • Gear Shifters: Shimano U4000, 9-speed
  • Chainset: ProWheel alloy; 165mm (S, M), 170mm (L)
  • Chainrings: 40T narrow-wide steel chainring with alloy guard
  • Rear Cassette: Shimano LINKGLIDE LG300, 11–46T, 9-speed
  • Chain: Shimano LG500, 9/10/11-speed
  • Rear Derailleur: Shimano CUES U4000
  • Pedals: VP-536 nylon platform
  • Rims: Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, Presta valve
  • Front Hub: Shimano Tourney HB-QC300, CentreLock
  • Rear Hub: Shimano QC400, 32-hole, CentreLock, 135x5mm
  • Spokes: 14g stainless steel, black
  • Front Tyre: Schwalbe G-One Allround, reflective strip, wire bead, puncture protection, 65-584
  • Rear Tyre: Schwalbe G-One Allround, reflective strip, wire bead, puncture protection, 65-584
  • Brakes: Magura Louise Elite Leisure 4-piston hydraulic disc brakes with Magura MDR-S CentreLock 180mm rotors
  • Handlebars: Ergotec Ergo Series XXL, 31.8mm, 30mm rise, 16-degree sweep
  • Grips: Bontrager XR Endurance Comp, lock-on
  • Headset: FSA Integrated, sealed cartridge bearing, 1-1/8in top, 1.5in bottom
  • Stem: Aluminium adjustable, 31.8mm; source additionally specifies 90mm (M) and 110mm (L)
  • Saddle: Selle Royal Vivo Moderate Ergo
  • Seatpost: Bontrager alloy, 31.6mm, 12mm offset, 330mm length
  • Mudguards: SKS plastic rear mudguard

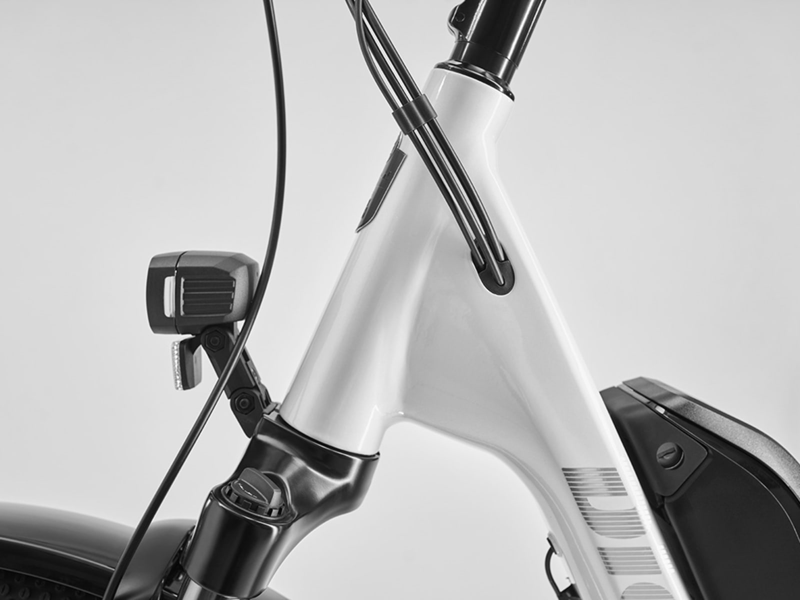

  • Lights: Herrmans H-Black MR5-E 140 lumen, 40 lux LED headlight; Spanninga Pimento XER
  • Pannier Rack: MIK-compatible alloy rear rack, maximum load 25kg
  • Other Accessories: Pletscher Comp Flex 18 kickstand
  • Max System Weight: 136kg (300lb), combined maximum weight of bicycle, rider and cargo
  • Weight: N/A
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Diamant Zing

Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
S155 – 1655’1″ – 5’5″72 - 7828 - 31
M165 - 1755’5″ – 5’9”77 - 8330 - 33
L175 – 1865’9” – 6’1″82 - 8832 - 35
XL186 – 1976’1” – 6’5″87 - 9334 - 37

Geometry Information Diamant Zing

Frame size number45cm50cm55cm60cm
Frame size letterSMLXL
Wheel size27.5"27.5"27.5"27.5"
A — Seat tube45505560
B — Seat tube angle73.0°73.0°73.0°73.0°
C — Head tube length1618.521.525
D — Head angle69.0°69.5°70.0°70.5°
E — Effective top tube55.957.45961.3
F — Bottom bracket height29.929.929.929.9
G — Bottom bracket drop6666
H — Chainstay length48.348.348.348.3
I — Offset4.54.54.54.5
J — Trail8.98.68.37.9
K — Wheelbase111112113114
L — Standover61.662.26386.8
M — Frame reach36.637.33839.6
N — Frame stack61.4646771

Warranty Information for Diamant:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
