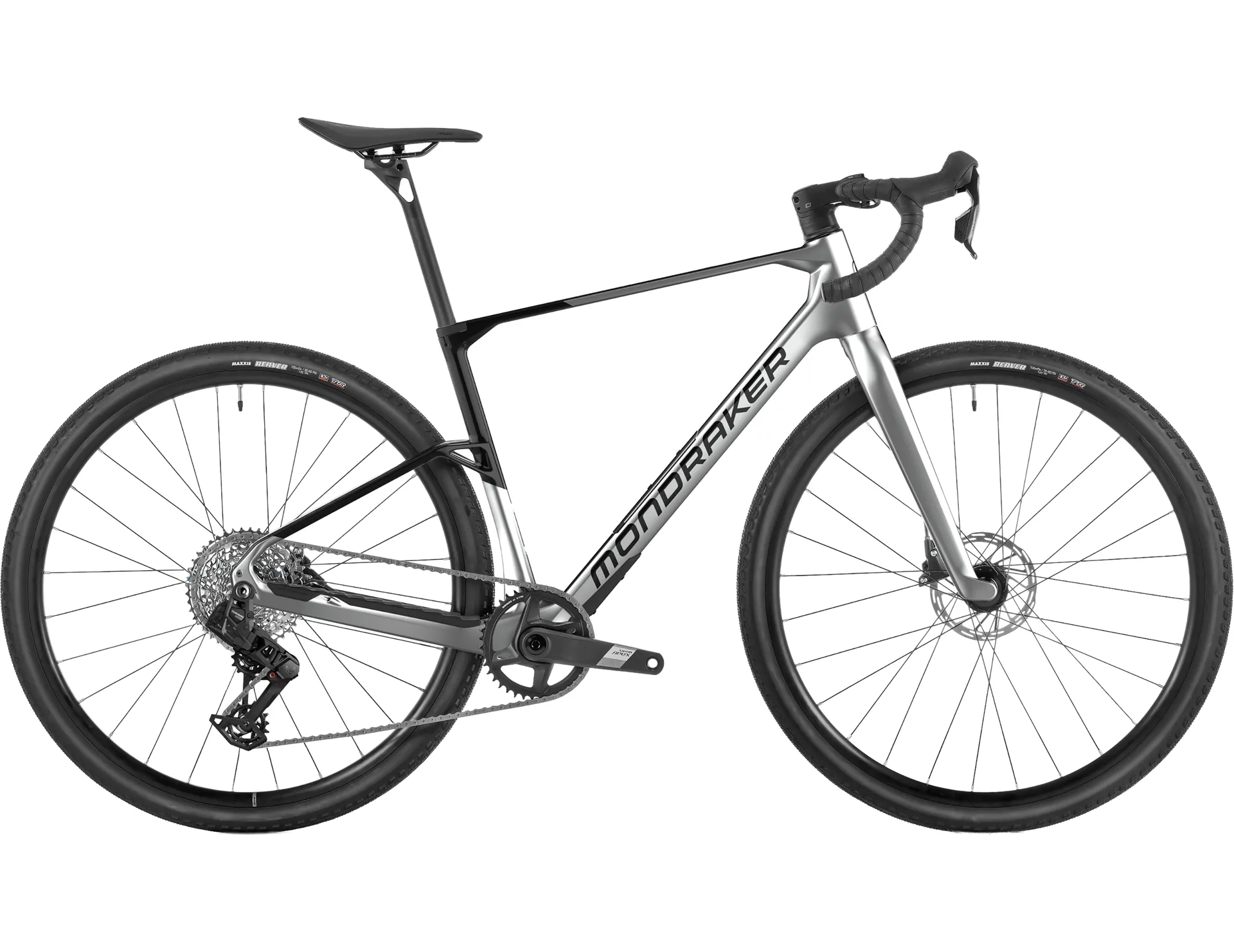

Mondraker Arid Carbon S AXS Carbon Gravel Bike 2027 in Silverflash Black

The Mondraker Arid Carbon S AXS combines advanced carbon engineering with gravel-specific geometry to deliver an exceptional balance of performance, comfort and versatility. Built around Mondraker's Stealth Air Carbon frame, the Arid S AXS offers responsive handling while maintaining stability across varied terrain. Its refined Stealth Air Carbon fork provides improved vertical compliance, helping absorb vibrations from rough surfaces and reduce fatigue over longer rides. Internal cable routing creates a clean, streamlined appearance, while generous tyre clearance of up to 50mm allows riders to adapt their setup for more demanding gravel conditions.

Equipped with SRAM Apex AXS wireless electronic shifting and a SRAM S1000 Eagle AXS T-Type rear derailleur, the Arid Carbon S AXS combines the precision of electronic shifting with the versatility of mountain bike gearing. The wide-range SRAM XS-1270 10-52T cassette provides excellent climbing capability for steep gravel tracks and technical terrain, while maintaining efficient pedalling on faster sections. A SRAM Apex 1 Wide chainset with a 40T narrow-wide chainring delivers dependable power transfer and chain retention, while SRAM Apex hydraulic disc brakes provide reliable stopping performance in changing conditions.

Completing this capable gravel build are Mavic Allroad Disc wheels with 25mm internal width rims, offering durability and dependable performance across varied surfaces. Maxxis Reaver 700x45 tubeless-ready tyres provide confident traction and rolling efficiency, while the Onoff S3 GR handlebars feature a 16° flare for improved stability and control. An integrated frame storage compartment offers convenient space for tools and riding essentials, while the Fizik Vento Argo X5 saddle and Onoff S9 carbon seatpost help maintain comfort during longer adventures. With a manufacturer-stated weight of 9.9kg, the Arid Carbon S AXS is ready for everything from competitive gravel events to ambitious all-day exploration.

Key Features & Benefits

• Stealth Air Carbon Frame: Lightweight carbon construction combines responsive handling, efficient power transfer and comfort for demanding gravel riding.
• Refined Stealth Air Carbon Fork: Updated carbon construction reduces weight and improves vertical compliance to help absorb vibrations from rough terrain.
• SRAM Apex AXS Wireless Shifting: Precise 12-speed electronic shifting delivers responsive gear changes and dependable performance across varied riding conditions.
• SRAM S1000 Eagle AXS T-Type Rear Derailleur: Wireless electronic shifting combines mountain bike drivetrain technology with gravel-specific versatility.
• SRAM 10-52T Wide-Range Cassette: Expansive gearing makes tackling steep gravel climbs easier while maintaining efficiency on faster sections.
• Mavic Allroad Disc Wheels: Durable gravel-specific wheels feature 25mm internal width rims for stable handling and dependable performance.
• Maxxis Reaver Tyres: 700x45 tubeless-ready tyres with HYPR-X compound and EXO protection offer traction, durability and efficient rolling performance.
• SRAM Apex Hydraulic Disc Brakes: Powerful hydraulic braking with 160mm rotors delivers reliable stopping performance and precise control.
• Integrated Frame Storage: Redesigned internal storage compartment provides convenient access to essential tools, nutrition and riding accessories.
• Onoff S3 GR Handlebars: Gravel-specific handlebars with 16° flare offer improved stability and control over challenging terrain.
• Generous Tyre Clearance: Compatibility with tyres up to 50mm wide allows riders to adapt their setup for more demanding gravel conditions.
• Size-Specific Cockpit: Carefully selected handlebar widths and stem lengths provide a tailored riding position across the available frame sizes.
• Versatile Gravel Performance: Combining a carbon frameset, wide-range electronic drivetrain and capable components, the Arid Carbon S AXS is ready for gravel racing and long-distance adventures.

Full Specification

• Frame: Arid Stealth Air Carbon, integrated in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1x drivetrain design, flat-mount disc brake compatible
• Fork: Stealth Air Carbon, tapered steerer tube, HHG internal cable routing, integrated flat-mount disc brake
• Number of Gears: 12
• Gear Shifters: SRAM Apex AXS D1, 12-speed wireless electronic
• Chainset: SRAM Apex 1 Wide, 47.5mm chainline; crank lengths: S 165mm, M 165mm, ML 170mm, L 172.5mm, XL 172.5mm
• Chainrings: SRAM X-Sync Eagle 40T Direct Mount, aluminium, narrow-wide
• Rear Cassette: SRAM XS-1270, 10-52T, T-Type, 12-speed
• Chain: SRAM GX Eagle T-Type, 12-speed Flattop, PowerLock
• Rear Derailleur: SRAM S1000 Eagle AXS T-Type, 12-speed
• Bottom Bracket: SRAM DUB T47 BSA, sealed bearings, 85.5mm
• Pedals: Not Supplied — Shop Pedals Here
• Wheelset: Mavic Allroad Disc, 700c
• Rims: Mavic Allroad Disc, 25mm internal width, hookless, 28 spokes, Mavic steel J-bend spokes
• Front Hub: Mavic, 12x100mm, Centerlock
• Rear Hub: Mavic Infinity, 12x142mm, ID360 ratchet system, Centerlock; freehub specification requires confirmation
• Front Tyre: Maxxis Reaver 700x45, HYPR-X compound, EXO Protection, tubeless ready, 120 TPI, folding bead
• Rear Tyre: Maxxis Reaver 700x45, HYPR-X compound, EXO Protection, tubeless ready, 120 TPI, folding bead
• Brakes: SRAM Apex AXS hydraulic disc brakes, two-piece calipers, SRAM Paceline 160mm Centerlock rotors front and rear, steel-backed organic pads, SRAM Apex aluminium brake levers with contact point and reach adjustment
• Handlebars: Onoff S3 GR, 16° flare; widths: S 400mm, M 420mm, ML 420mm, L 440mm, XL 460mm
• Bar Tape: Onoff HEX Bar Tape
• Headset: Onoff IS52/IS52, 1-1/8" to 1.5", sealed bearings, internal cable routing
• Stem: Onoff Semi-Integrated, 31.8mm handlebar clamp, -7° rise; lengths: S 60mm, M 70mm, ML 70mm, L 80mm, XL 90mm
• Saddle: Fizik Vento Argo X5, 140mm
• Seatpost: Onoff S9 Carbon 15-R, 27.2mm diameter; lengths: S/M/ML 400mm, L/XL 450mm
• Weight: 9.9kg
