The Trek Checkpoint SL 7 pairs Trek's best carbon gravel road bike frame with high-tech parts picked for performance and incredible ride quality on the toughest and roughest gravel adventures.
The Trek Checkpoint SL 7 pairs Trek's best carbon gravel road bike frame with high-tech parts picked for performance and incredible ride quality on the toughest and roughest gravel adventures.
Trek

Trek Checkpoint SL 7 Carbon Gravel Road Bike 2021 in Red

£4,802.00 £5,650.00 15% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Any item, except food or face masks, can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

Online or in-store purchases can both be returned to any store free of charge or can be returned by post after completing the online returns form. If you are returning an item due to a fault, we will refund your postage.

If you wish to return your bike to us, please keep the box it arrived in and let us know using the returns form and we will arrange collection.


Customer Returns Form

If you wish to cancel, return or exchange an order please fill in the form below and a member of staff will be in contact within 48 hours to assist. Returns can be processed quicker if all required information is added.



Terms & Conditions

Items must be returned in their original packaging and be unused. Refunds will be issued once the products have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:

1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £24.99 for collection. If you do not have the original box, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid receipt.

Trek Checkpoint SL 7 Carbon Gravel Road Bike 2021 in Red

Season:2021

Brand:Trek

Code:293442020RageRED

The Checkpoint SL 7 pairs Trek's best carbon gravel frame with high-tech parts picked for performance and incredible ride quality on the toughest and roughest gravel adventures. A lightweight OCLV Carbon frame with gravel-smoothing IsoSpeed, a SRAM Force/XX1 eTap AXS wireless electronic drivetrain, OCLV Carbon wheels and extra mounts for gear and accessories give you the comfort and capability you need to tackle your next all-road excursion.

Key Features & Benefits

  • A 500 Series OCLV Carbon frame, with Control Freak internal cable routing and carbon fibre forks and a carbon taper steerer, offering a great blend of ride comfort and weight saving.
  • A 1x12 Sram Force/Eage XX1 drivetrain, with Sram eTAp shifters, for proven reliable shifting and Sram Force eTap AXS hydraulic disc brakes for all-weather stopping power.
  • Bontrager Paradigm Comp tubeless ready wheels and massive Bontrager GR1 Team Issue 700x40 Bontrager tyres for a comfortable ride.

Full Specification

  • Frame: 500 Series OCLV Carbon, IsoSpeed, tapered head tube, Control Freak internal routing, Ride Tuned Seatmast, 3S chain keeper, rack and mudguard mounts, flat-mount disc, Stranglehold dropouts, 142x12 mm thru axle
  • Fork: Checkpoint carbon, tapered carbon steerer, rack mounts, mudguard mounts, flat-mount disc,
  • Number of Gears: 12
  • Gear Shifters: SRAM Force eTap AXS, 12-speed
  • Chainset: SRAM Force D1, 24 mm spindle
  • Chainrings: 40T
  • Rear Cassette: SRAM XG-1295 Eagle, 10-50, 12-speed
  • Chain: Sram
  • Front Derailleur: Shimano Ultegra R8000, braze-on
  • Rear Derailleur: SRAM XX1 Eagle AXS
  • Bottom Bracket: Trek BB90
  • Pedals: Not Included
  • Rims: Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width
  • Front Hub: Bontrager Aeolus Pro 3V, 100x12 mm thru axle
  • Rear Hub: Bontrager Aeolus Pro 3V, SRAM XD-R driver, 142x12 mm thru axle
  • Front Tyre: Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 c
  • Rear Tyre: Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 c
  • Brakes: SRAM Force eTap AXS hydraulic disc
  • Handlebars: Bontrager Pro IsoCore VR-CF, OCLV Carbon, 31.8 mm, internal
  • Handlebar Tape: Bontrager Supertack Perf tape
  • Headset: FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5"
  • Stem: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree
  • Saddle: Bontrager Arvada Elite, stainless steel rails, 154 mm width
  • Seatpost: Bontrager Ride Tuned carbon seatmast cap, 20 mm offset
  • Accessories: N/A
  • Weight: Not Available

Sizing Chart for Trek Checkpoint Unisex Gravel Bike


Technical Information

Geometry for Trek Checkpoint SL 7 Gravel Road Bike

Trek Domane AL2 Disc Unisex Sportive Road Bike

All measurements in cm unless stated otherwise

Frame Size Number495254565861
Wheel Size

700c

700c700c700c700c700c
A - Seat Tube

49

5254565861
B - Seat Tube Angle

74.1°

73.7°73.2°72.8°72.5°72.1°
C - Head Tube Length

9

10.512.514.516.519.5
D - Head Angle

71.2°

71.6°71.8°72.2°72.3°72.6°
E - Effective TT Length

54.1

55.55758.459.761.7
G - BB Drop

7.8

7.87.67.67.47.4
H - Chainstay length

43.5

43.543.543.543.543.5
I - Offset

4.5

4.54.54.54.54.5
J -Trail

7.4

7.176.76.66.5
K - Wheelbase

102.5

103.3104.1104.8105.8107
L - Standover

73.5

76.578.980.982.985.9
M - Frame Reach

39.3

39.940.340.741.141.7
N - Frame Stack

53.8

55.357.159.260.963.9
Sizing Information

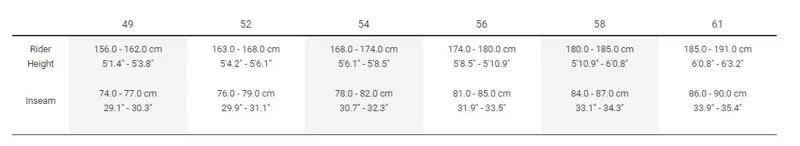

Sizing Chart for Trek Checkpoint Unisex Gravel Bike

Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
49156-1625'1.4" - 5'3.8"74-7729.1-31.1
52163-1685'4.2" - 5'6.1"76-7929.9-31.1
54168-1745'6.1" - 5'8.5"78-8230.7-32.3
56174-1805'8.5" - 5'10.9"81-8531.9-33.5
58180-1855'10.9" - 6'0.8"84-8733.1-34.3
61185-1916'0.8" - 6'3.2"86-9033.9-35.4
