The Trek FX 3 Disc women's hybrid bike is a versatile, easy-riding bike that will carry you wherever you want to go. Reliable and ideal for commuting or leisure riding.
The Trek FX 3 Disc women's hybrid bike is a versatile, easy-riding bike that will carry you wherever you want to go. Reliable and ideal for commuting or leisure riding.
Trek

Trek FX 3 Disc Womens Hybrid Bike 2021 in Magenta

£499.00 £775.00 35% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Any item, except food, face masks or e-gift vouchers (full e-gift vouchers T&Cs are listed on the respective product pages) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase. It is recommended that you use a recorded delivery service to ensure your items are received by us. We cannot assume responsibility for items that are lost in the post.

Online or in-store purchases can both be returned to any store free of charge or can be returned by post after completing the online returns form. If you are returning an item due to a fault, we will refund your postage.

If you wish to return your bike to us, please keep the box it arrived in and let us know using the returns form and we will arrange collection.


Customer Returns Form

If you wish to cancel, return or exchange an order please fill in the form below. Returns can be processed quicker if all required information is added.



Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the products have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:

1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £24.99 for collection. If you do not have the original box, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid receipt.

Trek FX 3 Disc Womens Hybrid Bike 2021 in Magenta

Season:2021

Brand:Trek

Code:284752020PNK

The Trek FX 3 Disc is a versatile women’s hybrid bike that's primed for performance, comfort, and utility. It's a commuting pro if you want it to be, or the perfect fitness companion on road and rail trails. The Women’s version of the FX 3 Disc has touchpoints that can provide a better fit and feel for women from the start, as well as a saddle designed specifically for women for increased comfort.

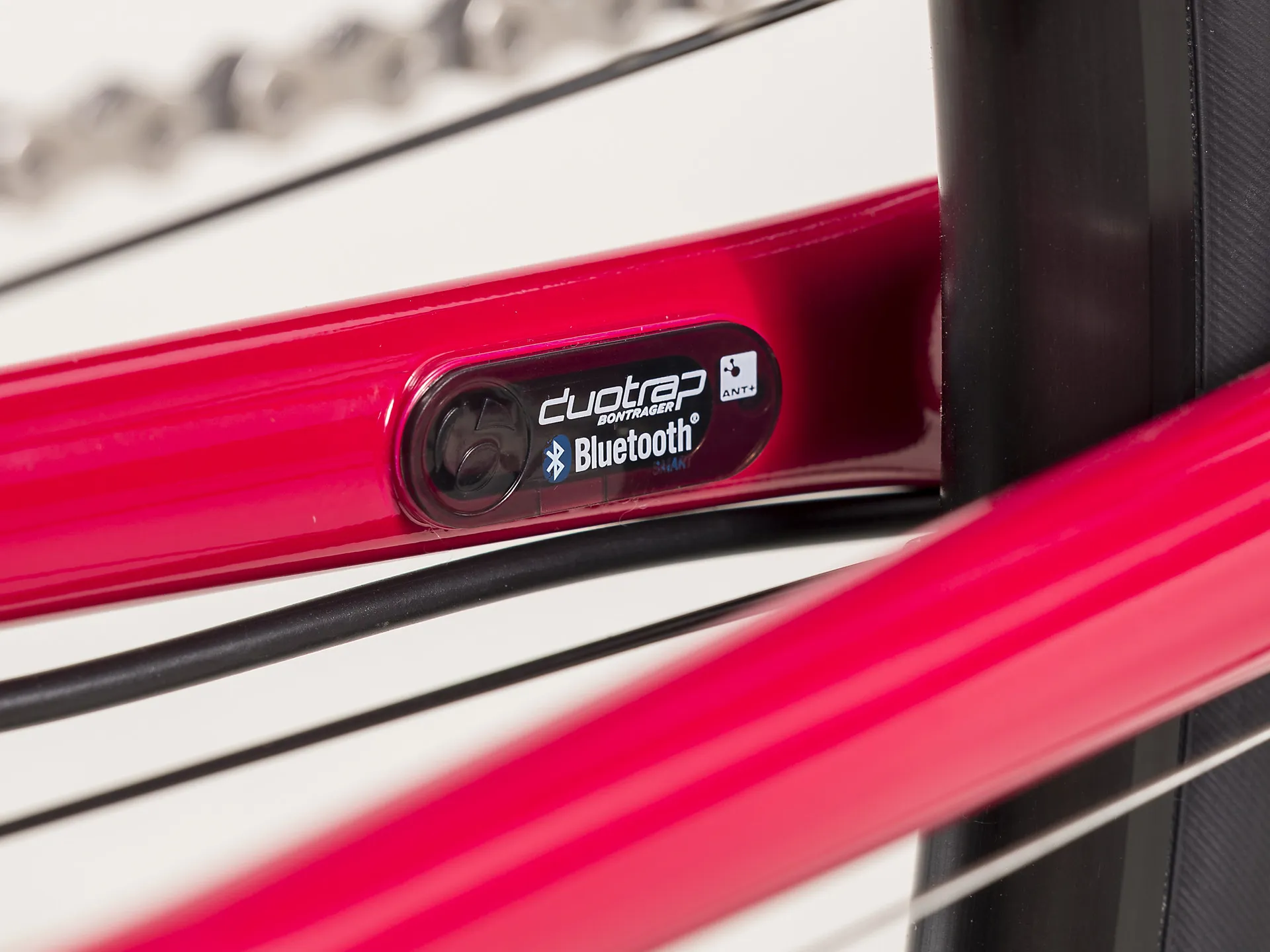

The FX 3 Disc Women's has a carbon fork for agile handling and terrain-smoothing compliance, a vibration-absorbing handlebar with ergonomic grips, extra mounts for accessories like a rack and mudguards, and puncture-resistant tyres. The cables are routed internally, which protects them from the elements and adds to the bike's sleek look and you can pair FX with your smartphone and send your ride data to your favourite fitness app when you add DuoTrap S.
Overall, the FX 3 Disc is a bike that's versatile, comfortable, and built with quality parts that will perform on longer rides.

Key Features & Benefits:

  • Hydraulic Disc Brakes:Accurate and powerful braking capacity to keep you in control in all weather conditions.
  • Aluminium Frame:Lightweight & durable.
  • 18 Shimano Gears:Perfect for all terrain.

Full Specification:

  • Frame: Alpha Gold Aluminum, DuoTrap S compatible, internal cable routing, flat mount disc, rack & fender mounts, 135x5mm QR

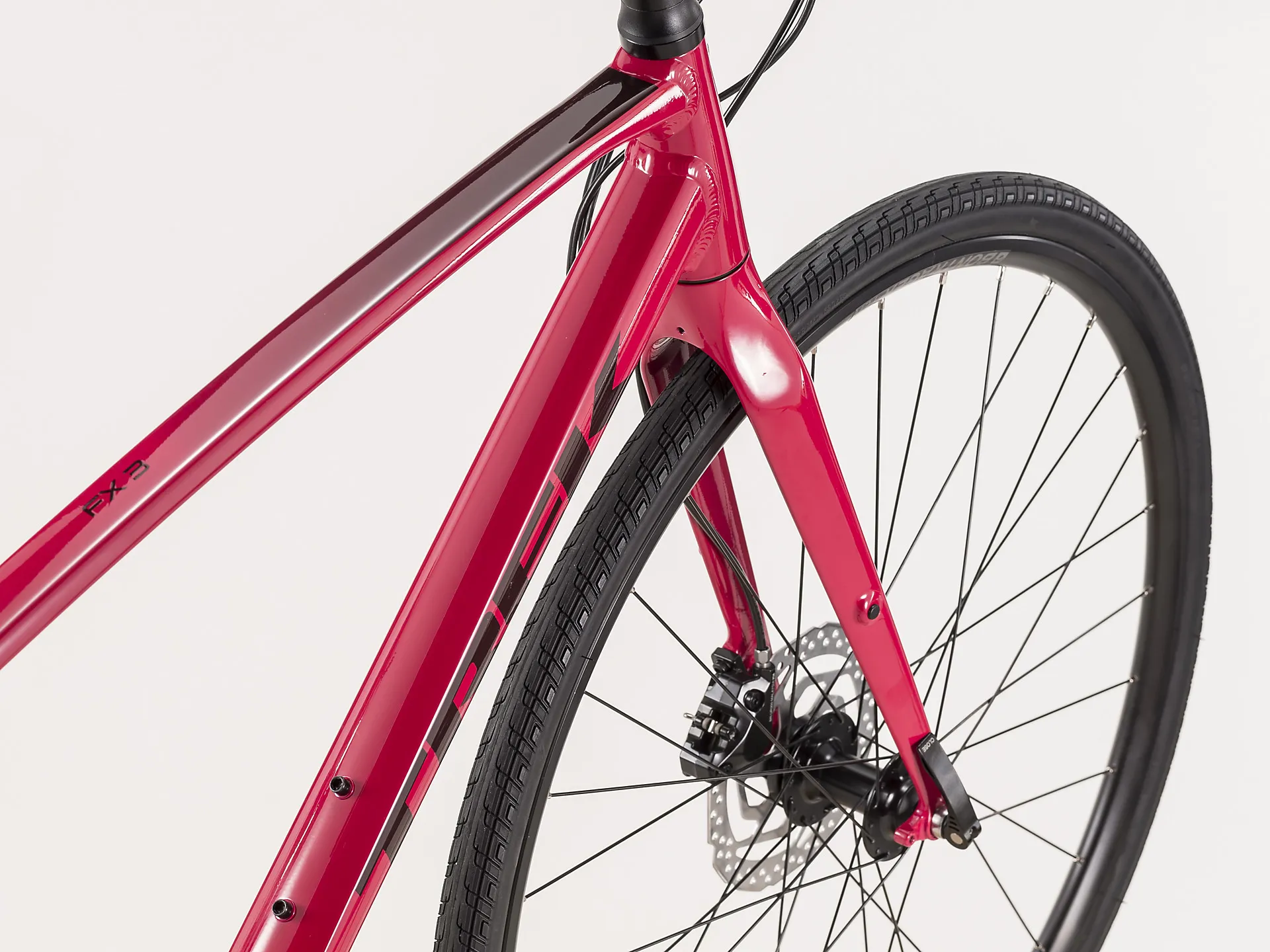

  • Fork: FX Carbon, rack and fender mounts, flat mount disc, 405mm axle-to-crown. ThruSkew 5mm QR
  • Number of Gears: 18
  • Gear Shifters: Shimano Acera M3010, 9 speed
  • Chainset: Shimano MT210 with chainguard
  • Chainrings: 46/30T
  • Rear Cassette: Shimano HG200, 11-36, 9 speed
  • Chain: KMC X9, 9-speed
  • Front Derailleur: Shimano T3000, 34.9mm clamp, top swing, dual pull

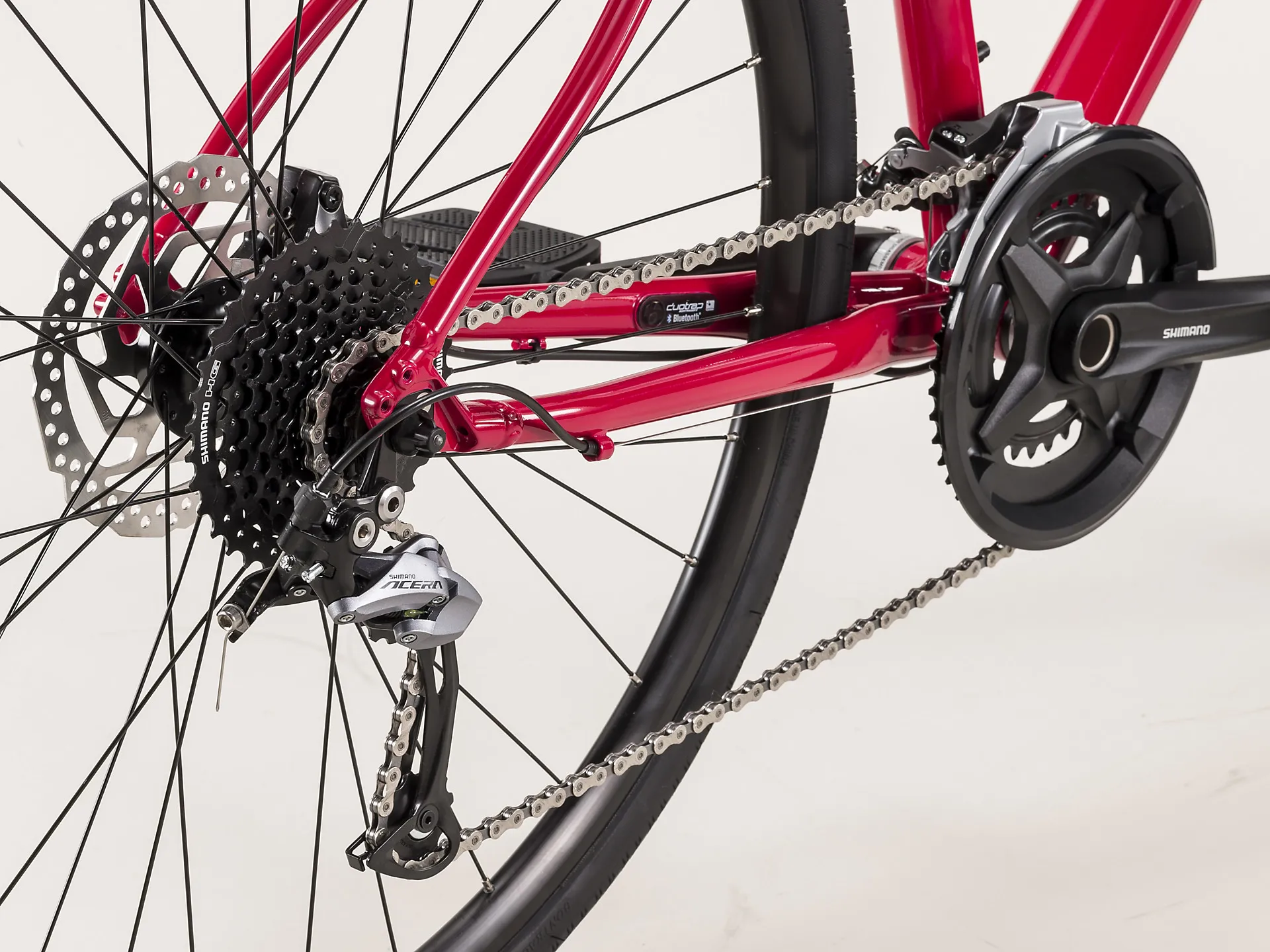

  • Rear Derailleur: Shimano Acera M3000, Shadow design, long cage
  • Bottom Bracket: Shimano Threaded
  • Pedals: Bontrager Satellite City pedal

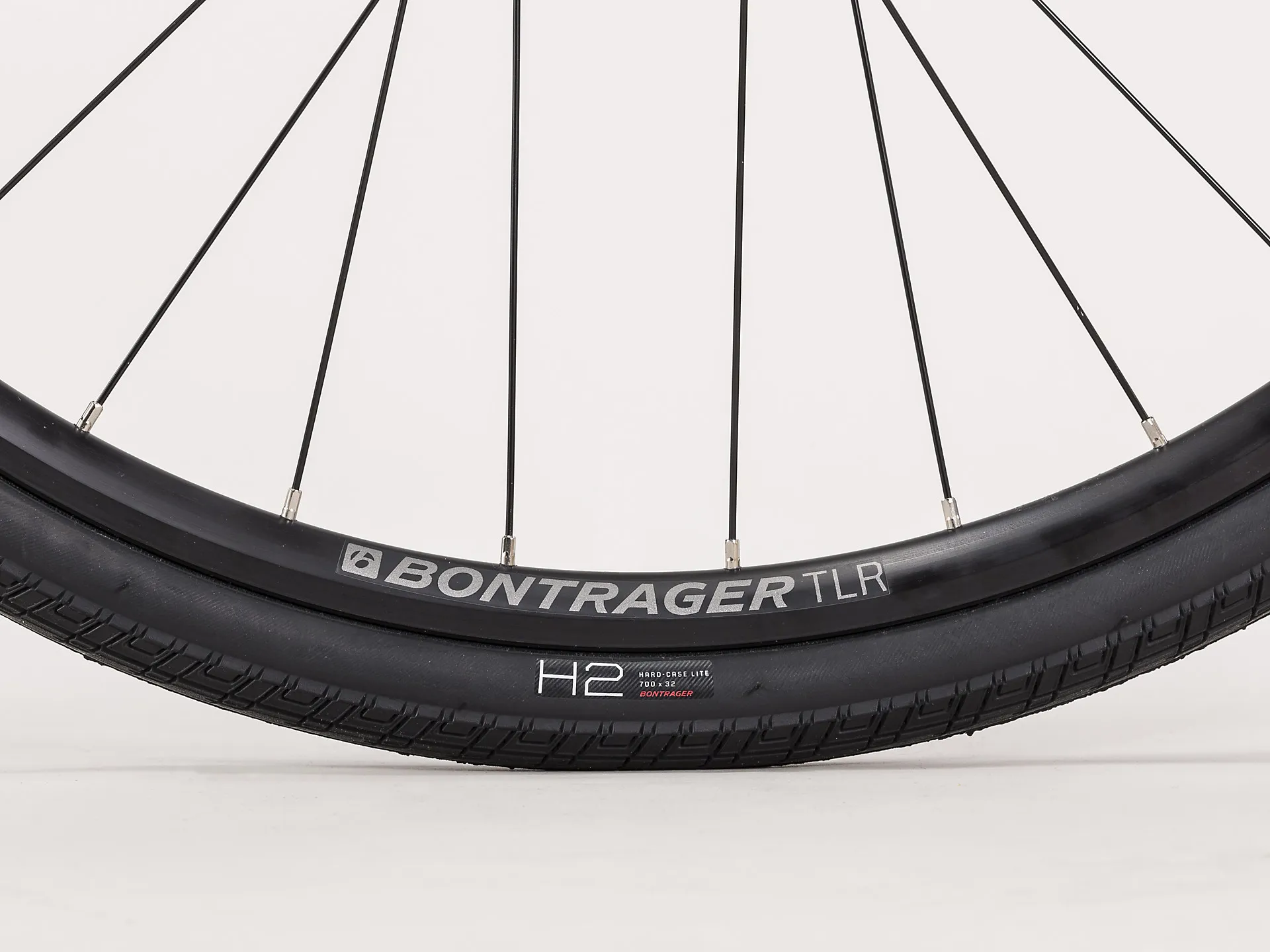

  • Rims: Bontrager Tubeless Ready Disc, 32-hole, Presta valve
  • Front Hub: Formula DC-20, alloy, 6-bolt, 5x100 mm QR
  • Rear Hub: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR

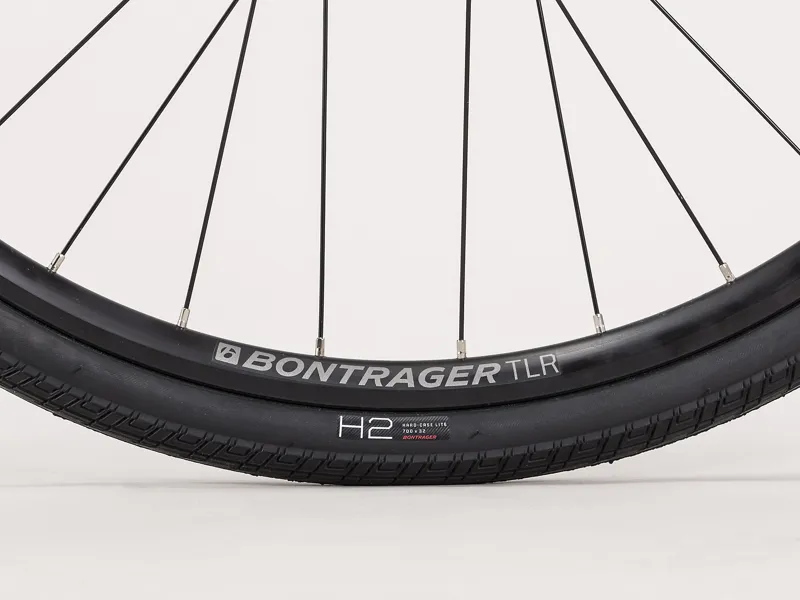

  • Front Tyre: Bontrager H2 Hard-Case Lite, wire bead, 30 tpi, 700x32c
  • Rear Tyre: Bontrager H2 Hard-Case Lite, wire bead, 30 tpi, 700x32c

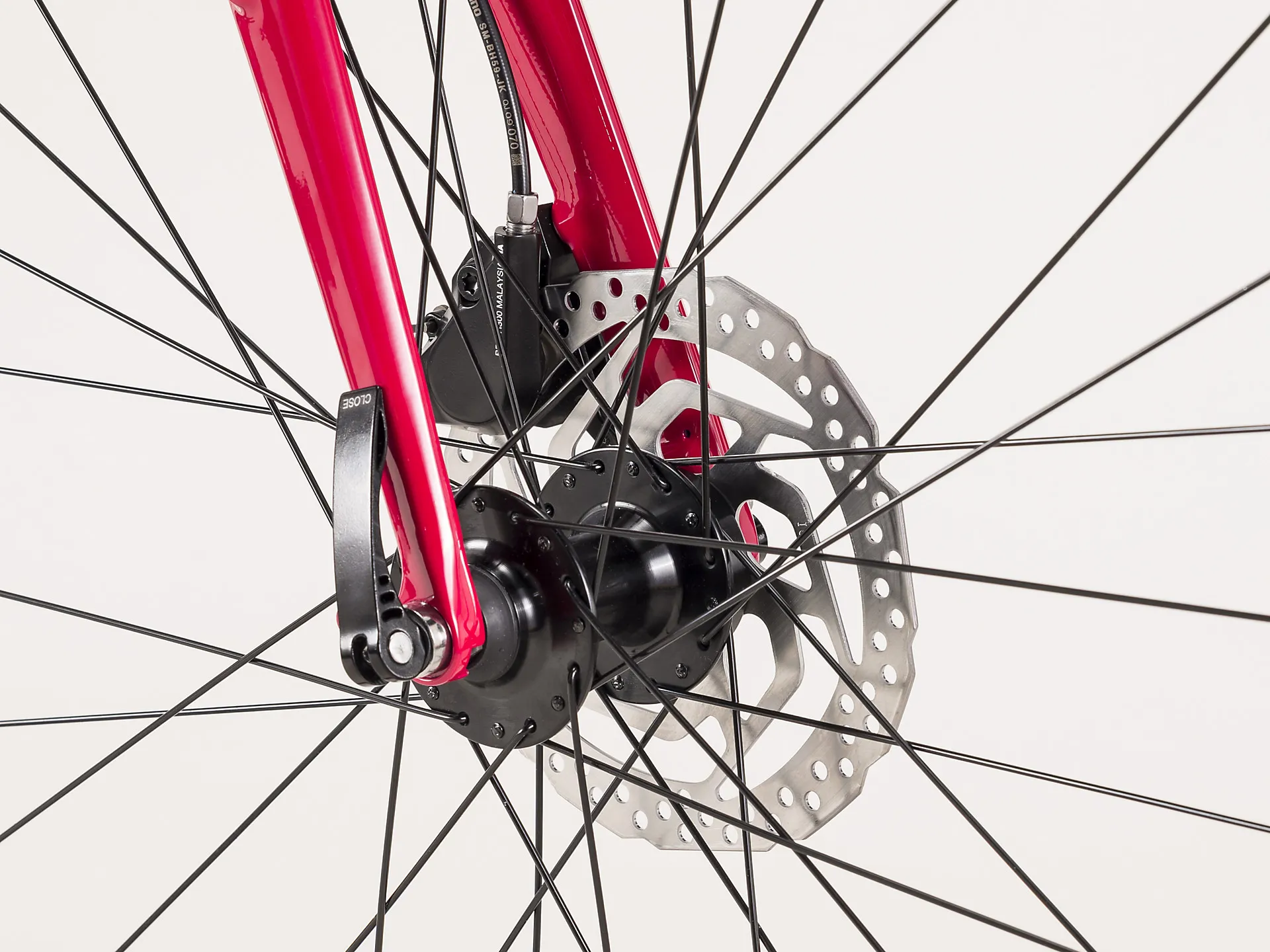

  • Brakes: Shimano MT201 hydraulic disc, flat mount, 160mm rotor

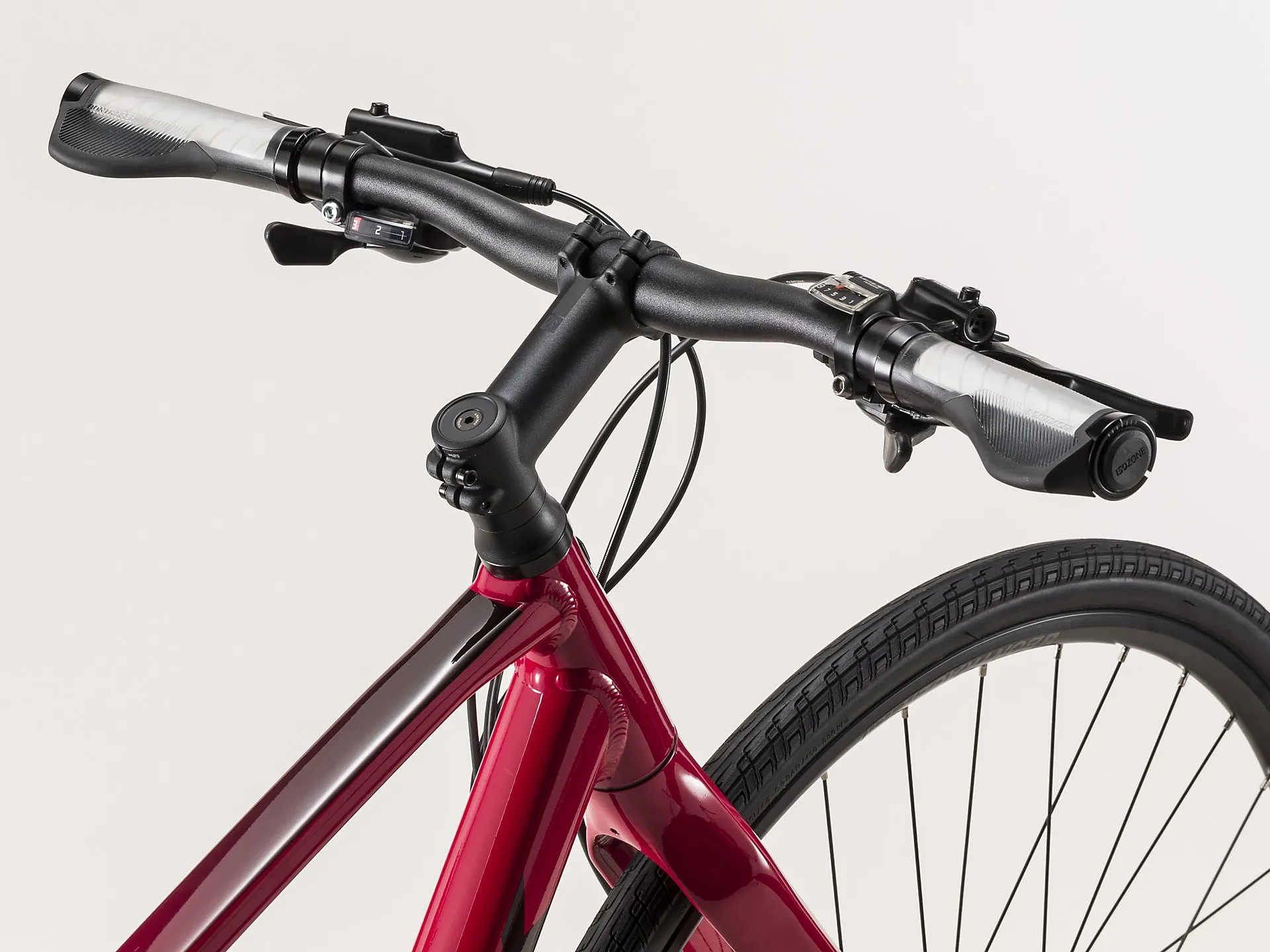

  • Handlebars: Bontrager Satellite Plus IsoZone, 31.8mm, 15mm rise

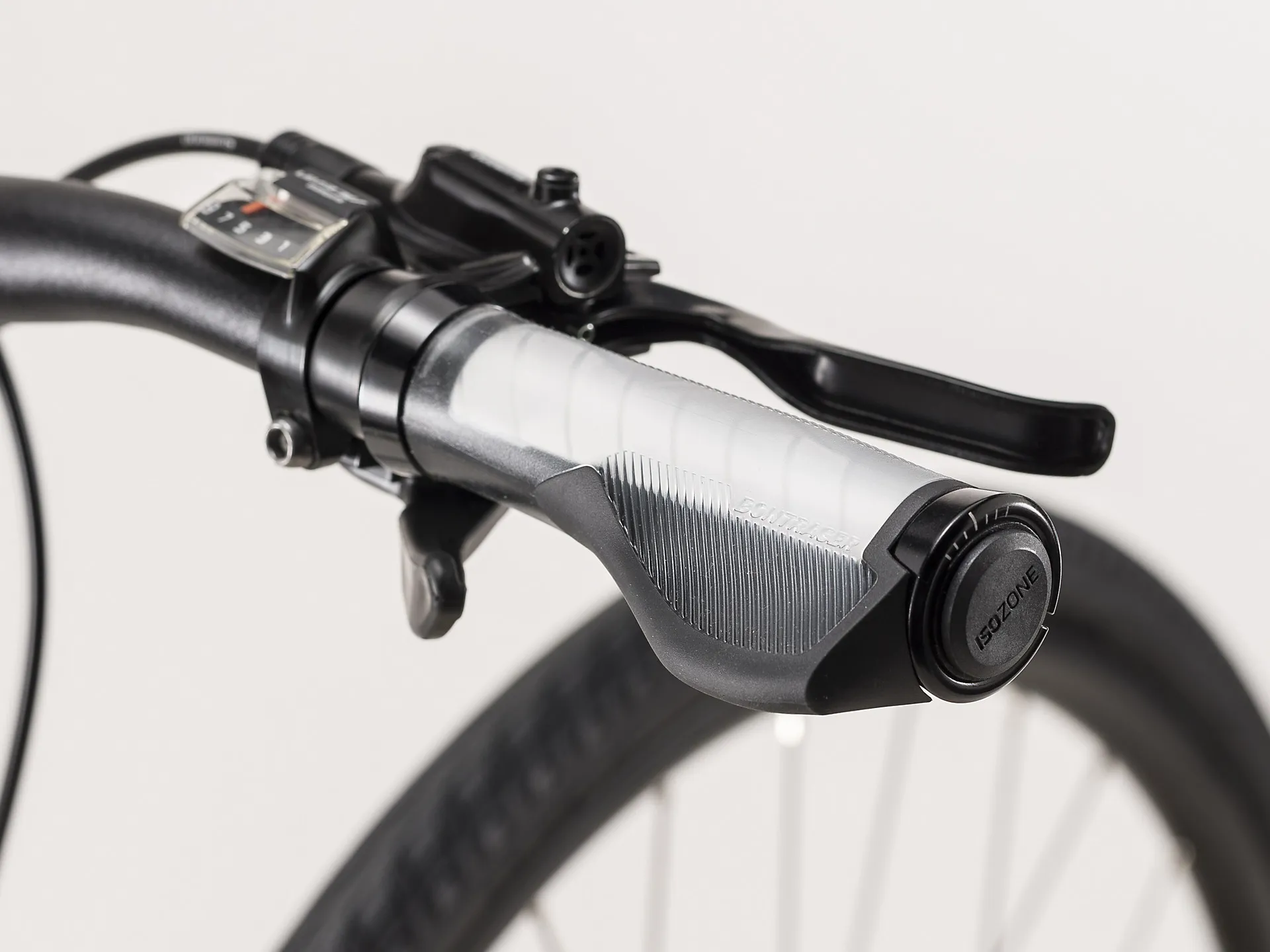

  • Handlebar Grips or Tape: Bontrager Satellite IsoZone Plus, lock-on, ergonomic
  • Headset: 1-1/8"" threadless, sealed cartridge bearings
  • Stem: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree

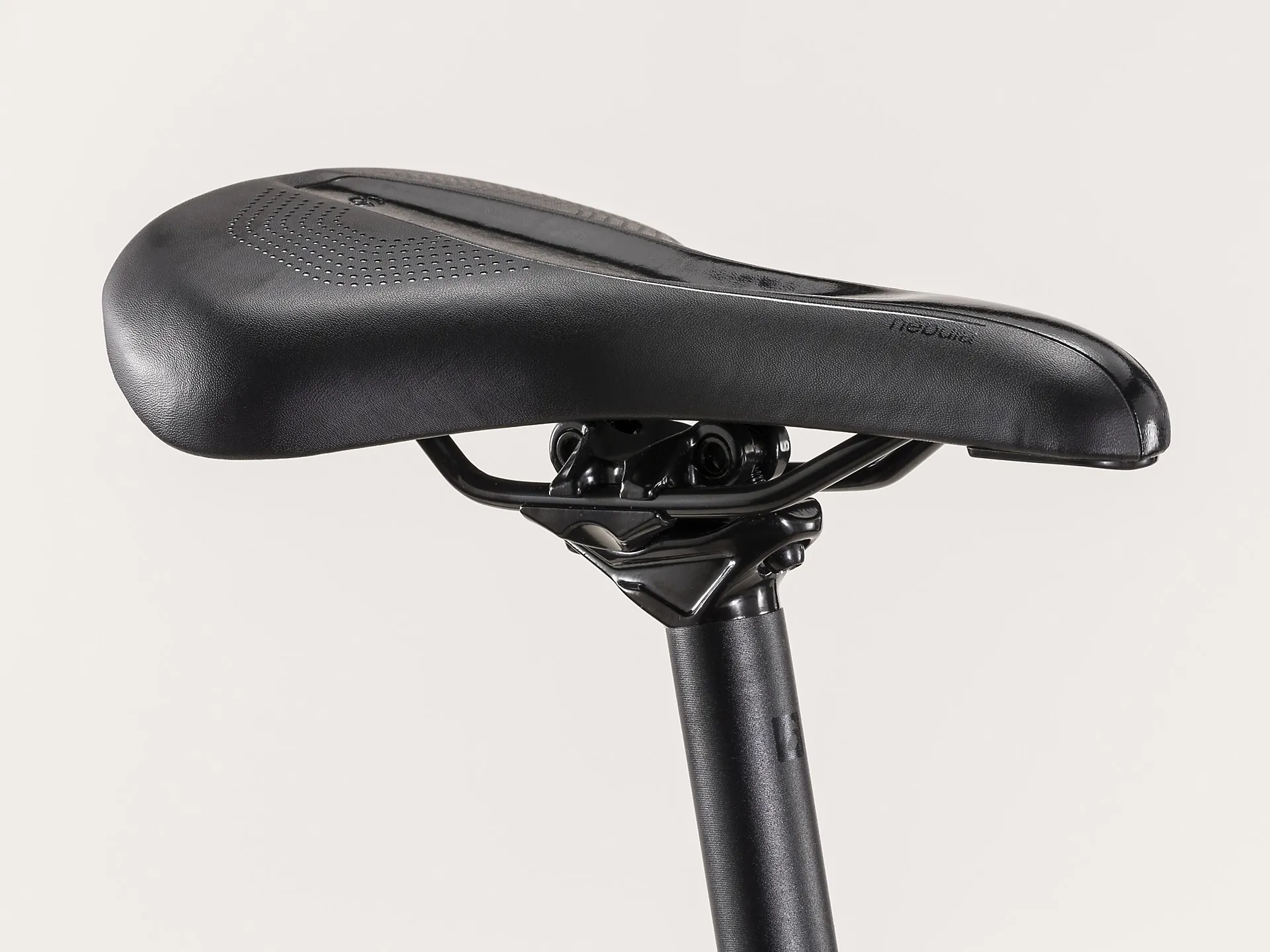

  • Saddle: Bontrager H1
  • Seatpost: Bontrager alloy, 27.2mm, 12mm offset
  • Accessories: N/A
  • Weight: M - 11.59 kg / 25.55 lb
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.


Sizing Chart for Trek FX Hybrid Bike

Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
XS147 -1554'9'' - 5'1''69 - 7327 - 28
S155 - 1655'1" - 5'5"72 - 7828 - 30
M165 - 1755'5" - 5'8"77 - 8330 - 32
L175 - 1865'8" - 6'1"82 - 8832 - 34
XL186 - 1976'1" - 6'5"87 - 9335 - 36
XXL197 - 2036'5" - 6'7"92 - 9536 - 37

Geometry Information for Trek FX 4, 5 & 6 (Carbon Frames)

Frame size letterXSSMLXL
Wheel size700c700c700c700c700c
A — Seat tube35.640.645.750.855.9
B — Seat tube angle75.0°74.5°74.0°73.5°72.5°
C — Head tube length11.51416.51921.5
D — Head angle70.0°70.5°71.0°71.5°72.5°
E — Effective top tube52.854.356.358.361.3
F — Bottom bracket height28.528.528.528.528.5
G — Bottom bracket drop6.56.56.56.56.5
H — Chainstay length44.244.244.244.244.2
I — Offset55555
J — Trail7.47.16.86.45.8
K — Wheelbase104.7105.4106.5107.5108.2
L — Standover70.875.178.781.284.8
M — Frame reach38.338.539.34041
N — Frame stack54.356.859.46264.8

Geometry Information for Trek FX 1, 2 & 3 (Alloy Frames)

Frame size letterSMLXLXXL
Wheel size700c700c700c700c700c
A — Seat tube38.144.550.857.263.5
B — Seat tube angle74.5°74.0°73.5°73.0°72.0°
C — Head tube length11.513161922
D — Head angle70.5°71.5°71.5°72.5°72.5°
E — Effective top tube54.255.757.158.760.1
F — Bottom bracket height29.629.629.629.629.6
G — Bottom bracket drop6.56.56.56.56.5
H — Chainstay length4545454545
I — Offset55555
J — Trail7.56.86.86.26.2
K — Wheelbase105.9106107107107.2
L — Standover70.473.879.984.888.5
M — Frame reach39.339.739.839.839.2
N — Frame stack53.955.758.661.864.7

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Technical Information

Geometry for Trek FX 3 Disc Womens Hybrid Bike 2021



Trek FX 3 Disc Womens Hybrid Geometry Chart

  X-Small Small Medium Large
A. Seat Tube Length 330mm 381mm  432mm 483mm
B. Seat Tube Angle 75.0° 75.0° 74.5° 74.0°
C. Head Tube Length 115mm 130mm 150mm 160mm
D. Head Angle 70.0° 70.5° 70.5° 70.5°
E. Effective Tob Tube 530mm 533mm 539mm 553mm
F. Bottom Bracket Height 285mm 285mm 285mm 285mm
G. Bottom Bracket Drop 62mm 62mm 62mm 62mm
H. Chainstay Length 445mm 445mm 445mm 445mm
I. Offset 50mm 50mm 45mm 45mm
J. Trail 73mm 70mm 70mm 67mm
K. Wheelbase 1053mm 1053mm 1055mm 1064mm
L. Standover 666mm 697mm 732mm 767mm
M. Frame Reach 386mm 384mm 380mm 386mm
N. Frame Stack 539mm 555mm 574mm 583mm



Sizing Information
Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
XS147 -1554'9'' - 5'1''69 - 7327 - 28
S155 - 1655'1" - 5'5"72 - 7828 - 30
M165 - 1755'5" - 5'8"77 - 8330 - 32
L175 - 1865'8" - 6'1"82 - 8832 - 34
Professional Opinion
Question(s) answered about Trek FX 3 Disc Womens Hybrid Bike 2021 in Magenta
Ask a question
Question(s) asked regarding Trek FX 3 Disc Womens Hybrid Bike 2021 in Magenta

Ask a question

Your name
Your email address
Your phone number
Your question
Submit Question  Close
  • Question asked by Linda Benson on 15/08/2022 07:19:30
    The weight for this bike is 11.38kg for a size medium.
