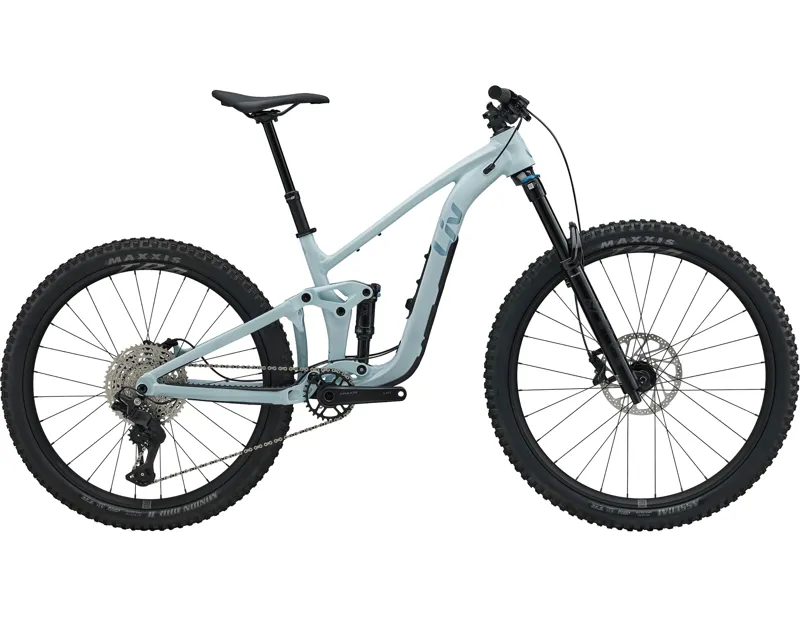

The Liv Intrigue X 2 is designed for mountain-bike riding, combining the supplied frame platform with suspension and components selected for off-road control.
The frame uses ALUXX SL-grade aluminium front and rear triangles, 140mm Maestro Suspension, 12x148mm thru-axle, flip chip – Maestro 3, flip chip – headset. Rear suspension is handled by Fox Float Performance, 185x52.5, custom tuned for Liv, recommended sag 30%. Up front, the specification uses Fox 36 Float Rhythm, 150mm, GRIP damper, Boost 15x110 Kabolt X, tapered, 44mm offset.
The drivetrain is built around Shimano Deore, Shadow +. Braking is provided by TRP EVO Comp, hydraulic, TRP [F] 203mm, [R] 180mm. The supplied tyre specification is Size XS, S, M and L, [F]: Maxxis Assegai 29x2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S.
Features & Benefits:
- Performance Mid Travel Trail: Constructed with lightweight and durable ALUXX SL-grade aluminium, the frame boasts integrated down tube storage — a sleek solution for additional space to store your tools and snacks.
- Adjustable Frame Geometry: For ultimate adjustability, the Intrigue X features flip chip – Maestro 3 and the new flip chip – headset allowing you to customize the overall riding geometry to suit the trail, your riding preferences, and rear wheel choice*.
- Best Of Both Wheels: Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear.
Full Specification:
- Frame: ALUXX SL-grade aluminium front and rear triangles, 140mm Maestro Suspension, 12x148mm thru-axle, flip chip – Maestro 3, flip chip – headset, integrated down tube storage, under-top tube storage mounts
- Rear Shock: Fox Float Performance, 185x52.5, custom tuned for Liv, recommended sag 30%
- Fork: Fox 36 Float Rhythm, 150mm, GRIP damper, Boost 15x110 Kabolt X, tapered, 44mm offset
- Number of Gears: 12
- Gear Shifters: Shimano Deore, 1x12
- Chainset: Praxis Cadet HD M24 Boost, 30t, 55mm chainline XS: 165mm, S: 170mm, M: 170mm, L: 170mm
- Chainrings: 30T
- Rear Cassette: Shimano Deore 6200, 10x51
- Chain: KMC X12
- Rear Derailleur: Shimano Deore, Shadow +
- Bottom Bracket: Praxis, press fit
- Pedals: platform [GC, GT]
- Wheelset: Giant TRA 2 wheelset, 6061 alloy, hookless, 30mm inner width, 40mm outer width, 21mm height, Wide Guard Technology XS/S: [F] 29, [R] 27.5 M/L: [F] 29, [R] 29
- Front Hub: Giant MTB alloy, 6-bolt
- Rear Hub: Giant MTB alloy, 72 POE (Points of Engagement), 6-bolt, MicroSpline driver body
- Spokes: Sapim, 28, J-bend
- Front Tyre: Maxxis Assegai 29x2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S
- Rear Tyre: Maxxis Minion DHR II 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless Size M and L, [R]: Maxxis Minion DHR II 29x2.4WT, 3C Max Terra, EXO, TR, tubeless
- Brakes: TRP EVO Comp, hydraulic, TRP [F] 203mm, [R] 180mm
- Handlebars: Giant Contact TR35, 20mm rise, alloy XS: 760mm, S: 760mm, M: 760mm, L: 780mm
- Grips or Bar Tape: Liv Tactal Pro Single Lock-on XS/S: 120mm M/L: 130mm
- Stem: Giant Contact SL 35 XS: 40mm, S: 50mm, M: 50mm, L: 50mm
- Saddle: Liv Sylvia
- Seatpost: Giant Contact Switch AT dropper, remote XS: 140-170mm travel / 30.9 x 470mm S: 140-170mm travel / 30.9 x 470mm M: 170-200mm travel / 30.9 x 530mm L: 170-200mm travel / 30.9 x 530mm
- Other Accessories: 3M tailgate protector, tubeless prepared, integrated down tube storage bag, max tyre size 2.5", max chainring size 34t
- Weight: N/A
