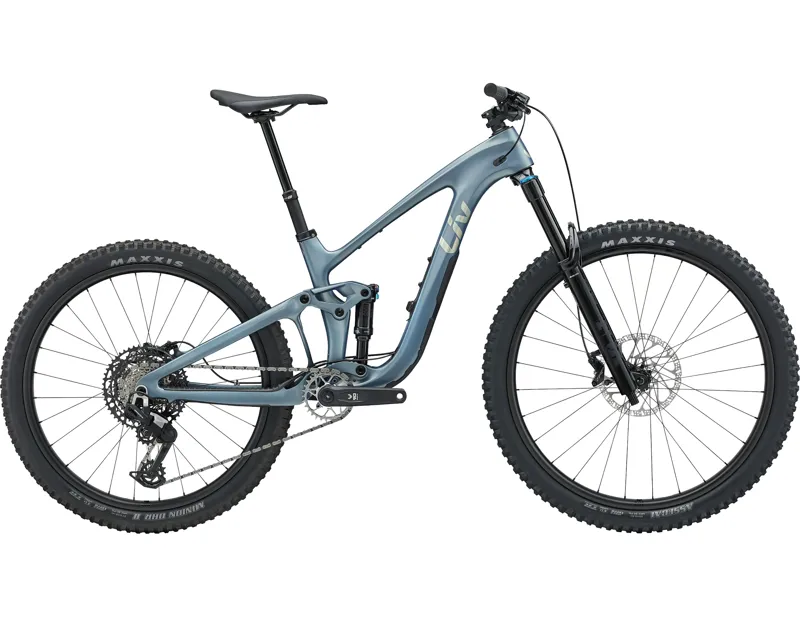

The Liv Intrigue X Advanced 2 is designed for mountain-bike riding, combining the supplied frame platform with suspension and components selected for off-road control.
The frame uses Advanced-grade composite front and rear triangles, 140mm Maestro Suspension, 12x148mm thru-axle, flip chip – Maestro 3, flip chip – headset. Rear suspension is handled by Fox Float Performance, 185x52.5, custom tuned for Liv, recommended sag 30%. Up front, the specification uses Fox 36 Float Performance, 150mm, GRIP damper, Boost 15x110 Kabolt X, tapered, 44mm offset.
The drivetrain is built around SRAM Eagle 90. Braking is provided by TRP EVO Expert, hydraulic, TRP [F] 203mm, [R] 180mm. The supplied tyre specification is Size XS, S, M and L, [F]: Maxxis Assegai 29x2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S.
Features & Benefits:
- Performance Mid Travel Trail: Constructed with lightweight Advanced-grade composite for an agile, responsive ride, the frame also boasts integrated down tube storage — a sleek solution for additional space to store your tools and snacks.
- Adjustable Frame Geometry: For ultimate adjustability, the Intrigue X Advanced features flip chip – Maestro 3 and the new flip chip – headset allowing you to customize the overall riding geometry to suit the trail, your riding preferences, and rear wheel choice*.
- Best Of Both Wheels: Frame sizes XS and S are solely designed for an MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear.
Full Specification:
- Frame: Advanced-grade composite front and rear triangles, 140mm Maestro Suspension, 12x148mm thru-axle, flip chip – Maestro 3, flip chip – headset, integrated down tube storage, under-top tube storage mounts
- Rear Shock: Fox Float Performance, 185x52.5, custom tuned for Liv, recommended sag 30%
- Fork: Fox 36 Float Performance, 150mm, GRIP damper, Boost 15x110 Kabolt X, tapered, 44mm offset
- Number of Gears: 12
- Gear Shifters: SRAM Eagle 90, 1x12
- Chainset: SRAM Eagle 90, 30t, 55mm chainline XS: 165mm, S: 170mm, M: 170mm, L: 170mm
- Chainrings: 30T
- Rear Cassette: SRAM 70, 10x52
- Chain: SRAM 70
- Rear Derailleur: SRAM Eagle 90
- Bottom Bracket: SRAM, press fit
- Pedals: platform [GC, GT]
- Wheelset: Giant TRX 1 WheelSystem, carbon, 30mm rim inner width, 40mm outer width, 22mm height, Wide Guard Technology XS/S: [F] 29, [R] 27.5 M/L: [F] 29, [R] 29
- Front Hub: Giant MTB alloy, 6-bolt
- Rear Hub: Giant MTB alloy, 72 POE (Points of Engagement), 6-bolt, MicroSpline driver body
- Spokes: Sapim, 28, straight pull, DBL Technology
- Front Tyre: Maxxis Assegai 29x2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S
- Rear Tyre: Maxxis Minion DHR II 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless Size M and L, [R]: Maxxis Minion DHR II 29x2.4WT, 3C Max Terra, EXO, TR, tubeless
- Brakes: TRP EVO Expert, hydraulic, TRP [F] 203mm, [R] 180mm
- Handlebars: Giant Contact TR35, 20mm rise, alloy XS: 760mm, S: 760mm, M: 760mm, L: 780mm
- Grips or Bar Tape: Liv Tactal Pro Single Lock-on XS/S: 120mm M/L: 130mm
- Stem: Giant Contact SL, 35mm XS: 40mm, S: 50mm, M: 50mm, L: 50mm
- Saddle: Liv Sylvia
- Seatpost: Giant Contact Switch AT dropper, remote XS: 140-170mm travel / 30.9 x 470mm S: 140-170mm travel / 30.9 x 470mm M: 170-200mm travel / 30.9 x 530mm L: 170-200mm travel / 30.9 x 530mm
- Other Accessories: 3M tailgate protector, tubeless prepared, integrated down tube storage bag, max tyre size 2.5", max chainring size 34t
- Weight: N/A
