Rift Zone TAM XR with Shimano Deore Di2, Fox 34 SL Performance Elite, and 29” wheels delivers high-performance, lightweight trail riding.
Rift Zone TAM XR with Shimano Deore Di2, Fox 34 SL Performance Elite, and 29” wheels delivers high-performance, lightweight trail riding.
Marin

Marin TAM XR 29in Full Suspension Mountain Bike 2027 in Blue

£4,299.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

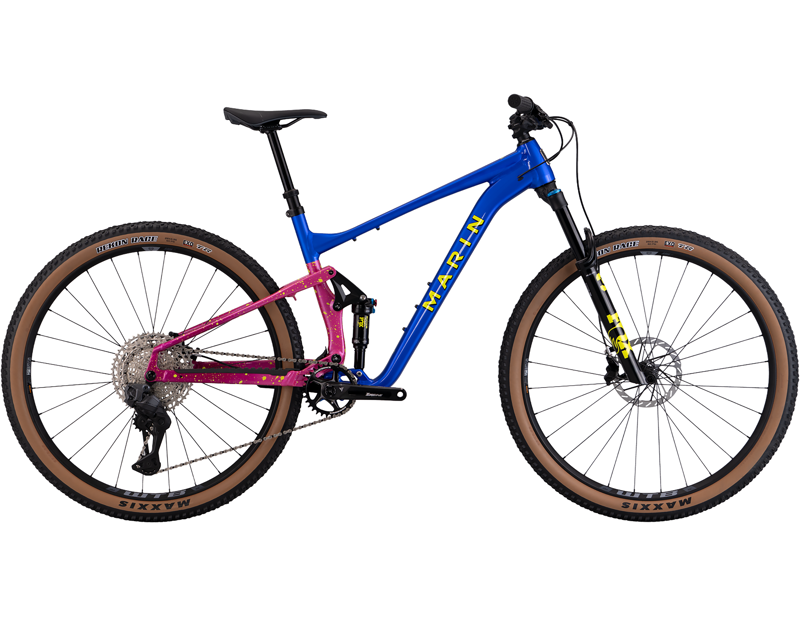

Marin TAM XR 29in Full Suspension Mountain Bike 2027 in Blue

Season:2027

Brand:Marin

Code:TAM XR 29 Z BLUE

The Marin Rift Zone TAM XR is the range-topping model built for riders who want maximum performance from a lightweight trail platform. Its Series 4 aluminium frame with 120mm IsoTrac suspension delivers efficient pedalling and confident descending, while a slack 65° head angle keeps handling stable on technical terrain. Fox Performance Elite 34 SL suspension front and rear provides precise, race-ready control, paired with Shimano’s wireless Deore Di2 12-speed drivetrain for cutting-edge shifting performance. Designed for fast XC laps and big trail adventures alike, it’s built to go hard and ride fast.

Key Features & Benefits:

  • Top-Tier Suspension Performance: Fox 34 SL Performance Elite fork and Float SL shock deliver precise, responsive control on demanding trails.
  • Advanced Wireless Drivetrain: Shimano Deore Di2 12-speed system provides smooth, reliable electronic shifting.
  • Confident Trail Geometry: 65° head angle and modern frame design offer stability and control on technical terrain.

Specifications:

  • Frame: Series 4 aluminium, 29" wheels, 120mm IsoTrac suspension, internal cable routing, 148x12mm Boost, 73mm BB, ISCG 05 tabs
  • Fork: Fox 34 SL Performance Elite, 130mm travel, GRIP X damper, 110x15mm Kabolt SL axle, 44mm offset
  • Rear Shock: Fox Float SL Performance Elite, EVOL LV air spring, 3-position compression adjust, 190x45mm
  • Number of Gears: 12-speed
  • Gear Shifters: Shimano Deore Di2 12-speed
  • Chainset: Race Face Turbine, 32T alloy chainring, 170mm crank length
  • Chainrings: 32T
  • Rear Cassette: Shimano 12-speed (wide range)
  • Chain: KMC X12
  • Front Derailleur: None
  • Rear Derailleur: Shimano Deore Di2 12-speed, SGS
  • Bottom Bracket: 73mm threaded
  • Pedals: Not Supplied — Shop Pedals Here
  • Rims: WTB KOM Light i30, 28H
  • Front Hub: WTB X7, 110x15mm, straight pull, 6-bolt, 28H
  • Rear Hub: WTB X7, 148x12mm, straight pull, 6-bolt, MicroSpline freehub, 28H
  • Front Tyre: Maxxis Rekon Race, 29x2.35", tubeless ready
  • Rear Tyre: Maxxis Rekon Race, 29x2.35", tubeless ready
  • Brakes: SRAM Motiv Silver, 4-piston hydraulic disc, 180mm rotors
  • Handlebars: Marin mini-riser, 780mm width, 30mm rise, 5° up, 9° back
  • Handlebar Tape: Marin Grizzly lock-on grips
  • Stem: Marin 3D forged alloy, 55mm
  • Saddle: Marin Speed Concept
  • Seatpost: PNW Loam Dropper Gen 2+, size-specific travel (S: 150mm, M: 170mm, L/XL: 200mm)
  • Accessories: None
  • Weight: Not specified

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Marin Tam

SizeRider Height
S5'3" - 5'6"
M5'7" - 5'10"
L5'10" - 6'1"
XL6'1" - 6'5"

Geometry of Marin Tam


SMLXL
AStack593.8603612621
BReach425455480510
CHeadtube angle65°65°65°65°
DHeadtube length90100110120
ESeattube length400410450500
FSeattube angle76°76°76°76°
GToptube effective562.7595.7623.7656.7
HBB height333333333333
IBB drop38383838
JChainstay435435435435
KWheelbase116612001229.61263.7
LStandover height594595719744
MFork offset44444444
NSeatpost diameter30.930.930.930.9
OHandlebar width780780780780
PStem length55555555
QCrank length170170170170

Warranty Information for Marin:

Marin Mountain Bikes, Inc. ("Marin") warrants to the original retail purchaser ("you") that the Marin product for which you received this warranty is free from defects in material and workmanship for the periods below

FRAMES WARRANTY PERIOD (From date of purchase)
Carbon Fiber Frames and Forks: 5 Years
Rigid Frames and Forks: Lifetime
Full Suspension Frames: 5 Years
COMPLETE BICYCLE
The complete bicycle is warranted for one year (from date of purchase), including all original parts on the bicycle except tires, tubes, chains and other wear & tear items. Paint and decals are covered under this warranty.
This warranty does NOT cover suspension forks, and rear shocks on full suspension bikes. These items are covered by the suspension component manufacturer’s warranty. Please contact the suspension component manufacturer for any warranty needs.
For full warranty policy please visit marinbikes.com
