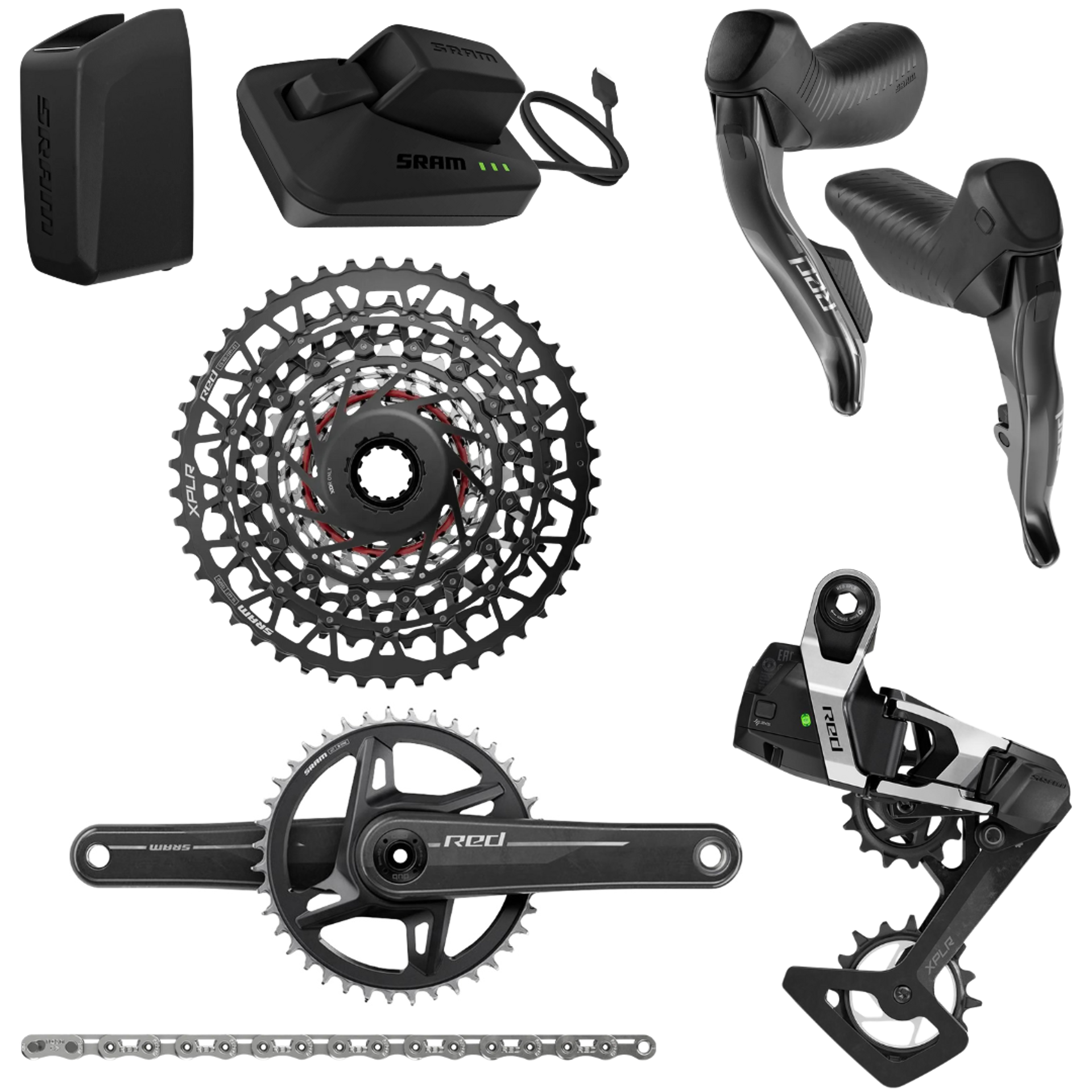

SRAM RED AXS XPLR E1 Groupset

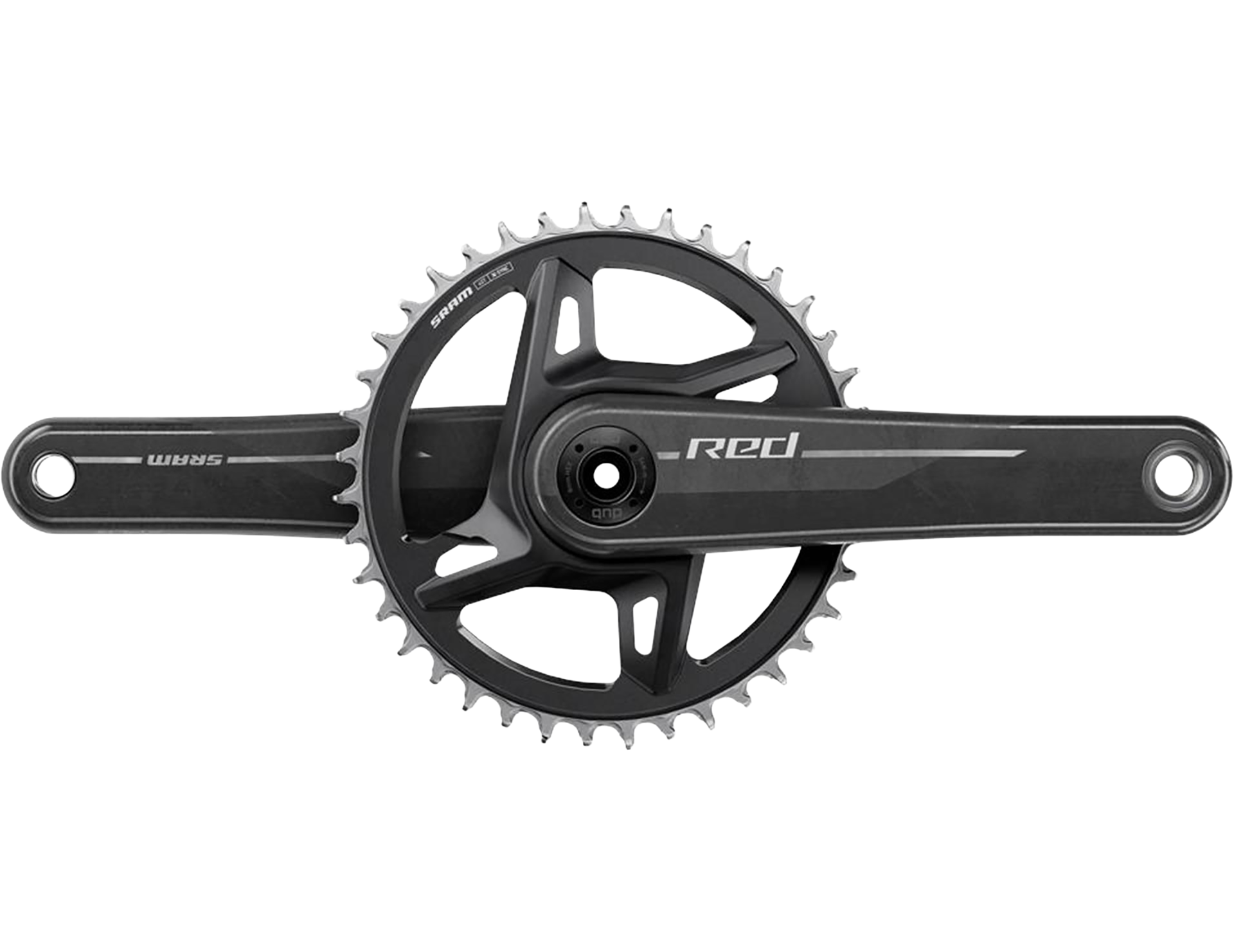

1 x SRAM Crankset Red 1X E1 XPLR DUB Wide Direct Mount 40T BB Not Included

Gravel bikes deserve SRAM's lightest and stiffest cranks too. The RED XPLR crankset maximises tyre clearance and features SRAM's hollow carbon arms paired with the direct mount 1x chainring of your choice. Now available in 160mm crankarm length, this crank is built to please every rider, even those who prefer the unpaved.

Features:

• Single-ring drivetrain simplifies functionality and reduces weight
• Non-aero direct-mount chainrings from 38T to 46T can be swapped with a single tool
• SRAM X-SYNC wide-tooth, narrow-tooth chainring technology provides maximum chain control
• Ultra-light hollow carbon fibre crankarms
• DUB bottom bracket adds durability and simplicity
• Can be upgraded to a power meter
• Available in 160, 165, 167.5, 170, 172.5, and 175 mm lengths

Specification:

• Speeds: 12/13
• BB Compatibility: All SRAM Road WIDE DUB BBs
• Chainring Size: 40T
• Crank Arm Length: 160mm, 165mm, 167.5mm, 170mm, 172.5mm, 175mm
• Chainline: 47.5mm
• BB Spindle Interface: DUB
• Chainring Material: Aluminium
• Guard: No Guard
• Crank Arm Material: Carbon
• Colour (Crank Arm): Natural carbon

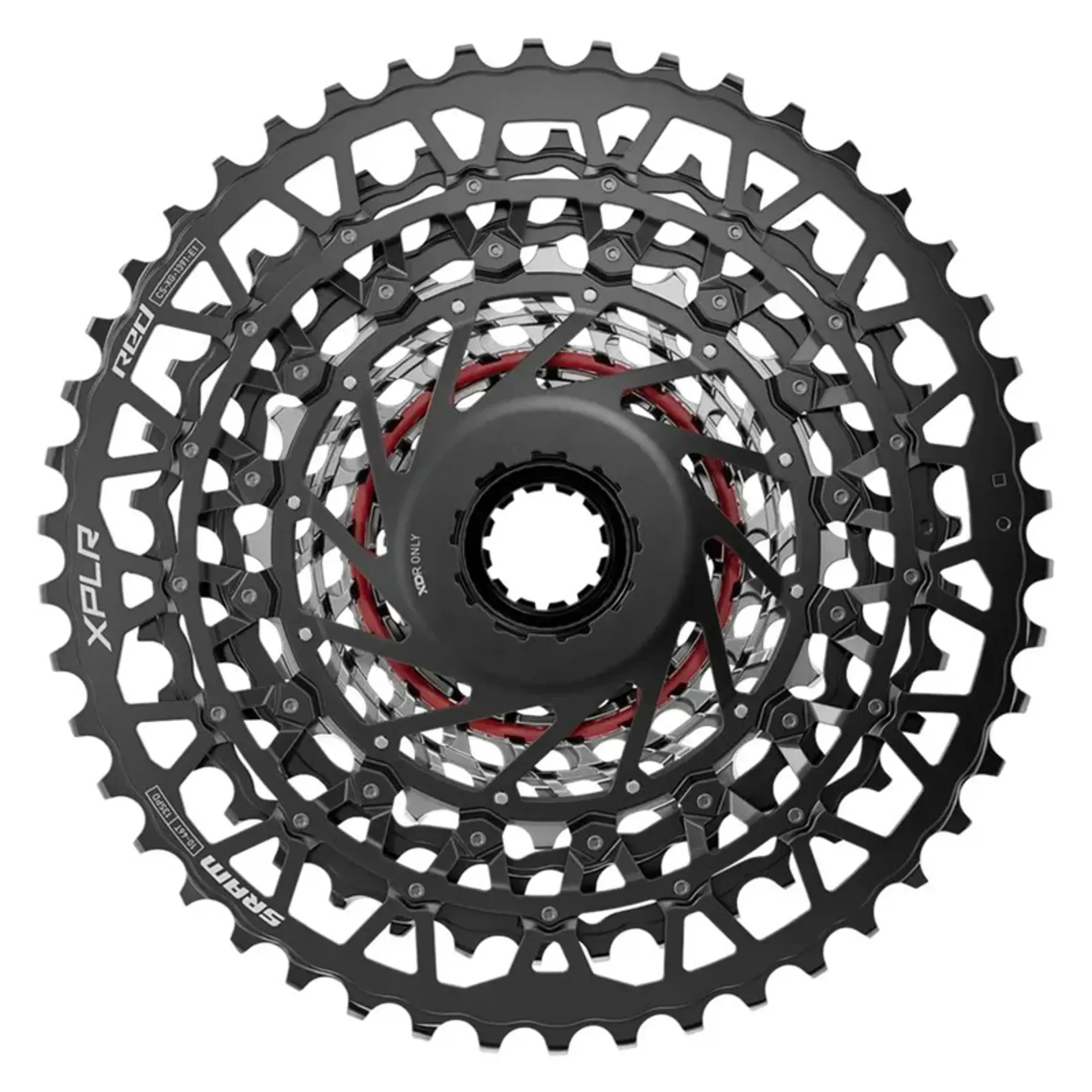

1 x SRAM Cassette XG-1391 XPLR E1 13 Speed in Silver

As the terrain gets tougher and the pace gets faster, you need the right range to keep moving and the best steps between gears to keep up. The 460% range of the RED XPLR XG-1391 13-speed cassette gives you the climbing gears you crave on gravel and the tight jumps you need on spicy sprints. Enjoy the highest shift quality on even the roughest roads thanks to optimised shift features on each cog, all from a cassette that weighs only 288 g.

Features:

• Speed (CS): 13
• Gearing: 10-46t
• Cog finish (Cassette): Silver
• Technology (Cassette): XG
• Cog sizes: 10-46t: 10,11,12,13,15,17,19,21,24,28,32,38,46
• Driver body interface: XDR

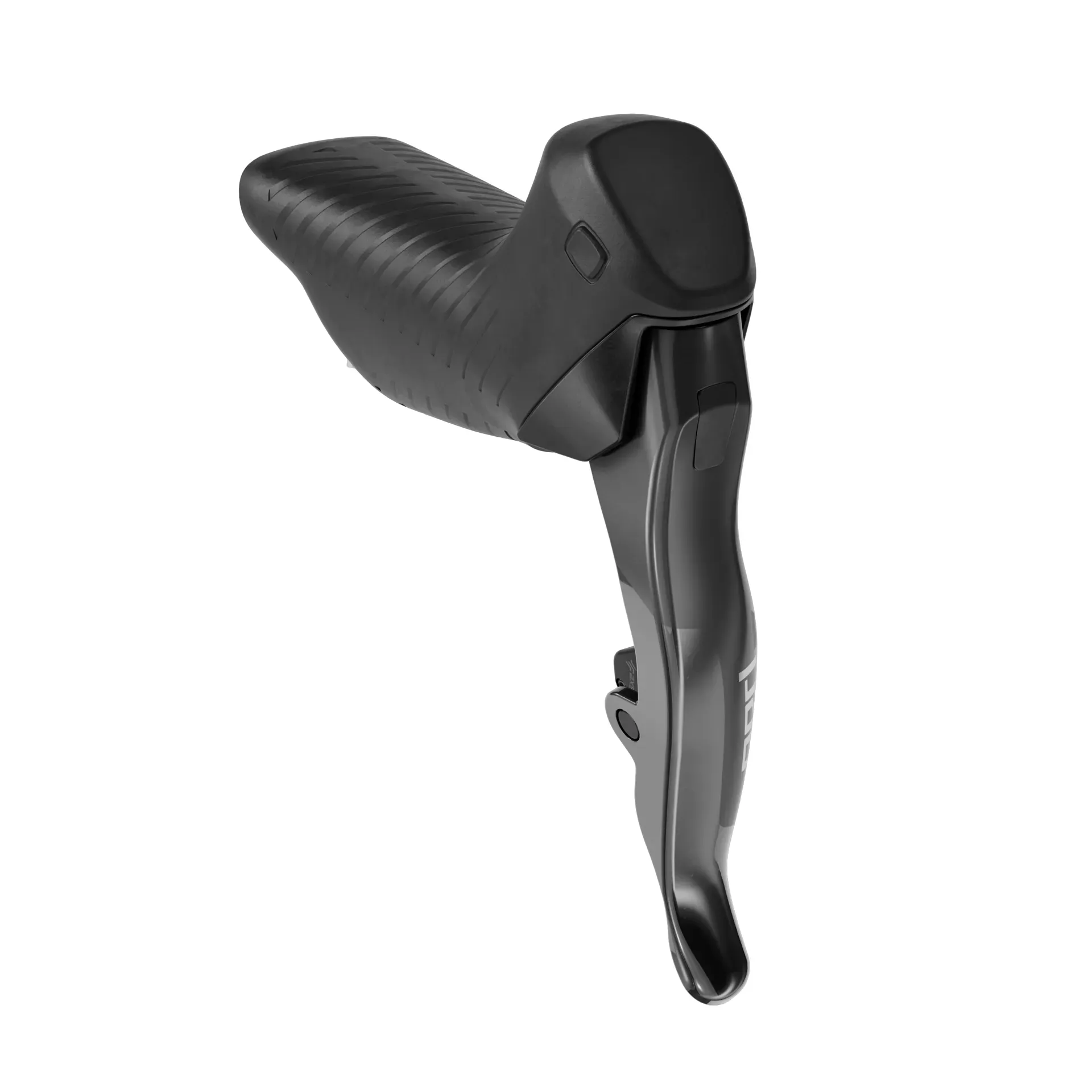

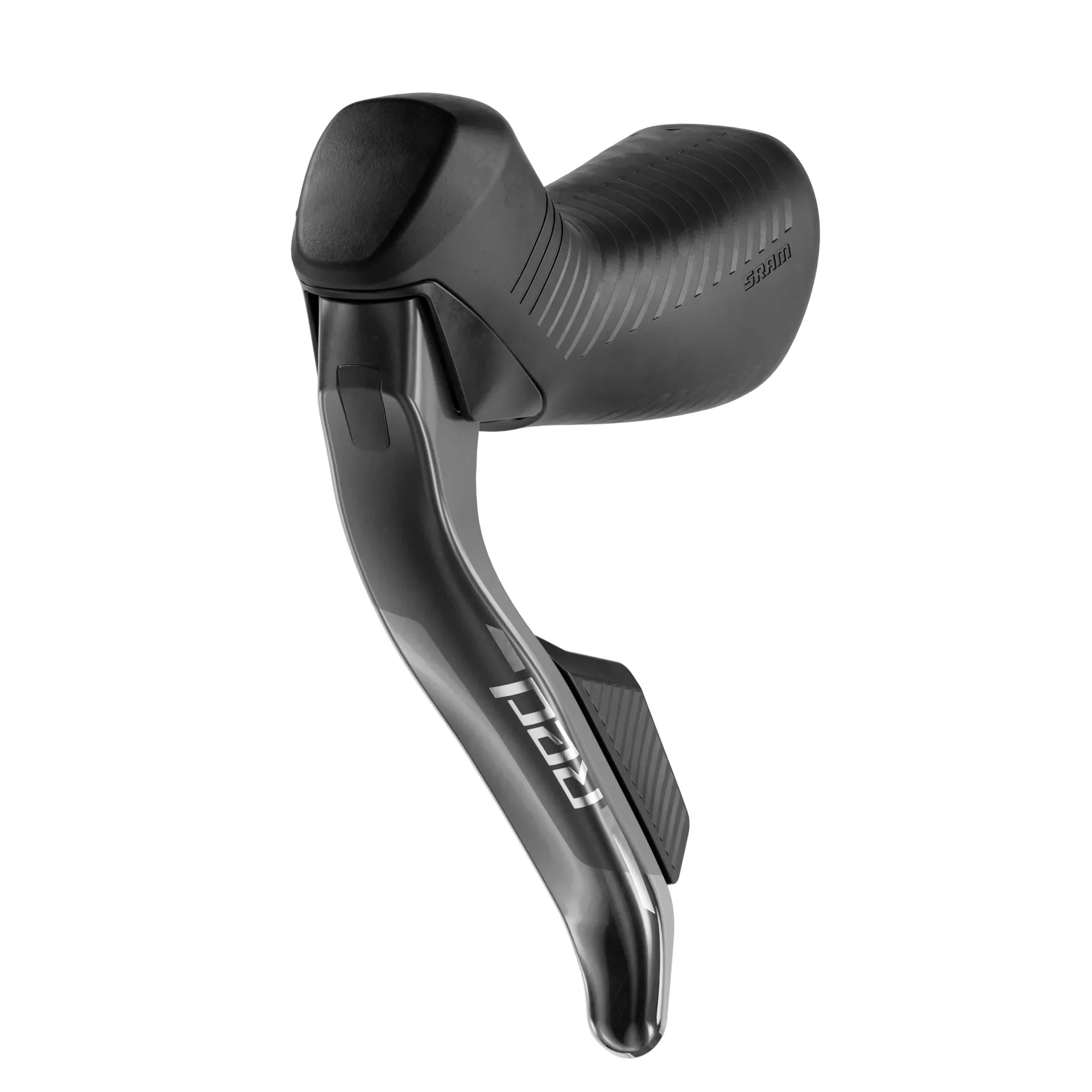

2 x SRAM RED AXS E1 Shift/Hydraulic Disc Brake System in Black

True one-finger braking is at hand. SRAM have overhauled their hood and lever architecture and achieved breakthroughs for fit across all hand sizes and easy access to powerful and smooth, easy braking from anywhere on the bar. Independent reach and contact point adjustment allow for highly personalised setup, with no risk of pinching your fingers or bottoming out on the bar no matter your settings. Better finger wrap on the hood means less fatigue on long days, and Bonus Buttons let you shift or control ANT+ devices with your thumbs. The calliper is not only stiffer, but lighter too, with phenomenal pad clearance for rub-free operation. All that and SRAM still managed to remove 83 g from the pair.

Rotor sold Separately.

Features:

• One finger braking from the hoods or the drops
• 83 g lighter than previous generation
• AXS enabled for easy setup, personalisation, and reliability
• eTap shift logic for intuitive shifting
• Bonus Button provides ANT+ device control or auxiliary shift option
• Optimised hood shape fits the widest range of hand sizes
• Carbon brake lever for light weight
• Textured shift paddles and hoods for control and comfort
• Bleeding Edge technology for easy and clean bleeds
• Reach Adjust to personalise fit for more hand sizes
• Contact Point Adjust to personalise brake engagement

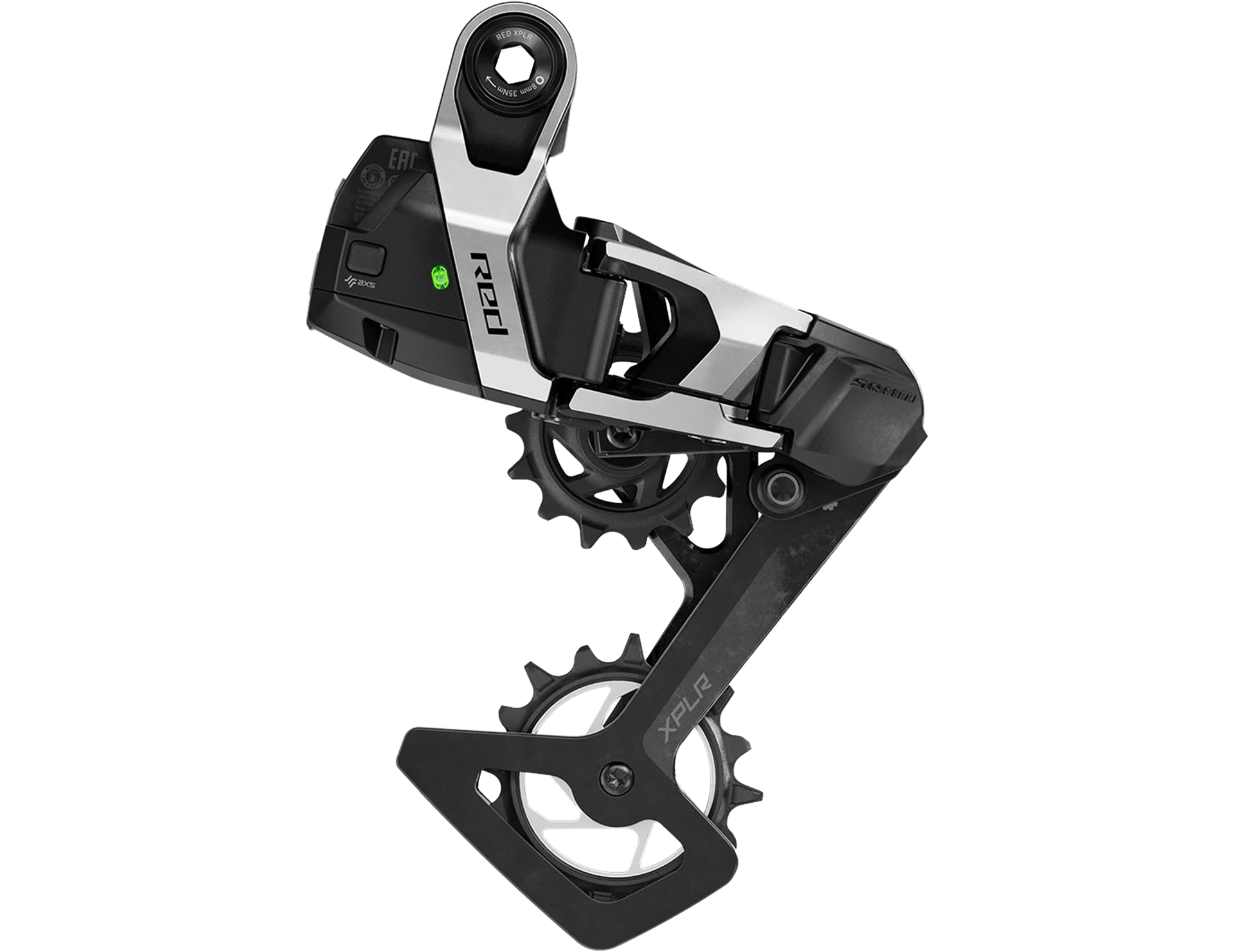

1 x SRAM Rear Derailleur Red 1X AXS XPLR E1 13-Speed Max 46T Battery Not Included

Gravel throws just about everything at your bike, and the RED XPLR AXS rear derailleur will happily take it all. Bring on the sticks, stones, and airport baggage abuse because the Full Mount derailleur design fits onto frames with the hangerless interface to make for the most robust and reliable gravel drivetrain possible. No adjustment screws mean setup is simpler than ever. And a surprise stick is no match for the Magic Wheel, as the debris-resistant lower pulley keeps the chain moving at all times. Purpose built for gravel, this 1x-specific unit prioritises shift precision and chain management no matter the terrain or conditions.

Features:

• 1x specific for use with 10-46T XPLR 13-speed cassette and road Flattop chains
• Hangerless Interface and Full Mount attachment allow for the most precise shifting and the ultimate resistance to impact
• Requires frame with UDH interface
• Simple setup with no adjustment screws
• Superior chain management with MTB-inspired spring clutch
• Replaceable and rebuildable parts
• Magic Wheel keeps the chain moving, even if debris enters the lower pulley
• Compatible with existing AXS batteries

Specification:

• Speed (RD): 13s
• Max Tooth: 46
• Pulley Bearings Material: Ceramic
• Cage Material (RD): Carbon

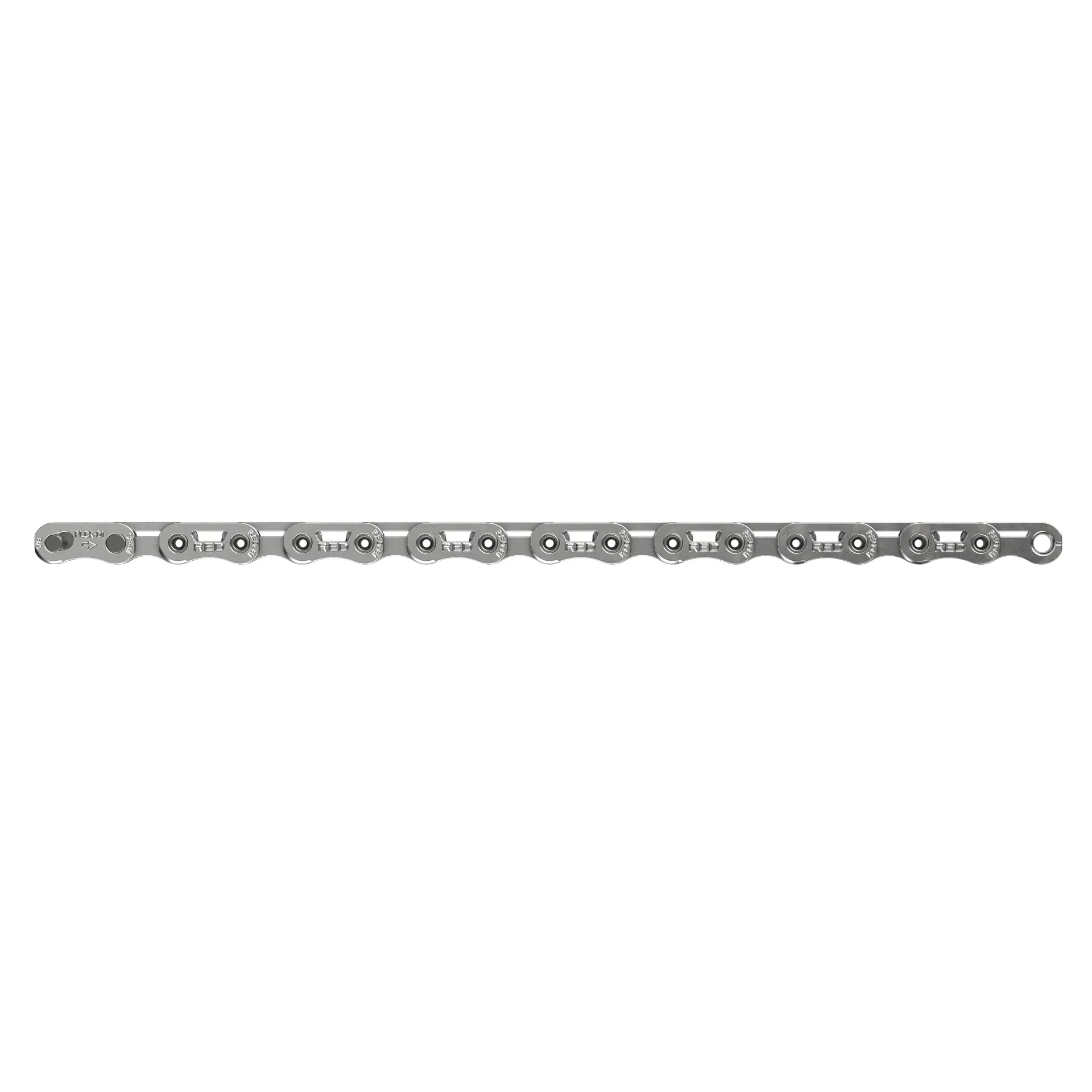

1 x SRAM RED E1 Flattop w/Powerlock 12 Speed Chain in Silver

SRAM took the lightest and most durable chain they’ve ever made and made it lighter. With no compromises. SRAM's HollowPin construction is lighter and stronger than a solid pin, and cutouts in the outer and inner plates drop 13 g from the previous generation. This results in a lighter, faster, stronger and more durable chain.

Features:

• Flattop technology enables a narrower chain with quieter operation and increased strength and durability
• Hard Chrome plated inner link plates and rollers for reduced wear and prolonged life
• HollowPin construction for increased strength and efficiency
• Super-light outer and inner plates with cut-out design
• 13 g lighter than previous RED chain
• Rainbow colourways available in all sizes
• 114 and 126 links

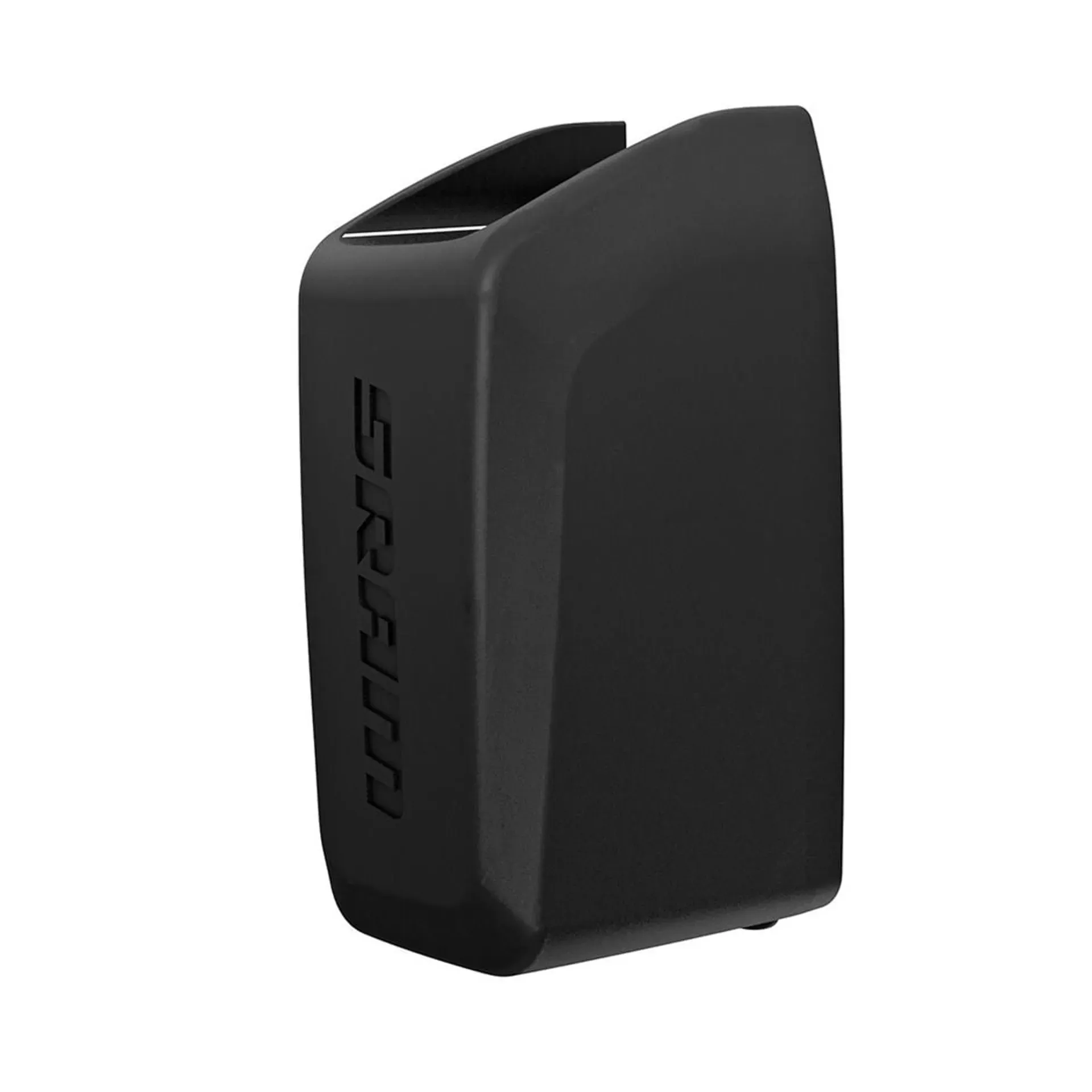

1 x SRAM AXS Battery for Front or Rear Derailleur

All wireless systems require a battery to make those smooth gear changes. The SRAM Red eTap battery will power your front or rear derailleur.

The power source for the eTap system, the beauty of this power unit, is the same unit is interchangeable between the front and rear derailleurs.

Features:

• Up to 1000 kilometres of riding per charge

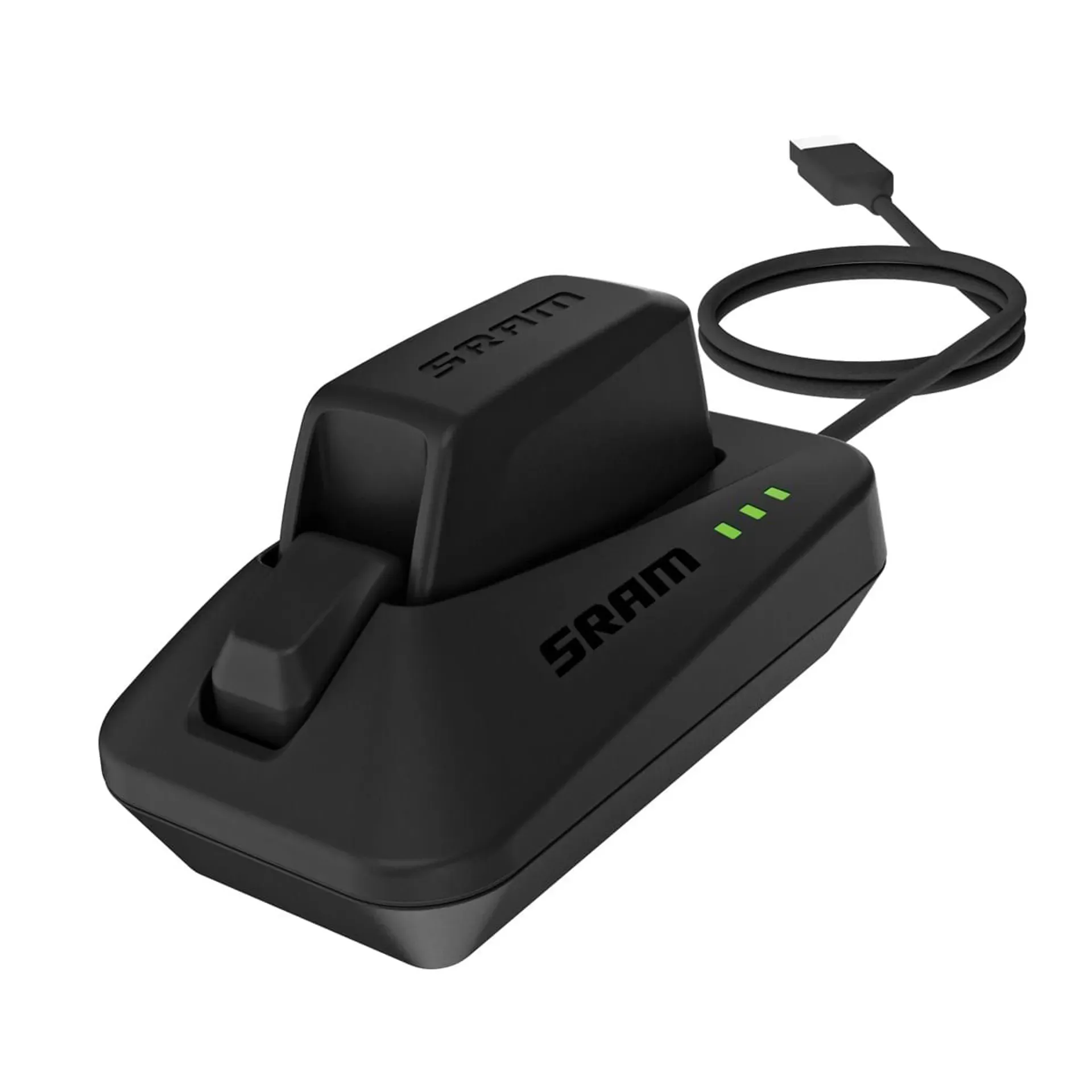

1 x SRAM eTap Battery Charger and Cord

All wireless systems require a battery to make those smooth gear changes. The SRAM Red eTap Battery Charger and Cord will ensure your battery is fully charged, a complete charge can take just 45 minutes.

The eTap system is all about efficiency, to remove the battery just flip the tool-free battery latch up and slide the battery up and out of the derailleur. Then snap the battery into the USB powered charger and connect the charger to any USB power source or A/C USB adaptor.

Features:

• Easy and fast charging for your SRAM RED eTap® batteries
• A full charge can take just 45 minutes
• SRAM eTap battery charge and cord included
