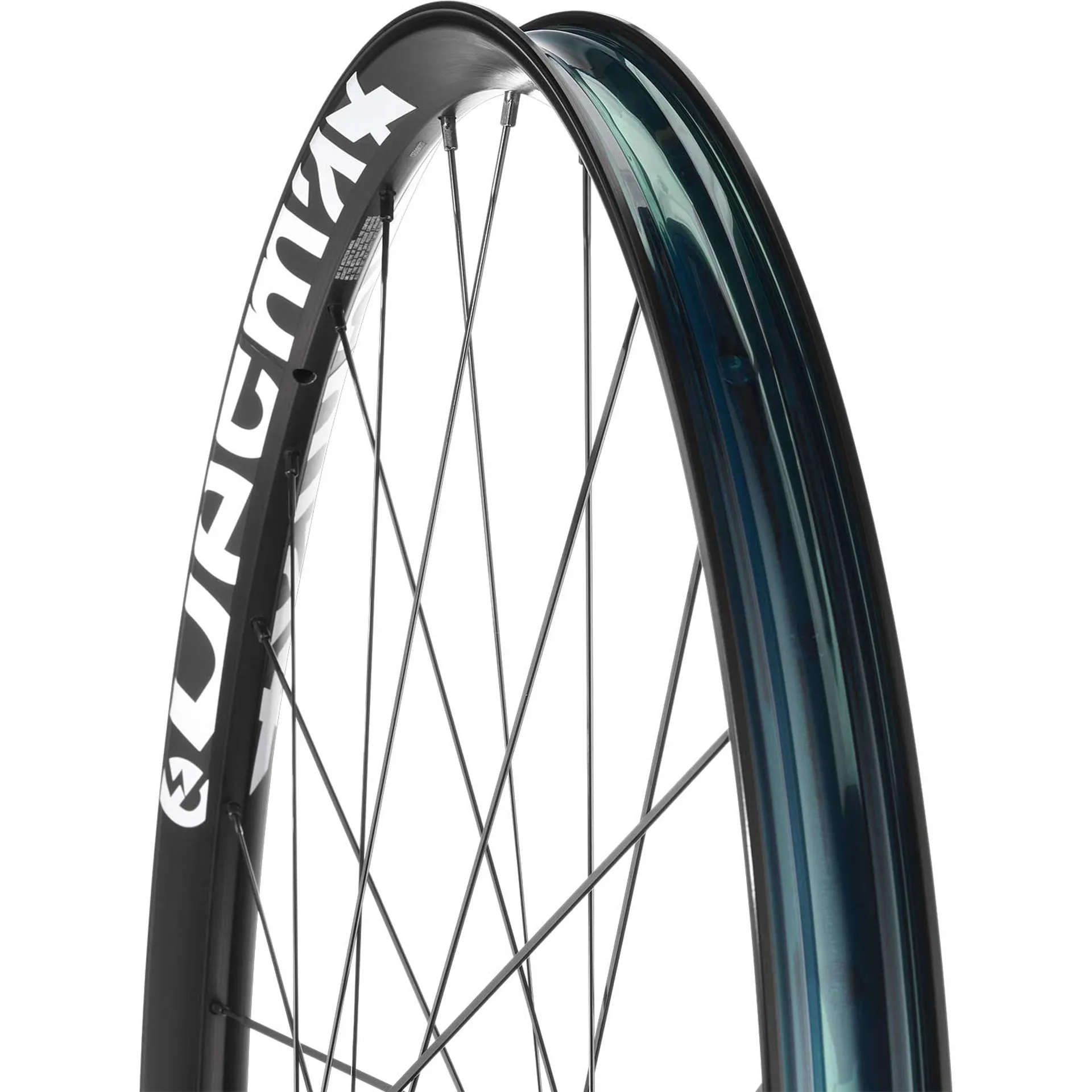

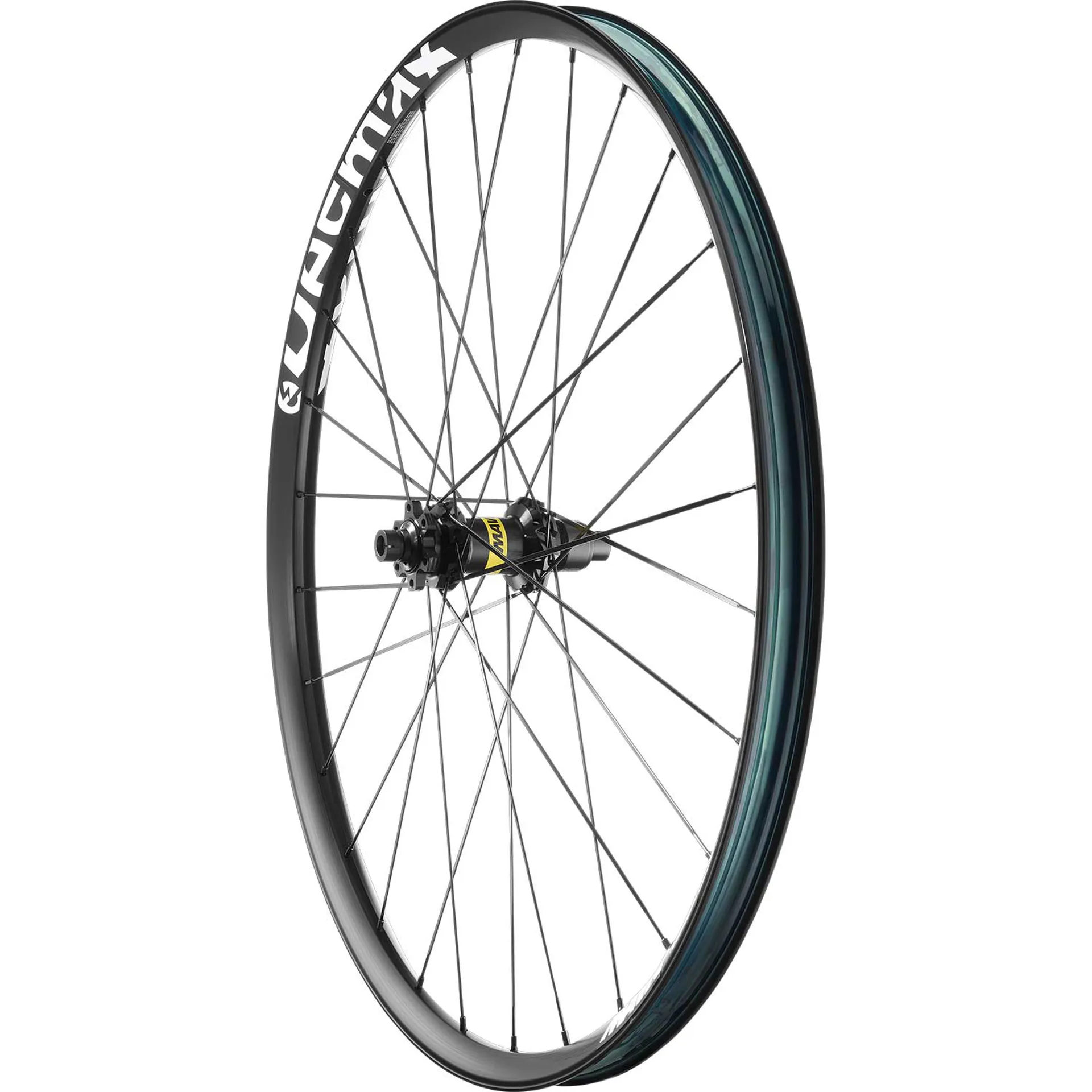

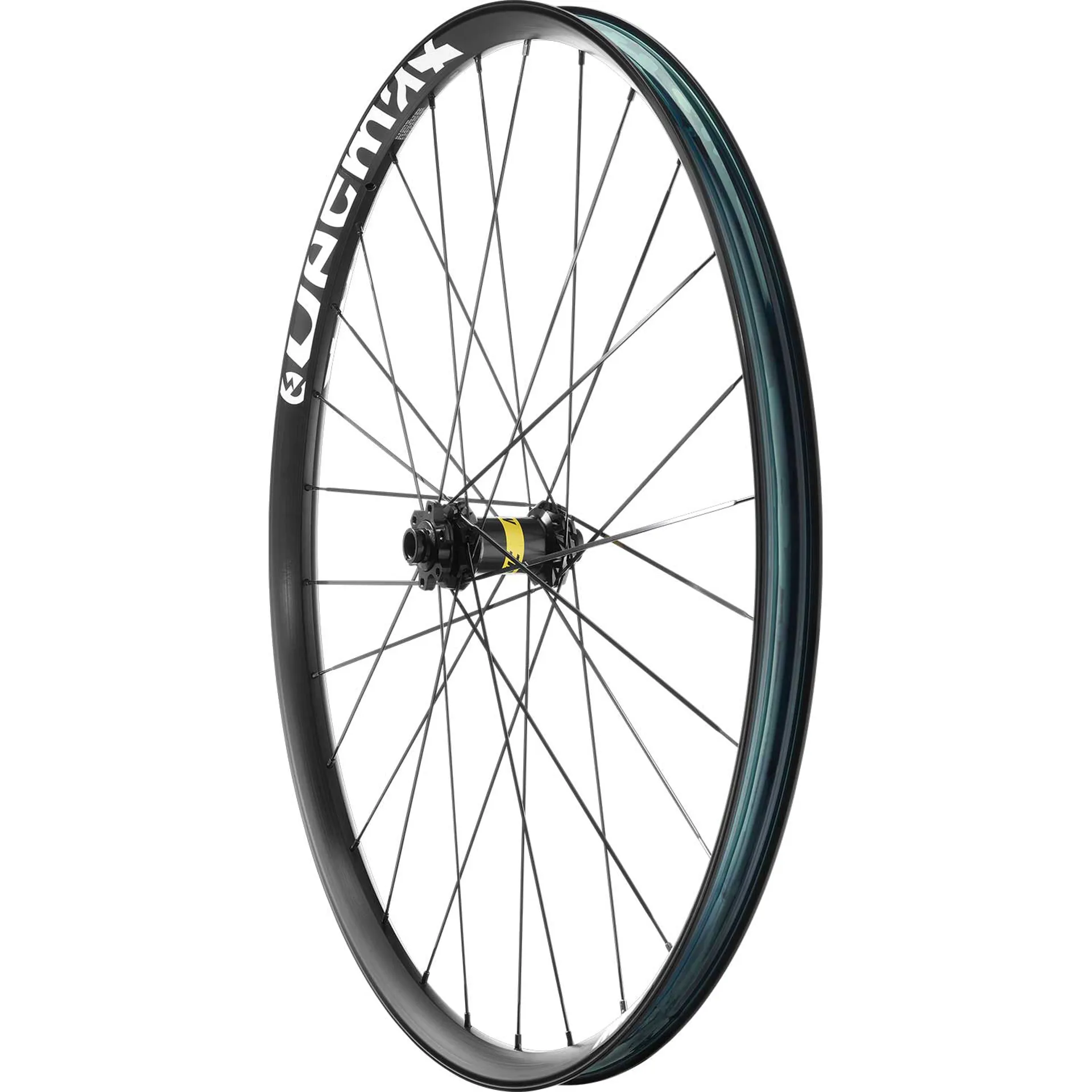

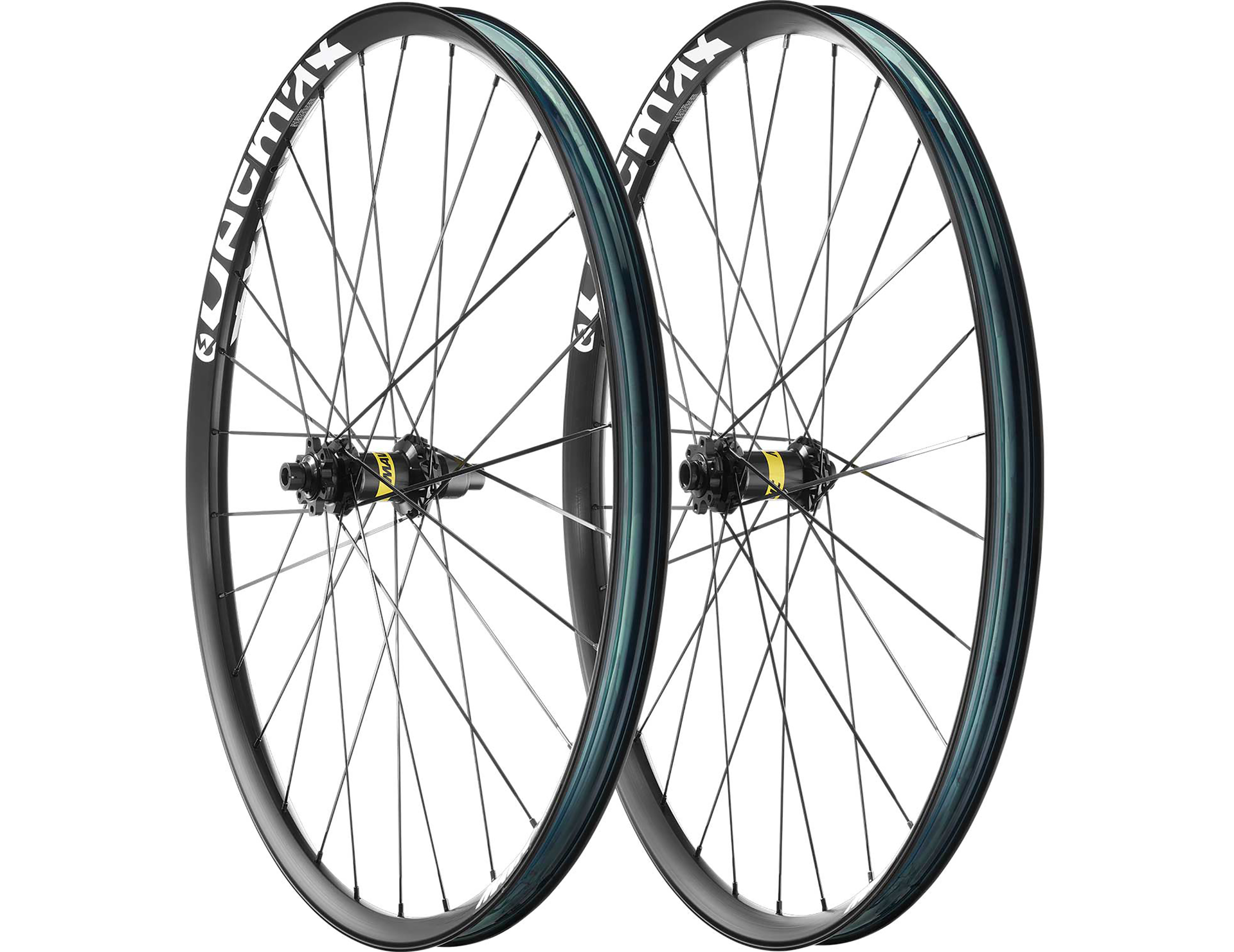

Strong, reliable, and durable, the E-Deemax 30 features a brand new 30mm rim profile that eases tyre installation and protects against pinch flats (PFP technology).
The name E-Deemax has become a reference for E-Bike riders. This new E-Deemax 30 lives up to its name with many of the same features and technologies as a higher range model, but at a far more attainable price. Now featuring a wider central channel, installing even the strongest and most rigid tyres has never been so easy. Mavic's exclusive Pinch Flat Protection technology (PFP) offers a wider contact surface at the top of the sidewall and significantly reduces the risk of tyre cuts and punctures. Thanks to PFP, the tyre can resist 20% harder impact before being cut.
The rim is welded for added reliability and features a 30mm internal width with a Tubeless Ready compatibility to allow you to run lower tyre pressure for better traction and control.
As all E-Deemax wheelsets, this new option is lab and field validated for a maximum total weight of 180kg.

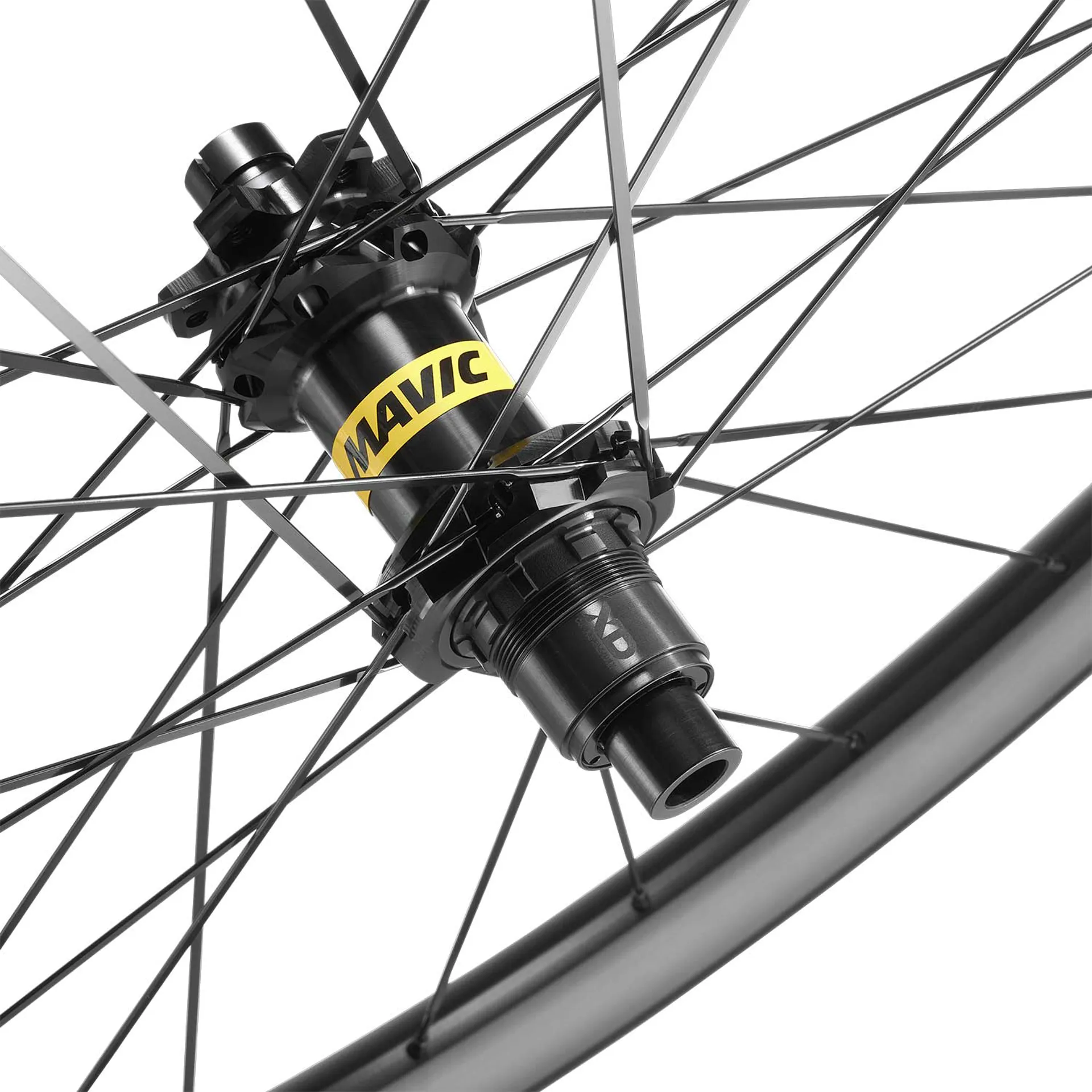

The Instant Drive 360 freewheel with a double ratchet system equips the rear hub and provides fast engagement and top-level reliability.
The rear hub is compatible with Shimano HG9, Micro Spline, and SRAM XD driver bodies. The E-Deemax 30 is available with Centre Lock brake rotors and is compatible with a 12x148mm rear axle. The wheel is delivered with valves, replacement spokes, and accessories.
Key Technologies:
- Pinch Flat Protection (PFP): Offers a wider contact surface at the top of the sidewall, significantly reducing the risk of tyre cuts and punctures.
- Instant Drive 360 Technology: Super light and efficient. The large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.
- UST Tubeless Technology: Universal Standard for Tubeless. The ready-to-ride tubeless system improves traction, control, and comfort whilst reducing inertia and flats.
- SUP Welding Technology: Soude Usine Process, stronger and smoother joint. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.
- QRM Auto Bearing Preload Technology: Qualite de Roulements Mavic Auto. Cartridge bearings double sealed with e3 internal clearance. Preload is automatically adjusted to guarantee a perfect spin with no play on the long run.
- Maxtal Aluminium Alloy: Exclusive to Mavic, this specific aluminium alloy offers a higher strength-to-weight ratio than traditional 6106 alloy.
Intended Use:
- ASTM Category: 5 (gravity riding focused on the descent)
- Minimum Tyre Size: Width 52mm - pressure max. 2.95Bar/43PSI
- Maximum Tyre Size: Width 76mm - pressure max. 2.45Bar/36PSI
Full Specification:
- Discipline: Downhill
- Rim Material: Maxtal Aluminium Alloy
- Rim Diameter: 27.5"
- Profile Depth: 22mm
- Inner Width: 30mm
- ETRTO Size: 584x30TC
- Tyre Compatibility: UST Tubeless Ready (Use with Mavic Tubeless Tape)
- Braking System: Centre Lock
- Rear Axle: 12x148mm
- Spokes: Straight Pull, Flat, 28 reinforced spokes
- Nipples: Steel ABS Black

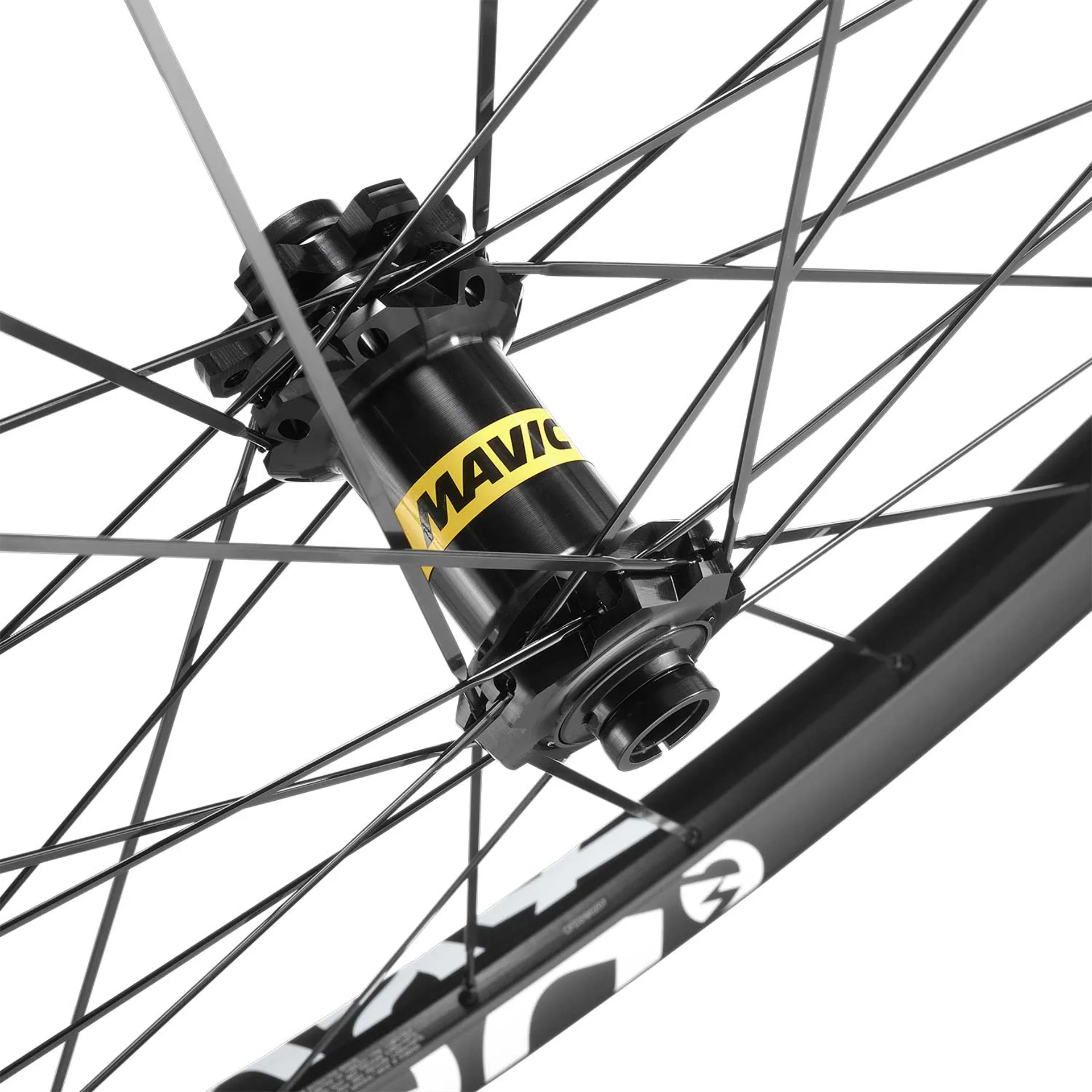

- Bearings: QRM automatic setting sealed cartridge
- Freewheel System: Super reliable ID360 double ratchet system
- Maximum Weight (Including Bike): 180kg
- Pair: 2160g
- Rear: 1144g
- Front: 1016g
Included Accessories:
- Rim Tape: Mounted on wheel
- UST Valve: Not mounted on wheel
- Replacement Spokes: 2 replacement spokes with each wheel
- Multifunction Adjustment Wrench: Included with the rear wheel
