Strong, reliable, and durable, the Mavic E-Deemax 29 6 Bolt Boost Rear Wheel features a brand new 30mm rim profile that eases tyre installation and protects against pinch flats (PFP technology). The name E-Deemax has become a reference for E-bike riders, and this new E-Deemax 30 lives up to its name with many of the same features and technologies as a higher range model, but at a far more attainable price.
Designed and engineered for the unique demands of E-MTBs, this durable wheel features alloy rims with an enlarged rim bed and pinch flat protection, benefiting you from the latest Mavic technologies. Now featuring a wider central channel, installing even the strongest and most rigid tyres has never been so easy. Mavic's exclusive Pinch Flat Protection technology (PFP) offers a wider contact surface at the top of the sidewall and significantly reduces the risk of tyre cuts and punctures. Thanks to PFP, the tyre can resist 20% harder impact before being cut.

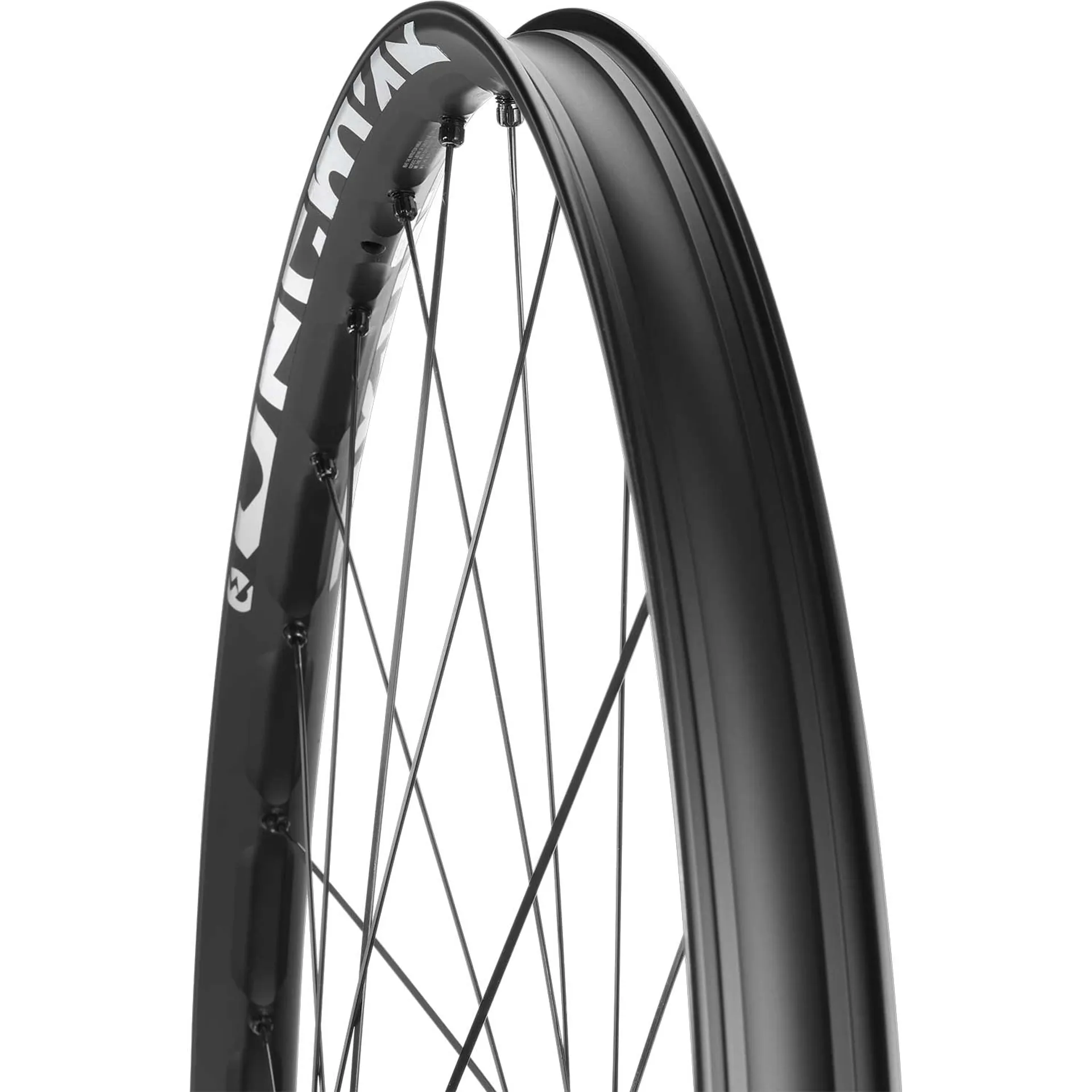

The rim is welded for added reliability and features a 30mm internal width with a tubeless ready compatibility to allow you to run lower tyre pressure for better traction and control. As all E-Deemax wheelsets, this new option is lab and field validated for a maximum total weight of 180kg.

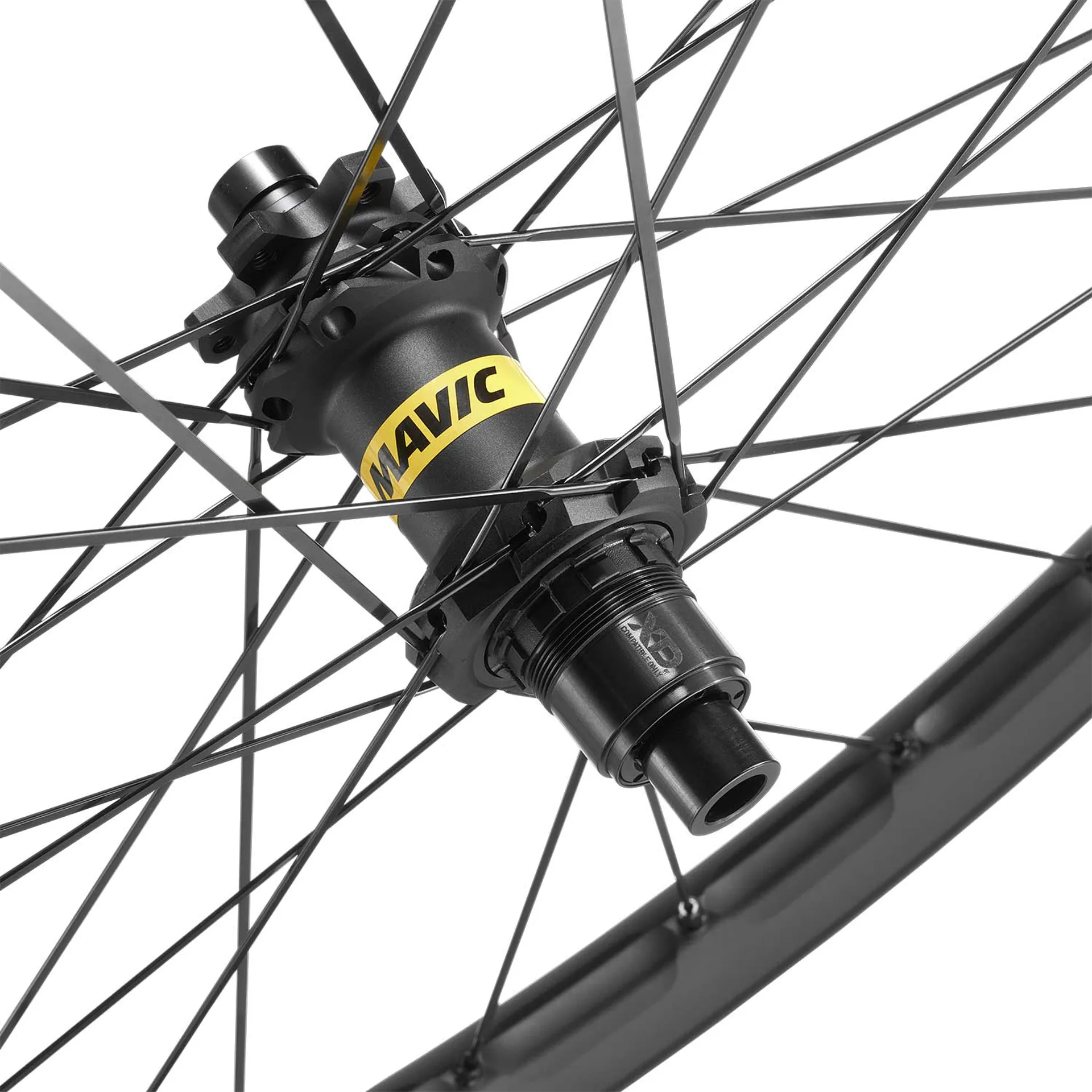

The Instant Drive 360 freewheel with a double ratchet system equips the rear hub and provides fast engagement and top-level reliability. The rear hub is compatible with Shimano HG9, Micro Spline, and SRAM XD driver bodies. The E-Deemax 30 is available with 6-bolt or Center Lock brake rotors and is compatible with a 15x110 front axle and 12x148 rear. The wheel is delivered with valves, replacement spokes, and accessories.
The right wheel and tyre combination can improve your skills and upgrade the performance of your E-bike on challenging off-road terrain. The new E-Deemax S is built specifically for E-bikes and has some unique technologies to help you ride smoother and have more fun on the trail. The 30mm wide rims allow you to run lower tyre pressure for better traction and smooth rolling efficiency. The patented Fore technology features a fully sealed upper rim bridge that eliminates the need for rim tape, making it the easiest system for mounting and changing tubeless tyres.
ISM rim machining removes material from the rims in strategic areas to minimise weight without compromising strength, and the new Black Shield treatment protects the rims against impacts and scratches. Mavic uses 28 straight-pull spokes (same spoke length throughout) for a strong connection between the rim and hub, which has the ultra-reliable ID360 double ratchet system for quick engagement and acceleration. Set up for either 6-bolt or Center Lock disc mounts, these 27.5" wheels are available for Shimano HG9, XD, and Micro Spline freewheel bodies and come with UST tubeless valves, spare spokes, and accessories.
Key Technologies:
- Maxtal Aluminium Alloy: Exclusive to Mavic, this specific aluminium alloy offers a higher strength to weight ratio than traditional 6106 alloy.
- Instant Drive 360 Technology: Super light and efficient. The large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.
- UST Tubeless Technology: Universal Standard for Tubeless. The ready-to-ride tubeless system improves traction, control, and comfort whilst reducing inertia and flats.
- SUP Welding Technology: Soude Usine Process, stronger and smoother joint. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.
- QRM Auto Bearing Preload Technology: Qualite de Roulements Mavic Auto. Cartridge bearings are double sealed with e3 internal clearance. Preload is automatically adjusted to guarantee a perfect spin with no play on the long run.
- ISM Light Rim Technology: Inter Spoke Milling (ISM) is an exclusive Mavic patented concept. It eliminates all the excess material where it is not needed, providing a 15% lighter rim without compromising on reliability.
- Fore Tapeless Tubeless Technology: Stiffer and stronger. The lower rim bridge is pushed up on the inside, then threaded to enable the spoke nipples to be directly screwed into it, leaving the upper rim bridge intact.
- Pinch Flat Protection Sidewall: An E-Bike specific innovation to significantly reduce the risk of tyre cuts and punctures, offering 20% less risk of puncture.
- Black Shield Treatment: This treatment doubles the rim's lifespan against stone impacts and scratches. Super strong double coated treatment with a matt finish.
Freehub Body Acronyms:
- HG or M11: Shimano HG Road 11/12x (other speeds with spacer)
- MS: Shimano Micro Spline
- XD: SRAM XD
- XD-R: SRAM XD-R
- ED11: Campagnolo 9/12x
- N3W: Campagnolo 13x
Intended Use:
- Discipline: Downhill
- ASTM Category: 5 (gravity riding focused on the descent)
- Minimum Tyre Size: Width 52mm - pressure max. 2.95Bar/43PSI
- Maximum Tyre Size: Width 76mm - pressure max. 2.45Bar/36PSI
Full Specification:
- Profile Depth: 22mm
- Inner Width: 30mm
- Rear Axle: 12x148mm
- Front Axle: 15x110mm
- Spokes: Straight pull, flat, extra-flat, constricted, anti rot
- Rim Diameter: 29"
- Nipples: Steel ABS black / Brass Black
- Rim Material: Maxtal
- Tyre Compatibility: UST Tubeless Ready use with Mavic Tubeless Tape
- Maximum Weight: 180kg including bike
- Braking System: 6 Bolt
- Bearings: QRM automatic setting sealed cartridge
- ETRTO Size: 622x30TC
- Weight (Pair): 2008g / 2160g / 2260g (Note: Multiple weights provided in source data)
- Weight (Rear): 1096g / 1194g (Note: Multiple weights provided in source data)
- Weight (Front): 912g / 1066g (Note: Multiple weights provided in source data)
Included Accessories:
- Rim Tape: Mounted on wheel
- UST Valve: Not mounted on wheel
- Replacement Spokes: 2 replacement spokes with each wheel
- Multifunction Adjustment Wrench: Included with the rear wheel (Note: Source mentions 2 wrenches in one section)
- User Guide: Included
