Crafty Carbon S with Bosch CX motor, RockShox ZEB suspension, SRAM Eagle T-Type, and WTB wheels delivers capable e-enduro performance.
Crafty Carbon S with Bosch CX motor, RockShox ZEB suspension, SRAM Eagle T-Type, and WTB wheels delivers capable e-enduro performance.
Mondraker

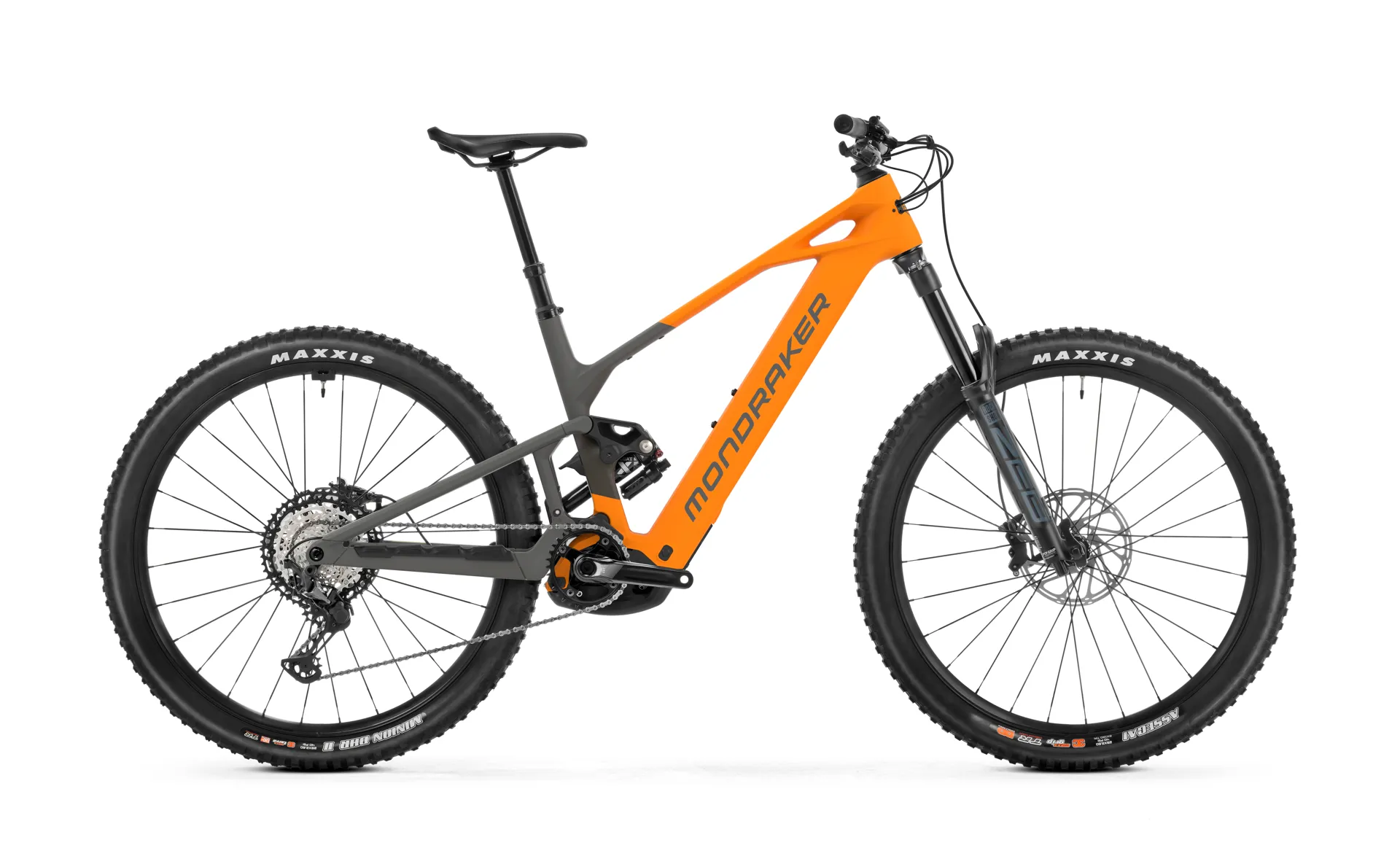

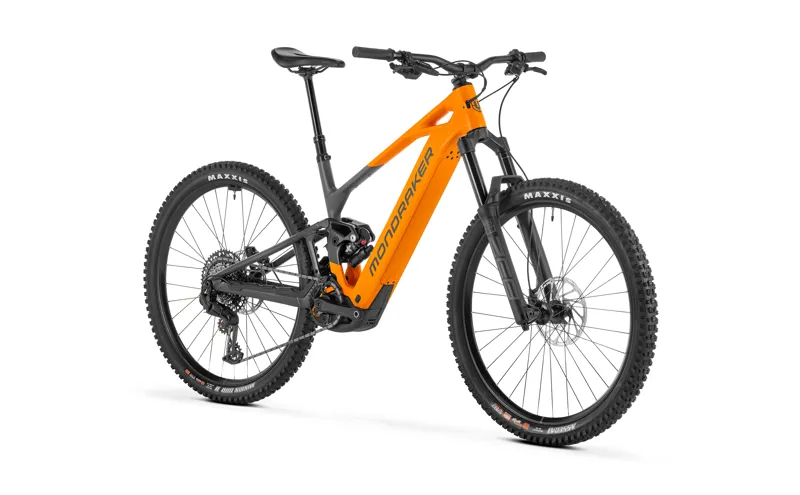

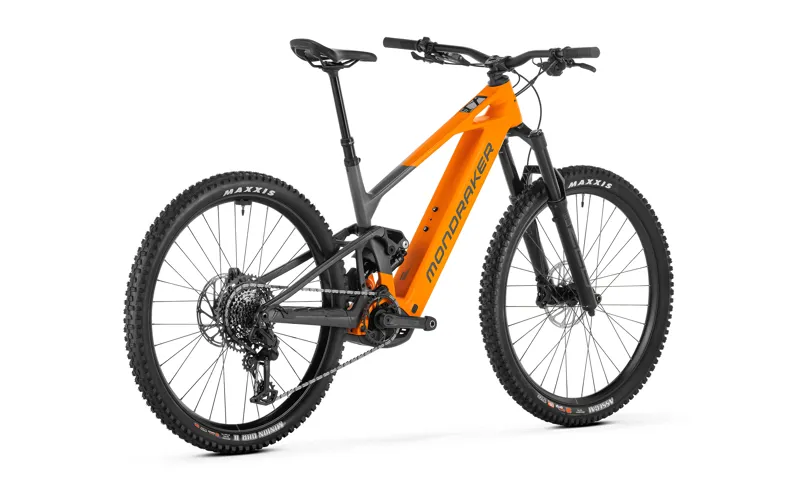

Mondraker Crafty Carbon S Electric Full Suspension Mountain Bike 2027 in Orange/Grey

£4,349.00 £5,799.00 25% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Mondraker Crafty Carbon S Electric Full Suspension Mountain Bike 2027 in Orange/Grey

Season:2027

Brand:Mondraker

Code:CRAFTY CARBON S Orange/Gr

The Mondraker Crafty Carbon S is a capable electric enduro bike designed for riders seeking confident handling, powerful assistance, and dependable trail performance. Its Stealth Air carbon front triangle paired with an alloy rear triangle combines durability with responsive ride characteristics, while the 150mm Zero Suspension platform and Forward Geometry deliver stability and control on technical terrain. Powered by the Bosch Performance Line CX Smart System motor and 800Wh battery, it provides strong assistance and long-range capability for demanding mountain rides. RockShox suspension, SRAM Eagle T-Type drivetrain, and durable WTB wheels complete a reliable enduro-ready package.

Key Features & Benefits:

  • Advanced Enduro Chassis: Carbon front triangle with Zero Suspension and Forward Geometry delivers confident and stable handling on technical trails.
  • Bosch Smart System Power: Bosch Performance Line CX motor and 800Wh battery provide strong assistance and excellent range.
  • Reliable Trail Components: RockShox suspension and SRAM Eagle T-Type drivetrain deliver dependable performance for demanding riding.

Full Specification:

  • Motor: Bosch Performance Line CX Smart System (15.5mph, 25km/h)
  • Battery: Bosch Powertube 800Wh
  • Charger: Bosch charger
  • Controller: Bosch Mini Remote
  • Display: Bosch Kiox 400C
  • Frame: Crafty Stealth Air carbon front triangle with alloy rear triangle, 150mm Zero Suspension, Forward Geometry, Boost 12x148mm, UDH, removable battery, internal routing
  • Fork: RockShox ZEB Base Rush RC 29, 160mm travel, 15x110mm Boost axle, 44mm offset
  • Rear Shock: Fox Float-X LV Performance, 185x55mm, adjustable compression and rebound
  • Handlebars: Onoff S6 1.0 7050 alloy, 800mm width, 25mm rise (L/XL: 38mm), 8° backsweep, 5° upsweep
  • Stem: Onoff S6 forged alloy + CNC, 30mm, 0°
  • Seatpost: X-Fusion Manic dropper (S: 125mm / M: 150mm / ML: 170mm / L: 190mm / XL: 200mm)
  • Saddle: Ergon SM-10
  • Pedals: Not Supplied — Shop Pedals Here
  • Shifters: SRAM Trigger 70 T-Type, 12-speed
  • Rear Derailleur: SRAM 70 Eagle T-Type, 12-speed
  • Front Derailleur: None
  • Brakes: SRAM DB8 hydraulic disc, 4-piston, 200mm rotors
  • Brake Levers: SRAM DB8 Stealth
  • Cassette: SRAM XS-1270, 10-52T
  • Chain: SRAM 70 T-Type Flattop, 12-speed
  • Crankset: ethirteen Helix Core espec Plus, 160mm
  • Rims: WTB Sportterra Tough, welded aluminium, 30mm internal width, tubeless ready
  • Front Hub: WTB Frequenzy Sport Boost 15x110mm, 6-bolt
  • Rear Hub: WTB Frequenzy Sport Boost 12x148mm, HG freehub
  • Spokes: WTB straight gauge with black brass nipples
  • Front Tyre: Maxxis Assegai 29x2.5WT, 3C MaxxGrip, EXO+
  • Rear Tyre: Maxxis Minion DHR II 29x2.5WT, 3C MaxxTerra, DD
  • Extras: Internal cable routing, removable battery, sealed MAX bearings, motor protection covers
  • Weight: 24.3 kg

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.


Size Guide for Mondraker Crafty

Frame SizeRider Height (cm)Rider Height (')
SmallUnder 165 cmUnder 5'5"
Medium165–175 cm5'5"–5'9"
Medium/Large170–185 cm5'7"–6'1"
Large180–190 cm5'11"–6'3"
X-Large190–195 cm6'3"–6'5"

Geometry Information for Mondraker Crafty


Frame size
S [Std/Low]M [Std/Low]M/L [Std/Low]L [Std/Low]XL [Std/Low]
ASeattube length380 mm410 mm435 mm460 mm490 mm
BToptube length581 mm/582 mm596 mm/597 mm618 mm/619 mm640 mm/641 mm662 mm/663 mm
CBottom bracket drop-25 mm/-30 mm-25 mm/-30 mm-25 mm/-30 mm-25 mm/-30 mm-25 mm/-30 mm
DBottom bracket height350 mm/345 mm350 mm/345 mm350 mm/345 mm350 mm/345 mm350 mm/345 mm
EChainstay length455 mm/456 mm455 mm/456 mm455 mm/456 mm465 mm/466 mm465 mm/466 mm
FSeat tube angle73°/72.65°73°/72.65°73°/72.65°73°/72.65°73°/72.65°
GEffective seattube angle77.95°/77.6°77.95°/77.6°77.95°/77.6°77.95°/77.6°77.95°/77.6°
HHeadtube angle64.5°/64.15°64.5°/64.15°64.5°/64.15°64.5°/64.15°64.5°/64.15°
IFork Offset44 mm44 mm44 mm/44 mm44 mm44 mm/44 mm
JWheelbase1240 mm/1241 mm1255 mm/1256 mm1280 mm/1281 mm1314 mm/1315 mm1338 mm/1339 mm
KHeadtube length120 mm120 mm130 mm140 mm150 mm
LReach445 mm/441 mm460 mm/456 mm480 mm/476 mm500 mm/496 mm520 mm/516 mm
MStack638 mm/641 mm638 mm/641 mm647 mm/650 mm656 mm/659 mm665 mm/668 mm

Warranty Information for Mondraker:

Mondraker offers an extended lifetime warranty for all its frames against defects in materials or manufacturing. Exclusions and terms apply.
It should be emphasised that each bicycle/frame has a life-cycle which will vary depending on the type of material and its construction. This life-cycle may be shortened by the form and type of use, or lack of appropriate maintenance and care. The lifetime warranty will therefore be entirely dependent on the optimal life-cycle determined by Mondraker for each specific Product.

The Avinox drive system (motor, battery, display, and charger) comes with a 2-year warranty starting from the activation date, covering up to 500 charge cycles. Exclusions and terms apply.

All warranty claims for Mondraker components or original parts will be handled through an authorised Mondraker distribution point, and the original commercial invoice must be provided.

Mondraker points of sale will handle the warranty of third-party manufacturers' components, with each manufacturer being responsible for the warranty of its components used in the product.

For Full Terms and Conditions Visit Mondrakers Website
