SCOTT AXIS 30: 28.2kg alloy e-bike with Bosch CX motor, 540Wh battery, 120mm travel fork, cargo-ready rack & trailer towing. Urban to trail
SCOTT AXIS 30: 28.2kg alloy e-bike with Bosch CX motor, 540Wh battery, 120mm travel fork, cargo-ready rack & trailer towing. Urban to trail
Scott

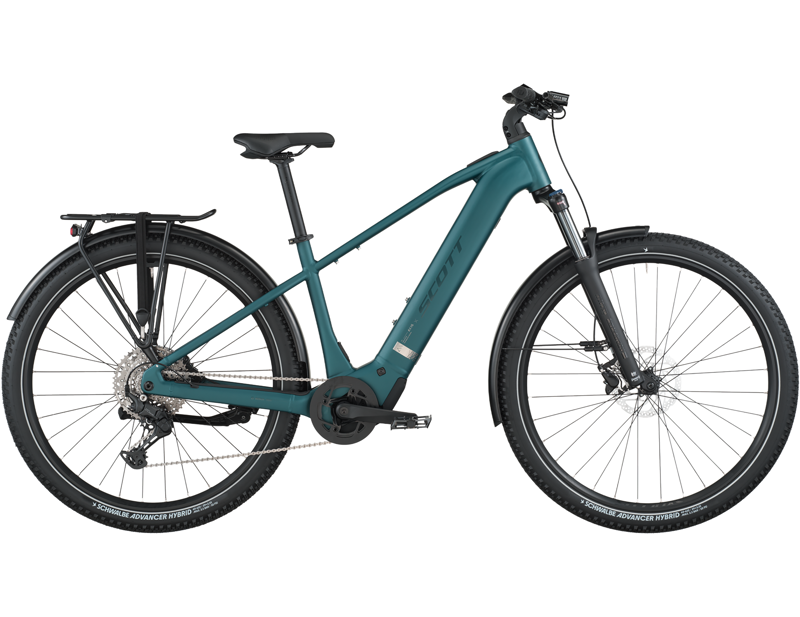

Scott Axis 30 Electric Hybrid Bike 2026 in Cypress Green

£3,199.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Scott Axis 30 Electric Hybrid Bike 2026 in Cypress Green

Season:2026

Brand:Scott

Code:425607314

The perfect bridge between urban cruising and mountain biking.

The SCOTT AXIS eRIDE is equipped with the Bosch Performance motor and a 540Wh battery, perfect for weekend explorations in the outdoors. Wanna bring the kids and dogs with you? No problem. Thanks to the new Syncros Heavy Duty rack that can carry up to 27kg, and the new Syncros Thru-Axle enabling you to tow cargo trailers, you can load up the Axis with everything you need to make the most of your rides.

Axis comes in two sleek frame shapes, with the Wave allowing for a lower standover height to make mounting and dismounting a breeze. With the same features and handling characteristics, you can simply pick the one that fits you best.

As comfy as you'd like. Ride Axis.

Key Features & Benefits:

  • Aluminium Frame: Light & durable.
  • Bosch Performance CX Motor: Cutting edge full-power motor and battery technology in a package built for singletrack domination.
  • Hydraulic Disc Brakes: Light action and accurate braking power

Full Specification:

  • Frame: Alloy S-XL=29" / 6061 Alloy custom butted tubing, Top extraction battery, UDH Interface / 12x148mm with 52mm Chainline
  • Rear Suspension (If Applicable):
  • Fork: SR Suntour XCM34 LO Coil / Tapered / 15x110 bolt Axle / Lock Out / 120mm Travel
  • Motor: Bosch Performance CX
  • Battery: PowerTube 540Wh
  • Controller: Bosch Purion 200
  • Number of Gears: 10
  • Gear Shifters: Shimano SL-U600010RC
  • Chainset: FSA CK-220 165mm
  • Chainrings: Miranda 36T w/Chain Guard
  • Rear Cassette: Shimano CS-LG40010 11-48T 10 Speed
  • Chain: Shimano LG500
  • Front Derailleur: N/A
  • Rear Derailleur: Shimano CUES RD-U6000GS 10 Speed
  • Bottom Bracket:
  • Pedals: VP VPE-506
  • Rims: Syncros X18 Disc
  • Front Hub: Shimano HBTC50015BB, 15x110mm
  • Rear Hub: Shimano FHTC500HMBB, 148x12mm
  • Front Tyre: Schwalbe Advancer 60-622 Wired
  • Rear Tyre: Schwalbe Advancer 60-622 Wired
  • Brakes: Shimano BR-MT200 Disc Brakes Front: SM-RT30 CL 180mm, Rear: RT-EM300 CL 180mm
  • Handlebars: Syncros 3.0 720mm / 31.8mm / Backsweep 9° / 12mm rise
  • Handlebar Tape: Syncros Lock On Grip
  • Headset: Acros / 1.5"- 1.5", semi integ. OD 50/61mm / ID 44/55mm
  • Stem: Syncros
  • Saddle: Syncros Capilano
  • Seatpost: Syncros M3.0 / 31.6
  • Accessories: Ursus Kickstand, Curana alloy profile Fender
  • Weight: 28.2 kg, 62 lbs 2.72 oz
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Geometry Guide for Scott Axis

Geometry Guide for Scott Axis

XSSMLXL
Ahead tube angle66.0 °66.0 °67.0 °67.0 °67.0 °
Bhead tube length130.0 mm130.0 mm130.0 mm140.0 mm150.0 mm
Ctop tube horizontal580.0 mm580.0 mm600.0 mm620.0 mm640.0 mm
Dstandover height773.1 mm788.2 mm789.3 mm826.6 mm861.4 mm
EBB offset63.0 mm63.0 mm63.0 mm63.0 mm63.0 mm
FBB height312.0 mm312.0 mm312.0 mm312.0 mm312.0 mm
Gwheel base1,213.1 mm1,213.1 mm1,221.1 mm1,242.7 mm1,264.3 mm
HBB center to toptube center
IBB center to top of seattube370.0 mm400.0 mm440.0 mm490.0 mm540.0 mm
Jseat angle75.8 °75.8 °75.8 °75.8 °75.8 °
Kchainstay482.0 mm482.0 mm482.0 mm482.0 mm482.0 mm
Lreach412.2 mm412.2 mm430.8 mm448.5 mm466.2 mm
Mstack663.0 mm663.0 mm668.6 mm677.8 mm687.0 mm
Nstem length70.0 mm70.0 mm70.0 mm70.0 mm70.0 mm
Otrail111.1 mm111.1 mm103.8 mm103.8 mm103.8 mm

Geometry Guide for Scott Axis Wave

S / 900M / 900L / 900XL / 900
Ahead tube angle68.2 °68.2 °68.2 °68.2 °
Bhead tube length160.0 mm160.0 mm170.0 mm170.0 mm
Ctop tube horizontal575.0 mm595.0 mm615.0 mm615.0 mm
Dstandover height638.0 mm633.0 mm630.0 mm630.0 mm
EBB offset-75.5 mm-75.5 mm-75.5 mm-75.5 mm
FBB height299.5 mm299.5 mm299.5 mm299.5 mm
Gwheel base1,190.0 mm1,210.0 mm1,232.0 mm1,232.0 mm
HBB center to toptube center
IBB center to top of seattube440.0 mm480.0 mm520.0 mm560.0 mm
Jseat angle76.9 °76.9 °76.9 °76.9 °
Kchainstay482.0 mm482.0 mm482.0 mm482.0 mm
Lreach413.0 mm433.0 mm450.0 mm450.0 mm
Mstack696.0 mm688.0 mm705.0 mm705.0 mm
Nstem length90.0 mm90.0 mm90.0 mm90.0 mm
Otrail100.0 mm100.0 mm100.0 mm100.0 mm



Warranty Information for Scott:

The manufacturer's guarantee is only granted to the first-time buyer of a SCOTT bicycle who has purchased it from an authorized SCOTT dealer. The manufacturer's guarantee only applies if the bicycle is registered to the first buyer at www.scott-sports.com within ten days of purchase.
The manufacturer's guarantee is granted from the date of purchase for a period of five years on bicycle frames and rear ends. The guarantee period is reduced to three years, if the SCOTT bicycle is not serviced at least once a year by an authorized SCOTT dealer.
For frames and rear ends of Category 5 bicycle models and for rigid forks manufactured by SCOTT, the duration of the manufacturer's guarantee is limited to two years.
For full warranty policy please visit scott-sports.com

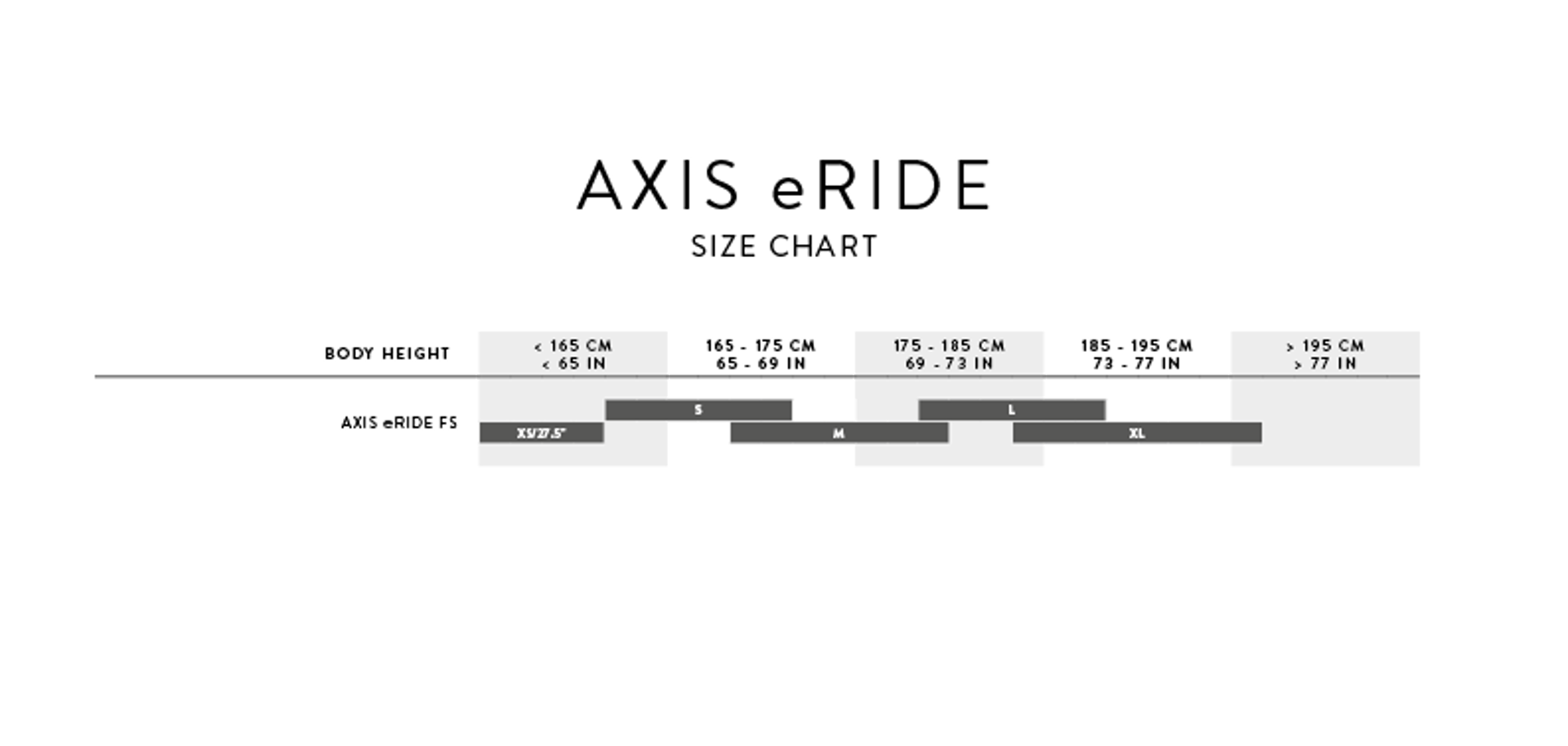

Sizing Information
