Scott Sub Sport 40 Wave Electric Hybrid Bike 2027 in Black combines Bosch Active Line Plus (BDU344Y) and Bosch PowerTube 540Wh for commuting, leisure and everyday riding.

Scott

Scott Sub Sport 40 Wave Electric Hybrid Bike 2027 in Black

£2,799.00

Size Guide

Earn

in Customer Rewards when you buy this item today

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Earn Rewards

When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.

Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Scott Sub Sport 40 Wave Electric Hybrid Bike 2027 in Black

Season:2027

Brand:Scott

Code:4276800001Sub Sport 40 Wa

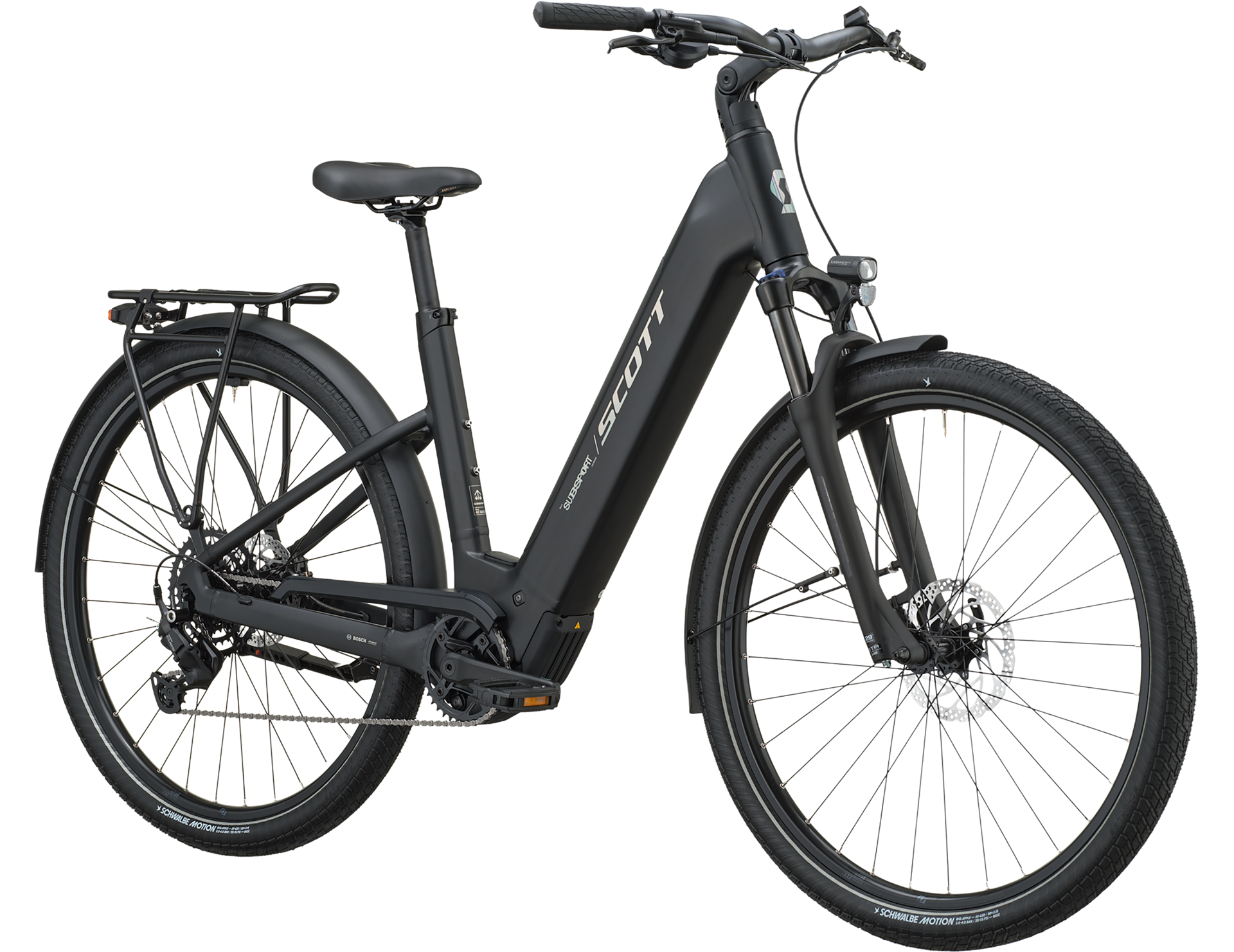

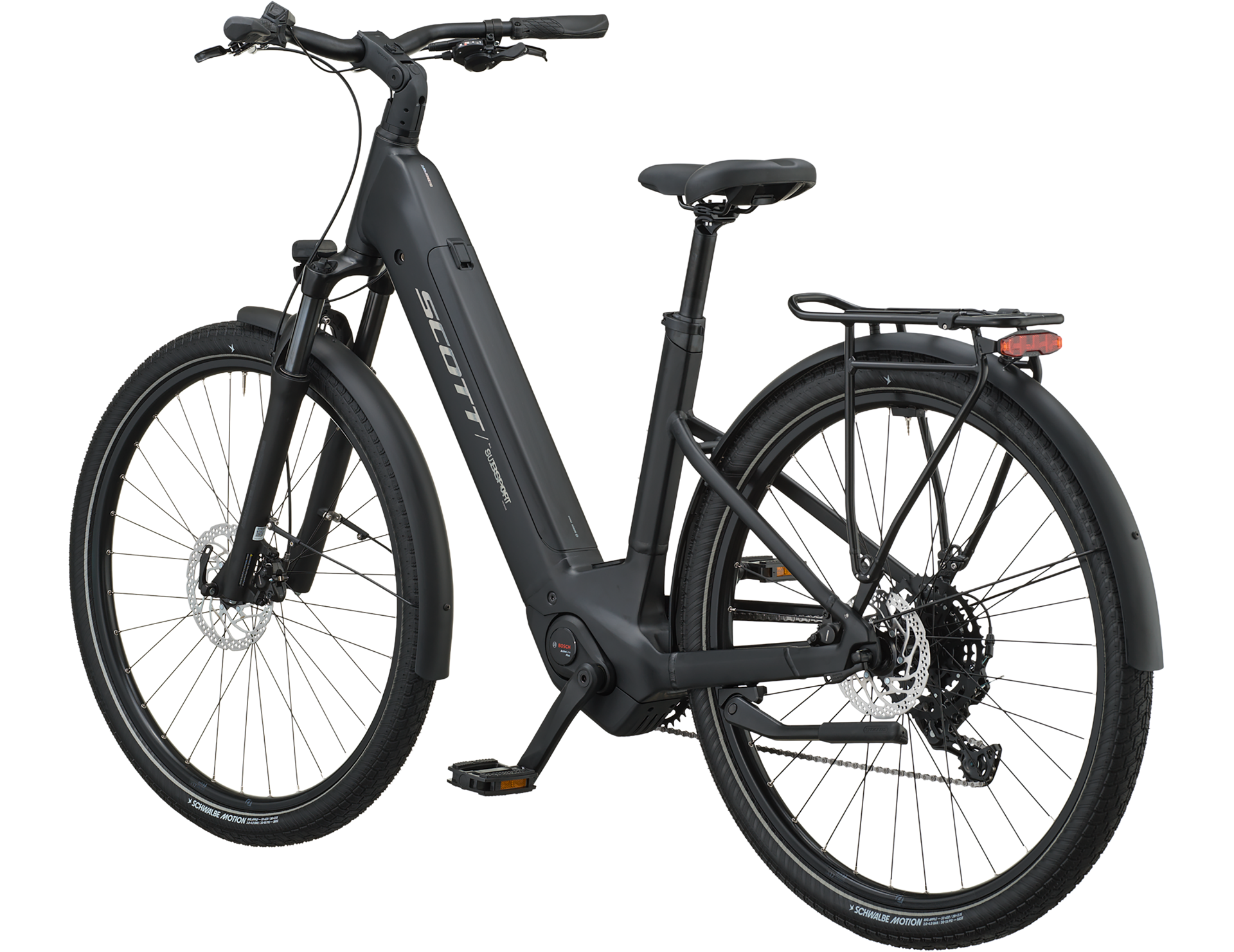

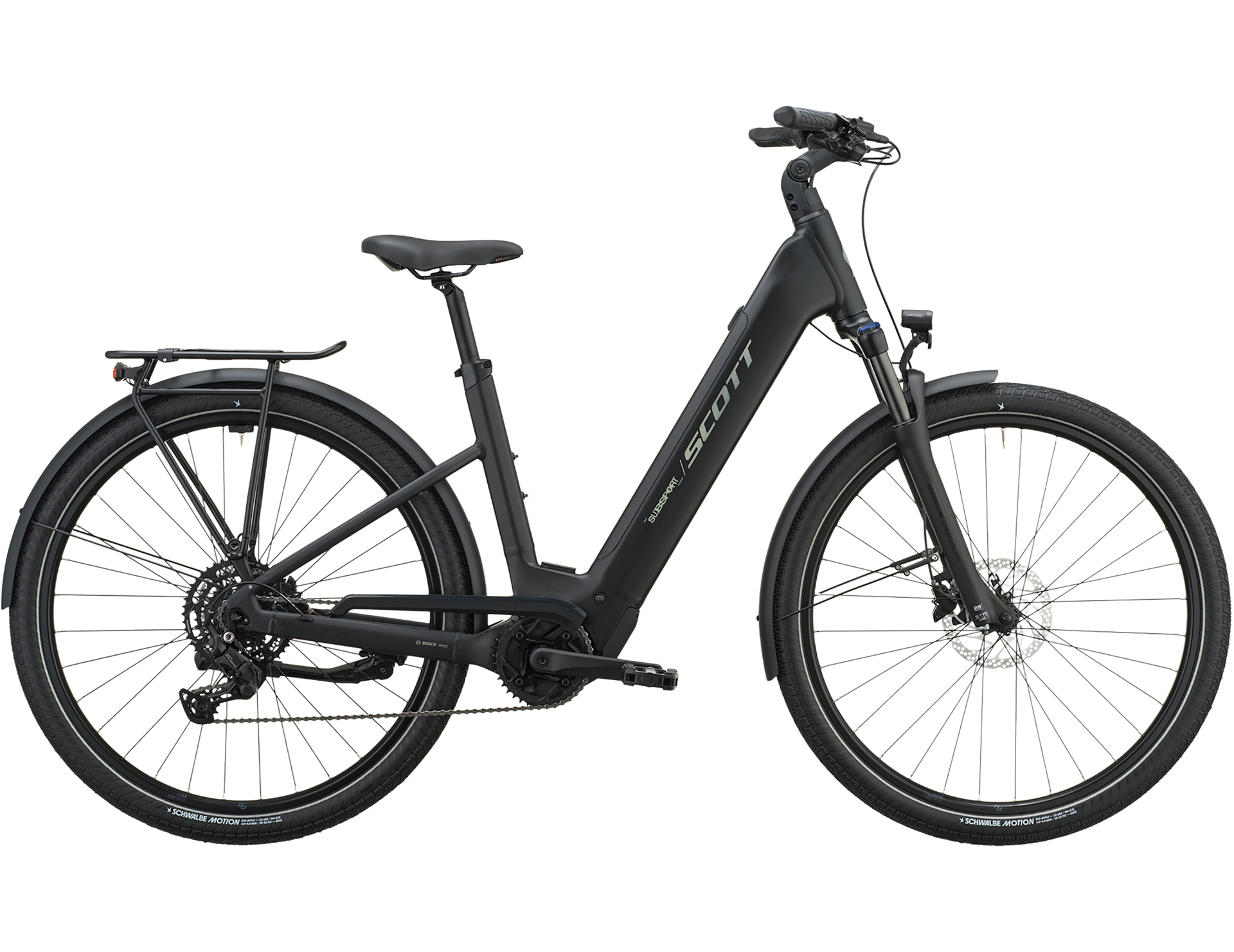

The SCOTT SUB Sport 40 Wave E-Bike turns everyday riding into a smoothly balanced, supported, and truly enjoyable part of the day. Plus, its low step‑through frame makes hopping on and off effortless. Power comes from Bosch’s Active Line Plus motor paired with a removable 540Wh battery, delivering a naturally smooth acceleration and a range that comfortably covers school runs, commuter trips, and longer weekend outings. Multiple assist modes let you dial in exactly the amount of boost you need—whether you need a strong surge to tackle a hill with a loaded bike or just a gentle sip of power to glide through traffic.

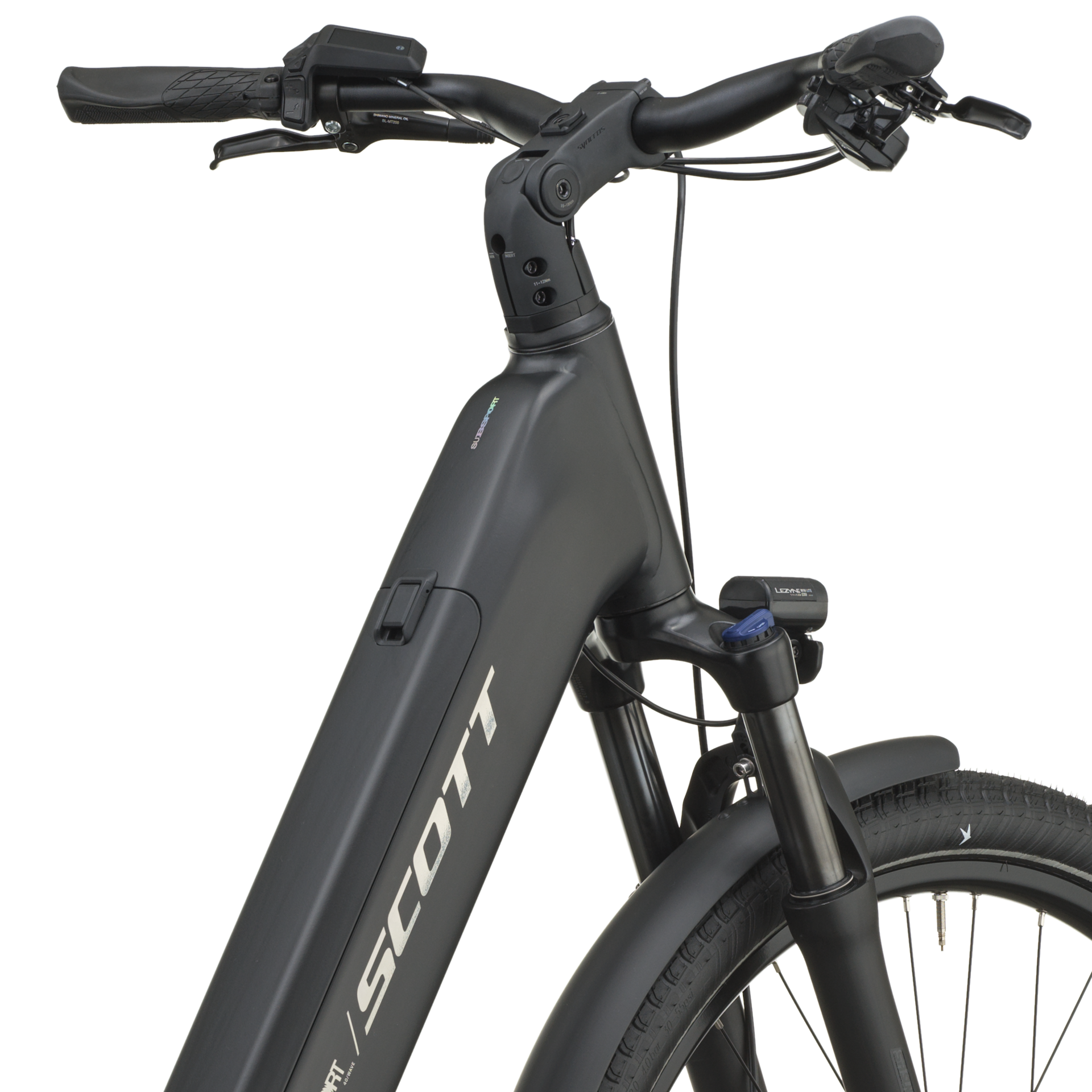

The stem is fully adjustable, so you can transition from a relaxed, ergonomic posture for a leisurely ride to a sportier, more responsive position when you need to move quickly. An integrated SP connection securely holds your phone, keeping navigation in clear view and your hands free for a safer, more attentive ride.

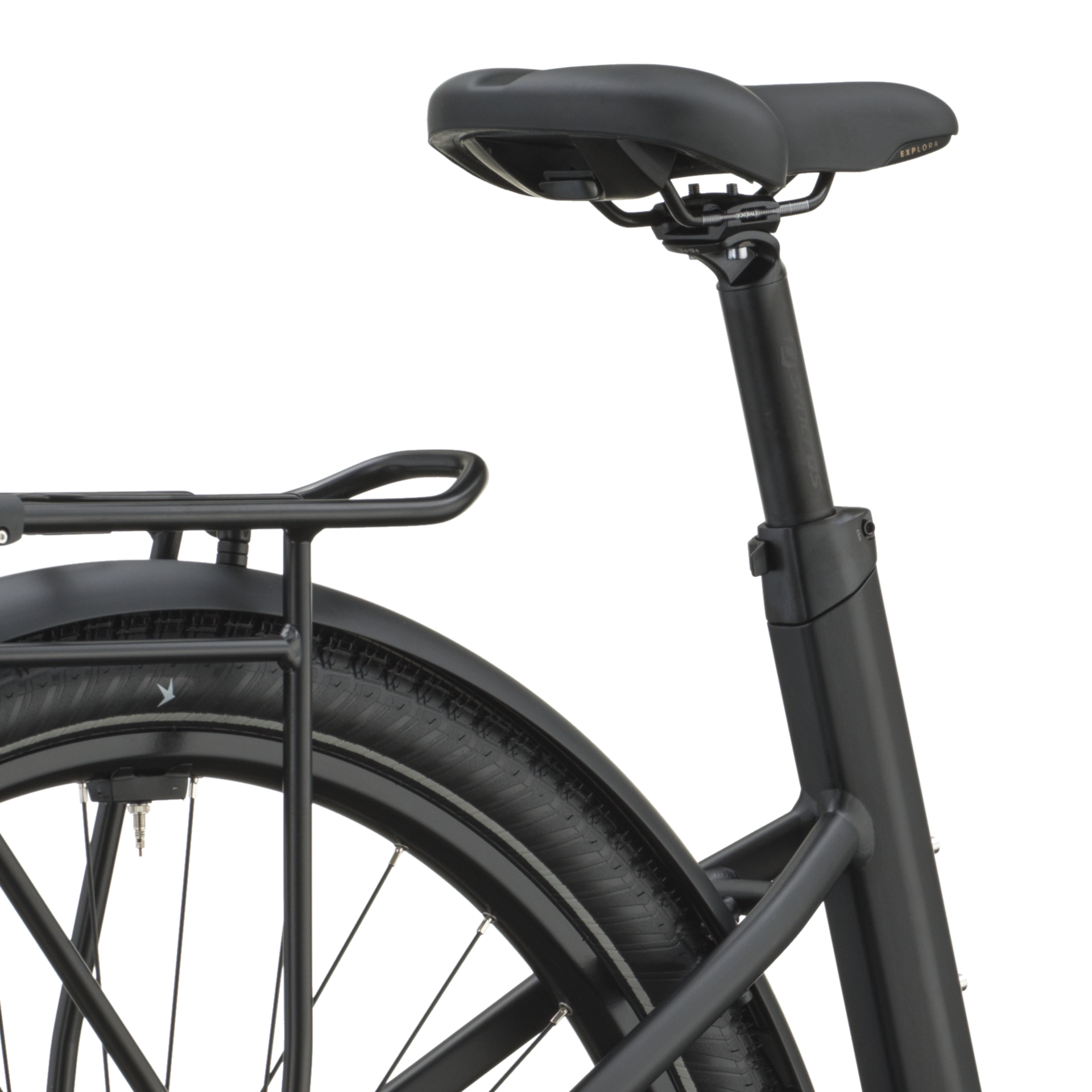

The rear rack supports up to 30kg and is compatible with Racktime SNAPIT 2.0 and KID'n’CARRY systems, making cargo simple to attach. And the front light is positioned on the fork, freeing up space for a front basket so you can keep essentials within arm’s reach.

Features & Benefits:

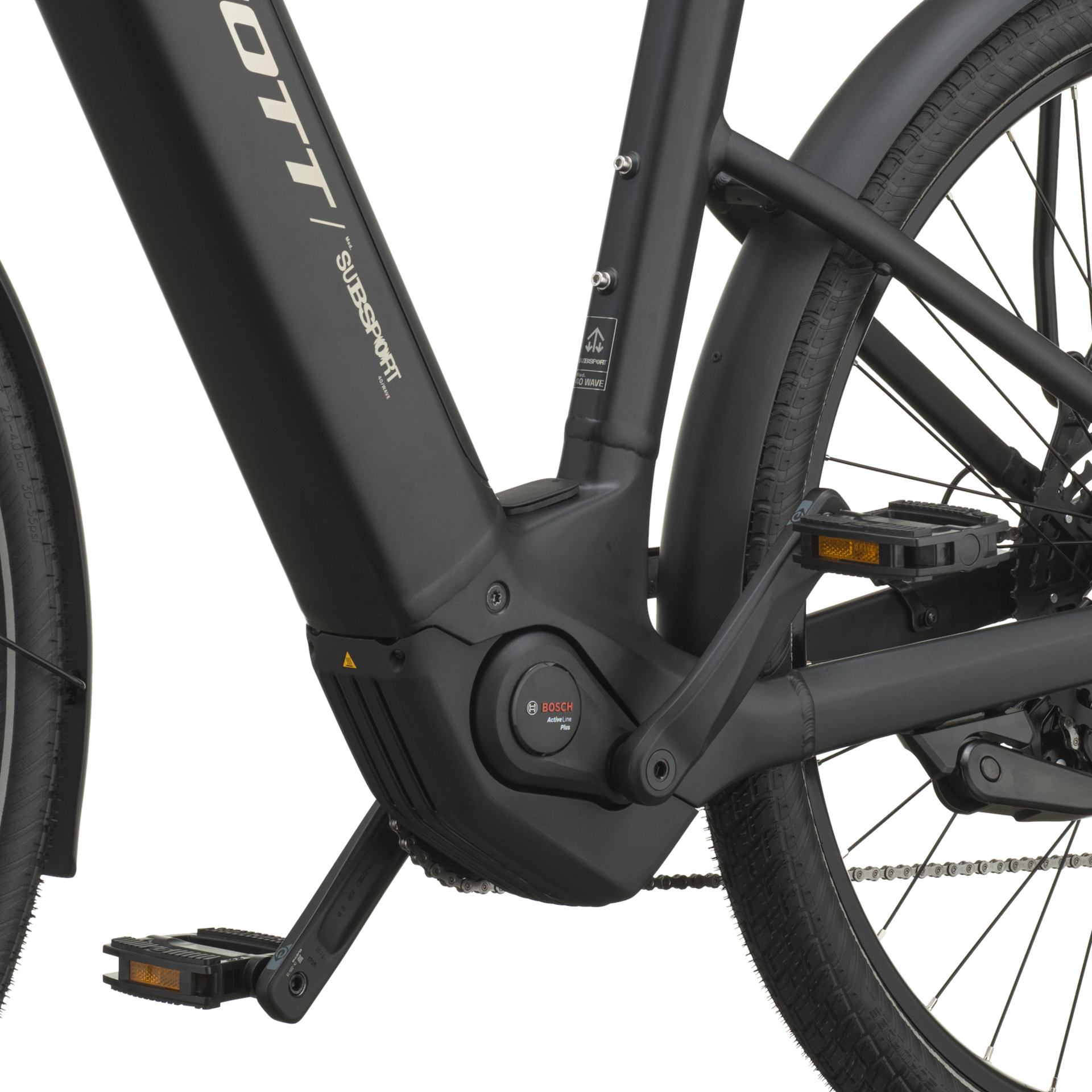

Integrated Electric Assistance: The Bosch Active Line Plus (BDU344Y) works with a 540Wh battery to add smooth support for longer rides, sustained climbs and everyday mileage.
Everyday Ride Comfort: SR Suntour NVX 32 5TA COIL LO; Schwalbe Big Apple Performance; 55-622 help smooth imperfect roads and paths, supporting a more comfortable ride for commuting, leisure and longer journeys.

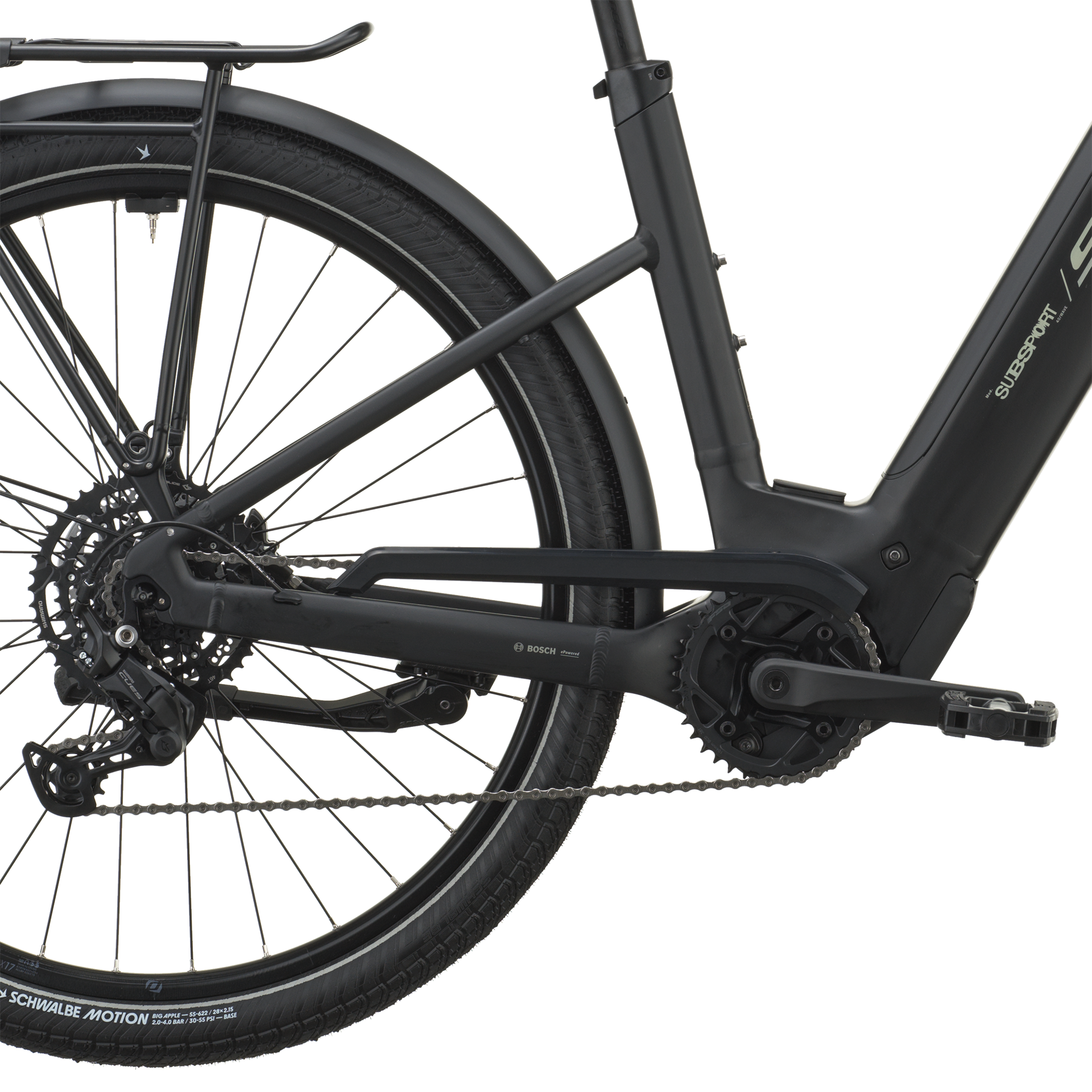

Purpose-Matched Gearing: The Shimano Cues SL-U4000 With Display, Shimano Cues RD-U4000 9-Speed, Shimano Cues CS-LG300; 9-Speed 11-46T gives a practical spread of gears so motor assistance can be matched with the terrain and riding pace.

Full Specification:

Frame: Alloy S-XL=29", 6061 Alloy custom butted tubing, Top extraction battery, UDH Interface, 141mm QR with 52mm Chainline; Travel: 100mm

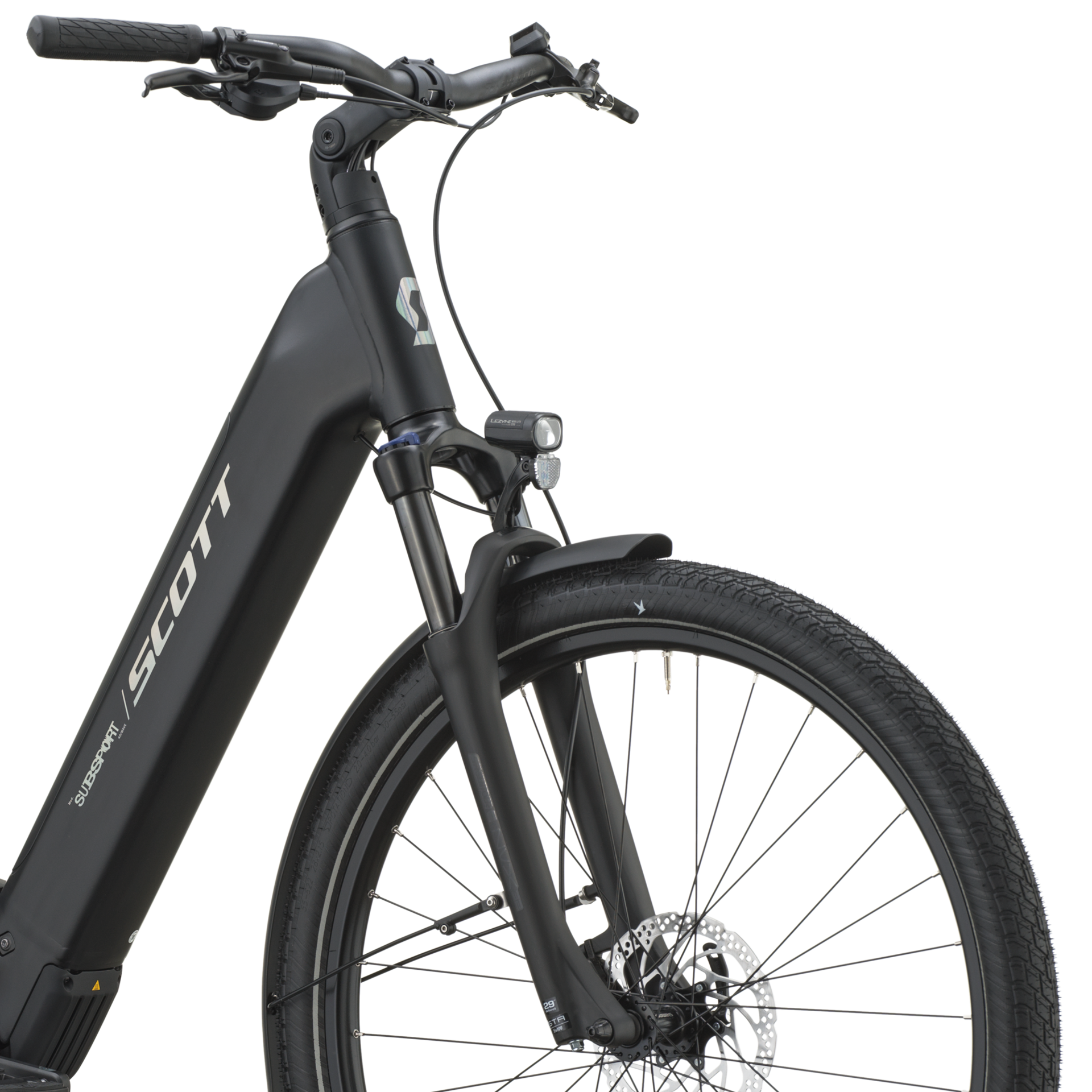

Fork: SR Suntour NVX 32 5TA COIL LO
Motor: Bosch Active Line Plus (BDU344Y)
Battery: Bosch PowerTube 540Wh
Controller: Bosch Purion 200
Charger: Bosch 2A Charger 230V
Number of Gears: 9
Gear Shifters: Shimano Cues SL-U4000 With Display
Chainset: FSA CK 220 170mm
Chainrings: FSA 38T w/o Chain Guard
Rear Cassette: Shimano Cues CS-LG300, 9-Speed 11-46T
Chain: Shimano CN-LG500
Rear Derailleur: Shimano Cues RD-U4000 9-Speed
Pedals: Marwi SP-827
Rims: Front: X18 Disc; Rear: X18 Disc; Spokes: Stainless Black 13G
Front Hub: Shimano HBQC400B58LL, 5x100mm
Rear Hub: Shimano FH-QC400-HM QR
Front Tyre: Schwalbe Big Apple Performance, 55-622
Rear Tyre: Schwalbe Big Apple Performance, 55-622
Brakes: Shimano BR-MT200 2-Piston; Front rotor: Shimano SM-RT30 CL, 180mm; Rear rotor: Shimano SM-RT30 CL, 160mm
Handlebars: Syncros UC3.0 680mm, Rise 26mm, Backsweep 30°
Grips or Bar Tape: Urban Comfort
Headset: Feimin, 28.8-56-62(39.8/30), H887 Bearing Cup
Stem: JD, Adjustable, 31.8*90 mm −10°~+60°, SP Connect
Saddle: Selle Royal Explora Moderate Wide 195mm
Seatpost: Syncros M3.0, 31.6mm, 350mm
Mudguards: Metasol 65
Lights: Front: Lezyne Mini Lite STVZO E350; Rear: Lezyne Superbright STVZO
Pannier Rack: Racktime carrier SNAPIT 2.0 30Kg KID'n'CARRY Ready
Other Accessories: Chaincase cover; Ursus U-Mount Kickstand
Weight: 30.25kg

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Geometry Guide for Scott Sub Sport Wave

SETTING		S / 900	M / 900	L / 900	XL / 900
A	head tube angle	68.2 °	68.2 °	68.2 °	68.2 °
B	head tube length	160.0 mm	160.0 mm	170.0 mm	170.0 mm
C	top tube horizontal	575.0 mm	595.0 mm	615.0 mm	615.0 mm
D	standover height	638.0 mm	633.0 mm	630.0 mm	630.0 mm
E	BB offset	-75.5 mm	-75.5 mm	-75.5 mm	-75.5 mm
F	BB height	299.5 mm	299.5 mm	299.5 mm	299.5 mm
G	wheel base	1,190.0 mm	1,210.0 mm	1,232.0 mm	1,232.0 mm
H	BB center to toptube center
I	BB center to top of seattube	440.0 mm	480.0 mm	520.0 mm	560.0 mm
J	seat angle	76.9 °	76.9 °	76.9 °	76.9 °
K	chainstay	482.0 mm	482.0 mm	482.0 mm	482.0 mm
L	reach	413.0 mm	433.0 mm	450.0 mm	450.0 mm
M	stack	696.0 mm	688.0 mm	705.0 mm	705.0 mm
N	stem length	90.0 mm	90.0 mm	90.0 mm	90.0 mm
O	trail	100.0 mm	100.0 mm	100.0 mm	100.0 mm

Geometry Guide for Scott Sub Sport

SETTING		S	M	L	XL	XXL
A	Head Tube Angle	66°	67°	67°	67°	67°
B	Head Tube Length	140 mm	150 mm	160 mm	170 mm	180 mm
C	Top Tube Horizontal	580 mm	600 mm	620 mm	640 mm	640 mm
D	Standover Height	806 mm	828 mm	859 mm	892 mm	906 mm
E	BB Offset	-63 mm	-63 mm	-63 mm	-63 mm	-63 mm
F	BB Height	315 mm	315 mm	315 mm	315 mm	315 mm
G	Wheel Base	1228 mm	1237 mm	1259 mm	1281 mm	1282 mm
I	BB Center To Top Of Seattube	440 mm	480 mm	530 mm	580 mm	600 mm
J	Seat Angle	76°	76°	76°	76°	76°
K	Chainstay	495 mm	495 mm	495 mm	495 mm	495 mm
L	Reach	410 mm	426 mm	444 mm	462 mm	459 mm
M	Stack	672 mm	687 mm	696 mm	705 mm	715 mm
O	Trail	112 mm	105 mm	105 mm	105 mm	105 mm
P	Fork Length	547 mm	547 mm	547 mm	547 mm	547 mm
Q	Maximum Seatpost Insertion	280 mm	280 mm	280 mm	280 mm	280 mm
N	Stem Length	90 mm	90 mm	90 mm	90 mm	90 mm
R	Handlebar Width	680 mm	680 mm	680 mm	680 mm	680 mm
S	Handlebar Rise	12 mm	12 mm	12 mm	12 mm	12 mm
T	Handlebar Diameter	32 mm	32 mm	32 mm	32 mm	32 mm
U	Crankarm Length	170 mm	170 mm	170 mm	170 mm	170 mm
V	Seat Post Length	350 mm	350 mm	350 mm	350 mm	350 mm
