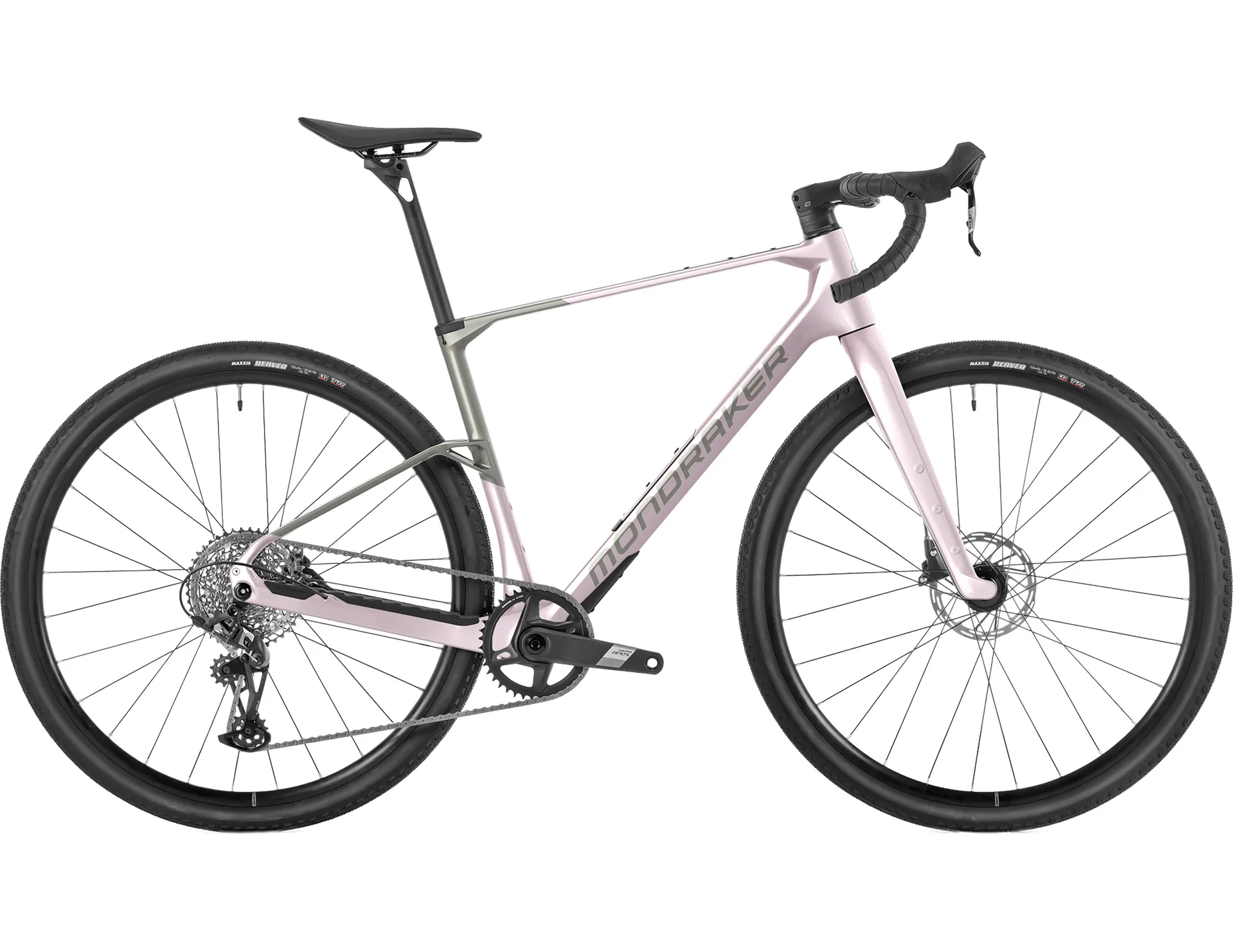

Mondraker Arid Carbon S gravel bike with lightweight carbon frame, SRAM Apex XPLR drivetrain, and all-terrain versatility.
Mondraker Arid Carbon S gravel bike with lightweight carbon frame, SRAM Apex XPLR drivetrain, and all-terrain versatility.
Mondraker

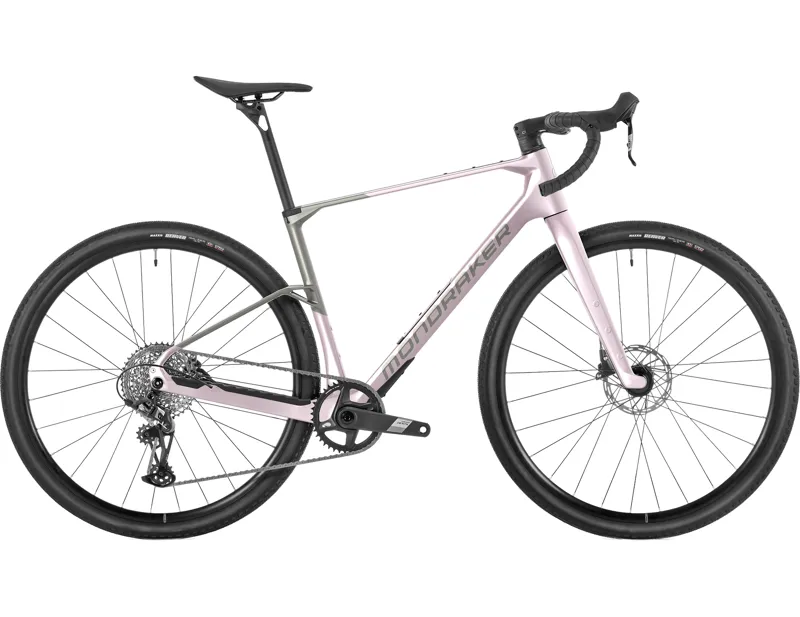

Mondraker ARID CARBON S Carbon Gravel Bike 2027 in Mirage Silver

£3,199.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Mondraker ARID CARBON S Carbon Gravel Bike 2027 in Mirage Silver

Season:2027

Brand:Mondraker

Code:ARID CARBON S Pink/Grey

The Mondraker Arid Carbon S is a versatile gravel bike built to combine lightweight carbon performance, all-day comfort, and confident handling across mixed terrain. Designed around Mondraker’s advanced Stealth Air Carbon frame, it delivers efficient power transfer and excellent compliance for riders tackling everything from fast gravel loops to long-distance adventures.

Its carefully engineered carbon construction balances stiffness and responsiveness with impressive comfort over rough terrain, helping riders maintain speed and control on demanding surfaces. Mondraker’s Forward Geometry provides stable handling at speed while remaining agile and predictable on technical gravel tracks and rough roads.

The SRAM Apex XPLR 12-speed drivetrain delivers reliable wide-range gearing for steep climbs and varied terrain, while Mavic Allroad wheels and Maxxis Reaver tyres provide fast rolling efficiency and dependable grip. With integrated in-frame storage, multiple mounting points, and clearance for up to 50mm tyres, the Arid Carbon S is ready for riders who want true gravel versatility in a lightweight carbon package.

Key Features & Benefits:

  • Advanced Carbon Gravel Frame: Stealth Air Carbon construction delivers responsive acceleration with impressive comfort on rough terrain.
  • Reliable Gravel Drivetrain: SRAM Apex XPLR 12-speed gearing provides dependable shifting and wide-range performance.
  • Adventure Ready Design: Integrated storage, multiple mounting points, and clearance for up to 50mm tyres maximise versatility.

Full Specification:

  • Frame: Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1x drivetrain design, Flatmount brake compatible
  • Fork: Stealth Air Carbon fork with tapered steerer tube, HHG internal cable routing, Flatmount integrated fork
  • Number of Gears: 12
  • Gear Shifters: SRAM Apex D1, 12-speed, X-Actuation
  • Chainset: SRAM Apex 1 Wide. S/M: 165mm, ML: 170mm, L/XL: 172.5mm
  • Chainrings: SRAM X-Sync Eagle 40T direct mount alloy narrow-wide
  • Rear Cassette: SRAM PG-1231, 11-44T, 12-speed
  • Chain: SRAM Apex, 12-speed, PowerLock
  • Front Derailleur: None
  • Rear Derailleur: SRAM Apex XPLR, 12-speed
  • Bottom Bracket: SRAM DUB T47 BSA, sealed bearings, 85.5mm
  • Pedals: Not supplied — Shop Pedals Here
  • Rims: Mavic Allroad Disc UST, 25mm internal width, hookless, 24 front spokes, 28 rear spokes
  • Front Hub: Mavic, 12x100mm, IS 6-bolt
  • Rear Hub: Mavic Infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6-bolt, HG freehub
  • Front Tyre: Maxxis Reaver 700x45, tubeless ready, dual compound, EXO Protection, 120TPI, folding bead
  • Rear Tyre: Maxxis Reaver 700x45, tubeless ready, dual compound, EXO Protection, 120TPI, folding bead
  • Brakes: SRAM Apex 1 hydraulic disc brakes with 160mm Centerline rotors
  • Handlebars: Onoff S3 GR with 16º flare. S/M: 420mm, ML: 440mm, L/XL: 460mm
  • Handlebar Tape: Onoff HEX bartape
  • Stem: Onoff Semi-Integrated, -7º rise. S: 60mm, M/ML: 70mm, L: 80mm, XL: 90mm
  • Saddle: Fizik Vento Argo X5, 140mm
  • Seatpost: Onoff S9 Carbon 15-R, 27.2mm diameter. S/M/ML: 400mm, L/XL: 450mm
  • Accessories: Carry-On in-frame storage system, multiple bottle and cargo mounting points
  • Weight: 9.7kg

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.



Sizing Chart for Mondraker Arid

Mondraker Arid Size Guide

Geometry Information for Mondraker Arid

Arid Frame Geometry

Frame size
SMM/LLXL
ASeattube length410 mm450 mm480 mm510 mm540 mm
BToptube length520 mm550 mm580 mm600 mm630 mm
CBottom bracket drop-75-75-75-75-75
DBottom bracket height269 mm269 mm269 mm269 mm269 mm
EChainstay length425 mm425 mm425 mm425 mm425 mm
FSeat tube angle73°73°73°73°73°
GEffective seattube angle74°74°74°74°74°
HHeadtube angle70°70°70°70°70°
IFork Offset45 mm45 mm45 mm45 mm45 mm
JWheelbase1003 mm1035 mm1067 mm1089 mm1121 mm
KHeadtube length100 mm125 mm145 mm175 mm200 mm
LReach363 mm386 mm411 mm423 mm446 mm
MStack548 mm572 mm591 mm619 mm642 mm
NStem Length60 mm70 mm70 mm80 mm90 mm
OFork Height420 mm420 mm420 mm420 mm420 mm

Warranty Information for Mondraker:

Mondraker offers an extended lifetime warranty for all its frames against defects in materials or manufacturing. Exclusions and terms apply.
It should be emphasised that each bicycle/frame has a life-cycle which will vary depending on the type of material and its construction. This life-cycle may be shortened by the form and type of use, or lack of appropriate maintenance and care. The lifetime warranty will therefore be entirely dependent on the optimal life-cycle determined by Mondraker for each specific Product.

The Avinox drive system (motor, battery, display, and charger) comes with a 2-year warranty starting from the activation date, covering up to 500 charge cycles. Exclusions and terms apply.

All warranty claims for Mondraker components or original parts will be handled through an authorised Mondraker distribution point, and the original commercial invoice must be provided.

Mondraker points of sale will handle the warranty of third-party manufacturers' components, with each manufacturer being responsible for the warranty of its components used in the product.

For Full Terms and Conditions Visit Mondrakers Website
