Mondraker Summum R Mullet downhill bike with Fox 40 suspension, updated Zero Suspension, and adjustable race geometry.
Mondraker Summum R Mullet downhill bike with Fox 40 suspension, updated Zero Suspension, and adjustable race geometry.
Mondraker

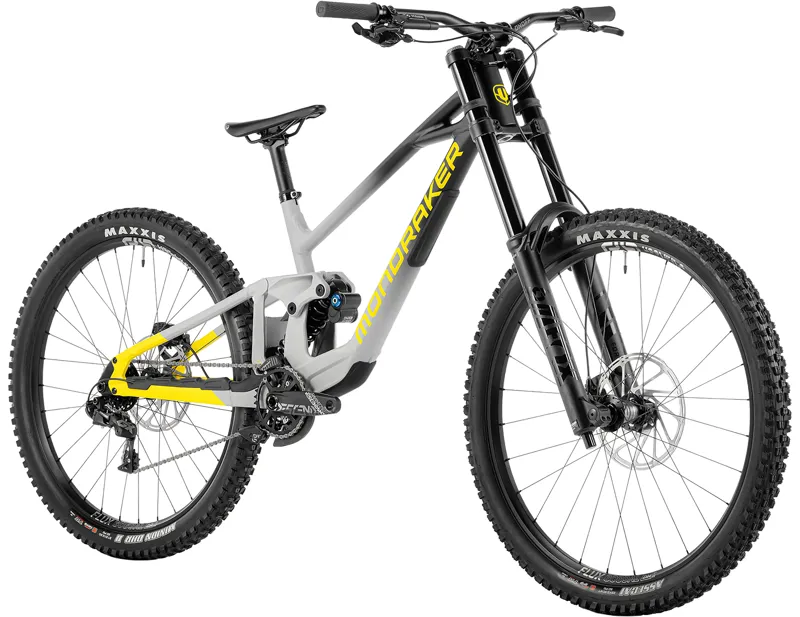

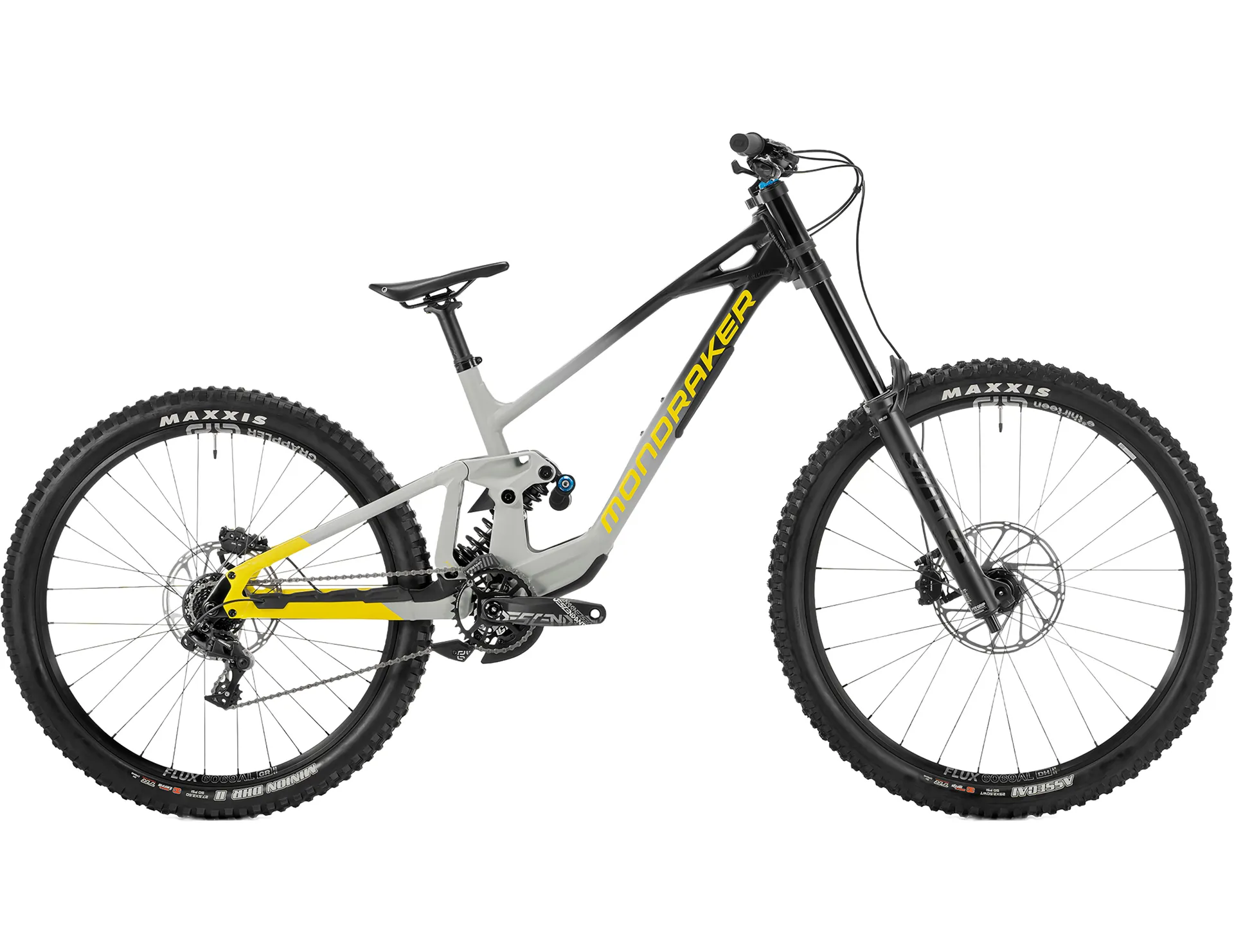

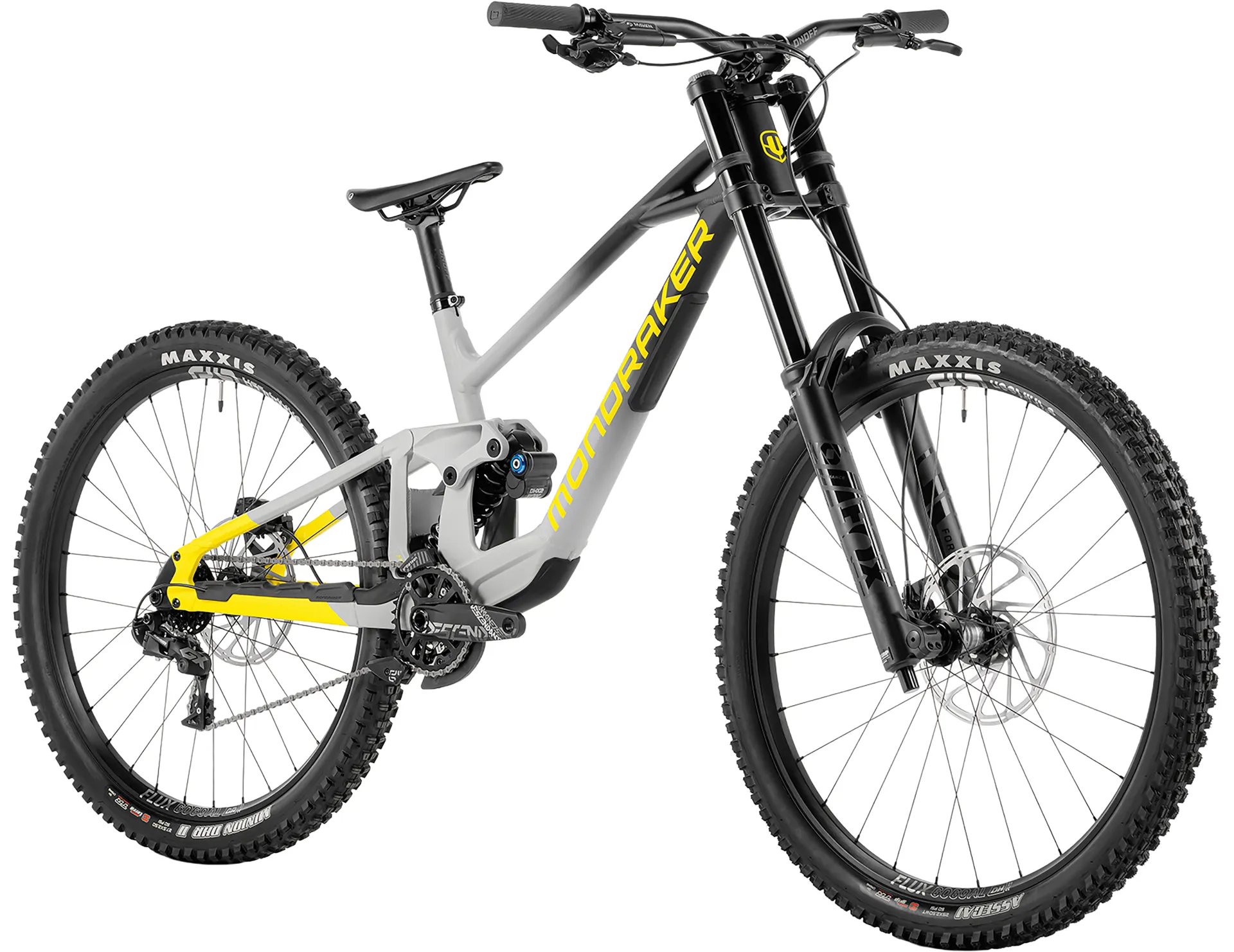

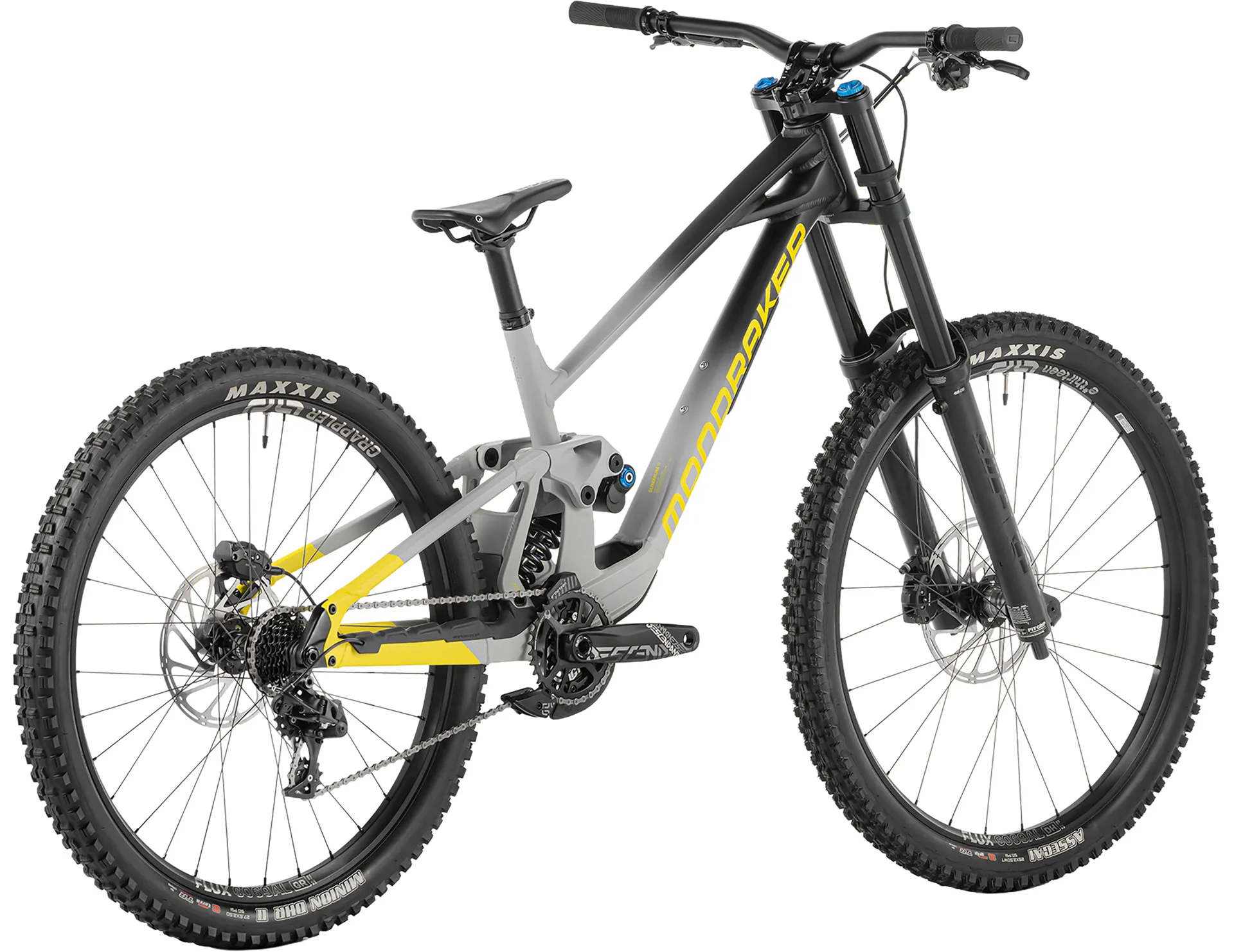

Mondraker SUMMUM R Mullet Full Suspension Downhill Mountain Bike 2027 in Fog Gray/Black/Yellow

£4,999.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Mondraker SUMMUM R Mullet Full Suspension Downhill Mountain Bike 2027 in Fog Gray/Black/Yellow

Season:2027

Brand:Mondraker

Code:SUMMUM R Mullet Gray/Blac

The Mondraker Summum R Mullet is a race-focused downhill bike engineered for maximum speed, control, and adjustability on the toughest tracks in the world. Developed alongside Mondraker’s Factory DH race team and refined on World Cup circuits, it combines proven Zero Suspension kinematics with modern downhill geometry to deliver exceptional composure, traction, and confidence at race pace.

Its Stealth Evo alloy frame features 200mm of rear travel paired with a 203mm Fox 40 GRIP Performance fork, delivering outstanding suspension sensitivity and mid-stroke support for aggressive downhill riding. The mixed-wheel mullet setup combines the rollover speed of a 29-inch front wheel with the agility and responsiveness of a 27.5-inch rear wheel for fast, technical terrain.

The updated Zero Suspension System improves handling and responsiveness while extensive geometry adjustment options allow riders to fine-tune the bike for different tracks and riding styles. Powerful SRAM Maven brakes, downhill-specific SRAM GX DH drivetrain components, and robust e*thirteen wheels complete a highly capable race-ready downhill machine built for maximum performance.

Key Features & Benefits:

  • World Cup Developed Suspension: Updated Zero Suspension System delivers improved support, traction, and downhill control.
  • Extensive Geometry Adjustment: Adjustable headset cups, flip chip, and dropouts provide 27 setup configurations for different tracks.
  • Race-Ready DH Performance: Fox 40 suspension, SRAM Maven brakes, and mullet wheel setup maximise speed and confidence.

Specifications:

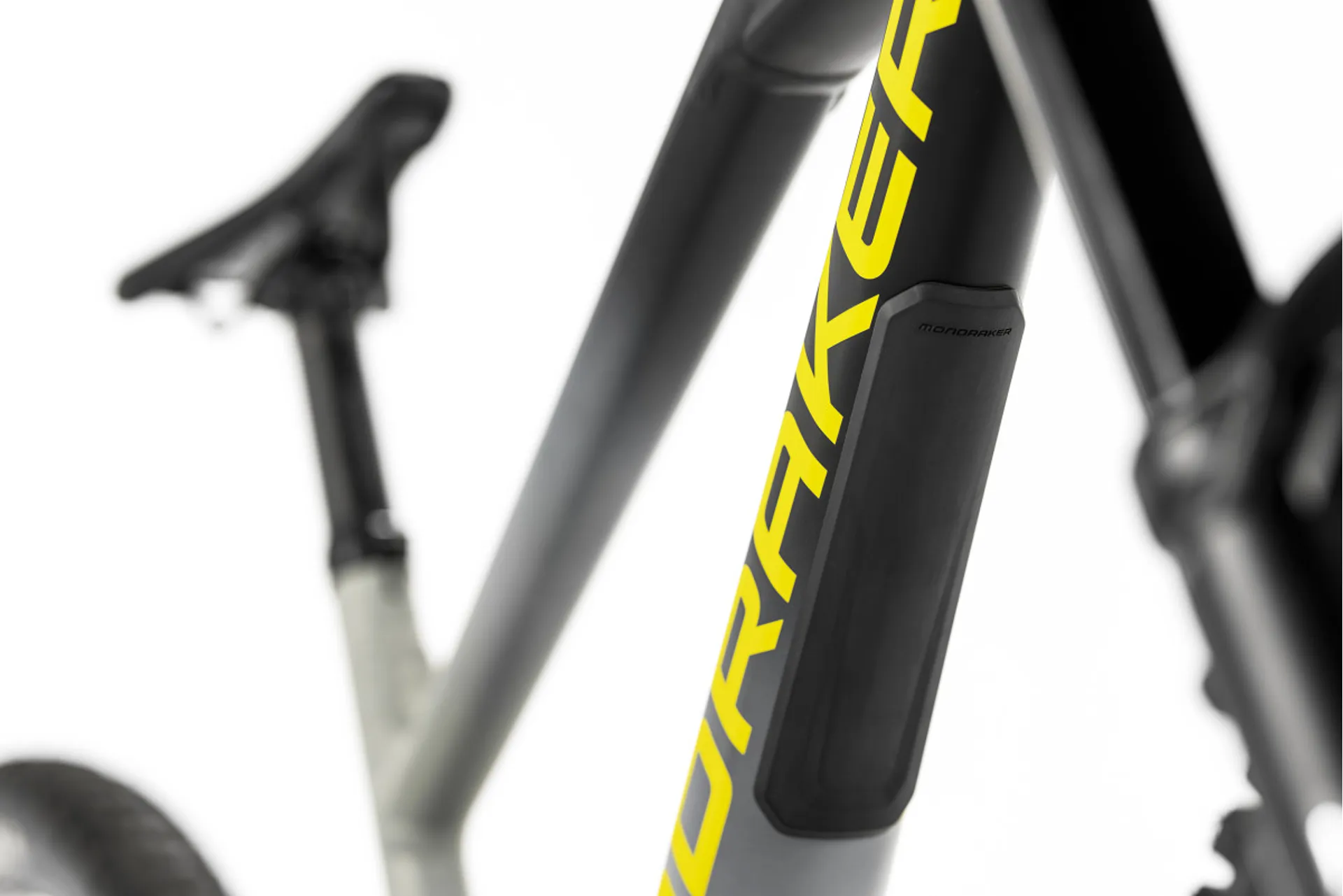

  • Frame: Summum MX 6061 Alloy Stealth Evo, mullet wheel setup, hydroformed tubing, Updated Zero Suspension System, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, 12x157mm rear axle, UDH, 83mm BSA bottom bracket, MAX capacity dual-row Enduro bearings, HHG internal cable routing, ISCG 05

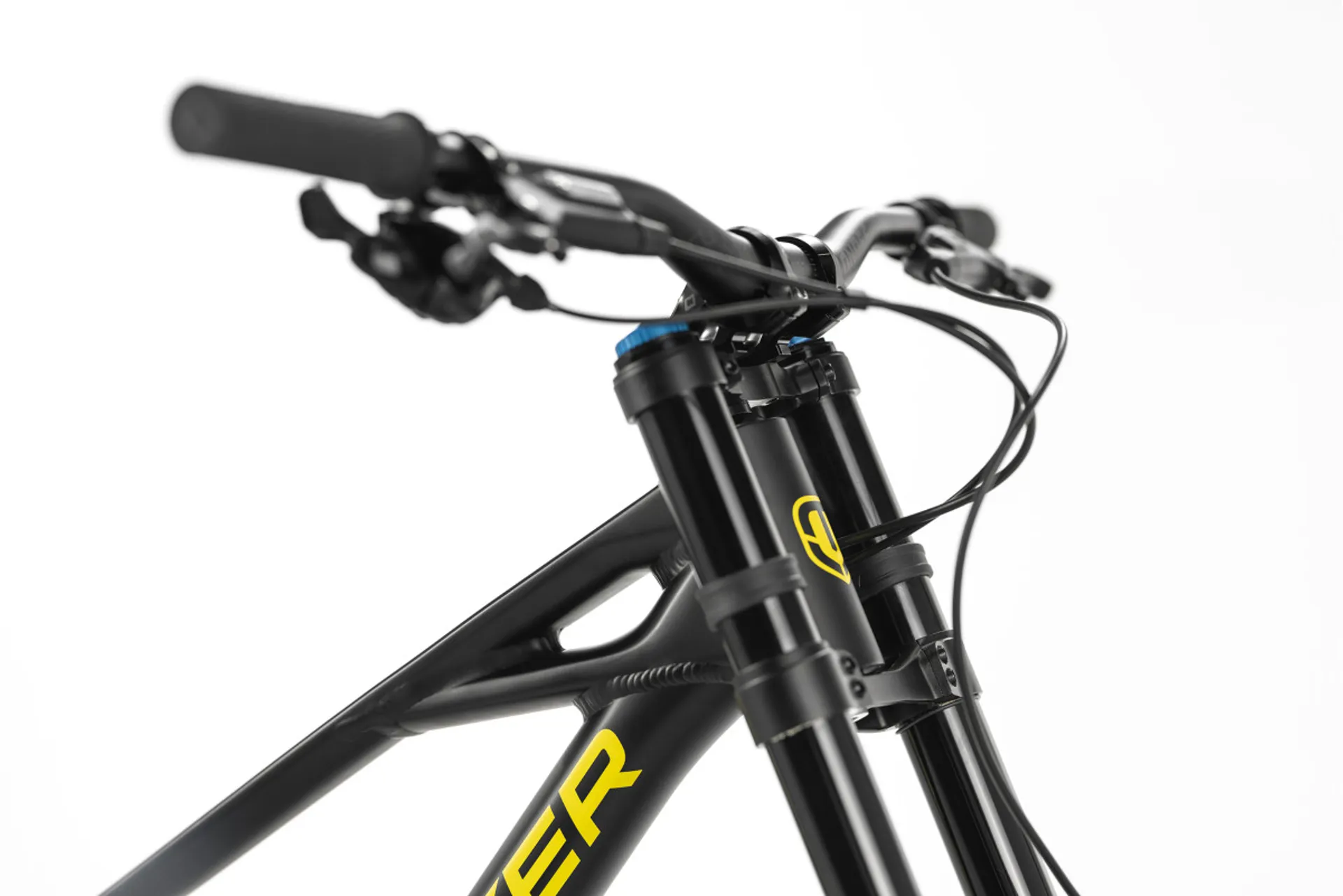

  • Fork: Fox 40 Float GRIP Performance, 203mm travel, air spring, 1-1/8" steerer tube, 20x110mm axle, 52mm offset, 3-position compression adjustment, air preload
  • Number of Gears: 7
  • Gear Shifters: SRAM GX DH trigger shifter, 7-speed, X-Actuation 1:1

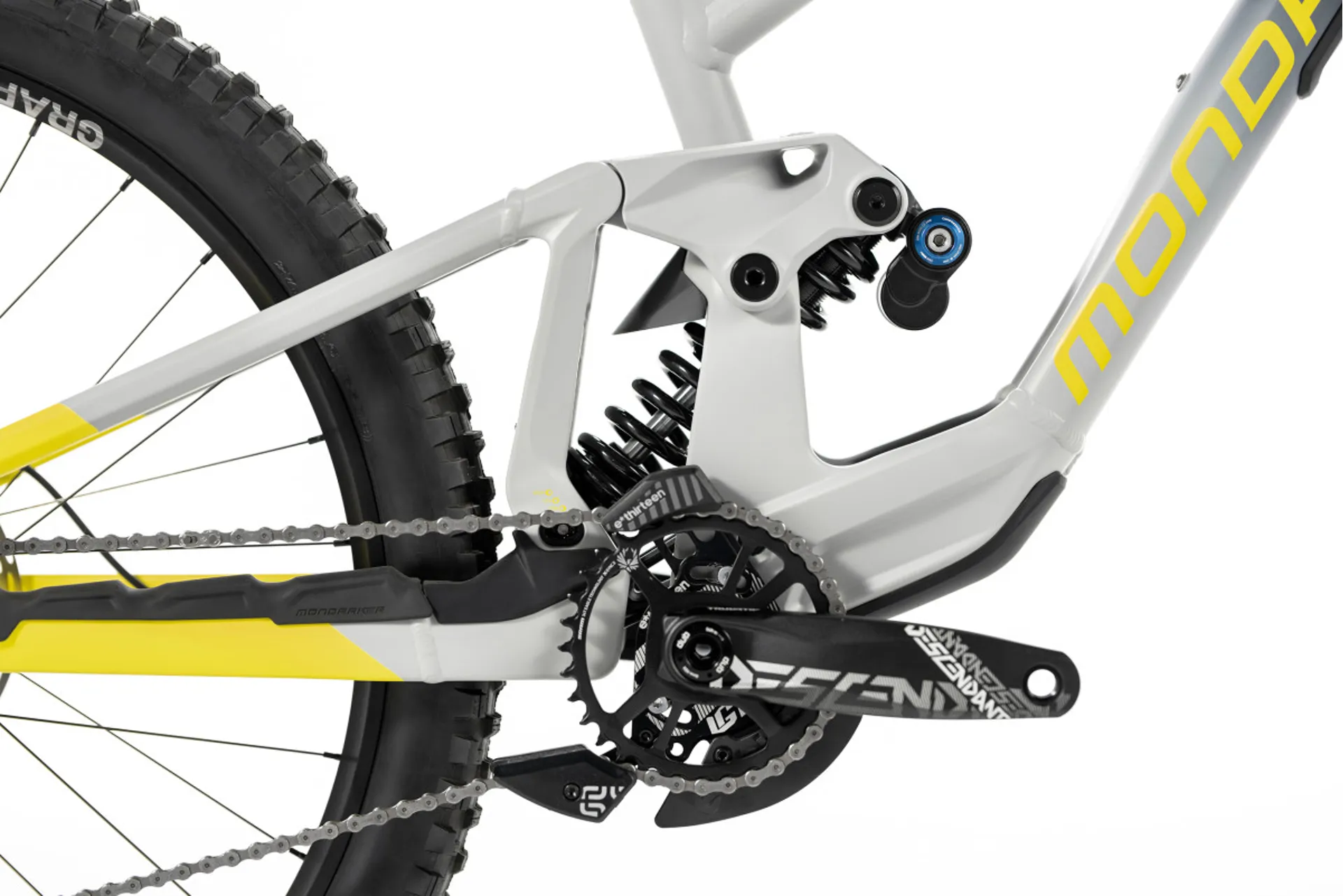

  • Chainset: SRAM Truvativ Descendant DH, DUB axle, direct mount chainring, 165mm
  • Chainrings: 34T steel X-SYNC
  • Rear Cassette: SRAM PG-720, 11-25T, 7-speed
  • Chain: SRAM PC1110, 11-speed, PowerLock
  • Front Derailleur: None

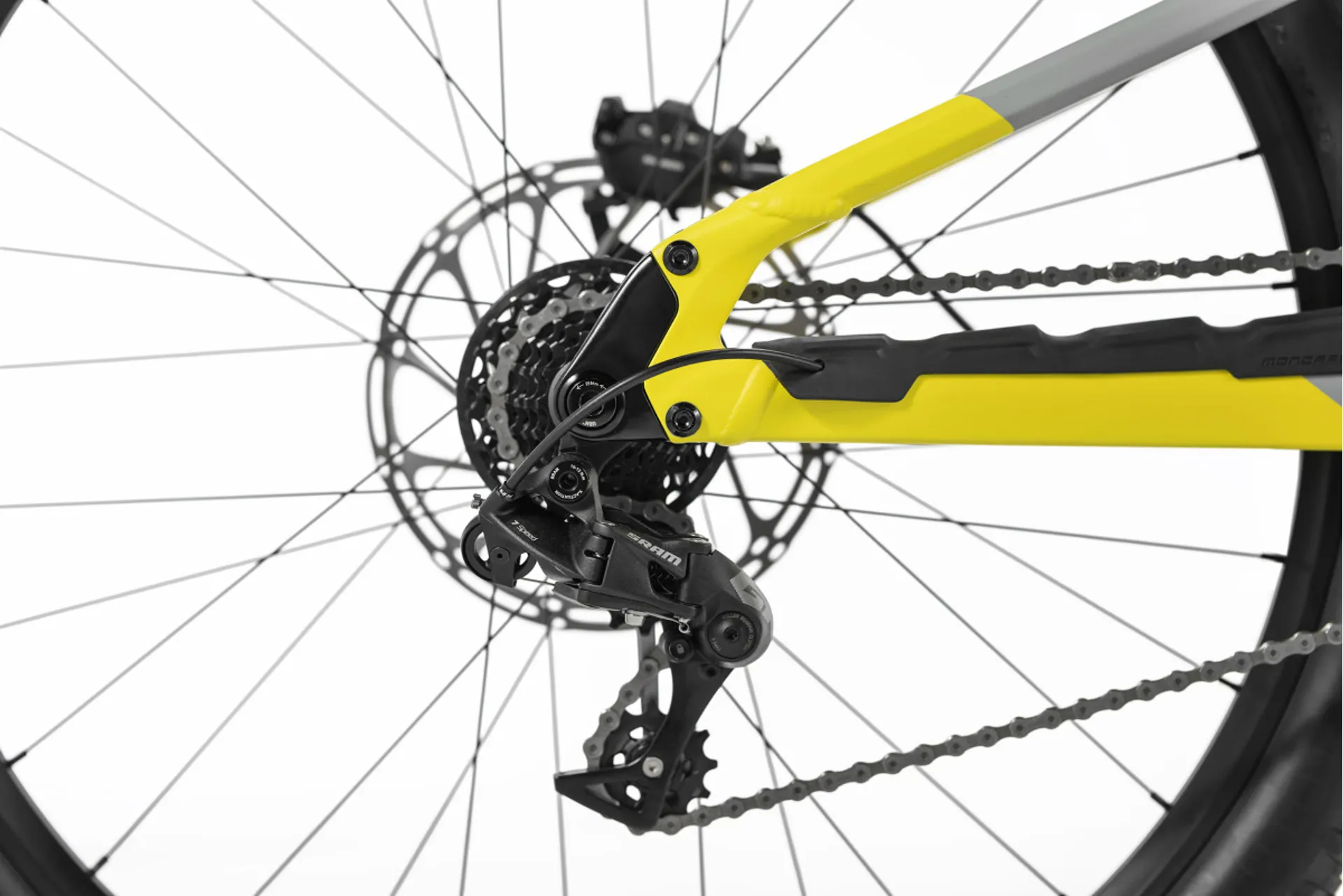

  • Rear Derailleur: SRAM GX DH, 7-speed, medium cage
  • Bottom Bracket: SRAM DUB BSA, sealed bearings, 83mm
  • Pedals: Not supplied — Shop Pedals Here
  • Rims: ethirteen Grappler Flux, IW30 hookless welded 6069 aluminium, 30mm internal width, tubeless ready, 28 spokes
    Front Hub: e
    thirteen Boost 20x110mm, triple-sealed, IS 6-bolt
  • Rear Hub: e*thirteen 12x157mm Sidekick hub, adjustable 12°/15°/18° deadband, triple-sealed, IS 6-bolt, HG freehub
  • Front Tyre: Maxxis Assegai 29x2.5 WT, 3C MaxxGrip compound, DH casing, 60x2TPI, tubeless ready, folding bead
  • Rear Tyre: Maxxis Minion DHR II 27.5x2.5 WT, 3C MaxxTerra compound, DH protection, 60x2TPI, tubeless ready, folding bead
  • Brakes: SRAM Maven Base hydraulic disc brakes

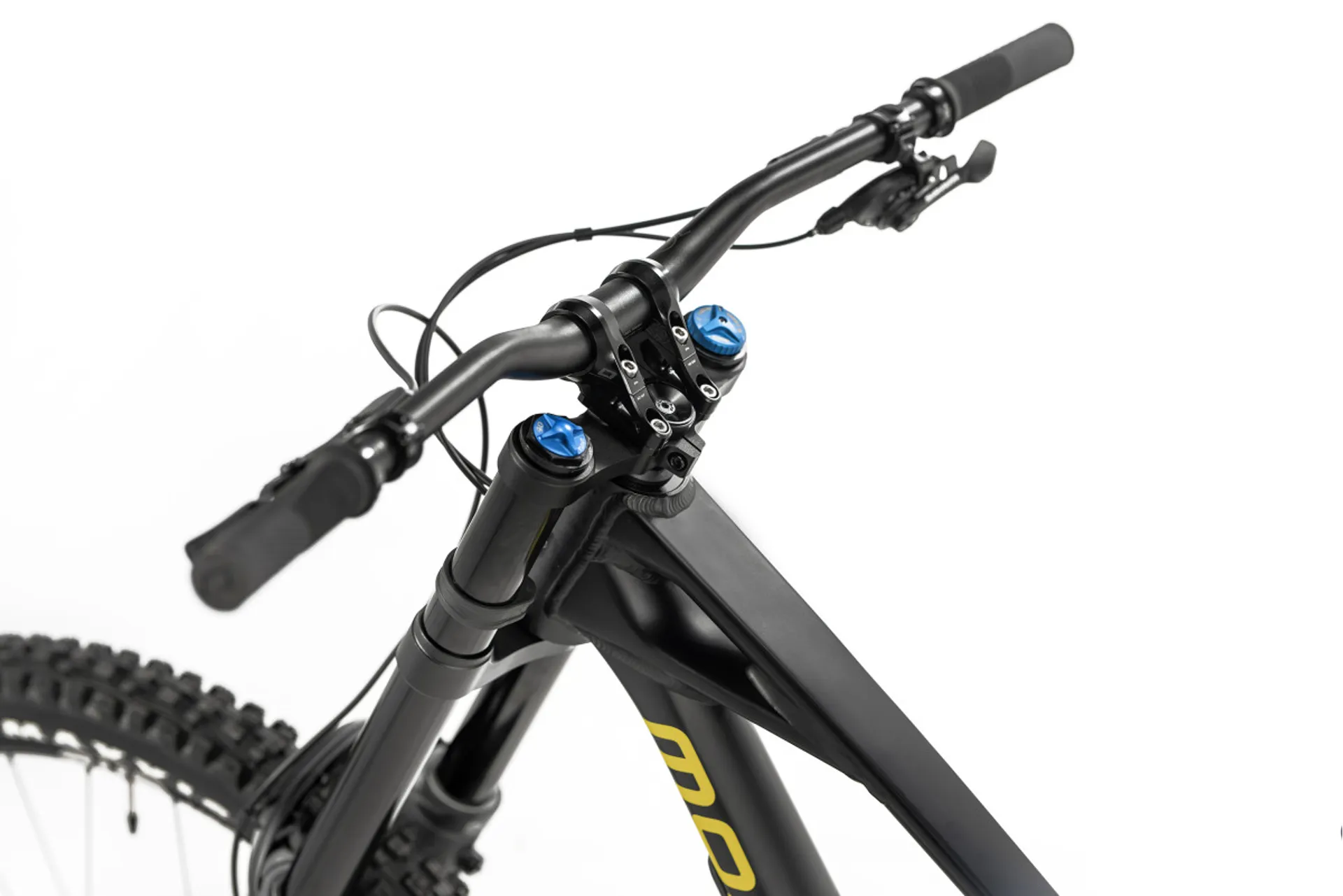

  • Handlebars: Onoff S6 1.0 7050 alloy, 25mm rise, 800mm width, 8º backsweep, 5º upsweep
  • Handlebar Tape: Onoff Desert Pro CNC lock-on grips, 135mm
  • Stem: Onoff S9 DH CNC Integrated stem, adjustable 45-50mm length, 10mm rise, 7075 alloy
  • Saddle: Ergon SM10 DH Black
  • Seatpost: Onoff S3 DH Alloy, 31.6mm diameter, 300mm length
  • Accessories: Geometry adjustment kit including ±5mm headset cups, lower shock mount flip chip, and ±5mm rear dropout adjustment
  • Weight: 18.9kg

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Mondraker Summum

Frame SizeRider Height (cm)Rider Height (')
SmallUnder 170 cmUnder 5'7"
Medium167.5–177.5 cm5'6"–5'10"
Large175–187.5 cm5'9"–6'2"
X-Large185–197 cm6'1"–6'6"

Geometry Information for Mondraker Summum


Frame size
SMLXL
ASeattube length400 mm400 mm400 mm400 mm
BToptube length576 mm596 mm621 mm646 mm
CBottom bracket drop-5 mm-5 mm-5 mm-15 mm
DBottom bracket height350 mm350 mm350 mm350 mm
EChainstay length450 mm450 mm450 mm450 mm
FSeat tube angle69°69°69°69°
GEffective seattube angle77°77°77°77°
HHeadtube angle63.5°63,5º63,5º63,5º
IFork Offset58 mm58 mm58 mm58 mm
JWheelbase1256 mm1270 mm1301 mm1326 mm
KHeadtube length112 mm112 mm112 mm112 mm
LReach430 mm450 mm475 mm500 mm
MStack632 mm632 mm632 mm632 mm

Warranty Information for Mondraker:

Mondraker offers an extended lifetime warranty for all its frames against defects in materials or manufacturing. Exclusions and terms apply.
It should be emphasised that each bicycle/frame has a life-cycle which will vary depending on the type of material and its construction. This life-cycle may be shortened by the form and type of use, or lack of appropriate maintenance and care. The lifetime warranty will therefore be entirely dependent on the optimal life-cycle determined by Mondraker for each specific Product.

The Avinox drive system (motor, battery, display, and charger) comes with a 2-year warranty starting from the activation date, covering up to 500 charge cycles. Exclusions and terms apply.

All warranty claims for Mondraker components or original parts will be handled through an authorised Mondraker distribution point, and the original commercial invoice must be provided.

Mondraker points of sale will handle the warranty of third-party manufacturers' components, with each manufacturer being responsible for the warranty of its components used in the product.
